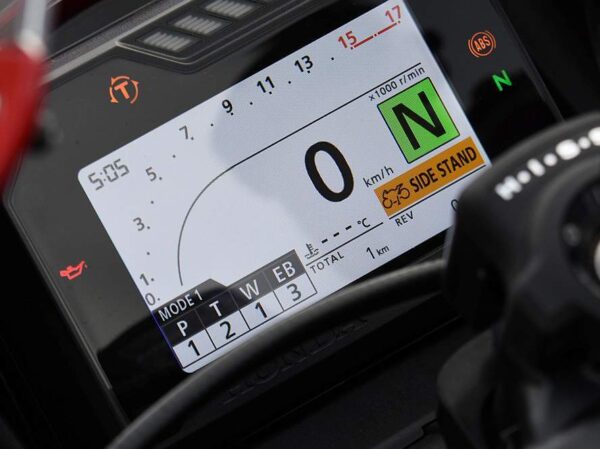

Honda CBR600RR 2021 dashboard

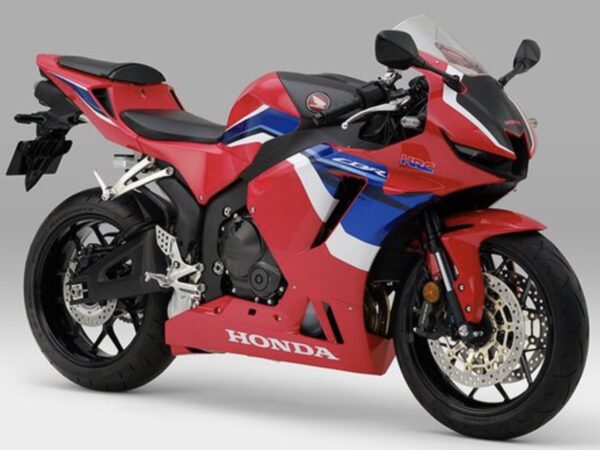

Honda CBR600RR (2021+)

Honda CBR600RR (2021+)

Category: Tag:

Specifications

Engine

599 cc Inline-4, liquid cooled

Power

113 hp @ 13500 rpm

Torque

66 Nm @ 11250 rpm

Transmission

6-speed, Wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

18 liters

Length

2029 mm

Width

685 mm

Height

1105 mm

Weight

197 kg wet

Seat Height

820 mm

Suspension

– Front: 41 mm inverted fork, fully adjustable, 109 mm travel
– Rear: single shock, fully adjustable, 129 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 310 mm floating discs, 4-piston calipers
– Rear: 220 mm disc, 1-piston caliper
– cornering ABS available

Instruments

TFT display with speedometer, odometer, gear indicator, shift-up indicator, dual trip meters, fuel gauge, clock

Other

LED lights, electronic steering damper

Engine Layout

Style

Features

, ,

Dashboard / Support us

Honda CBR600RR 2021 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda CBR600RR (2021+) removeHonda CB650R (2021+) removeHonda CB750 Hornet (2023+) removeHonda Goldwing (2019+) removeHonda CB500X (2022+) removeHonda CB300R (2018-2022) remove
NameHonda CBR600RR (2021+) removeHonda CB650R (2021+) removeHonda CB750 Hornet (2023+) removeHonda Goldwing (2019+) removeHonda CB500X (2022+) removeHonda CB300R (2018-2022) remove

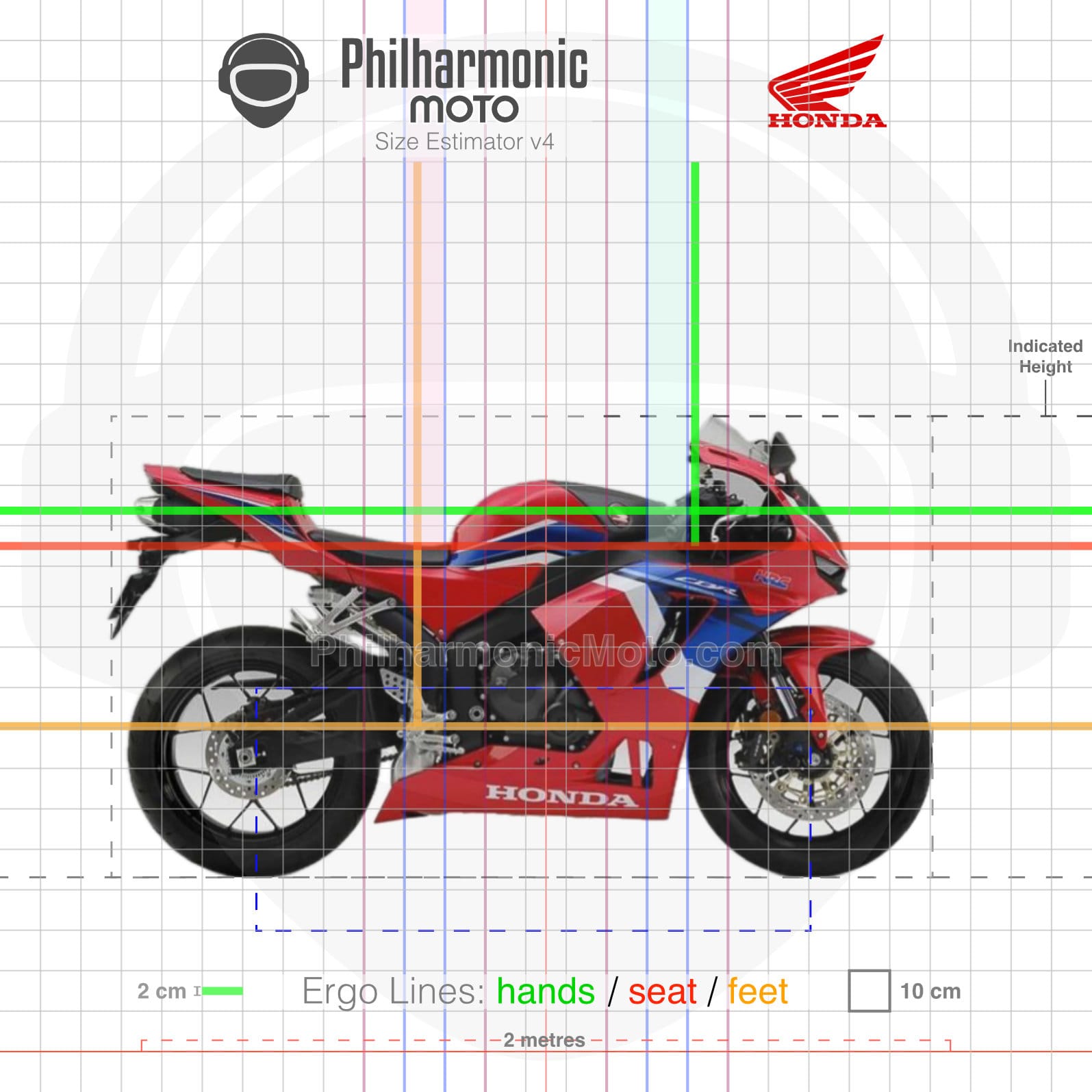

Size Estimator (see "About" page to learn more)Honda CBR600RR 2022 Grand Prix redHonda CB650R 2021 Matte Jeans Blue MetallicHonda CB750 Hornet 2023 Matte Iridium Gray MetallicHonda Goldwing 2020 Matte Black MetallicHonda CB500X 2022 Pearl Organic GreenHonda CB300R 2022 Matte Pearl Blue
Length2029 mm2130 mm2090 mm2475 mm2155 mm2020 mm
Width685 mm780 mm780 mm925 mm830 mm805 mm
Height1105 mm1075 mm1085 mm1340/1445 mm (low/high screen position)1410 mm / 1445 mm (Low/High screen position)1050 mm
Seat Height820 mm810 mm795 mm745 mm830 mm799 mm
Weight197 kg wet202 kg wet190 kg wet364 kg wet199 kg wet145 kg wet
Engine599 cc Inline-4, liquid cooled649cc Inline 4, liquid cooled, 16 valve DOHC755cc Parallel Twin, liquid cooled, 270º crank1833 cc horizontally opposed 6-cylinder, liquid cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank286cc Single-cylinder, liquid cooled
Power113 hp @ 13500 rpm94 hp @ 12000 rpm90,5 hp @ 9500 rpm125 hp @ 5500 rpm47 hp @ 8600 rpm31 hp @ 8500 rpm
Torque66 Nm @ 11250 rpm64 Nm @ 9500 rpm75 Nm @ 7250 rpm169 Nm @ 4500 rpm43 Nm @ 6500 rpm27,5 Nm @ 7250 rpm
Transmission6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive6-speed manual + reverse, wet multi-plate clutch, or 7-speed DCT + reverse, shaft final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, wet multi-plate clutch, chain final drive
Fuel Capacity18 liters15,4 liters15,2 liters21 liters17,5 liters10,1 liters
Suspension- Front: 41 mm inverted fork, fully adjustable, 109 mm travel - Rear: single shock, fully adjustable, 129 mm travel- Front: 41 mm inverted telescopic fork, 108 mm travel, - Rear: single shock, adjustable preload, 128 mm travel- Front: 43 mm inverted forks, pre-load adjustable, 130 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 150 mm travel- Front: double wishbone, 110 mm travel - Rear: single shock, electronically adjustable preload, 105 mm travel- Front: Showa 41 mm SFF-BP USD forks, pre-load adjustable, 135 mm travel - Rear: Prolink mono with 5 stage preload adjuster, 135 mm travel- Front: 41 mm inverted forks, 130 mm travel - Rear: mono-shock, adjustable preload, 107 mm travel
Tyres- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 160/60-17- Front: 130/70-18 - Rear: 180/60-16- Front: 110/80-19 - Rear: 160/60-17- Front: 110/70-17 - Rear: 150/60-17
Brakes- Front: 310 mm floating discs, 4-piston calipers - Rear: 220 mm disc, 1-piston caliper - cornering ABS available- Front: 2x 310 mm discs - Rear: 240 mm disc - ABS available- Front: 296 mm discs, 4-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available- Front brake: 320 mm discs, six-piston Nissin calipers - Rear brake: 320 mm rear disc, six-piston Nissin caliper- Front: Dual 296 mm disc, Nissin radial-mount 2-piston calipers - Rear: 240 mm disc, single-piston caliper- Front: 296mm disc, 4-piston caliper - Rear: 220mm disc, single-piston caliper - ABS available
InstrumentsTFT display with speedometer, odometer, gear indicator, shift-up indicator, dual trip meters, fuel gauge, clockDigital speedometer, odometer, tachometer, gear indicator, fuel gauge, temperature gauge, trip meters, clockTFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modesAnalogue speedometer and tachometer, touchscreen with mobile connectivity, LCD displays with fuel gauge, temperature gauge, gear indicator, riding modesLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP IndicatorLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gauge
OtherLED lights, electronic steering damperTraction control, LED lights, USB-C under seatLED lights, traction control, cruise control, wheelie control, engine braking, riding modes, USB-C socket, self-canceling indicators, smartphone voice controlAirbag, LED lights, Riding modes, Apple CarPlay, traction control, cruise control, hill start assist, TPMS, seat heaterLED lights, emergency braking blinking lights, "cam chain has the surface of its pins treated with Vanadium"Full LED lighting
