Honda ST1300 Pan-European (2002-2018)




Brand: Style:
Share:

Specifications

Engine

1261 cc V4, liquid-cooled

Power

124,7 hp @ 8000 rpm

Power to weight ratio

38 HP/100kg

Torque

125 Nm @ 6000 rpm

Torque to weight ratio

38 Nm/100kg

Transmission

– 5-speed, wet multi-plate hydraulic clutch
– Shaft final drive

Fuel Capacity

29 litres

Length

2270 mm

Width

860 mm

Height

1390~1630 mm (adjustable windscreen)

Weight

329 kg wet

Seat Height

790 mm

Suspension

– Front: 45 mm air-assisted telescopic fork, 120 mm travel
– Rear: mono-shock, adjustable preload (remote) and rebound, 123 mm travel

Tyres

– Front: 120/70-18
– Rear: 170/60-17

Brakes

– Front: 310 mm floating discs, 3-piston calipers
– Rear: 316 mm disc, 3-piston caliper
– Combined braking, ABS available

Instruments

Analogue speedometer and tachometer, LCD display with odometer, fuel gauge, trip meters, air and coolant temperature, clock

Other

Headlight beam adjuster

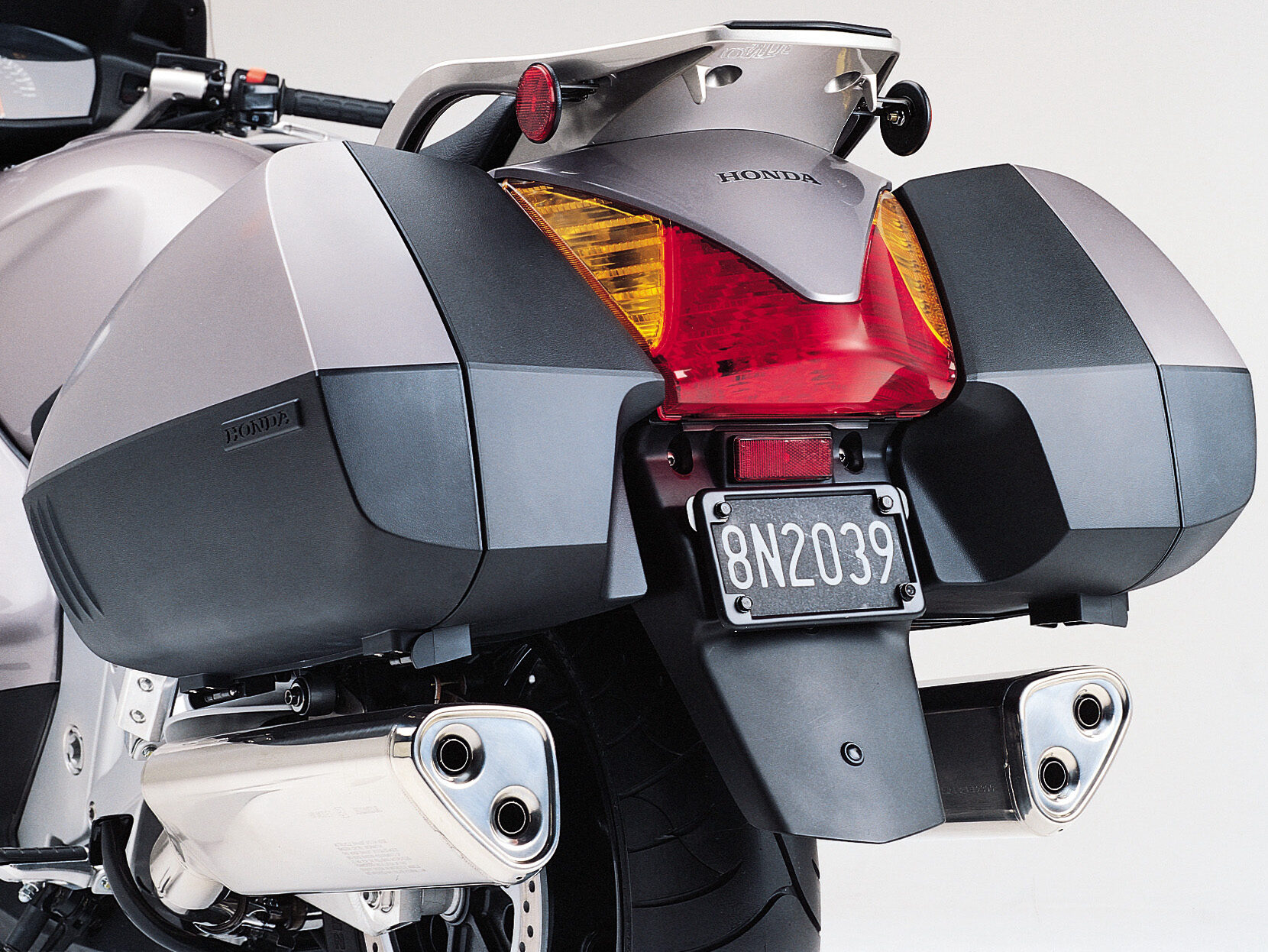

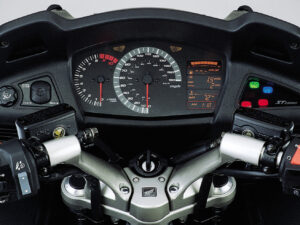

Honda ST1300 Pan European 2003 dashboard Honda ST1300 Pan European 2014 front Honda ST1300 Pan European 2003 back
