Husqvarna 701 Enduro (2021+)

Husqvarna 701 Enduro (2021+)

Dimensions based on the wheelbase, since Husqvarna didn’t divulge length, width and height.

Category: Tag:

Specifications

Engine

692 cc Single cylinder, liquid-cooled

Power

74 hp @ 8000 rpm

Torque

73,5 Nm @ 6500 rpm

Transmission

6-speed, assist/slip hydraulic clutch, quick-shifter, chain final drive

Fuel Capacity

13 liters

Length

2239 mm (estimated)

Width

?

Height

1451 mm (estimated)

Weight

147 kg dry

Seat Height

925 mm

Suspension

– Front: USD 48 mm separate function inverted forks, compression and rebound damping adjustability, 250 mm travel
– Rear: single shock, compression and rebound damping adjustability, 250 mm travel

Tyres

– Front: 90/90-21
– Rear: 140/80-18

Brakes

– Front: 300 mm disc, Brembo 2-piston floating caliper
– Rear: 240 mm disc, Brembo 1-piston floating caliper
– switchable ABS available

Instruments

LCD display with tachometer, speedometer, gear indicator, trip meter, odometer, fuel gauge, clock

Other

Traction control, riding modes, UBB socket on dashboard

Dashboard / Support us

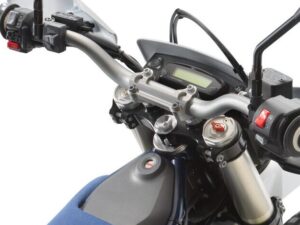

Husqvarna 701 Enduro 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHusqvarna 701 Enduro (2021+) removeKTM 690 SMC R (2021+) removeHusqvarna Norden 901 (2022+) removeHusqvarna Svartpilen 125 (2021+) removeHusqvarna 701 Supermoto (2021+) removeKawasaki KLX230SM (2023+) remove
NameHusqvarna 701 Enduro (2021+) removeKTM 690 SMC R (2021+) removeHusqvarna Norden 901 (2022+) removeHusqvarna Svartpilen 125 (2021+) removeHusqvarna 701 Supermoto (2021+) removeKawasaki KLX230SM (2023+) remove

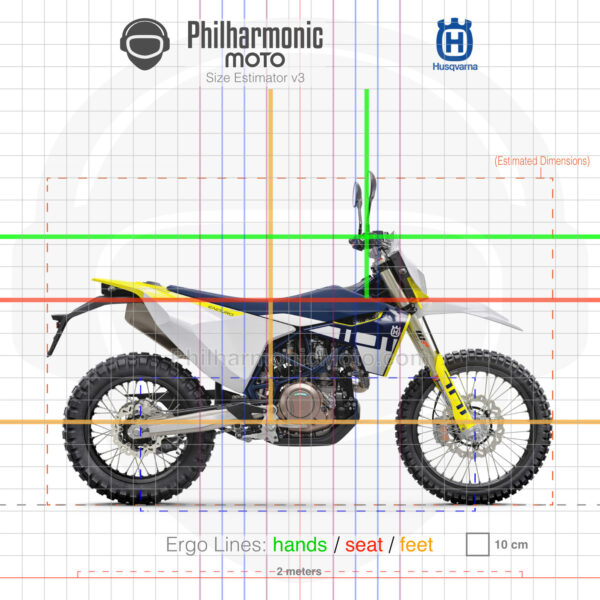

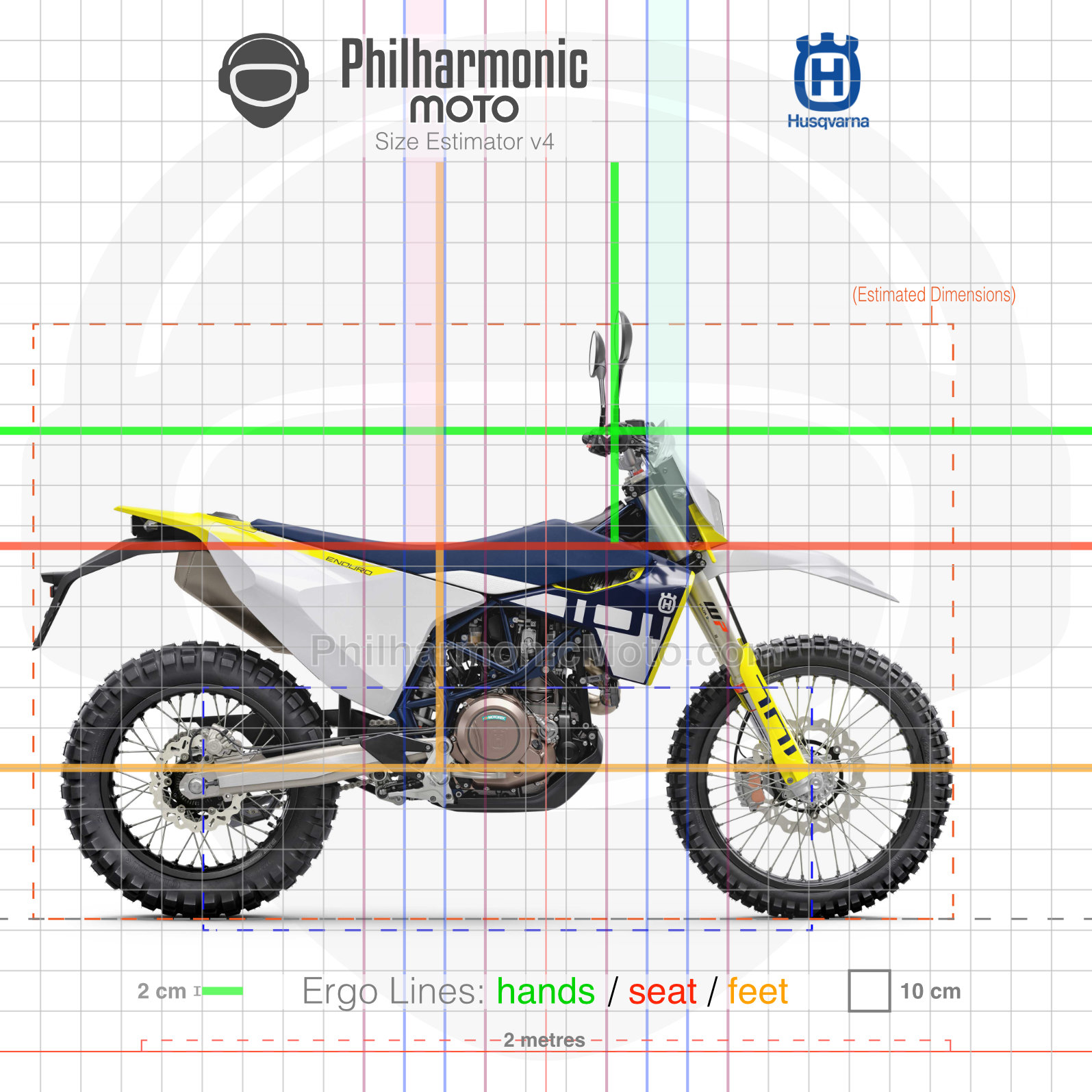

Size Estimator (see "About" page to learn more)Husqvarna 701 Enduro 2023 white and blueKTM 690 SMC R 2023 orangeHusqvarna Norden 901 2022 greyHusqvarna Svartpilen 125 2022 blackHusqvarna 701 Supermoto 2023 black and greyKawasaki KLX 230 SM 2023 lime green
Length2239 mm (estimated)2118 mm (estimated)2145 mm (estimated)2005 mm (estimated)2145 mm (estimated)2050 mm
Width?---?835 mm
Height1451 mm (estimated)1381 mm (estimated)1406 mm (estimated)1326 mm (estimated)1405 mm (estimated)1120 mm
Seat Height925 mm892 mm854/874 mm (adjustable)835 mm890 mm845 mm
Weight147 kg dry147 kg dry217 kg wet146 kg dry148 kg dry135 kg
Engine692 cc Single cylinder, liquid-cooled692 cc single-cylinder, liquid-cooled889 cc Parallel-twin, liquid-cooled124,7 cc Single-cylinder, liquid-cooled692 cc Single cylinder, liquid-cooled233 cc Single cylinder, Air cooled
Power74 hp @ 8000 rpm73 hp105 hp @ 8000 rpm15 hp @ 9500 rpm74 hp @ 8000 rpm18,7 hp @ 7600 rpm
Torque73,5 Nm @ 6500 rpm73 Nm @ 6500 rpm100 Nm @ 6500 rpm12 Nm @ 7500 rpm73,5 Nm @ 6500 rpm19,8 Nm @ 6300 rpm
Transmission6-speed, assist/slip hydraulic clutch, quick-shifter, chain final drive6-speed, assist/slip hydraulic clutch, quick-shifter, chain final drive6-speed, assist/slip clutch, quick-shifter, chain final drive6-speed, wet multi-plate clutch, chain final drive6-speed, assist/slip hydraulic clutch, quick-shifter, chain final drive6-speed, Wet multi-plate clutch, chain final drive
Fuel Capacity13 liters13,5 liters19 liters9,5 liters13 liters7,5 liters
Suspension- Front: USD 48 mm separate function inverted forks, compression and rebound damping adjustability, 250 mm travel - Rear: single shock, compression and rebound damping adjustability, 250 mm travel- Front: WP APEX 48 mm inverted fork, fully adjustable, 215 mm travel - Rear: single shock, fully adjustable, 240 mm travel- Front: 43 mm inverted fork, fully adjustable, 220 mm travel - Rear: single shock, adjustable rebound damping and (remote) preload, 215 mm travel- Front: WP Apex 43 mm inverted fork, 142 mm travel - Rear: WP Apex mono-shock, adjustable preload, 142 mm travel- Front: USD 48 mm separate function inverted forks, compression and rebound damping adjustability, 215 mm travel - Rear: single shock, fully adjustable, 240 mm travel- Front: 37 mm inverted fork, 204 mm travel - Rear: Uni Trak, mono-shock, adjustable preload, 168 mm travel
Tyres- Front: 90/90-21 - Rear: 140/80-18- Front: 120/70-17 - Rear: 160/60-17- Front: 90/90-21 - Rear: 150/70-18- Front: 110/70-17 - Rear: 150/60-17- Front: 120/70-17 - Rear: 160/60-17- Front: 110/70-17 - Rear: 120/70-17
Brakes- Front: 300 mm disc, Brembo 2-piston floating caliper - Rear: 240 mm disc, Brembo 1-piston floating caliper - switchable ABS available- Front: 320 mm disc, Brembo 4-piston radial caliper - Rear: 240 mm disc, Brembo 1-piston floating caliper - switchable cornering ABS available- Front: 2x320 mm discs, 4-piston radial caliper - Rear: 260 mm disc, 2-piston floating caliper - switchable cornering ABS available- Front: 320 mm disc, 4-piston caliper - Rear: 230 mm disc, 1-piston floating caliper - ABS available- Front: 320 mm disc, Brembo 4-piston radial caliper - Rear: 240 mm disc, Brembo 1-piston floating caliper - cornering ABS available- Front: 300 mm semi-floating petal disc, 2-piston caliper - Rear: 220 mm petal disc, 1-piston caliper - ABS available
InstrumentsLCD display with tachometer, speedometer, gear indicator, trip meter, odometer, fuel gauge, clockLCD display with speedometer, tachometer, odometerTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clockLCD display with tachometer, speedometer, gear indicator, trip meter, odometer, fuel gauge, clockLCD display with tachometer, speedometer, gear indicator, trip meter, odometer, fuel gauge, clockDigital speedometer, tachometer, fuel gauge, odometer, clock
OtherTraction control, riding modes, UBB socket on dashboardCornering traction control, riding modes, Supermoto Mode, anti-wheelie, USB socketLED lights, cornering traction control, riding modes, smartphone connectivity, cruise controlLED lightsCornering Traction control, riding modes, UBB socket on dashboardLED headlight
