Husqvarna Svartpilen 125 (2021-2023)

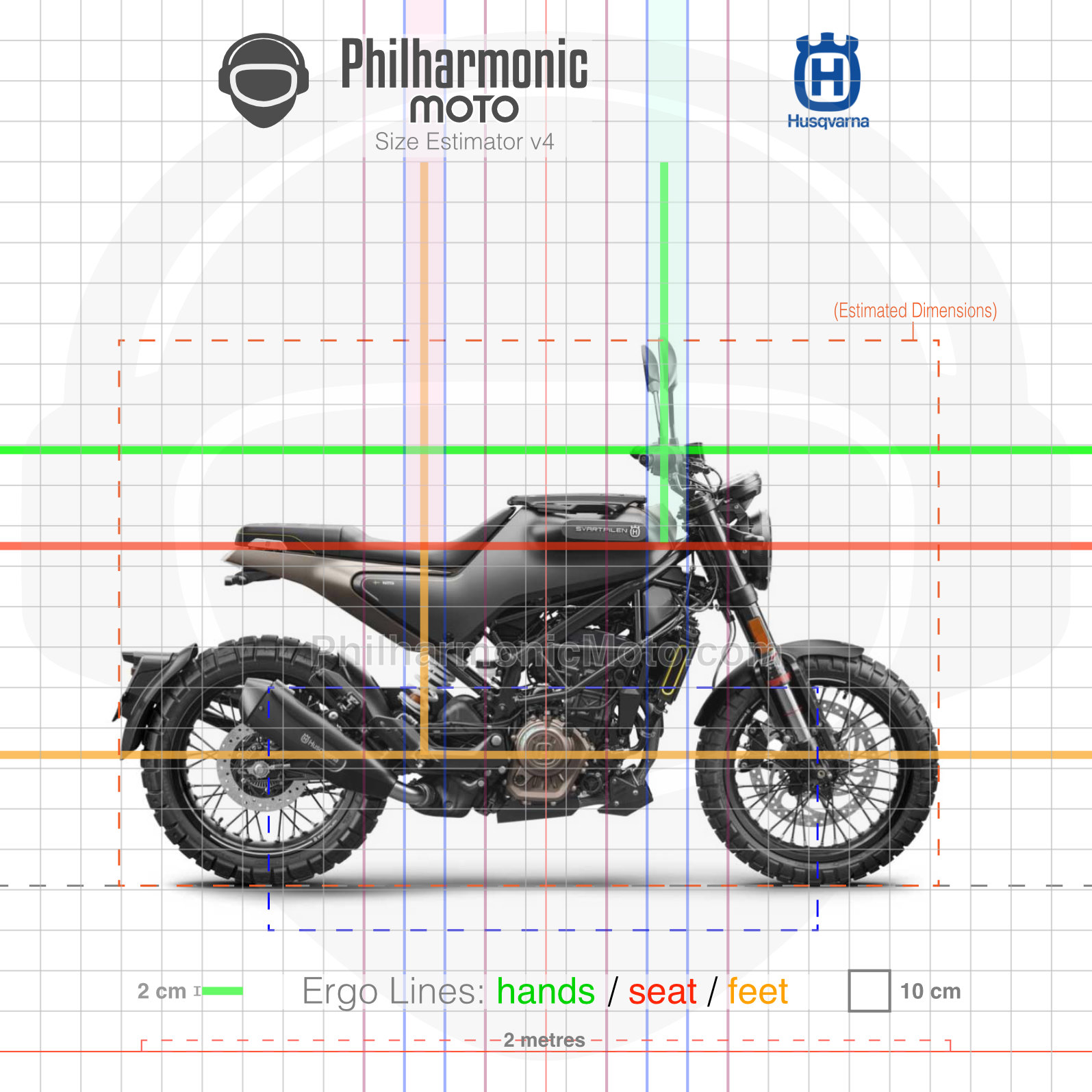

Estimated dimensions based on wheelbase since Husqvarna didn’t divulge them.

Brand: Style:
Share:

Specifications

Engine

124 cc Single-cylinder, liquid-cooled

Power

14,7 hp @ 9500 rpm

Power to weight ratio

9 HP/100kg

Torque

12 Nm @ 7500 rpm

Torque to weight ratio

8 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

9,5 litres

Length

2026 mm (estimated)

Width

Height

1348 mm (estimated)

Weight

163 kg (estimated wet)

Seat Height

835 mm

Suspension

– Front: WP Apex 43 mm inverted fork, 142 mm travel
– Rear: WP Apex mono-shock, adjustable preload, 142 mm travel

Tyres

– Front: 110/70-17
– Rear: 150/60-17

Brakes

– Front: 320 mm disc, 4-piston caliper
– Rear: 230 mm disc, 1-piston floating caliper
– ABS available

Instruments

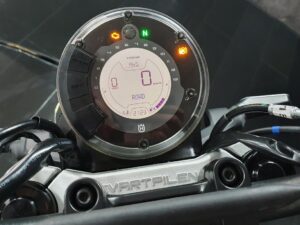

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, clock

Other

– LED lights

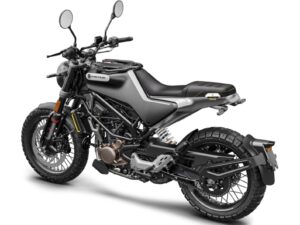

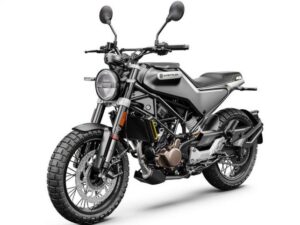

Husqvarna Svartpilen 125 2021 front Husqvarna Svartpilen 125 2021 back
