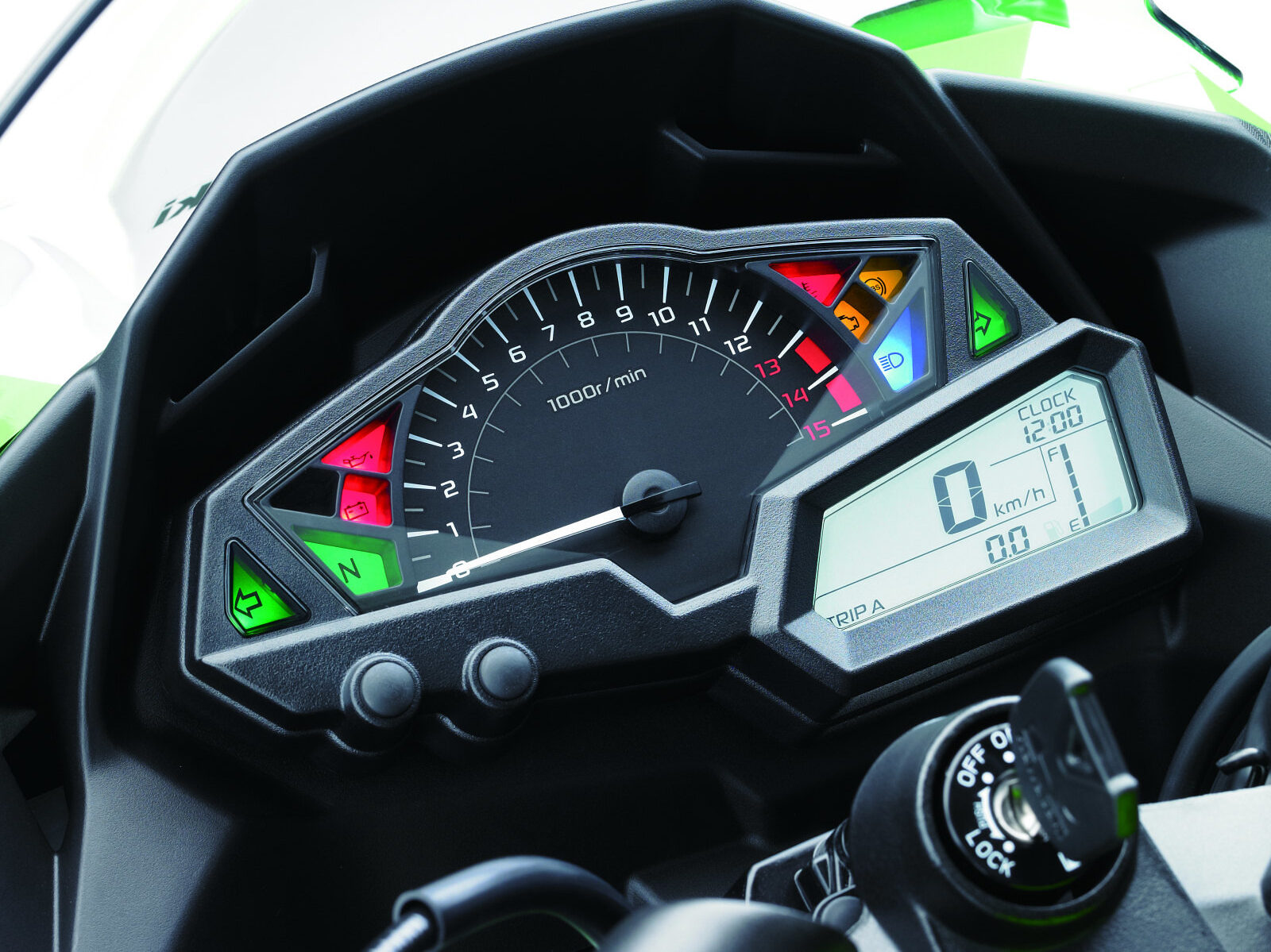

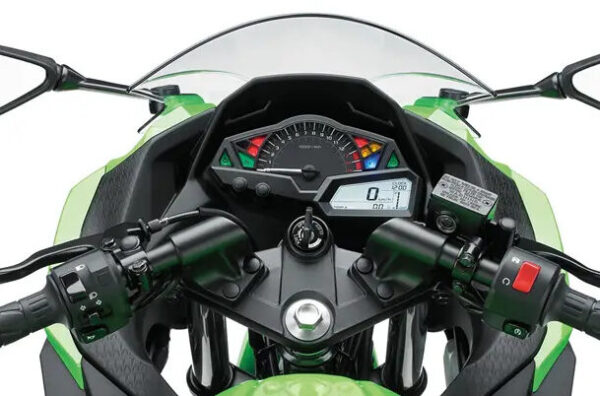

Kawasaki Ninja 300 2017 dashboard cockpit

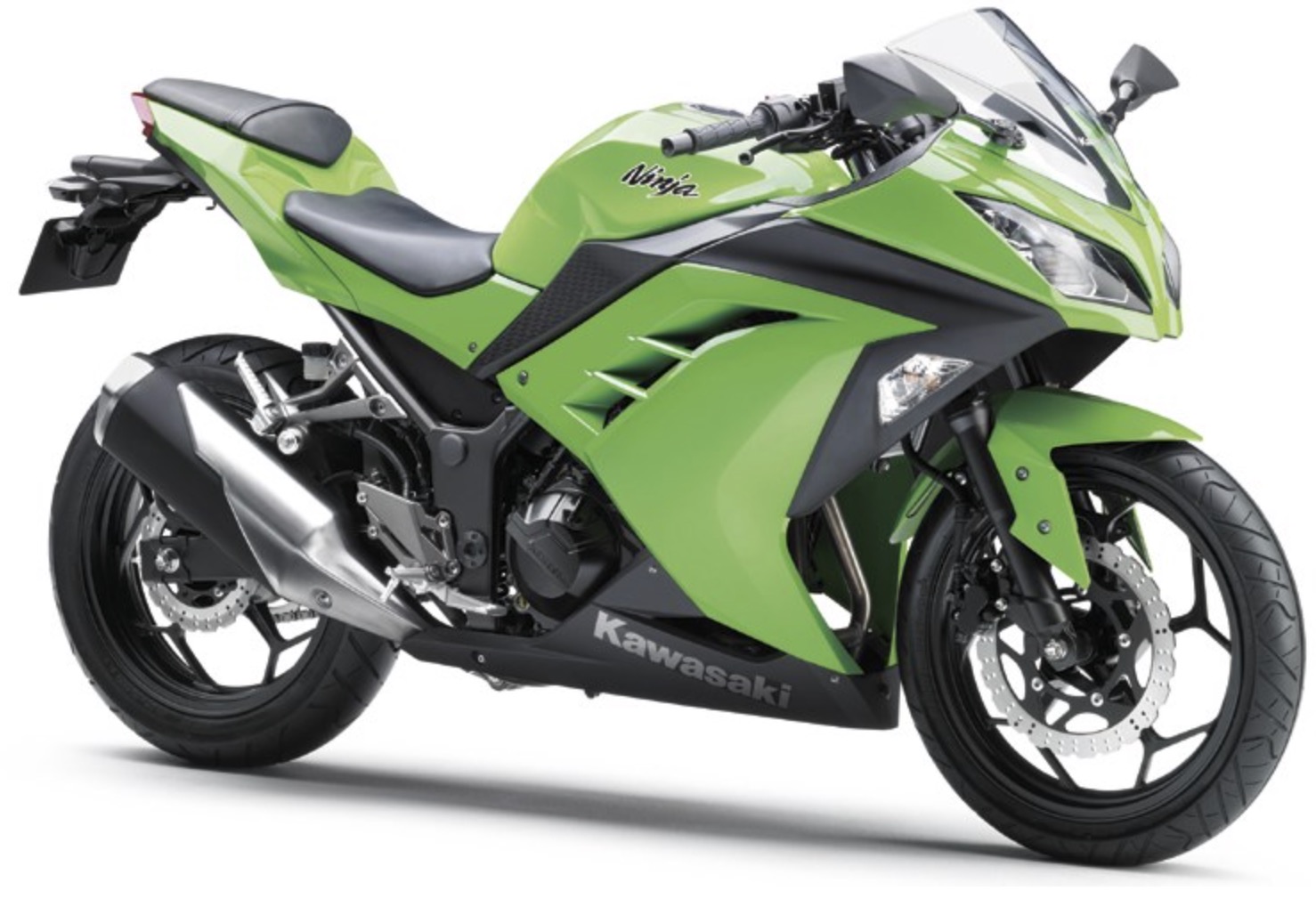

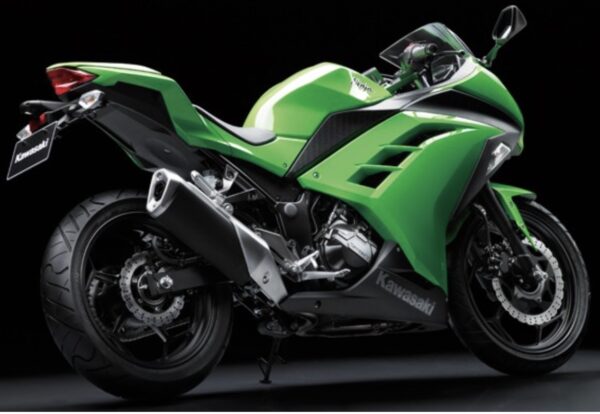

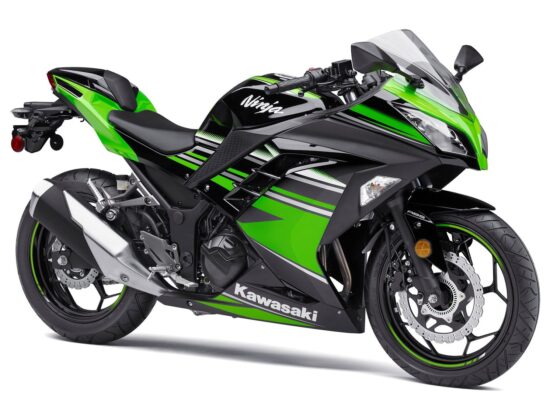

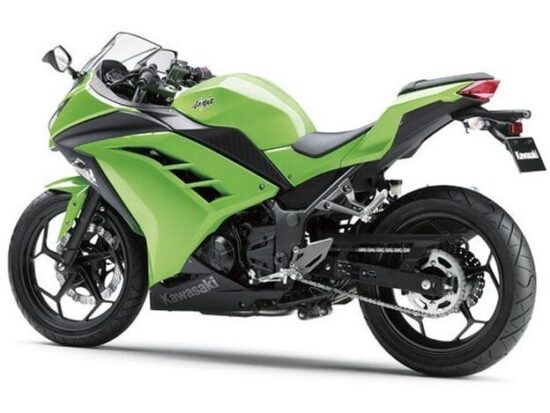

Kawasaki Ninja 300 (2012-2018)

Name: Kawasaki Ninja 300 (2012-2018)
SKU: 1220
Price: 39 MOP
Availability: InStock

—

Category: Kawasaki Tag: Sport

Specifications

Engine	296 cc Parallel-Twin, liquid-cooled
Power	39 hp @ 11.000 rpm
Torque	27 Nm @ 10.000 rpm
Transmission	6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity	17 liters
Length	2015 mm
Width	715 mm
Height	1110 mm
Weight	174 kg wet
Seat Height	785 mm
Suspension	– Front: 37 mm telescopic fork, 120 mm travel – Rear: Uni Trak, mono-shock, adjustable preload, 132 mm travel
Tyres	– Front: 110/70-17 – Rear: 140/70-17
Brakes	– Front: 290 mm petal disc, 2-piston caliper – Rear: 220 mm petal disc, 2-piston caliper – ABS available
Instruments	Analogue tachometer, digital speedometer, dual trip meter, fuel gauge, clock

Dashboard / Support us

T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Kawasaki Ninja 300 (2012-2018) remove	Kawasaki Ninja 650 (2020-2022) remove	Kawasaki KLR650 (2022+) remove	Kawasaki Versys X-300 (2017+) remove	Kawasaki Ninja 125 (2019+) remove	Kawasaki Z650RS (2022+) remove
Name	Kawasaki Ninja 300 (2012-2018) remove	Kawasaki Ninja 650 (2020-2022) remove	Kawasaki KLR650 (2022+) remove	Kawasaki Versys X-300 (2017+) remove	Kawasaki Ninja 125 (2019+) remove	Kawasaki Z650RS (2022+) remove
Size Estimator (see "About" page to learn more)
Length	2015 mm	2056 mm	2280 mm	2170 mm	1935 mm	2065 mm
Width	715 mm	750 mm	970 mm	860 mm	685 mm	800 mm
Height	1110 mm	1145 mm	1430 mm / 1465 mm (low/high screen position)	1390 mm	1075 mm	1115 mm
Seat Height	785 mm	790 mm	870 mm	845 mm	785 mm	820 mm
Weight	174 kg wet	192 kg wet	210 kg wet	175 kg wet	148 kg wet	187 kg wet
Engine	296 cc Parallel-Twin, liquid-cooled	650 cc Parallel Twin, liquid-cooled	652 cc Single-cylinder, liquid-cooled	296cc Parallel Twin, liquid cooled, 8 valve DOHC	125 cc single cylinder, liquid-cooled	650cc Parallel Twin, liquid-cooled, 8 valve DOHC
Power	39 hp @ 11.000 rpm	67 hp @ 8000 rpm	39 hp @ 6000 rpm	39 hp @ 11.500 rpm	15 hp @ 10000 rpm	67 hp @ 8000 rpm
Torque	27 Nm @ 10.000 rpm	64 Nm @ 6500 rpm	51,5 Nm @ 4500 rpm	25,7 Nm @ 10.000 rpm	11,7 Nm @ 7700 rpm	64 Nm @ 6700 rpm
Transmission	6-speed, wet multi-plate slip/assist clutch, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	5-speed, Wet multi-plate clutch, chain final drive	6-speed, wet multi-plate slip/assist clutch, chain final drive	6-speed, Wet multi-plate clutch, chain final drive	6-speed, Wet multi-plate assist/slip clutch, chain final drive
Fuel Capacity	17 liters	15 liters	23 liters	17 liters	11 liters	12 liters
Suspension	- Front: 37 mm telescopic fork, 120 mm travel - Rear: Uni Trak, mono-shock, adjustable preload, 132 mm travel	- Front: telescopic fork, 125 mm travel - Rear: Horizontal Back-link single-shock, adjustable preload, 130 mm travel	- Front: 41 mm telescopic forks, 200 mm travel - Rear: Uni Trak, single shock, adjustable preload and rebound damping, 202 mm travel	- Front: 41 mm telescopic fork, 130 mm travel - Rear: Bottom-Link Uni Trak, gas-charged shock with adjustable preload, 148 mm travel	- Front: 37 mm telescopic fork, 110 mm travel - Rear: mono-shock, adjustable preload, 120 mm travel	- Front: 41 mm telescopic fork, 125 mm travel - Rear: Horizontal Back-link single shock, adjustable preload, 130 mm travel
Tyres	- Front: 110/70-17 - Rear: 140/70-17	- Front: 120/70-17 - Rear: 160/60-17	- Front: 90/90-21 - Rear: 130/80-17	- Front: 100/90-19 - Rear: 130/80-17	- Front: 100/80-17 - Rear: 130/70-17	- Front: 120/70-17 - Rear: 160/60-17
Brakes	- Front: 290 mm petal disc, 2-piston caliper - Rear: 220 mm petal disc, 2-piston caliper - ABS available	- Front: 2x300 mm semi-floating petal discs, 2-piston calipers - Rear: 220 mm petal disc, 1-piston caliper - ABS available	- Front: 300 mm disc, 2-piston caliper - Rear: 240 mm disc, 2-piston caliper - ABS available	- Front: 290 mm petal disc, Balanced-actuation 2-piston caliper - Rear: 220 mm petal disc, 2-piston caliper - ABS available	- Front: 290 mm petal disc, 2-piston caliper - Rear: 220 mm petal disc, 2-piston caliper - ABS available	- Front: Dual semi-floating 300 mm discs, 2-piston calipers - Rear: 220 mm disc, single-piston caliper - ABS available
Instruments	Analogue tachometer, digital speedometer, dual trip meter, fuel gauge, clock	TFT screen with tachometer, speedometer, odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, remaining range, current and average fuel consumption, clock	LCD display with speedometer, odometer, fuel gauge, dual trip meters, clock	Analogue tachometer, digital speedometer, gear indicator, dual trip meter, fuel gauge, temperature gauge, current and average consumption, clock	LCD display with speedometer, tachometer, odometer, trip meter, fuel gauge, clock	Analogue speedometer and tachometer, digital odometer, gear indicator, fuel gauge, temperature gauge, dual trip meters, clock
Other		LED headlights, smartphone connectivity	-		-	LED lights
