Kawasaki Ninja 500 SE (2024+)

EX500J

Updated: 29 June 2024


Brand: Style:
Share:

Specifications and Features

Engine

451 cc Parallel-twin, liquid-cooled

Power

45 hp @ 9000 rpm (US: 51 @ 10000)

Power to weight ratio

26 HP/100kg (US: 30)

Torque

43 Nm @ 6000 rpm (US: 43 @ 7500)

Torque to weight ratio

25 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

14 litres

Length

1995 mm

Width

730 mm

Height

1120 mm

Weight

– 172 kg wet (173 kg USA)
– Max load: 180 kg

Seat Height

785 mm

Suspension

– Front: 41 mm telescopic fork, 120 mm travel
– Rear: mono-shock, adjustable preload, 130 mm travel

Tyres

– Front: 110/70-17
– Rear: 150/60-17

Brakes

– Front: 310 mm semi-floating disc, 2-piston caliper
– Rear: 220 mm disc, 2-piston caliper
– ABS available

Instruments

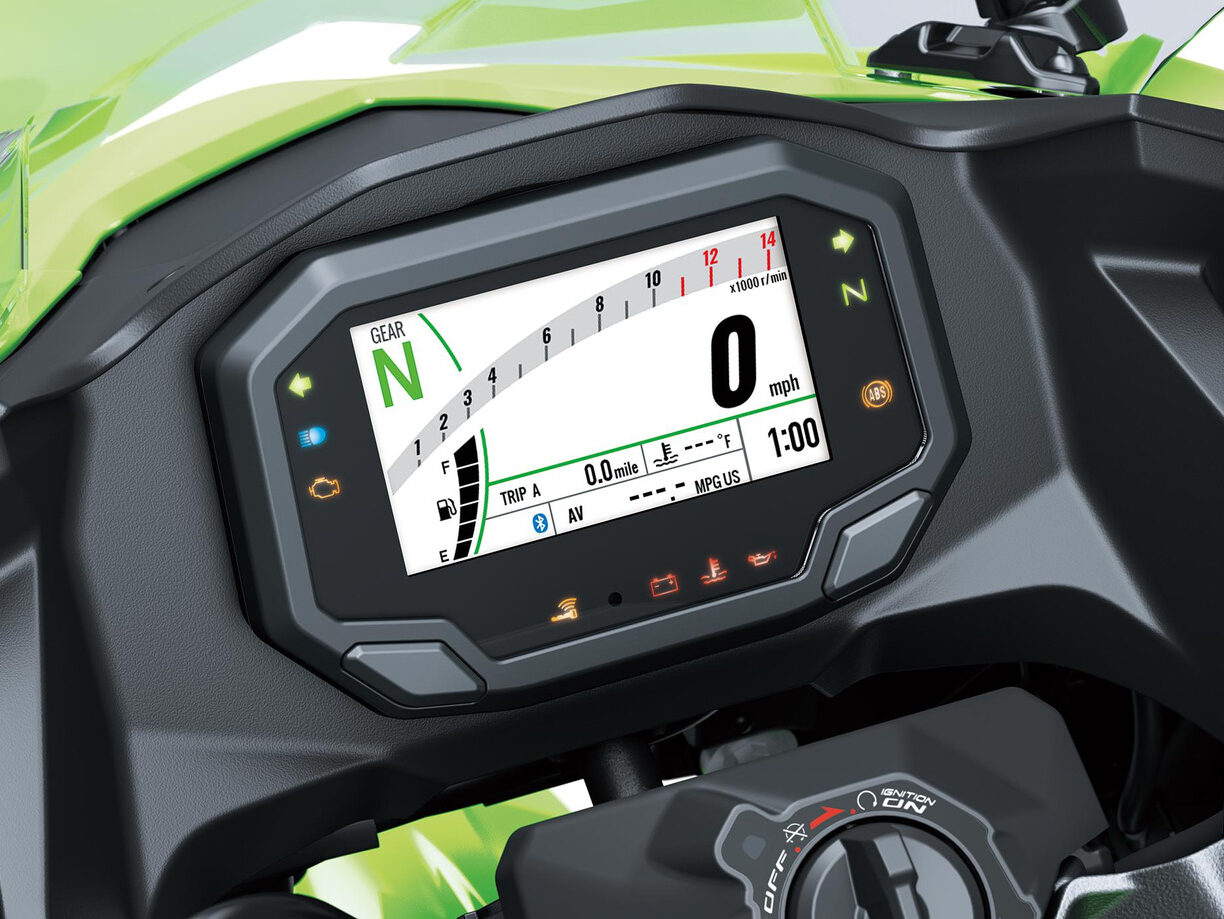

– 4.3" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meters, clock
– Smartphone connectivity

Other

– LED lights
– Keyless ignition and steering lock. US: large windshield, pillion seat cover, frame sliders, USB-C port, tank and knee pads, radiator screen

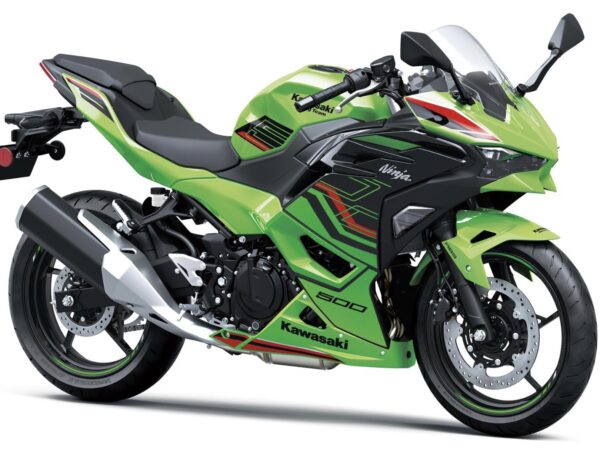

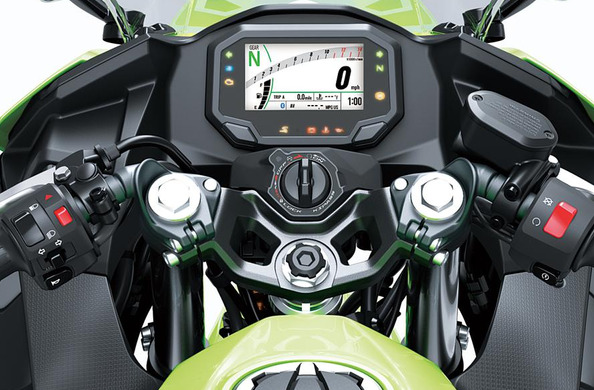

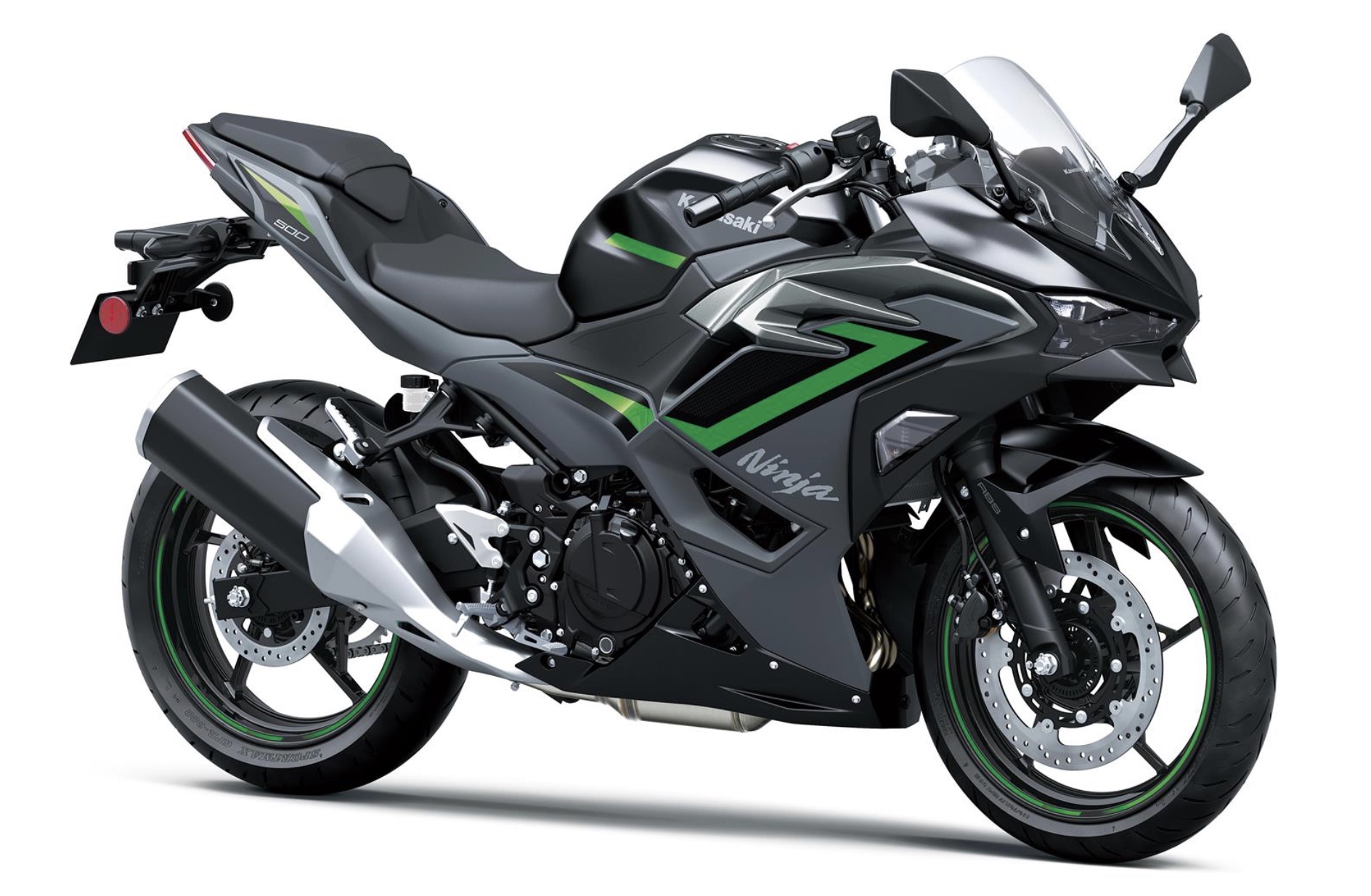

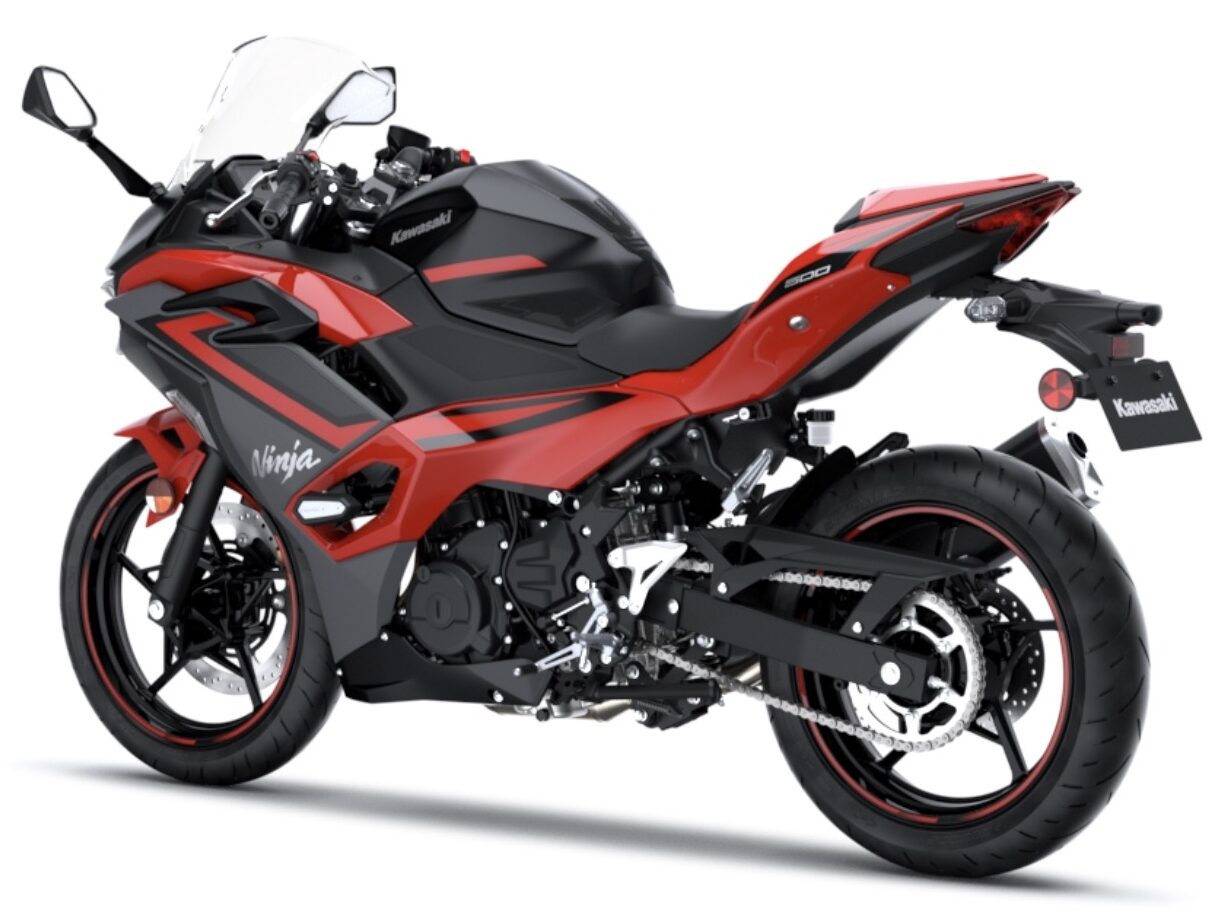

Kawasaki Ninja 500 SE 2024 dashboard Kawasaki Ninja 500 SE 2024 front Kawasaki Ninja 500 SE 2024 Passion Red Metallic Flat Spark Black Metallic Matte Dark Gray back
