KTM 125 Duke (2024+)

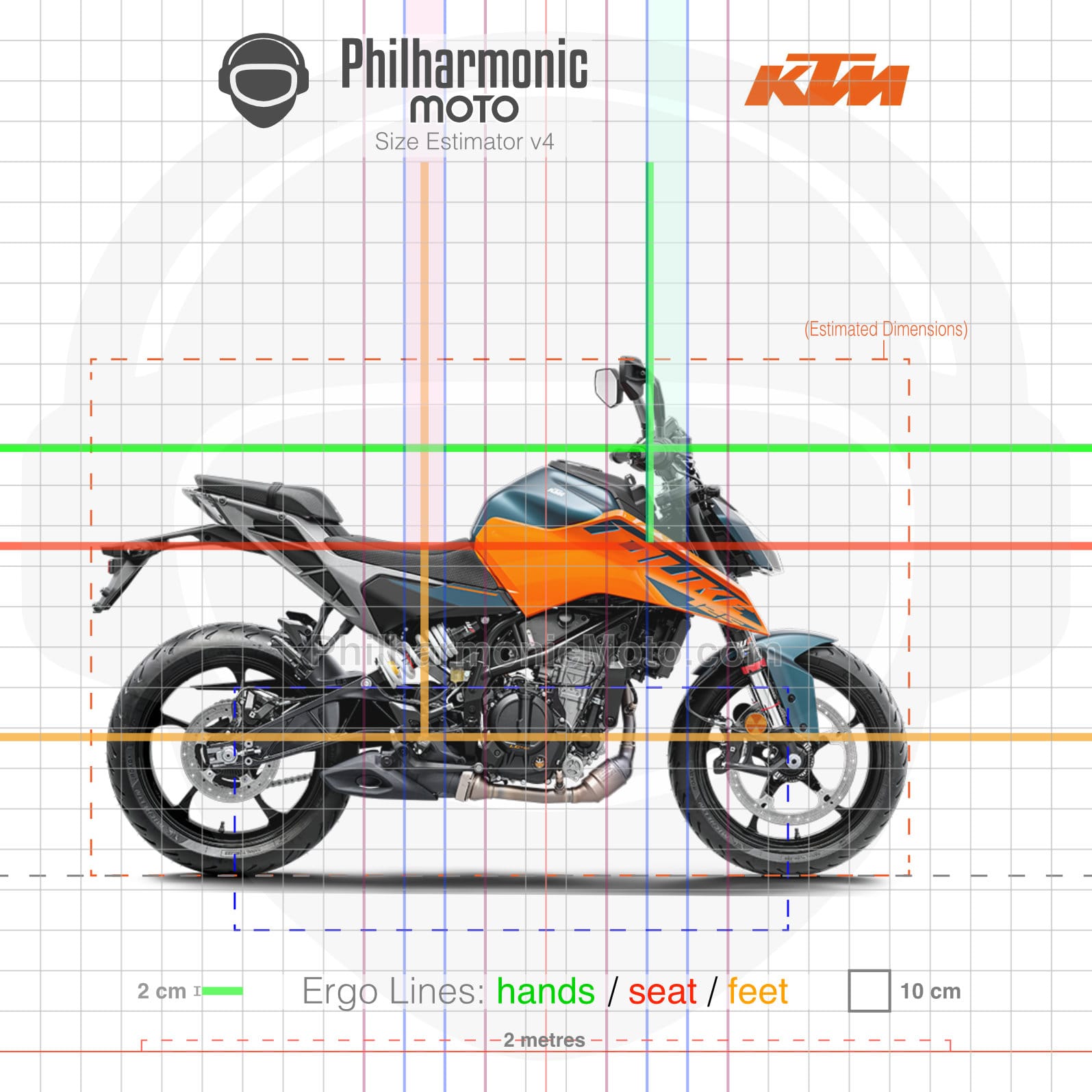

Dimensions are based on the front wheel size. This time KTM didn’t even publish the wheelbase, so here we are.

They didn’t publish fuel capacity either.

Brand: Style:
Share:

Specifications

Engine

124,9 cc Single-cylinder, liquid-cooled

Power

14,7 hp

Power to weight ratio

10 HP/100kg

Torque

11,5 Nm

Torque to weight ratio

8 Nm/100kg

Transmission

– 6-speed, slip/assist clutch
– Chain final drive
– Optional: quick-shifter

Fuel Capacity

13,4 liters (from previous model)

Length

2022 mm (estimated)

Width

Height

1276 mm (estimated)

Weight

150 kg (estimated wet)

Seat Height

800 mm

Suspension

– Front: WP Apex 43 mm inverted fork, 150 mm travel
– Rear: WP Apex mono-shock, adjustable preload, 150 mm travel

Tyres

– Front: 110/70-17
– Rear: 150/60-17

Brakes

– Front: 320 mm disc, 4-piston radial caliper
– Rear: 240 mm disc, 2-piston floating caliper
– cornering ABS available (switchable rear)

Instruments

– 5" TFT display with tachometer, speedometer, odometer, gear indicator, fuel gauge, trip meter, lap timer, speed limiter, clock
– smartphone connectivity

Other

– LED lights, illuminated switches

KTM 125 Duke 2024 dashboard KTM 125 Duke 2024 front KTM 125 Duke 2024 back
