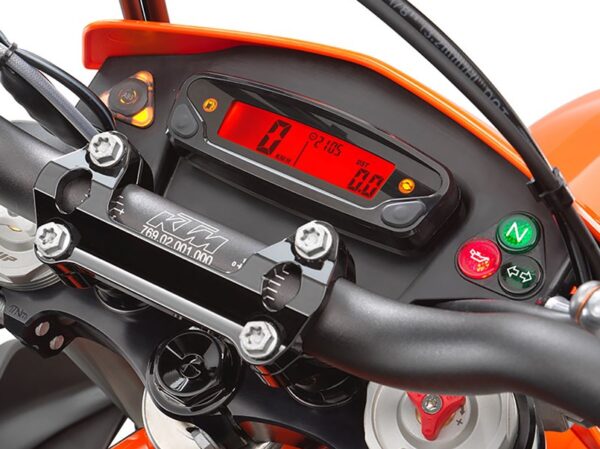

KTM 690 SMC R 2021 dashboard

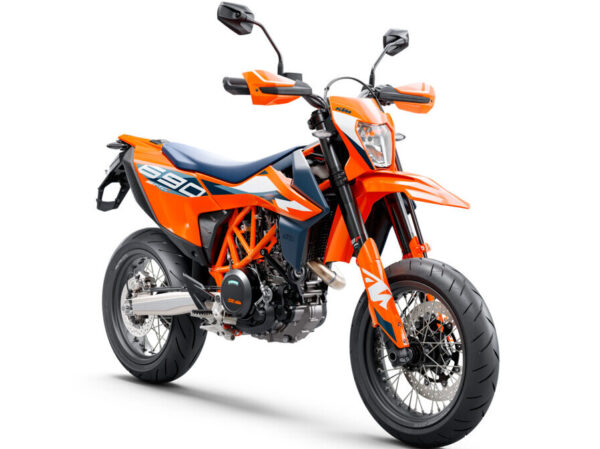

KTM 690 SMC R 2023 front

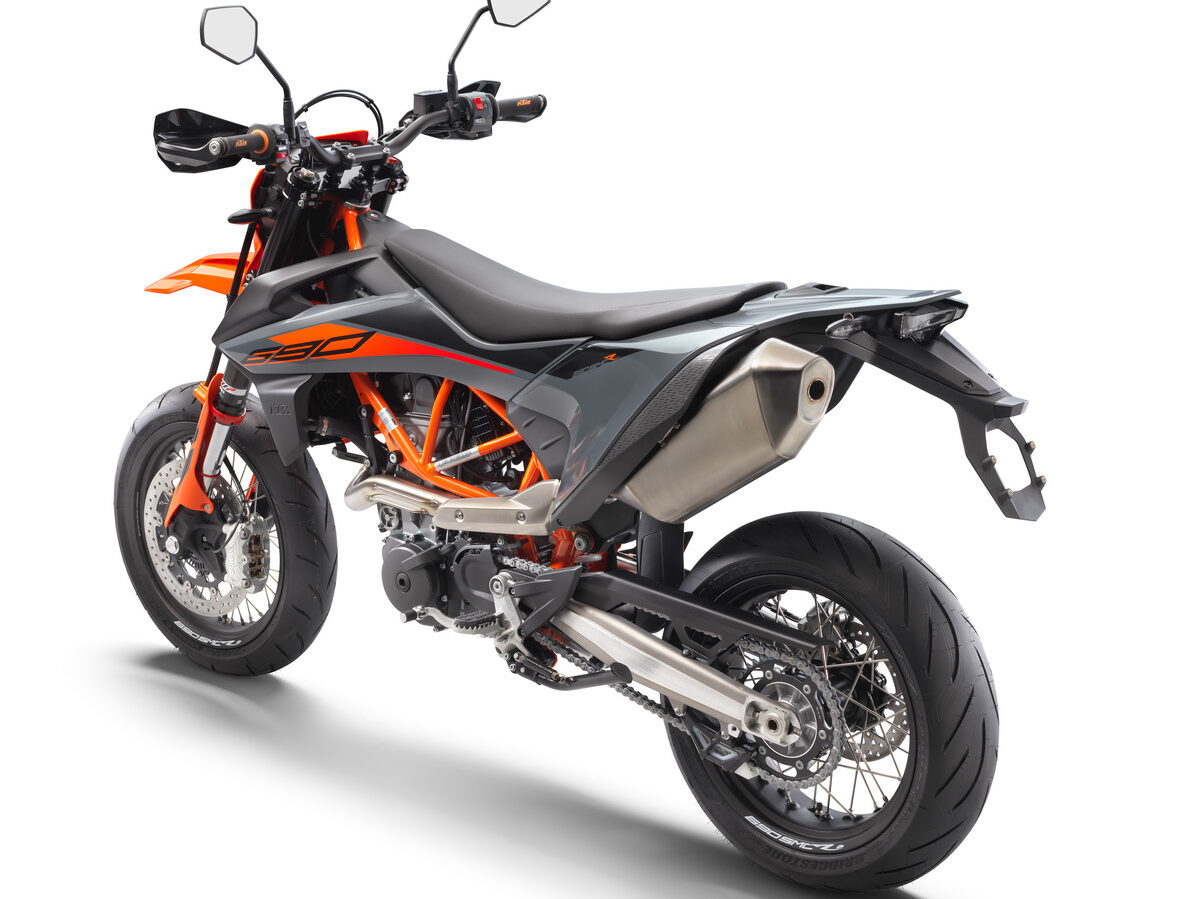

KTM 690 SMC R 2021 back

KTM 690 SMC R (2021+)

KTM 690 SMC R (2021+)



Category: Tag:

Specifications

Engine

692 cc single-cylinder, liquid-cooled

Power

73 hp

Torque

73 Nm @ 6500 rpm

Transmission

6-speed, assist/slip hydraulic clutch, quick-shifter, chain final drive

Fuel Capacity

13,5 liters

Length

2118 mm (estimated)

Width

Height

1381 mm (estimated)

Weight

147 kg dry

Seat Height

892 mm

Suspension

– Front: WP APEX 48 mm inverted fork, fully adjustable, 215 mm travel
– Rear: single shock, fully adjustable, 240 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/60-17

Brakes

– Front: 320 mm disc, Brembo 4-piston radial caliper
– Rear: 240 mm disc, Brembo 1-piston floating caliper
– switchable cornering ABS available

Instruments

LCD display with speedometer, tachometer, odometer

Other

Cornering traction control, riding modes, Supermoto Mode, anti-wheelie, USB socket

Dashboard / Support us

KTM 690 SMC R 2021 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsKTM 690 SMC R (2021+) removeKTM 1290 Super Duke R (2020+) removeDucati Hypermotard 950 RVE (2020+) removeKTM 790 Adventure (2023+) removeKTM 790 Duke (2022+) removeDucati Hypermotard 950 (2019+) remove
NameKTM 690 SMC R (2021+) removeKTM 1290 Super Duke R (2020+) removeDucati Hypermotard 950 RVE (2020+) removeKTM 790 Adventure (2023+) removeKTM 790 Duke (2022+) removeDucati Hypermotard 950 (2019+) remove

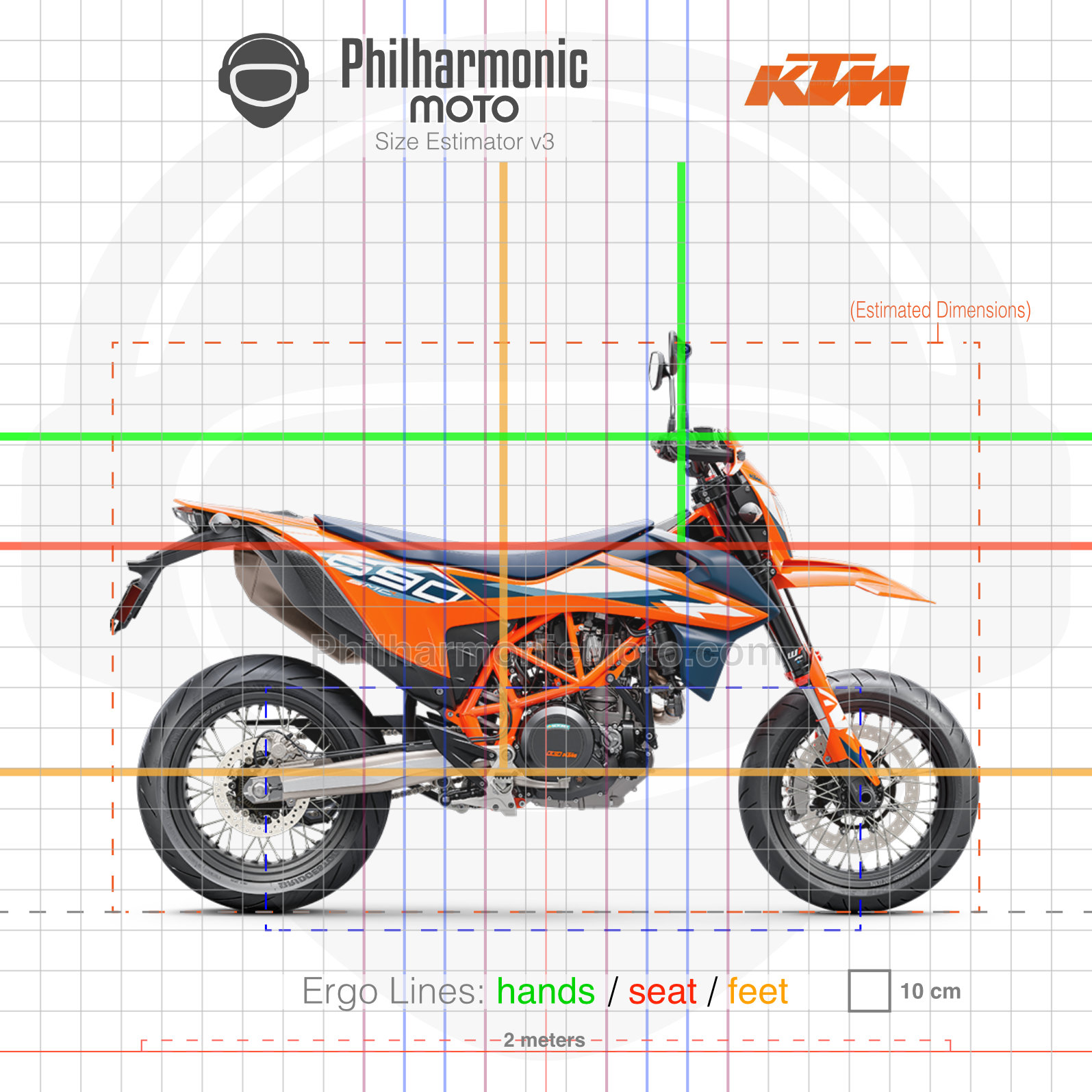

Size Estimator (see "About" page to learn more)KTM 690 SMC R 2023 orangeKTM 1290 Super Duke R 2023 orangeDucati Hypermotard 950 RVE 2022 liveryKTM 790 Adventure 2023 whiteKTM 790 Duke 2022 gray and blackDucati Hypermotard 950 2022 red
Length2118 mm (estimated)2082 mm (estimated)2135 mm2191 mm (estimated)2062 mm2135 mm
Width--900 mm-904 mm900 mm
Height1381 mm (estimated)1227 mm (estimated)1210 mm1430 mm (estimated)1059 mm1210 mm
Seat Height892 mm835 mm870 mm840-860 mm835 mm870 mm
Weight147 kg dry189 kg dry200 kg wet199 kg wet187,7 kg wet200 kg wet
Engine692 cc single-cylinder, liquid-cooled1301 cc V-twin, liquid-cooled937 cc L-Twin, liquid-cooled799 cc Parallel-twin, liquid-cooled799 cc Parallel-twin, liquid-cooled937 cc L-Twin, liquid-cooled
Power73 hp180 hp @ 9500 rpm114 hp @ 9000 rpm95 hp @ 9000 rpm105 hp @ 9000 rpm (95 hp in Europe)114 hp @ 9000 rpm
Torque73 Nm @ 6500 rpm140 Nm @ 8000 rpm96 Nm @ 7250 rpm87 Nm @ 8000 rpm87 Nm @ 8000 rpm96 Nm @ 7250 rpm
Transmission6-speed, assist/slip hydraulic clutch, quick-shifter, chain final drive6-speed, assist/slip hydraulic clutch, chain final drive6-speed, Wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive6-speed, assist/slip clutch, chain final drive6-speed, assist/slip clutch, chain final drive6-speed, Wet multi-plate slip/assist hydraulic clutch, chain final drive
Fuel Capacity13,5 liters16 liters14,5 liters20 liters14 liters14,5 liters
Suspension- Front: WP APEX 48 mm inverted fork, fully adjustable, 215 mm travel - Rear: single shock, fully adjustable, 240 mm travel- Front: 48 mm split function inverted fork, adjustable preload, 125 mm travel - Rear: single shock, fully adjustable, 150 mm travel- Front: 45 mm inverted fork, fully adjustable, 170 mm travel - Rear: mono-shock, adjustable spring preload and rebound damping, 150 mm travel- Front: 43 mm inverted fork, 200 mm travel - Rear: single shock, adjustable preload, 200 mm travel- Front: 43 mm inverted fork, 140 mm travel - Rear: single shock, adjustable preload, 150 mm travel- Front: 45 mm inverted fork, fully adjustable, 170 mm travel - Rear: mono-shock, adjustable spring preload and rebound damping, 150 mm travel
Tyres- Front: 120/70-17 - Rear: 160/60-17- Front: 120/70-17 - Rear: 200/55-17- Front: 120/70-17 - Rear: 180/55-17- Front: 90/90-21 - Rear: 150/70-18- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 180/55-17
Brakes- Front: 320 mm disc, Brembo 4-piston radial caliper - Rear: 240 mm disc, Brembo 1-piston floating caliper - switchable cornering ABS available- Front: 320 mm discs, Brembo Stylema 4-piston radial caliper - Rear: 240 mm disc, Brembo 2-piston caliper - cornering ABS available (switchable rear ABS)- Front: 320 mm semi-floating discs, Brembo monobloc 4-piston radial calipers - Rear: 245 mm floating disc, 2-piston floating caliper - cornering ABS available- Front: 320 mm discs, 4-piston radial caliper - Rear: 260 mm disc, 2-piston floating caliper - cornering ABS available- Front: 300 mm discs, 4-piston radial caliper - Rear: 240 mm disc, 2-piston floating caliper - cornering ABS available- Front: 320 mm semi-floating discs, Brembo monobloc 4-piston radial calipers - Rear: 245 mm floating disc, 2-piston floating caliper - cornering ABS available
InstrumentsLCD display with speedometer, tachometer, odometerTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clockTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clockTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock
OtherCornering traction control, riding modes, Supermoto Mode, anti-wheelie, USB socketLED lights, cornering traction control, wheelie control, riding modes, supermoto mode, adjustable brake and clutch levers, cruise control, TPMS, auto-canceling turn signals, smartphone connectivity, keyless ignitionLED lights, riding modes, traction control, wheelie control, power modes, USB socket, "Ducati Slide by Brake"LED lights, cornering traction control, riding modes, off-road ABS, adjustable brake and clutch levers, steering damper, smartphone connectivityLED lights, cornering traction control, riding modes, supermoto mode, adjustable brake and clutch leversLED lights, riding modes, traction control, wheelie control, power modes, USB socket, "Ducati Slide by Brake"
