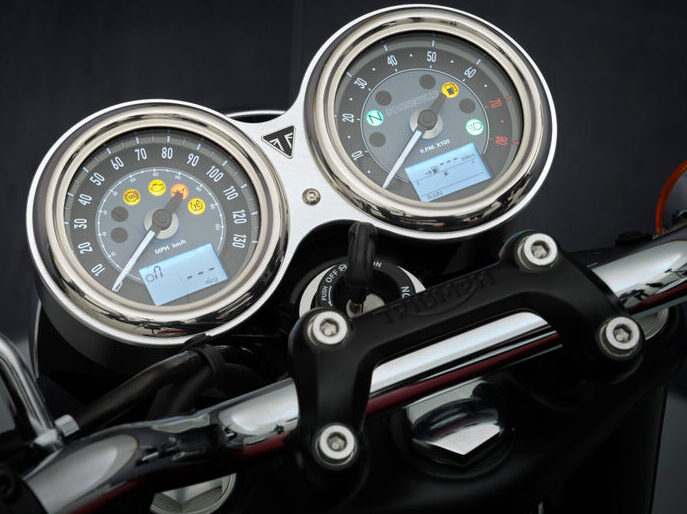

Triumph Bonneville T120 2021 dashboard

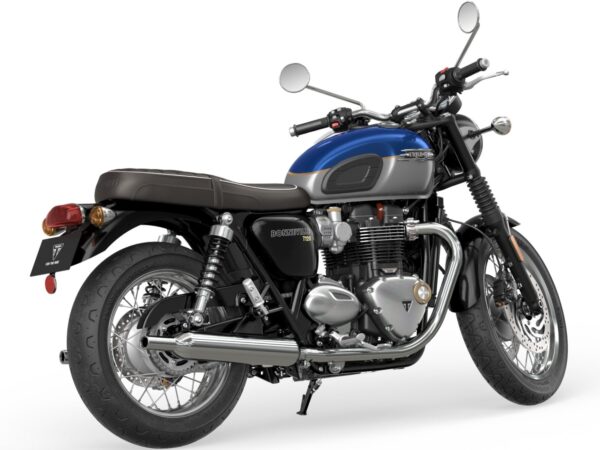

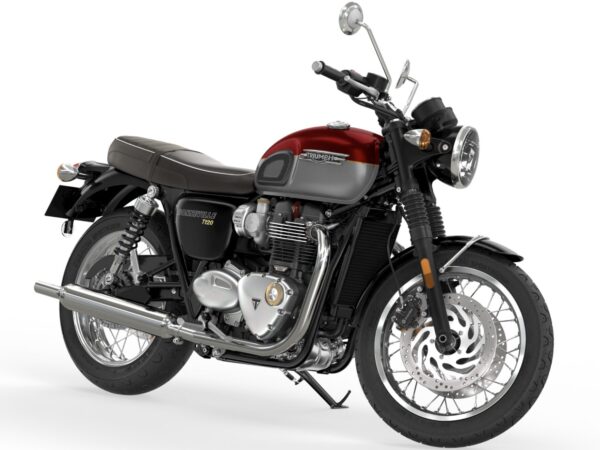

Triumph Bonneville T120 (2021+)

Triumph Bonneville T120 (2021+)

The easiest way to differentiate the T100 from the T120 is to look at the front brakes: T100 has only one disc on the left side, while the T120 has one on each side.

So if you see a brake disc in front of spokes, you’re looking at a T120.

Category: Tags: ,

Specifications

Engine

1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank

Power

78 hp @ 6550 rpm

Torque

105 Nm @ 3500 rpm

Transmission

6-speed, Wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

14,5 liters

Length

2170 mm

Width

780 mm

Height

1100 mm

Weight

236 kg wet

Seat Height

790 mm

Suspension

– Front: 41 mm cartridge forks
– Rear: Twin RSUs, with pre-load adjustment

Tyres

– Front: 100/90-18
– Rear: 150/70-17

Brakes

– Front: 310 mm discs, Brembo 2-piston calipers
– Rear: 255 mm disc, Nissin 2-piston caliper
– ABS available

Instruments

Analogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumption

Other

Led tail light, switchable traction control, riding modes, USB under seat, cruise control

Dashboard / Support us

Triumph Bonneville T120 2021 dashboard



T120 t-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Bonneville T120 (2021+) removeTriumph Scrambler 1200 XE (2019+) removeHonda CB1100 EX (2014-2020) removeTriumph Speed Twin (2019-2020) removeTriumph Speed Twin 900 (2023+) removeTriumph Street Twin (2019-2022) remove
NameTriumph Bonneville T120 (2021+) removeTriumph Scrambler 1200 XE (2019+) removeHonda CB1100 EX (2014-2020) removeTriumph Speed Twin (2019-2020) removeTriumph Speed Twin 900 (2023+) removeTriumph Street Twin (2019-2022) remove

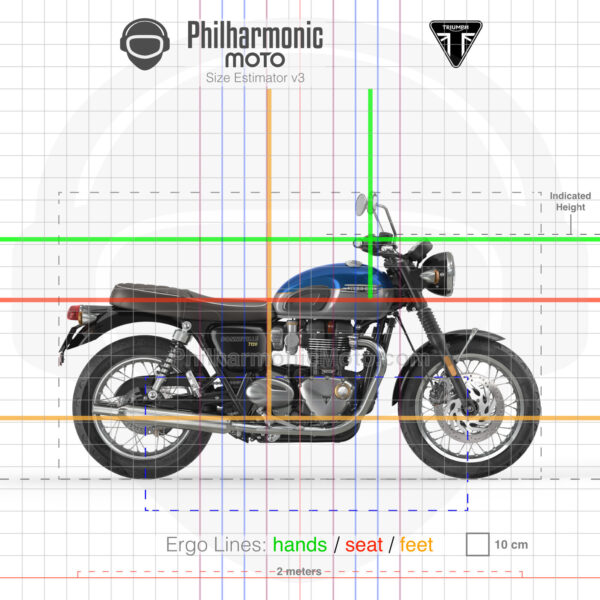

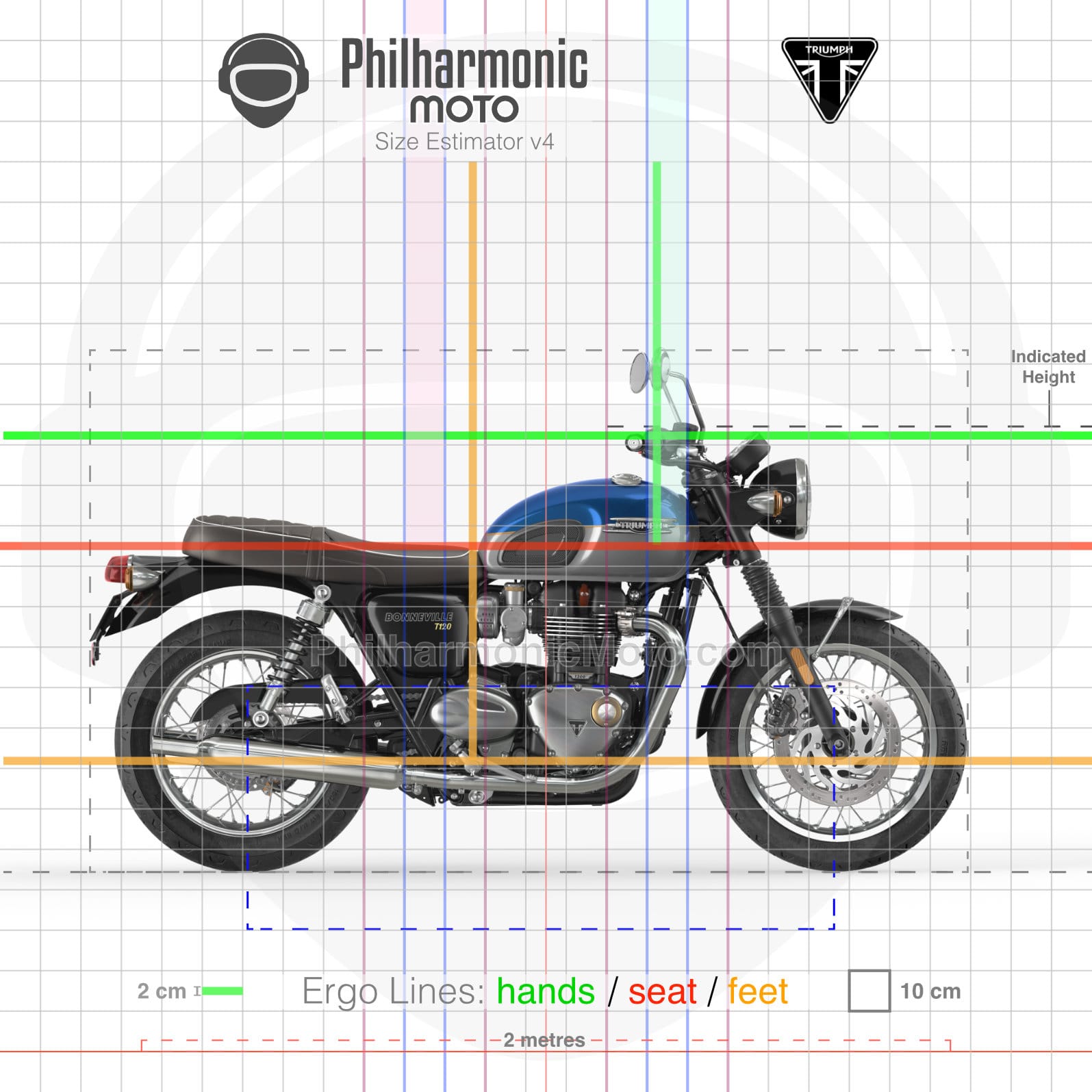

Size Estimator (see "About" page to learn more)Triumph Bonneville T120 2021 Cobalt Blue and Silver IceTriumph Scrambler 1200 XE 2019 Cobalt Blue and Jet BlackHonda CB1100EX 2020 Candy Chromosphere RedTriumph Speed Twin 2019 Silver IceTriumph Speed Twin 900 2023 Jet Black
Length2170 mm2325 mm2200 mm2078 mm (estimated)2090 mm2090 mm
Width780 mm905 mm830 mm760 mm (handlebars)780 mm785 mm
Height1100 mm1250 mm1130 mm1110 mm1110 mm1114 mm
Seat Height790 mm870 mm780 mm807 mm765 mm760 mm
Weight236 kg wet230 kg wet255 kg wet196 kg wet216 kg wet215 kg wet
Engine1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank1140 cc Inline-4, air/oil cooled1200 cc Parallel Twin, liquid-cooled, 270º crank900 cc Parallel Twin, liquid cooled, 270º crank900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank
Power78 hp @ 6550 rpm89 hp @ 7400 rpm89,7 hp @ 7500 rpm96 hp @ 6750 rpm64 hp @ 7500 rpm64 hp @ 7500 rpm
Torque105 Nm @ 3500 rpm110 Nm @ 3950 rpm91 Nm @ 5500 rpm112 Nm @ 4950 rpm80 Nm @ 3800 rpm80 Nm @ 3800 rpm
Transmission6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive5-speed, Wet multi-plate assist clutch, chain final drive5-speed, Wet multi-plate assist clutch, chain final drive
Fuel Capacity14,5 liters16 liters16,8 liters14,5 liters12 liters12 liters
Suspension– Front: 41 mm cartridge forks – Rear: Twin RSUs, with pre-load adjustment- Front: Showa 47 mm fully adjustable USD forks, 250 mm travel - Rear: Öhlins fully adjustable piggy-back RSUs with twin springs, 250 mm travel.- Front: 41 mm telescopic fork, adjustable preload, 106 mm travel, - Rear: twin-shocks, adjustable preload, 114 mm travel– Front: 41 mm cartridge forks, 120 mm travel – Rear: twin shocks, adjustable preload, 120 mm travel- Front: 41 mm cartridge forks, 120 mm travel - Rear: twin shocks, adjustable preload, 120 mm travel- Front: KYB 41mm cartridge forks, 120 mm travel - Rear: KYB twin shocks with adjustable preload, 120 mm travel
Tyres- Front: 100/90-18 - Rear: 150/70-17- Front: 90/90-21 - Rear: 150/70-17 - Tubeless- Front: 110/80-18 - Rear: 140/70-18- Front: 120/70-17 - Rear: 160/60-17- Front: 100/90-18 - Rear: 150/70-17- Front: 100/90-18 - Rear: 150/70-17 - Tubeless
Brakes- Front: 310 mm discs, Brembo 2-piston calipers - Rear: 255 mm disc, Nissin 2-piston caliper - ABS available- Front: 320 mm discs, Brembo monoblock calipers - Rear: 255 mm disc, Brembo 2-piston floating caliper - switchable cornering ABS available- Front: 2x296 mm discs, 4-piston calipers - Rear: 256 mm disc, 1-piston caliper - ABS available- Front: 305 mm discs, Brembo 4-piston calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 310 mm floating disc, Brembo 4-piston caliper - Rear: 255 mm disc, Nissin 2-piston floating caliper - ABS available- Front: 310mm disc, Brembo 4-piston caliper - Rear: 255mm disc, Nissin 2-piston floating caliper - ABS available
InstrumentsAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clockAnalogue speedometer and tachometer, LCD display with odometer, gear indicator, fuel gauge, temperature gauge, trip meters, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computerAnalogue speedometer, LCD display with odometer, gear indicator, fuel gauge, range to empty indication, clock, trip computer
OtherLed tail light, switchable traction control, riding modes, USB under seat, cruise controlLed lights, riding modes, switchable traction control, cruise control, keyless, backlit switches, folding foot controls, Brembo MCS lever, heated grips, USB under seat-Led tail light and indicators, switchable traction control, riding modes, USB under seatLED brake light, switchable Traction Control, Riding modes, Immobiliser, USB socketLED brake light, switchable Traction Control, Riding modes, Immobiliser, USB socket
