Triumph Scrambler 1200 XE (2024+)

Triumph Scrambler 1200XE

Dashboard picture shown is from previous year model but the display is the same.

Updated: 10 June 2024


Brand: Style:
Share:

Specifications and Features

Engine

1200 cc Parallel-twin, liquid-cooled, 270º crank

Power

89 hp @ 7000 rpm

Power to weight ratio

39 HP/100kg

Torque

110 Nm @ 4250 rpm

Torque to weight ratio

48 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

15 litres

Length

2330 mm

Width

905 mm

Height

1250 mm

Weight

– 230 kg wet
– Max load: 210 kg

Seat Height

870 mm (optional: 845)

Suspension

– Front: Marzocchi 45 mm fork, fully adjustable, 250 mm travel
– Rear: Marzocchi twin-shocks, fully adjustable, 250 mm travel.

Tyres

– Front: 90/90-21
– Rear: 150/70-17
– Tubeless

Brakes

– Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial calipers
– Rear: 255 mm disc, Nissin 1-piston floating caliper
– Cornering ABS available (switchable)

Instruments

– TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock
– Optional: smartphone connectivity

Other

– LED lights
– Riding modes, cornering traction control (switchable)
– Cruise control, USB under seat, adjustable brake and clutch levers, "adjustable handlebars and foot controls". Optional: heated grips, TPMS

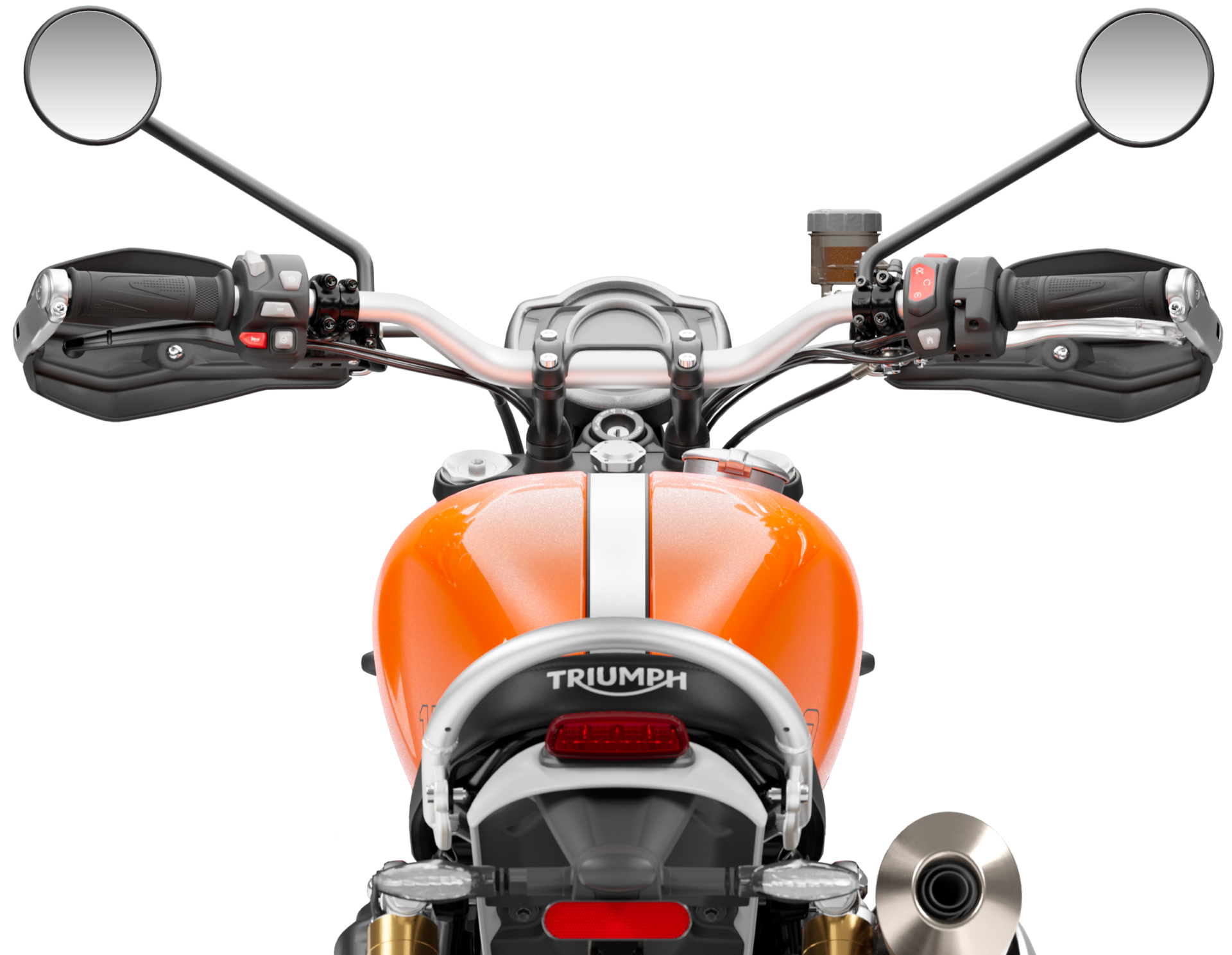

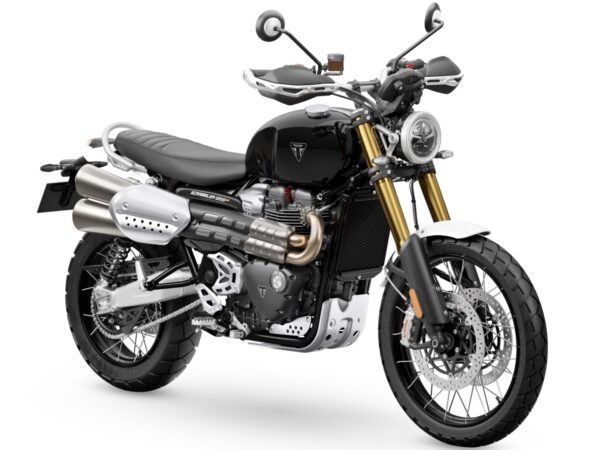

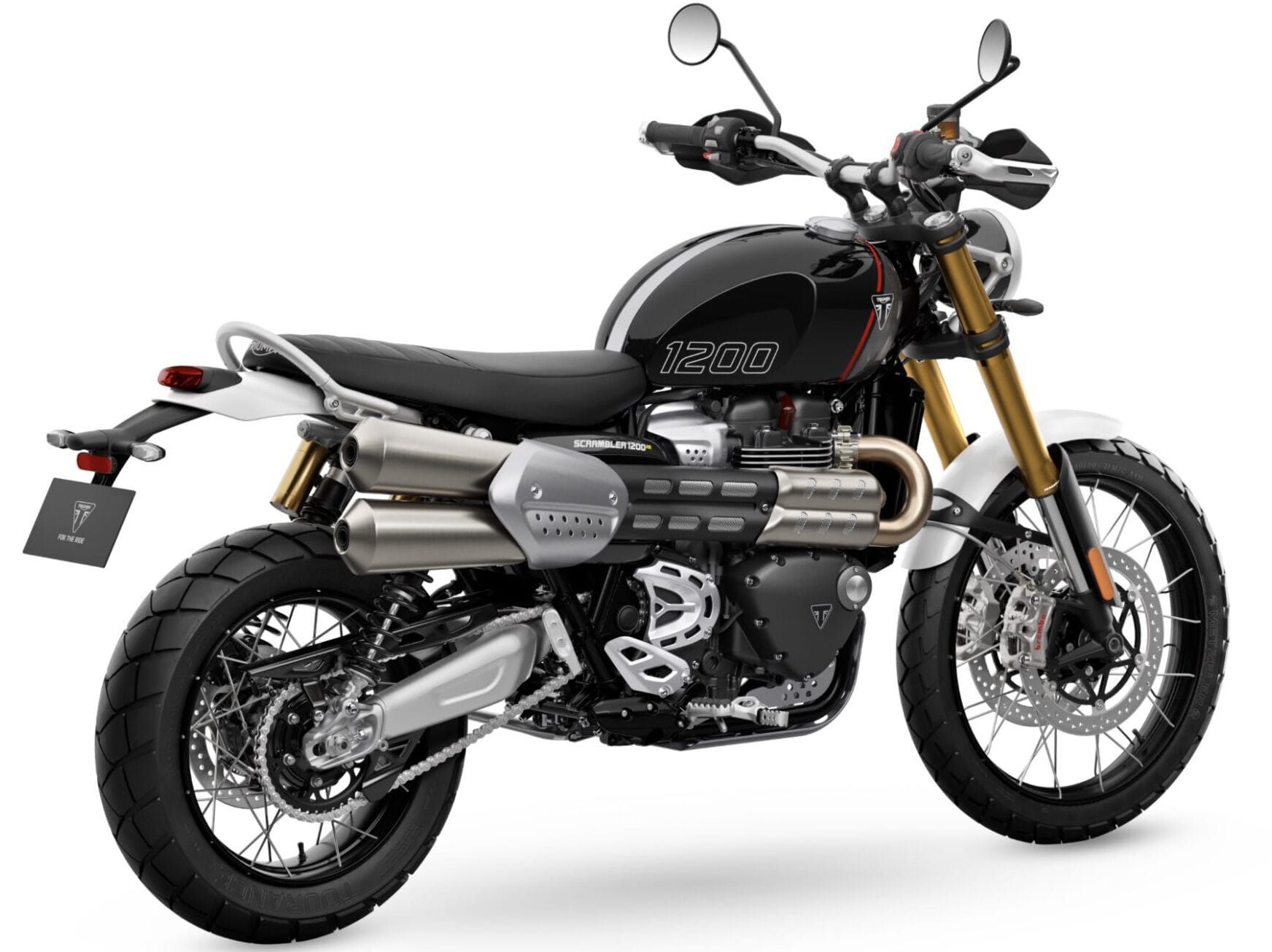

Triumph Scrambler 1200 XE dashboard Triumph Scrambler 1200 XE 2024 front Triumph Scrambler 1200 XE 2024 back
