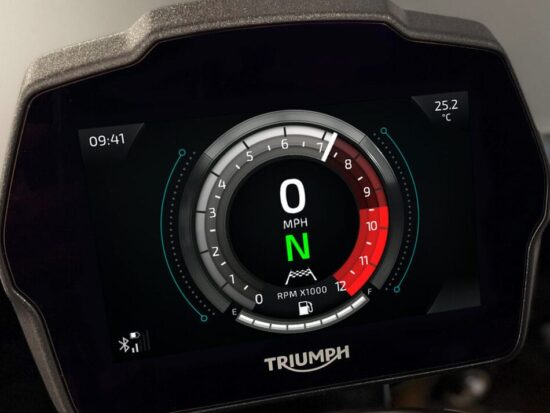

Triumph Speed Triple 1200 RS 2021 dashboard

Triumph Speed Triple 1200 RS (2021+)

Triumph Speed Triple 1200 RS (2021+)




Category: Tag:

Specifications

Engine

1160 cc Inline Triple, liquid cooled

Power

177,5 hp @ 10750 rpm

Torque

125 Nm @ 9000 rpm

Transmission

6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive

Fuel Capacity

15,5 liters

Length

2090 mm

Width

792 mm (handlebars)

Height

1089 mm

Weight

198 kg wet

Seat Height

830 mm

Suspension

– Front: Öhlins 43 mm inverted forks, fully adjustable, 120 mm travel
– Rear: Öhlins mono-shock, fully adjustable, 120 mm travel

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial monobloc calipers, radial master cylinder with separate reservoir, span & ratio adjustable
– Rear: 220 mm disc, Brembo 2-piston caliper, Rear master cylinder with separate reservoir
– cornering ABS available

Instruments

TFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock

Other

LED lights, Riding modes, switchable cornering traction control, wheelie control, adjustable levers, full keyless system, illuminated switches, cruise control, smartphone connectivity

Dashboard / Support us

Triumph Speed Triple 1200 RS 2021 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsTriumph Speed Triple 1200 RS (2021+) removeTriumph Tiger Sport 660 (2022+) removeTriumph Tiger 850 Sport (2021+) removeTriumph Bonneville T100 (2017-2020) removeTriumph Thruxton RS (2020+) removeTriumph Rocket 3 R (2020+) remove
NameTriumph Speed Triple 1200 RS (2021+) removeTriumph Tiger Sport 660 (2022+) removeTriumph Tiger 850 Sport (2021+) removeTriumph Bonneville T100 (2017-2020) removeTriumph Thruxton RS (2020+) removeTriumph Rocket 3 R (2020+) remove

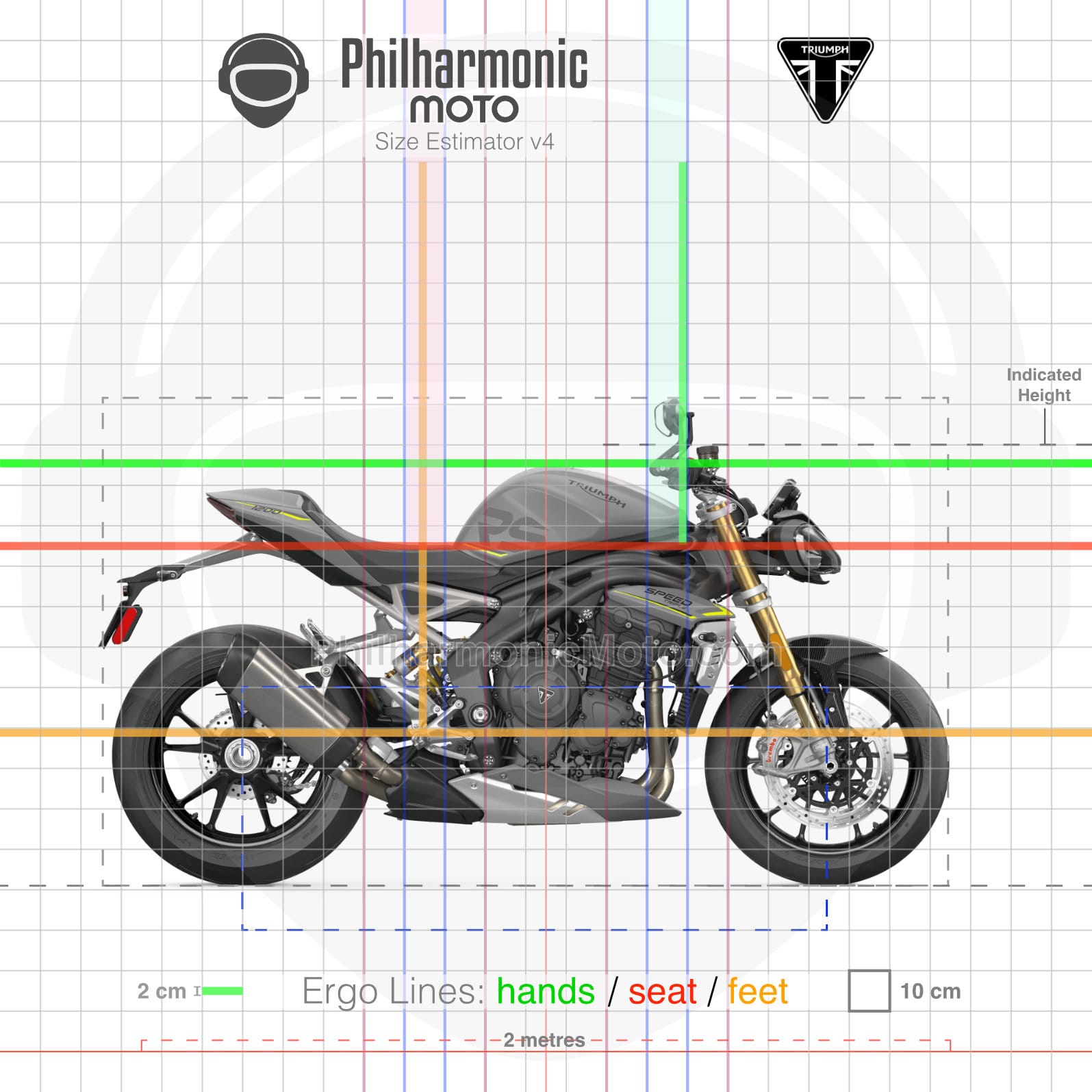

Size Estimator (see "About" page to learn more)Triumph Speed Triple 1200 RS 2021 Matt Silver IceTriumph Tiger Sport 660 2022 Korosi Red GraphiteTriumph Tiger 850 Sport 2021 Graphite and Diablo RedTriumph Bonneville T100 2017 blue whiteTriumph Thruxton RS 2020 Matt Storm Grey and Matt Silver IceTriumph Rocket 3 R 2020 Korosi Red
Length2090 mm2071 mm2248 mm2170 mm2105 mm2365 mm
Width792 mm (handlebars)834 mm830 mm780 mm745 mm889 mm
Height1089 mm1315 mm / 1398 mm (low/high screen position)1410 mm / 1460 mm (low/high screen position)1100 mm1030 mm1065 mm
Seat Height830 mm835 mm810-830 mm (adjustable)790 mm810 mm773 mm
Weight198 kg wet206 kg wet192 kg dry232 kg wet197 kg wet291 kg dry
Engine1160 cc Inline Triple, liquid cooled660cc Inline Triple, liquid cooled, 12 valve DOHC, 240º crank angle888 cc Inline Triple, liquid-cooled900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank1200 cc Parallel Twin, liquid-cooled, 270º crank2458cc Inline Triple, liquid cooled
Power177,5 hp @ 10750 rpm80 hp @ 10250 rpm84 hp @ 8500 rpm54 hp @ 5900 rpm103 hp @ 7500 rpm165 hp @ 6000 rpm
Torque125 Nm @ 9000 rpm64 Nm @ 6250 rpm82 Nm @ 6500 rpm80 Nm @ 3230 rpm112 Nm @ 4250 rpm221 Nm @ 4000 rpm
Transmission6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, wet multi-plate slip/assist clutch, X-ring chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive5-speed, Wet multi-plate assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, shaft final drive
Fuel Capacity15,5 liters17,2 liters20 liters14,5 liters14,5 liters18 liters
Suspension- Front: Öhlins 43 mm inverted forks, fully adjustable, 120 mm travel - Rear: Öhlins mono-shock, fully adjustable, 120 mm travel- Front: Showa 41mm upside down separate function cartridge forks, 150mm travel - Rear: Showa mono-shock RSU, with remote hydraulic preload adjustment, 150mm travel- Front: 45 mm inverted fork, 180 mm travel - Rear: mono-shock, preload adjustment, 170 mm travel- Front: KYB 41 mm cartridge forks, 120 mm travel - Rear: KYB twin shocks, adjustable preload, 120 mm travel– Front: Showa 43 mm inverted forks, fully adjustable, 120 mm travel – Rear: Öhlins twin shocks with Piggyback reservoir, fully adjustable, 120 mm travel- Front: Showa 47 mm inverted forks, compression and rebound adjustable, 120 mm travel - Rear: Showa mono-shock RSU, remote preload, fully adjustable, 107 mm travel
Tyres- Front: 120/70-17 - Rear: 190/55-17- Front: 120/70-17 - Rear: 180/55-17- Front: 100/90-19 - Rear: 150/70-17- Front: 100/90-18 - Rear: 150/70-17- Front: 120/70-17 - Rear: 160/60-17- Front: 150/80-17 - Rear: 240/50-16
Brakes- Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial monobloc calipers, radial master cylinder with separate reservoir, span & ratio adjustable - Rear: 220 mm disc, Brembo 2-piston caliper, Rear master cylinder with separate reservoir - cornering ABS available- Front: twin 310mm discs, Nissin two-piston sliding calipers - Rear: 255mm disc, Nissin single-piston sliding caliper - ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - ABS available- Front: 310 mm floating disc, Nissin 2-piston floating caliper - Rear: 255 mm disc, Nissin 2-piston floating caliper - ABS available- Front: Brembo 310 mm floating discs, Brembo 2-piston radial monobloc calipers - Rear: 220 mm disc, Nissin 2-piston floating caliper - ABS available- Front: twin 320 mm discs, Brembo Stylema 4-piston calipers - Rear: 300 mm disc, Brembo 4-piston sliding caliper - cornering ABS available
InstrumentsTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockTFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average & current fuel consumptionAnalogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average and current fuel consumptionAngle-adjustable TFT display with speedometer, trip computer, tachometer, gear indicator, fuel gauge, ambient temperature, clock
OtherLED lights, Riding modes, switchable cornering traction control, wheelie control, adjustable levers, full keyless system, illuminated switches, cruise control, smartphone connectivityLED lights, Riding modes, traction controlLED lights, Riding modes, switchable traction control, 12v power socketLed taillight, adjustable brake and clutch levers, switchable traction controlLed tail light, switchable traction control, riding modes, USB under seatLED lights, Riding modes, cornering traction control, hill hold control, cruise control, keyless ignition and steering lock, two vertical position settings mid-foot controls (0mm / -15mm), USB under seat
