Triumph Tiger 900 Rally Pro (2024+)

Estimated length shown, since compared to the previous model and other dimensions, the official figure does not make sense.

Updated: 5 June 2024


Brand: Style:
Share:

Specifications and Features

Engine

888 cc Inline-3, liquid-cooled

Power

106 hp @ 9500 rpm

Power to weight ratio

47 HP/100kg

Torque

90 Nm @ 6850 rpm

Torque to weight ratio

40 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

20 litres

Length

2269 mm (estimated)

Width

935 mm

Height

1452/1502 mm (adjustable screen)

Weight

– 228 kg wet
– Max load: 222 kg

Seat Height

860/880 mm (adjustable), optional seat 20 mm lower

Suspension

– Front: Showa 45 mm inverted fork, fully adjustable, 240 travel
– Rear: Showa mono-shock, adjustable preload and rebound, 230 mm travel

Tyres

– Front: 90/90-21
– Rear: 150/70-17
– Tubeless

Brakes

– Front: 320 mm floating discs, Brembo Stylema monobloc 4-piston radial calipers
– Rear: 255 mm disc, 1-piston sliding caliper
– Cornering ABS available (switchable)

Instruments

– 7" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, clock
– Smartphone connectivity

Other

– LED lights, illuminated switches, emergency braking lights
– Riding modes, cornering traction control (switchable)
– Cruise control, USB-C on dashboard, USB under seat, heated seats and grips, TPMS, centre stand, adjustable brake and clutch levers

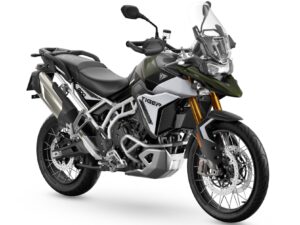

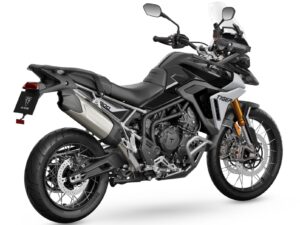

Triumph Tiger 900 Rally Pro 2024 dashboard Triumph Tiger 900 Rally Pro 2024 front Triumph Tiger 900 Rally Pro 2024 back
