Triumph Scrambler 1200 XE (2019-2023)

Brand: Style:
Share:

Specifications and Features

Engine

1200 cc Parallel-twin, liquid-cooled, 270º crank

Power

89 hp @ 7400 rpm

Power to weight ratio

39 HP/100kg

Torque

110 Nm @ 3950 rpm

Torque to weight ratio

48 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

16 litres

Length

2325 mm

Width

905 mm

Height

1250 mm

Weight

– 230 kg wet
– Max load: 210 kg

Seat Height

870 mm

Suspension

– Front: Showa 47 mm USD fork, fully adjustable, 250 mm travel
– Rear: Öhlins twin-shocks, fully adjustable, 250 mm travel.

Tyres

– Front: 90/90-21
– Rear: 150/70-17
– Tubeless

Brakes

– Front: 320 mm discs, Brembo monoblock calipers
– Rear: 255 mm disc, Brembo 2-piston floating caliper
– cornering ABS available (switchable)

Instruments

TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock

Other

– LED lights, illuminated switches
– Riding modes, switchable traction control
– Cruise control, USB under seat, keyless, Brembo MCS lever, heated grips

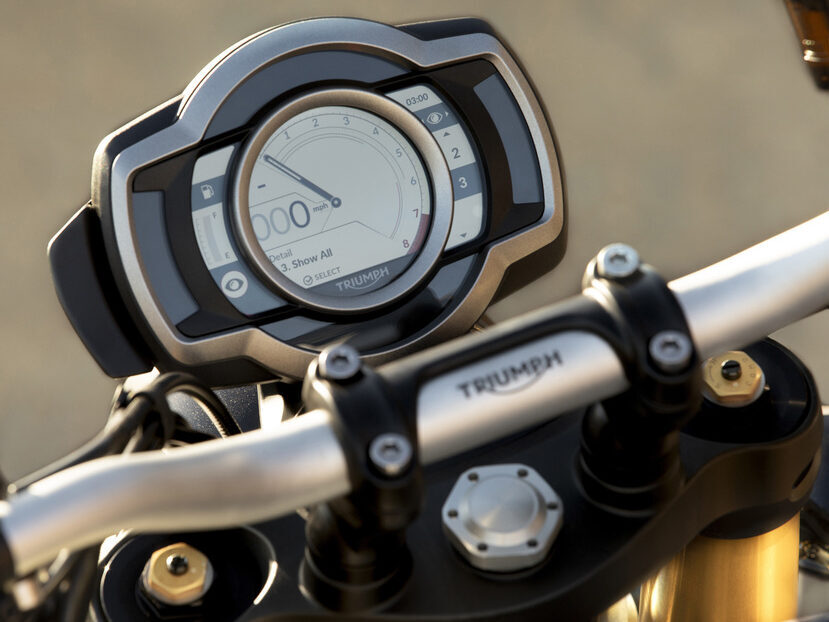

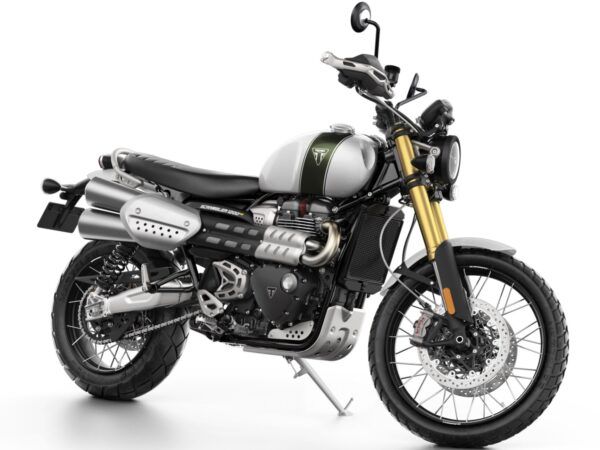

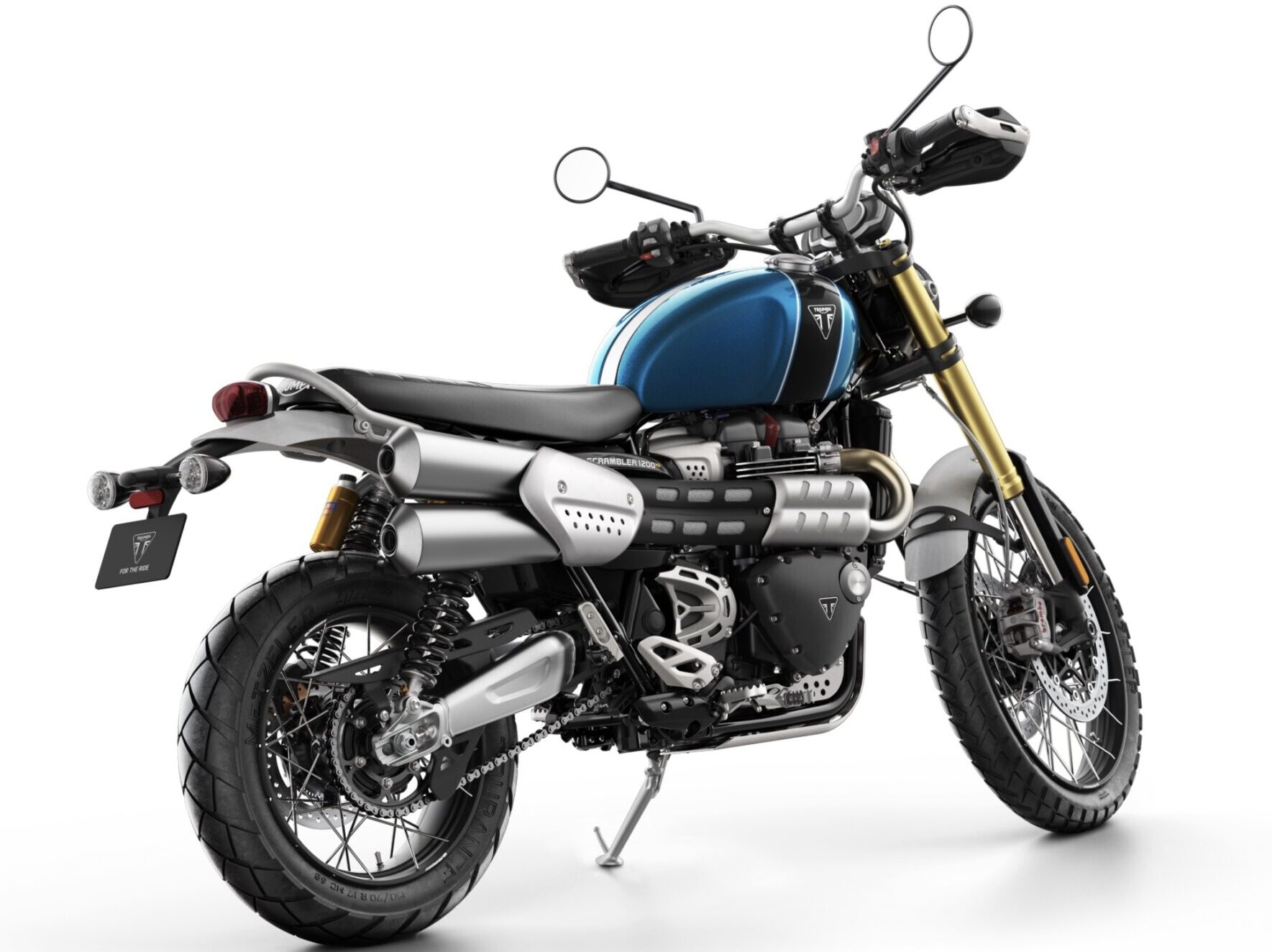

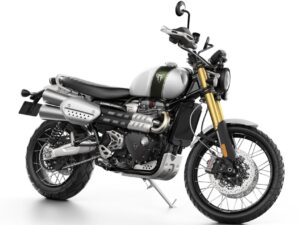

Triumph Scrambler 1200 XE dashboard Triumph Scrambler 1200 XE 2019 front Triumph Scrambler 1200 XE 2019 back
