Yamaha MT-09 / FZ-09 (2014-2016)

MT09, FZ09

CP3 engine

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

847 cc Inline-3, liquid-cooled

Power

113 hp @ 10000 rpm

Power to weight ratio

60 HP/100kg

Torque

88 Nm @ 8500 rpm

Torque to weight ratio

47 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

14 litres

Length

2075 mm

Width

815 mm

Height

1135 mm

Weight

– 188 kg wet
– Max load: 177 kg

Seat Height

815 mm

Suspension

– Front: 41 mm inverted fork, adjustable rebound, 137 mm travel
– Rear: mono-shock, adjustable preload and rebound, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 298 mm floating discs, 4-piston radial calipers
– Rear: 245 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, fuel reserve trip meter, instant and average consumption, engine and ambient temperature, dual trip meters, clock

Other

– LED taillight
– Riding modes

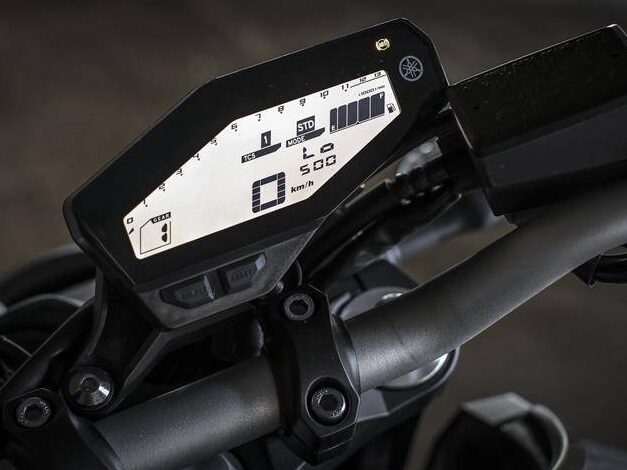

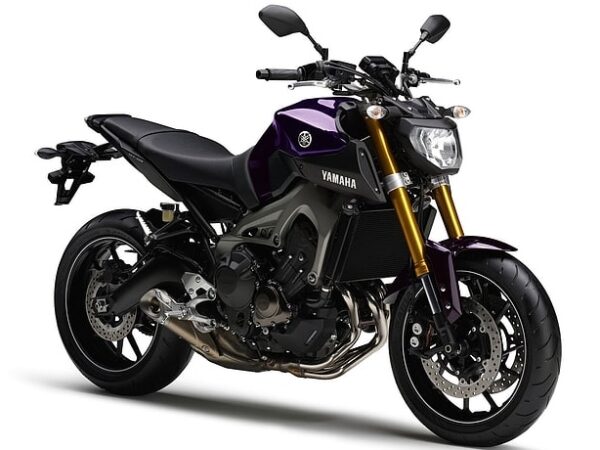

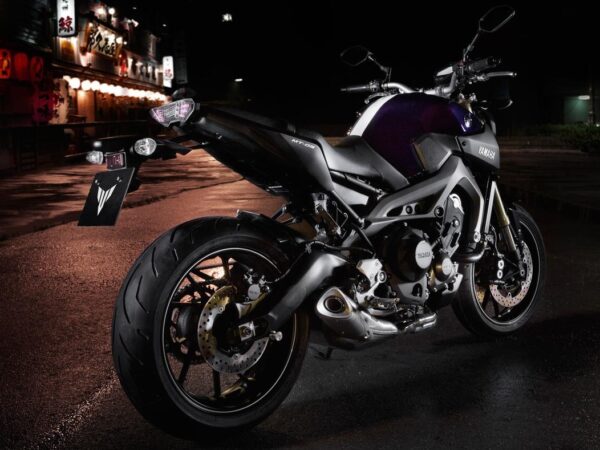

Yamaha MT-09 FZ-09 2014 dashboard Yamaha MT-09 FZ-09 2014 front Yamaha MT-09 FZ-09 2014 back

T-shirts, mugs, stickers and more:

honda monkey yellow ride tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

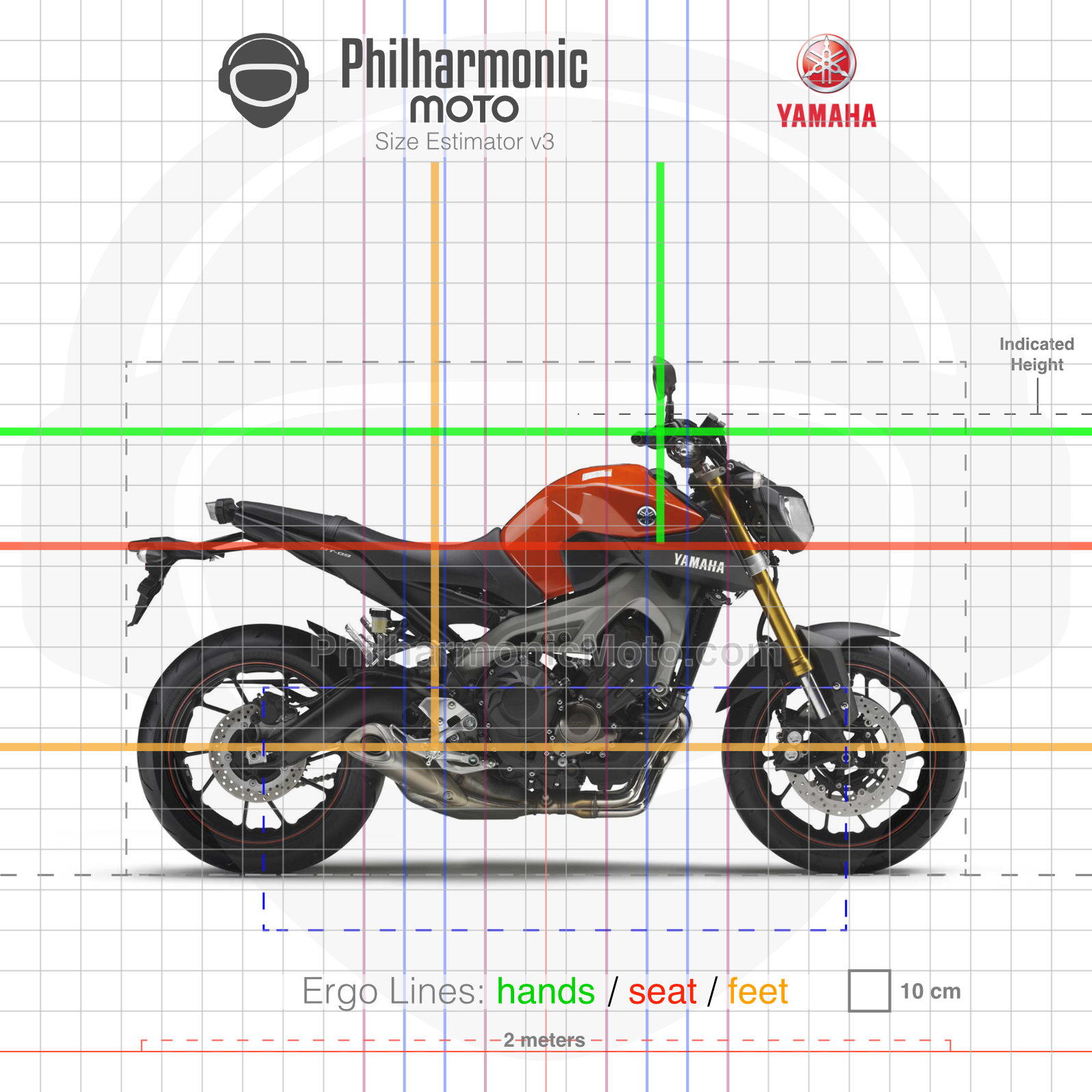

  • Size Estimator (see "About" page to learn more)
