Yamaha NMAX 125 (2021+)

GPD125-A

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

125 cc Single-cylinder, liquid-cooled

Power

12 hp @ 8000 rpm

Power to weight ratio

9 HP/100kg

Torque

11 Nm @ 6000 rpm

Torque to weight ratio

8 Nm/100kg

Transmission

– Automatic CVT
– Belt final drive

Fuel Capacity

7,1 litres

Length

1935 mm

Width

740 mm

Height

1160 mm

Weight

– 131 kg wet
– Max load: 167 kg

Seat Height

765 mm

Suspension

– Front: 30 mm telescopic fork, 100 mm travel
– Rear: twin-shocks, adjustable preload, 85 mm travel

Tyres

– Front: 110/70-13
– Rear: 130/70-13

Brakes

– Front: 230 mm disc, 1-piston caliper
– Rear: 230 mm disc, 1-piston caliper
– ABS available

Instruments

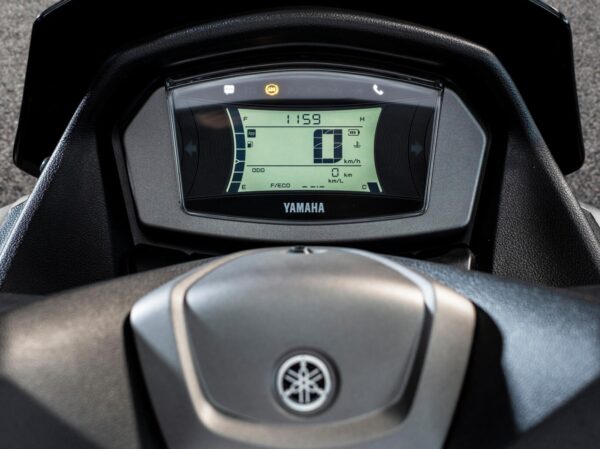

– LCD display with speedometer, tachometer, odometer, fuel gauge, consumption, engine temperature, clock
– Smartphone connectivity

Other

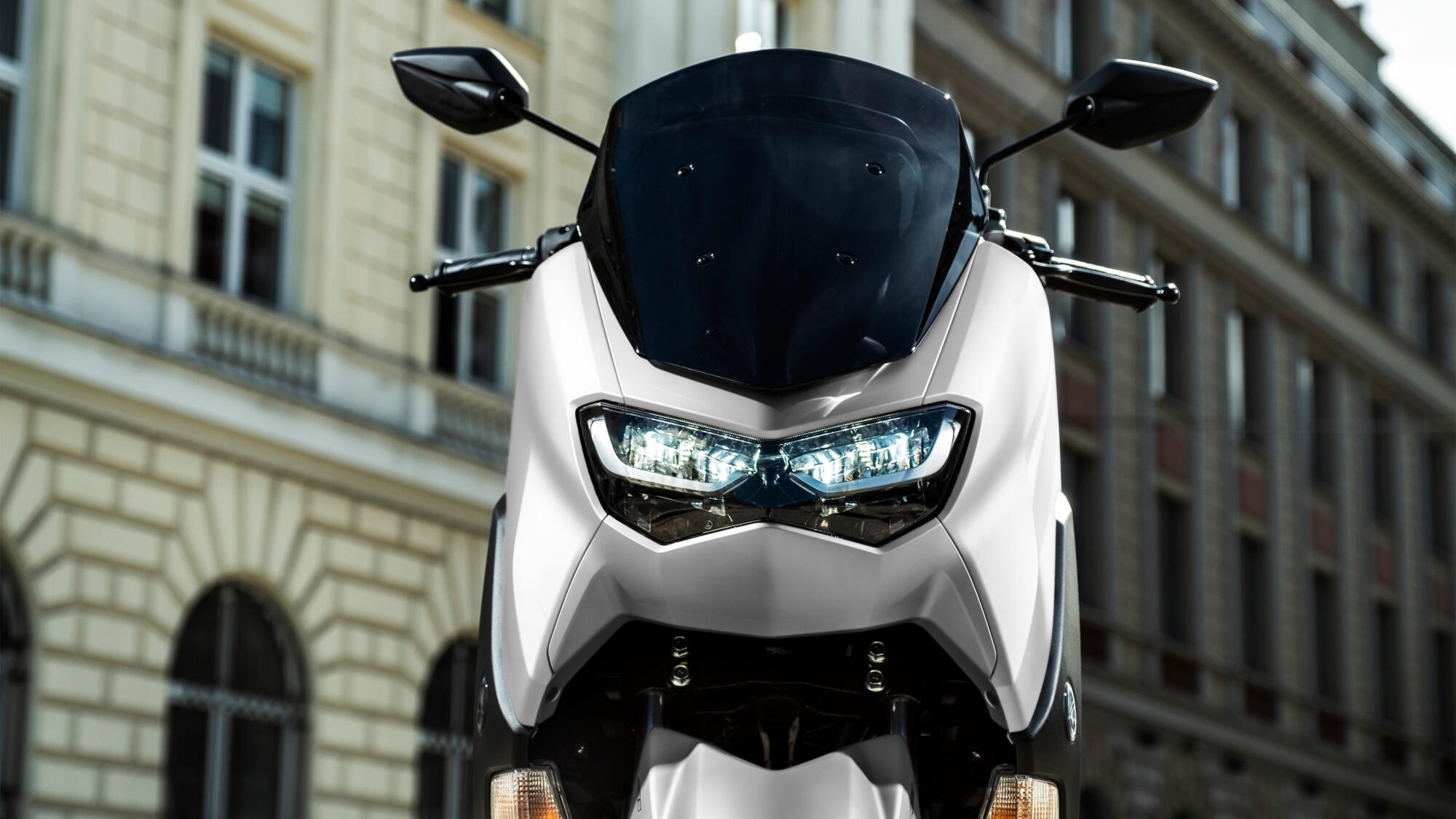

– LED headlight and taillight
– Traction control

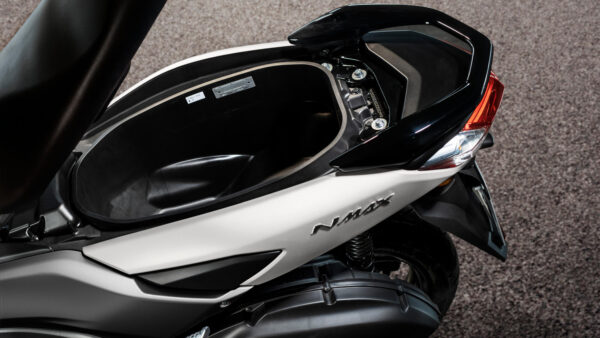

– Keyless ignition and steering lock, 12v socket, 23 litres under seat storage, front storage, start-stop system

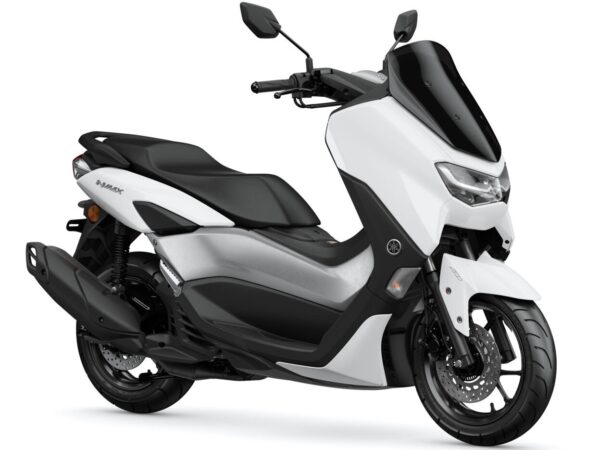

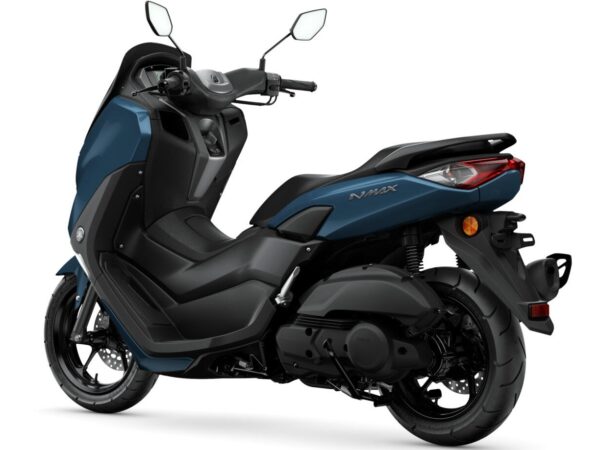

Yamaha NMAX 125 2023 dashboard Yamaha NMAX 125 2023 Milky White Yamaha NMAX 125 2023 Deep Blue back
