Yamaha Bolt R-Spec / XV950R (2014+)

XV95CP/C

Updated: 4 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

942 cc V-twin, air-cooled

Power

54 hp @ 5500 rpm

Power to weight ratio

22 HP/100kg

Torque

80 Nm @ 3000 rpm

Torque to weight ratio

33 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Belt final drive

Fuel Capacity

12,1 liters (13 liters from 2017 on)

Length

2291 mm

Width

945 mm

Height

1120 mm

Weight

– 246 kg wet
– Max load: 207 kg

Seat Height

691 mm

Suspension

– Front: 41 mm telescopic fork, 120 mm travel
– Rear: twin-shocks, adjustable preload, 71 mm travel

Tyres

– Front: 100/90-19
– Rear: 150/80-16

Brakes

– Front: 298 mm disc, 2-piston caliper
– Rear: 298 mm disc, 1-piston caliber
– ABS available

Instruments

– LCD with speedometer, odometer, trip meters, reserve trip, clock

Other

– LED taillight

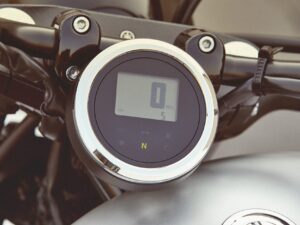

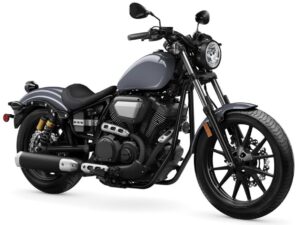

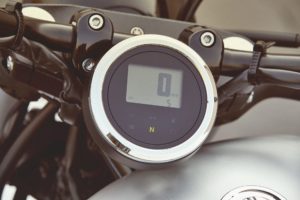

Yamaha Bolt R-Spec XV905R dashboard Yamaha Bolt R-Spec 2023 front Yamaha Bolt R-Spec 2023 back
