Yamaha YZF-R1 2023 dashboard

Yamaha R1 (2020+)

Yamaha R1 (2020+)

YZF-R1


Category: Tag:

Specifications

Engine

998 cc Inline-4, liquid-cooled

Power

200 hp @ 13500 rpm

Torque

113,3 Nm @ 11500 rpm

Transmission

6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive

Fuel Capacity

17 liters

Length

2055 mm

Width

690 mm

Height

1150 mm

Weight

200 kg

Seat Height

855-860 mm

Suspension

– Front: 43 mm inverted forks, fully adjustable, 120 mm travel
– Rear: mono-shock, fully adjustable, 120 mm travel

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 2×320 mm discs, 4-piston radial calipers
– Rear: 220 mm disc, single-piston caliper
– UBS – Unified Brake System
– cornering ABS available

Instruments

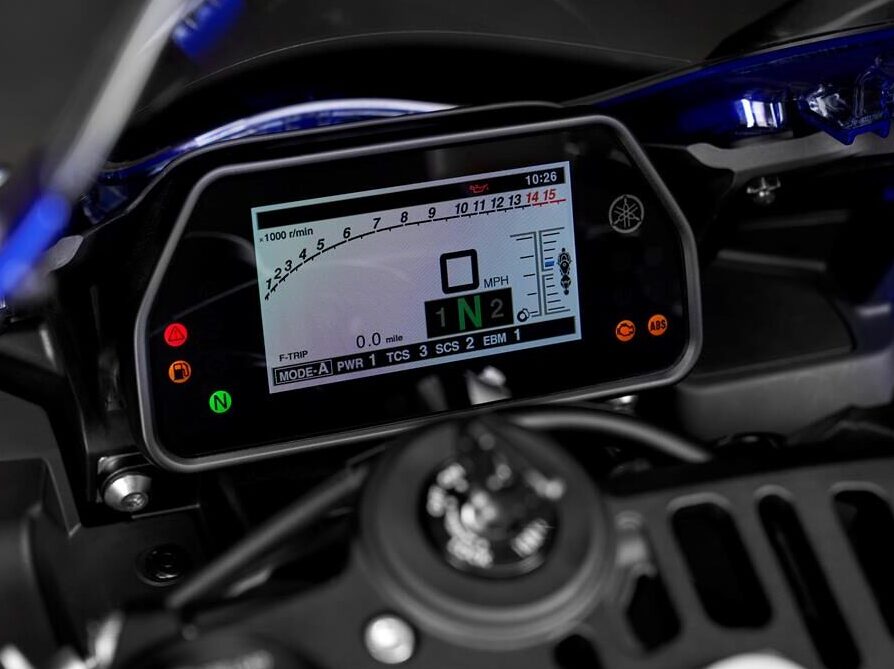

TFT display with tachometer, speedometer, dual trip meters, gear indicator, fuel trip meter, clock, D-mode and traction control indicator, temperature gauge, air temperature, instant and average fuel, front brake pressure and fore/aft G-force readouts, lap timer

Other

LED lights, Riding modes, switchable cornering traction control, engine brake control, wheelie control, launch control, Variable Intake System

Dashboard / Support us

Yamaha YZF-R1 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsYamaha R1 (2020+) removeYamaha TW200 (2001+) removeYamaha Fazer FZ25 (2022+) removeYamaha MT-10 (2022+) removeYamaha MT-03 (2016-2019) removeYamaha Tracer 9 (2021+) remove
NameYamaha R1 (2020+) removeYamaha TW200 (2001+) removeYamaha Fazer FZ25 (2022+) removeYamaha MT-10 (2022+) removeYamaha MT-03 (2016-2019) removeYamaha Tracer 9 (2021+) remove

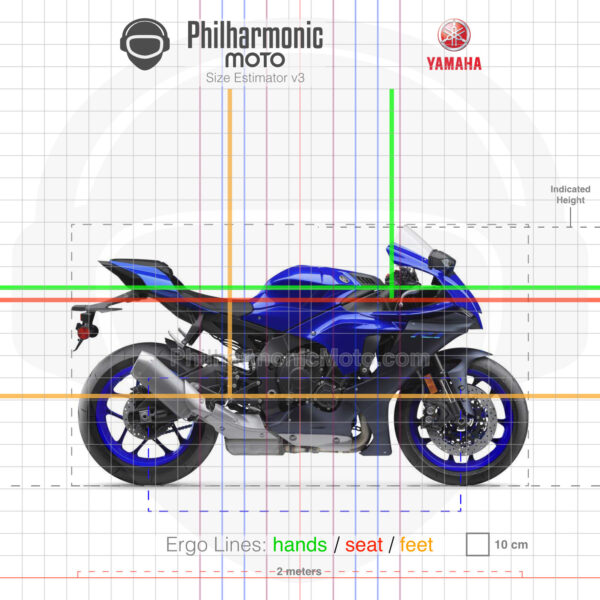

Size Estimator (see "About" page to learn more)Yamaha YZF-R1 2023 Team Yamaha BlueYamaha TW200 2023 Radical GrayYamaha MT-10 2023 Cyan StormYamaha MT-03 2019 black yellowYamaha Tracer 9 2023 Midnight Black
Length2055 mm2090 mm2015 mm2100 mm2090 mm2175 mm
Width690 mm820 mm770 mm800 mm745 mm885 mm
Height1150 mm1115 mm1070 mm1165 mm1035 mm1430 mm / 1470 mm (low/high screen position)
Seat Height855-860 mm790 mm790 mm835 mm780 mm810/825 mm (adjustable seat)
Weight200 kg128 kg wet149 kg wet212 kg wet167 kg wet212 kg wet
Engine998 cc Inline-4, liquid-cooled196 cc single-cylinder, air-cooled, carbureted249 cc Single-cylinder, air cooled998 cc Inline-4, liquid-cooled321cc Parallel Twin, liquid-cooled, 8 valve DOHC890 cc Inline-3, liquid-cooled
Power200 hp @ 13500 rpm16 hp @ 8000 rpm21,5 hp @ 8000 rpm165,9 hp @ 11500 rpm41,4 hp @ 10750 rpm119 hp @ 10000 rpm
Torque113,3 Nm @ 11500 rpm15 Nm @ 7000 rpm20 Nm @ 6500 rpm112 Nm @ 9000 rpm29,6 Nm @ 9000 rpm93 Nm @ 7000 rpm
Transmission6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive5-speed, Wet multi-plate clutch, chain final drive5-speed, Wet multi-plate clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate clutch, constant mesh, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity17 liters7 liters14 liters17 liters14 liters18,7 liters
Suspension- Front: 43 mm inverted forks, fully adjustable, 120 mm travel - Rear: mono-shock, fully adjustable, 120 mm travel- Front: 33 mm telescopic forks, 160 mm travel - Rear: mono-shock, adjustable preload, 150 mm travel- Front: 41 mm telescopic fork, 130 mm travel - Rear: mono-shock, adjustable preload, 120 mm travel- Front: KYB 43 mm inverted forks, fully adjustable, 120 mm travel - Rear: KYB piggyback shock, fully adjustable, 120 mm travel- Front: 41 mm telescopic fork, 130 mm travel - Rear: KYB mono-shock, 124 mm travel- Front: 41 mm inverted fork, fully adjustable, 130 mm travel - Rear: mono-shock, adjustable preload and rebound damping, 137 mm travel
Tyres- Front: 120/70-17 - Rear: 190/55-17- Front: 130/80-18 - Rear: 180/80-14- Front: 100/80-17 - Rear: 140/70-17- Front: 120/70-17 - Rear: 190/55-17- Front: 110/70-17 - Rear: 140/70-17- Front: 120/70-17 - Rear: 180/55-17
Brakes- Front: 2x320 mm discs, 4-piston radial calipers - Rear: 220 mm disc, single-piston caliper - UBS - Unified Brake System - cornering ABS available- Front: 220 mm disc, 2-piston caliper - Rear: 110 mm Drum- Front: 282 mm disc, 2-piston caliper - Rear: 220 mm disc, 2-piston caliper - ABS available- Front: 2x320 mm discs, 4-piston calipers - Rear: 220 mm disc, single-piston caliper - cornering ABS available- Front: 298 mm disc - Rear: 220 mm disc - ABS available- Front: 298 mm discs, 4-piston radial calipers - Rear: 245 mm disc, 1-piston caliper - cornering ABS available
InstrumentsTFT display with tachometer, speedometer, dual trip meters, gear indicator, fuel trip meter, clock, D-mode and traction control indicator, temperature gauge, air temperature, instant and average fuel, front brake pressure and fore/aft G-force readouts, lap timerAnalogue speedometer, odometer, resettable trip meterLCD display with tachometer, odometer, speedometer, fuel gauge, instant and average fuel, trip meter, clockTFT display with digital tachometer, odometer, speedometer, gear indicator, fuel gauge, average consumption, trip meter, air and water temperature, clockAnalogue tachometer, digital odometer, speedometer, gear indicator, fuel gauge, temperature gauge, clockDual TFT displays with tachometer, odometer, speedometer, gear indicator, fuel gauge, average consumption, trip meter, air and water temperature, clock
OtherLED lights, Riding modes, switchable cornering traction control, engine brake control, wheelie control, launch control, Variable Intake System"Enduro-style, 60/55-watt halogen headlight features high and low beams."LED headlight and taillightLED lights, riding modes, cornering traction control, engine brake control, wheelie control, cruise control, speed limiter-LED lights, riding modes, cornering traction control, slide control, wheelie control, cruise control
