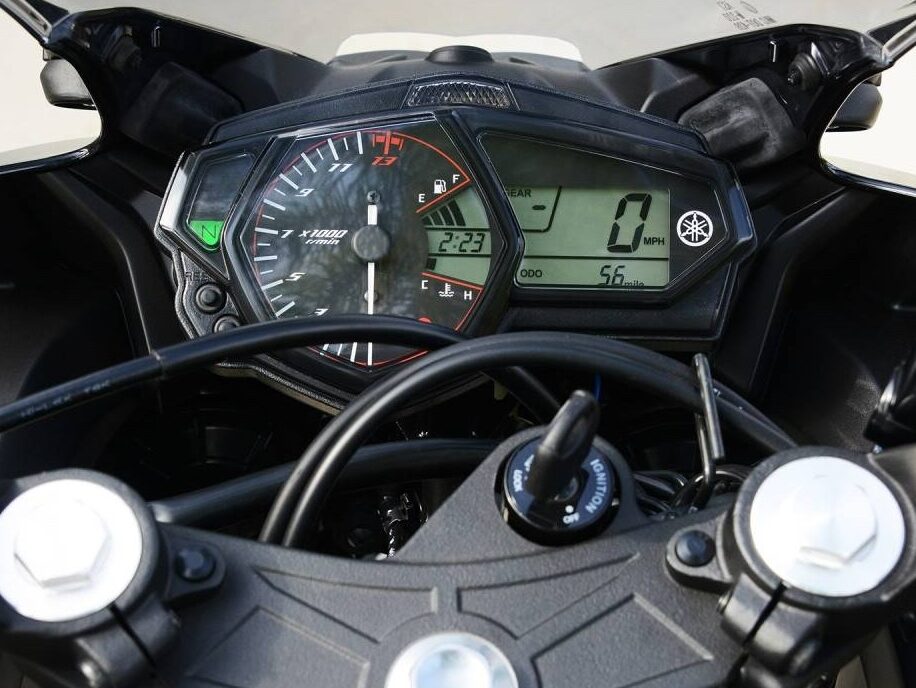

Yamaha YZF-R3 2015 dashboard

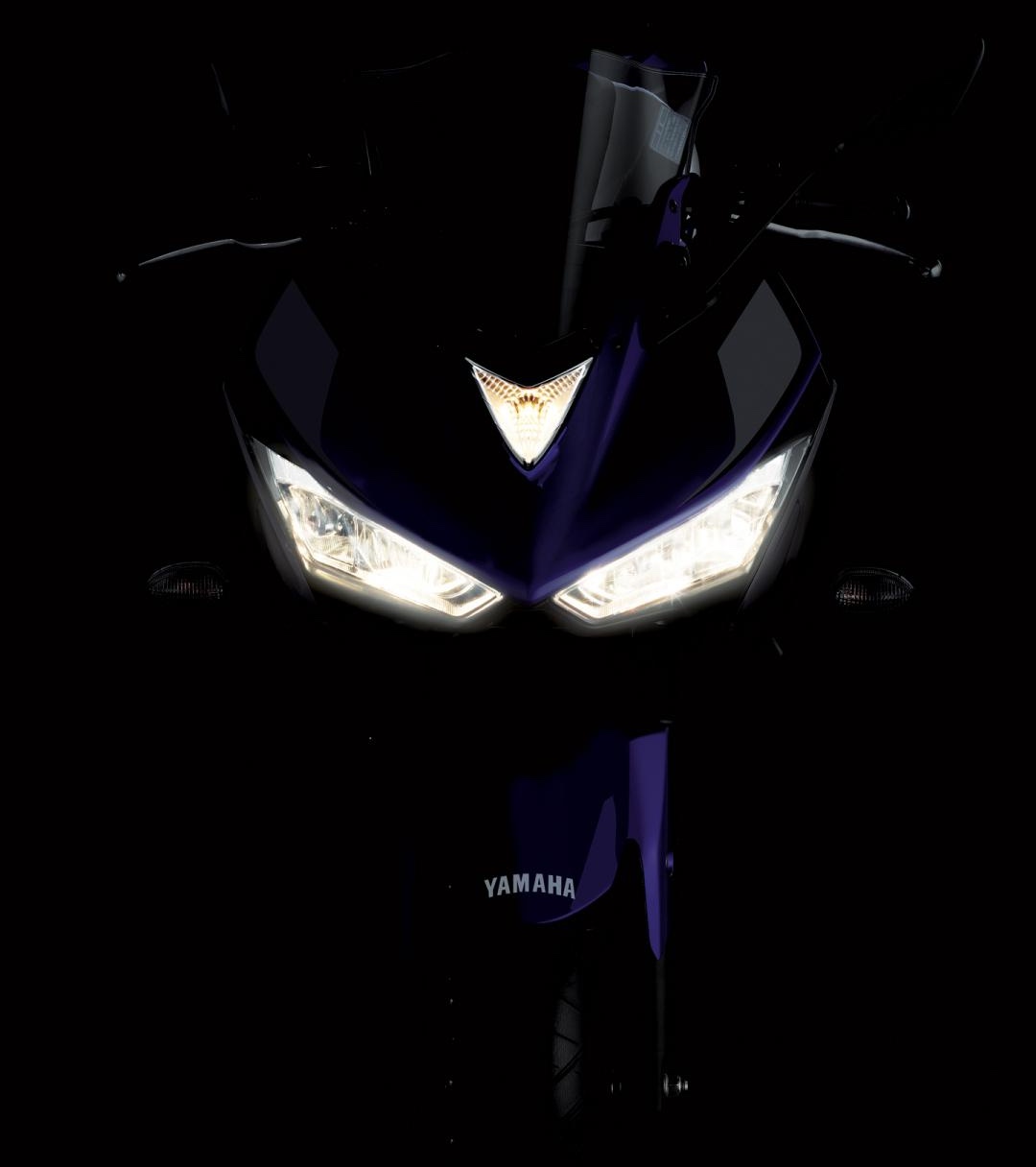

Yamaha YZF-R3 2015 cyclops headlight
Yamaha YZF-R3 2015 night lights
Yamaha YZF-R3 2015 Raven front

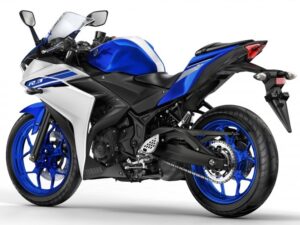

Yamaha YZF-R3 2015 front
Yamaha YZF-R3 2016 back

Yamaha R3 (2015-2018)

Yamaha R3 (2015-2018)

YZF-R3


Brand: Style:
Share:

Specifications

Engine

321 cc Parallel-Twin, liquid-cooled

Power

41,4 hp @ 10750 rpm

Power to weight

25 HP/Kg x 100

Torque

29,6 Nm @ 9000 rpm

Torque to weight

18 Nm/Kg x 100

Transmission

– 6-speed, wet multi-plate clutch, chain final drive

Fuel Capacity

14 liters

Length

2090 mm

Width

720 mm

Height

1135 mm

Weight

167 kg wet

Seat Height

780 mm

Suspension

– Front: KYB 41 mm telescopic fork, 130 mm travel
– Rear: KYB mono-shock, adjustable preload, 125 mm travel

Tyres

– Front: 110/70-17
– Rear: 140/70-17

Brakes

– Front: 298 mm floating disc, 2-piston caliper
– Rear: 220 mm floating disc, 1-piston caliper
– ABS available (from 2017)

Instruments

Analogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, instant and average consumption, trip meters, reserve trip meter, engine temperature, adjustable shift-up indicator, clock

Other

LED taillight
