Yamaha RayZR (2024+)




Brand: Style:
Share:

Specifications

Engine

125 cc Single-cylinder, air-cooled

Power

8 hp @ 6500 rpm

Power to weight ratio

8 HP/100kg

Torque

9,7 Nm @ 5000 rpm

Torque to weight ratio

10 Nm/100kg

Transmission

– Automatic
– Belt final drive

Fuel Capacity

5,2 litres

Length

1880 mm

Width

685 mm

Height

1190 mm

Weight

99 kg wet

Seat Height

785 mm

Suspension

– Front: telescopic fork, 90 mm travel
– Rear: single-shock, 80 mm travel

Tyres

– Front: 90/90-12
– Rear: 110/90-10

Brakes

– Front: 190 mm disc
– Rear: drum
– CBS (combined braking)

Instruments

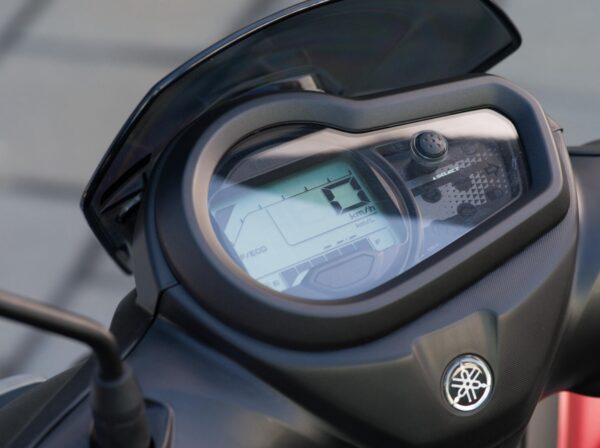

– LCD display with speedometer, tachometer, odometer, fuel gauge, consumption

Other

– LED headlight and taillight

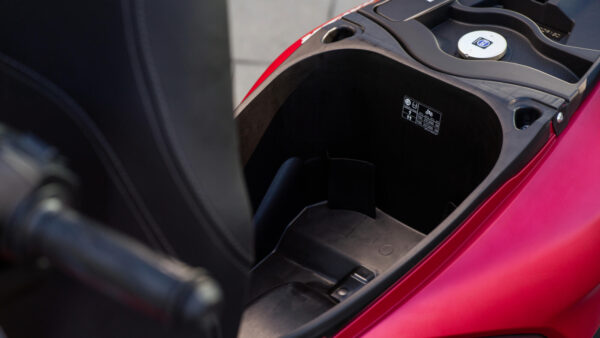

– 21 litres under seat storage, front storage, start-stop system, centre stand, "with a special electrical Power Assist system that provides extra boost when you're pulling away.", electric start and kickstart

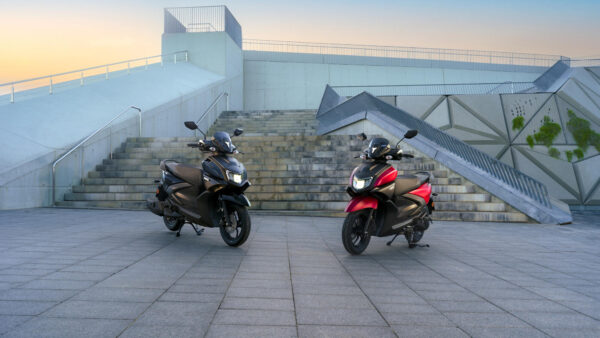

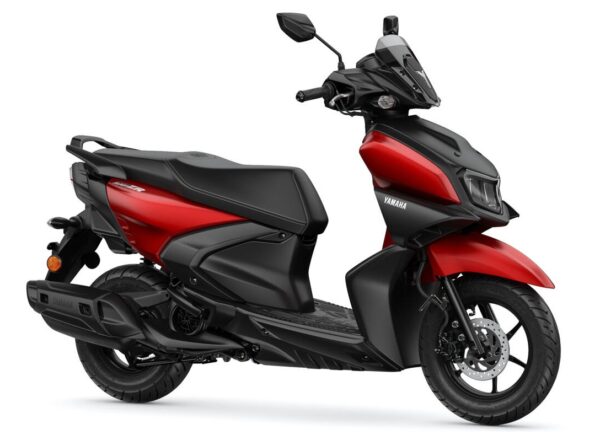

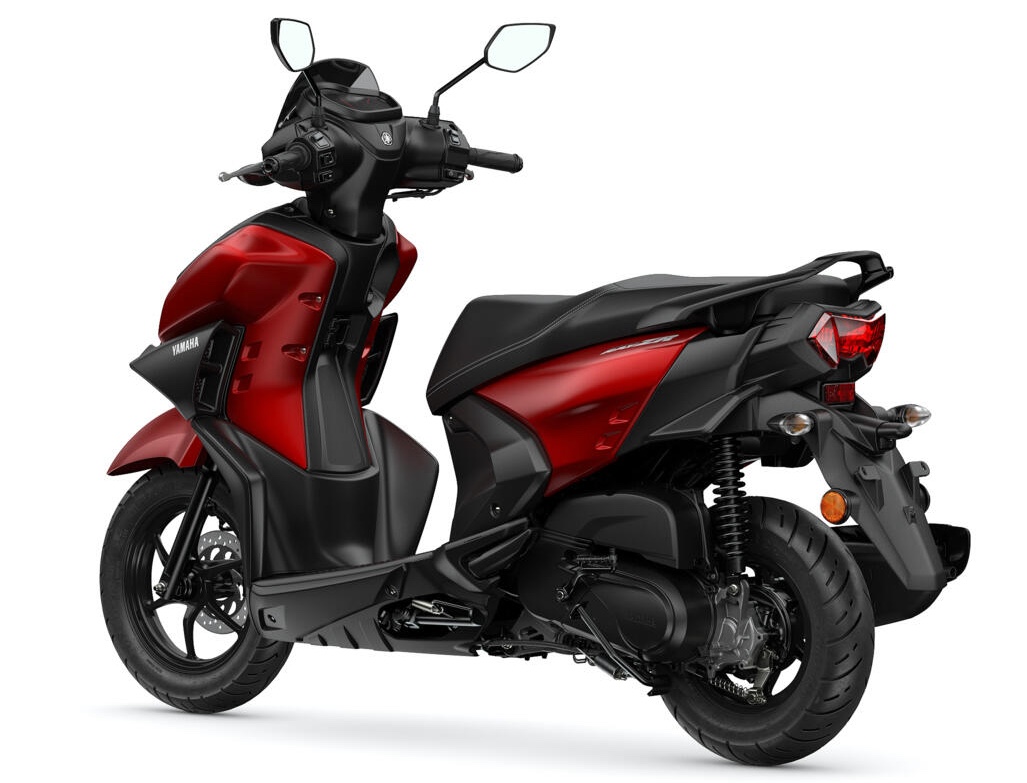

Yamaha RayZR 2024 Anodized Red front Yamaha RayZR 2024 Anodized Red back

T-shirts, mugs, stickers and more:

fuel mug

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

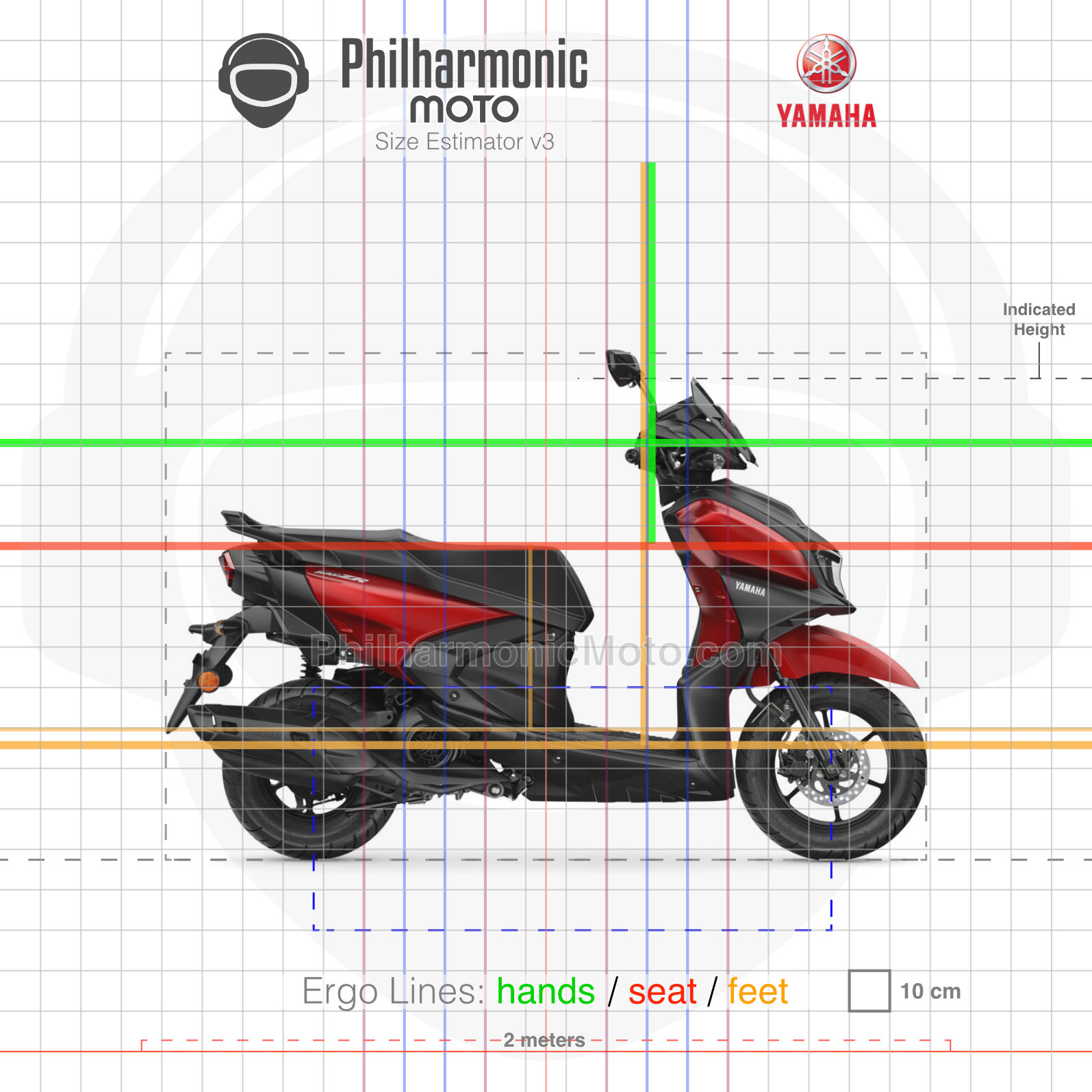

  • Size Estimator (see "About" page to learn more)
