BMW K 1300 R (2009-2015)

K1300R

“For the first time in the history of series production BMW motorcycles and
indeed for the first time worldwide in series production, the rider of the new
K 1300 R is able to shift up without operating the clutch or taking back the gas
handle, that is with hardly the slightest interruption of power and traction, by
means of the HP Gearshift Assistant available as an optional extra. Introduced
for the first time on the BMW HP2 Sport, the HP Gearshift Assistant may be
combined with the sport footrests likewise available as special equipment on
the new machine.” BMW press release.


Brand: Style:
Share:

Specifications and Features

Engine

1293 cc, Inline-4, liquid-cooled

Power

173 hp @ 9250 rpm

Power to weight ratio

71 HP/100kg

Torque

140 Nm @ 8250 rpm

Torque to weight ratio

58 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist hydraulic clutch
– Shaft final drive
– Optional: quick-shifter (up only)

Fuel Capacity

19 litres

Length

2228 mm

Width

856 mm (on mirrors)

Height

1095 mm (excl. mirrors)

Weight

– 243 kg wet
– Max load: 217 kg

Seat Height

820 mm (low seat: 790 mm)

Suspension

– Front: BMW Duolever, central spring strut, 115 mm travel
– Rear: BMW Paralever, central spring strut, adjustable preload and rebound, 135 mm travel
– Optional: electronic suspension

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 320 mm floating discs, 4-piston caliper
– Rear: 265 mm disc, 2-piston swing caliper
– ABS available (switchable)

Instruments

– Analogue speedometer and tachometer, LCD display with odometer, gear indicator, fuel gauge, reserve range, trip meter, engine temperature, clock. Optional: full LCD instrument cluster.

Other

– LED taillight. Optional: LED indicators
– Optional: traction control (switchable)
– Optional: heated grips, TPMS, centre stand, "Repair instructions for K-models, DVD"

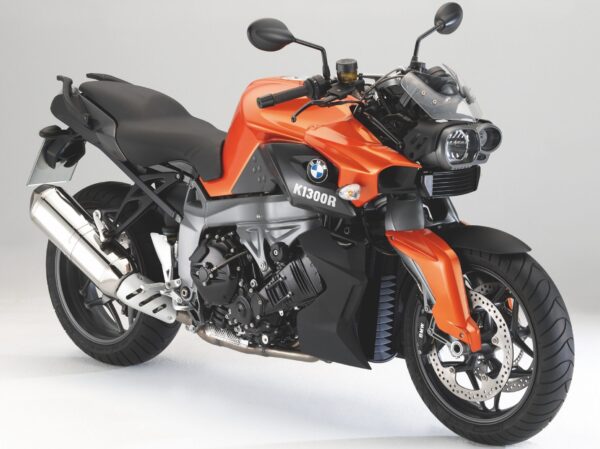

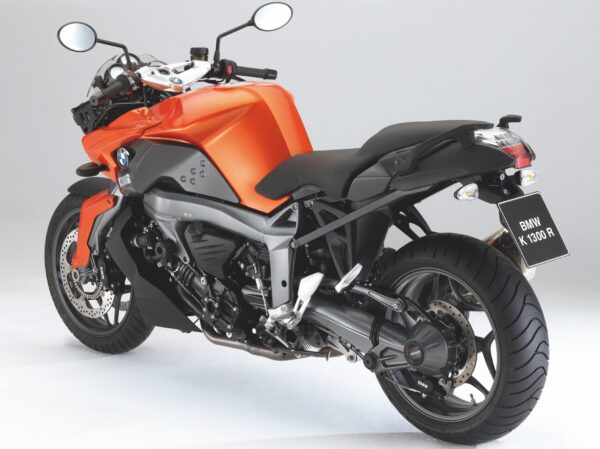

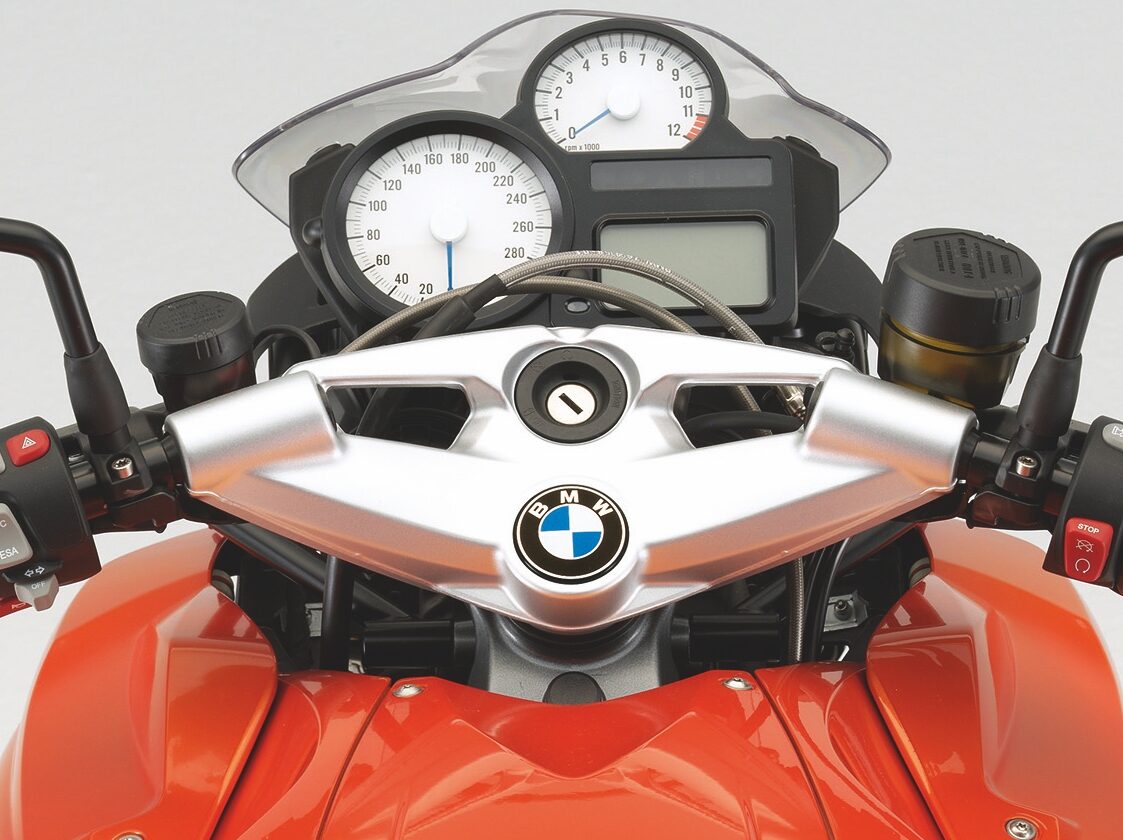

BMW K 1300 R 2009 orange dashboard BMW K 1300 R 2009 orange front BMW K 1300 R 2009 orange back

Motorcycle gifts to celebrate it and support the website:
clutches tshirt
Click here to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

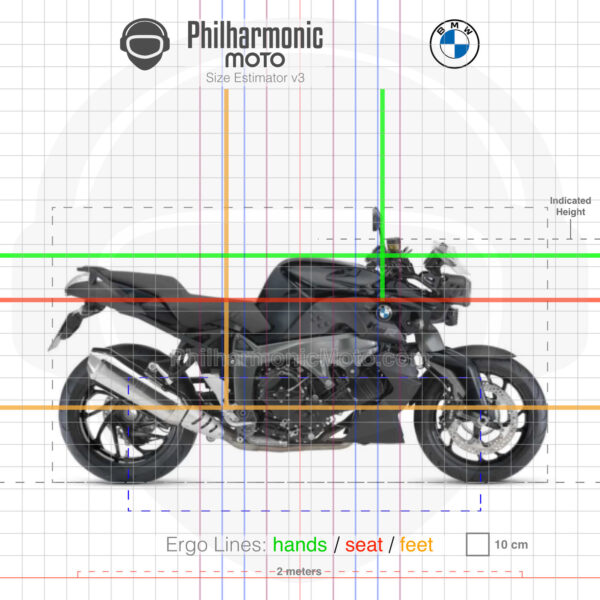

  • Size Estimator (see "About" page to learn more)
