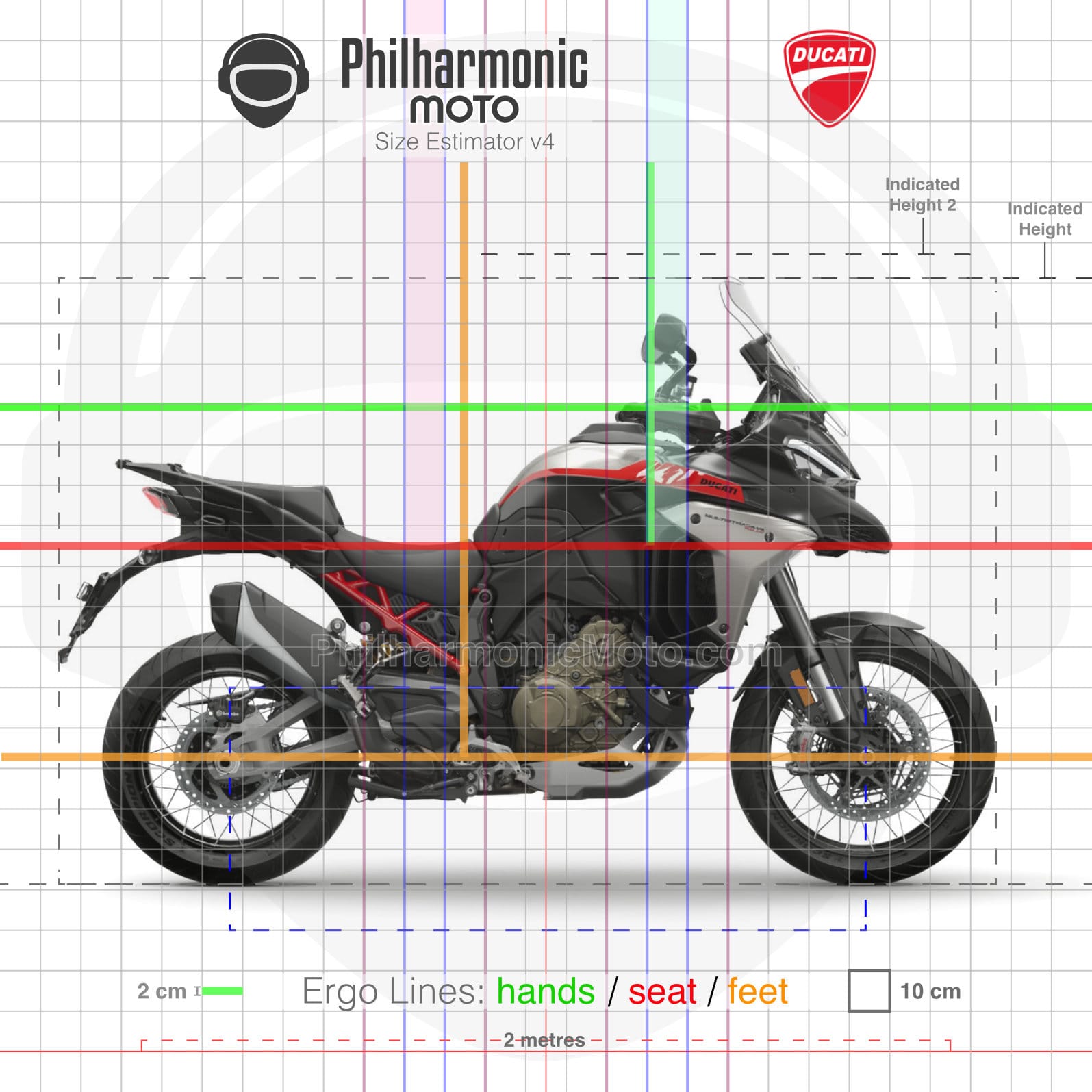

Ducati Multistrada V4 Rally 2023 Brushed Aluminium & Matt Black
Ducati Multistrada V4 Rally 2023 Brushed Aluminium & Matt Black
Ducati Multistrada V4 Rally 2023 power and torque curves
Ducati Multistrada V4 Rally 2023 front
Ducati Multistrada V4 Rally 2023 back
Ducati Multistrada V4 Rally 2023 dashboard

Ducati Multistrada V4 Rally (2023-2025)

Multistrada V4 Rally Radar (trim)

Updated: 13 July 2024

Launch decade: Style: Brand:

Specifications and Features

Length

2316 mm

Width

991 mm (handlebars)

Height

1498/1557 mm (adjustable screen)

Seat Height

870/890 mm (adjustable. Optional: 825/845, 855/875, 855/905)

Weight

– 260 kg wet
– Max load: 230 kg

Engine

1158 cc V4, liquid-cooled

Power

170 hp @ 10750 rpm

Power to weight ratio

65 HP/100kg

Torque

121 Nm @ 8750 rpm

Torque to weight ratio

47 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist hydraulic clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

30 litres

Suspension

– Front: 50 mm inverted fork, fully adjustable, 170 mm travel
– Rear: mono-shock, fully adjustable, 180 mm travel
– Electronic suspension with Minimum Preload function. Optional: low suspension, seat height: 805/825 mm

Tyres

– Front: 120/70-19 (-48 cm)
– Rear: 170/60-17 (-43 cm)

Brakes

– Front: 330 mm semi-floating discs, 4-piston radial calipers
– Rear: 265 mm disc, 2-piston floating caliper
– Cornering ABS available (switchable, adjustable), rear lift mitigation

Instruments

– 17 cm (6.5") TFT adjustable display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock, navigation
– Smartphone connectivity, navigation

Other

– LED lights, cornering lights, illuminated switches
– Riding modes, traction control (switchable, adjustable), power modes, wheelie control, engine brake control
– Cruise control, 12v sockets (dash and under seat), hill-hold, keyless ignition, adjustable hand levers, Extended Cylinder Deactivation. Optional: adaptive cruise control, blind spot detection, heated grips and seats, TPMS, saddlebags (25 and 35 litres)

Ducati Multistrada V4 Rally 2023 dashboard Ducati Multistrada V4 Rally 2023 front Ducati Multistrada V4 Rally 2023 back
