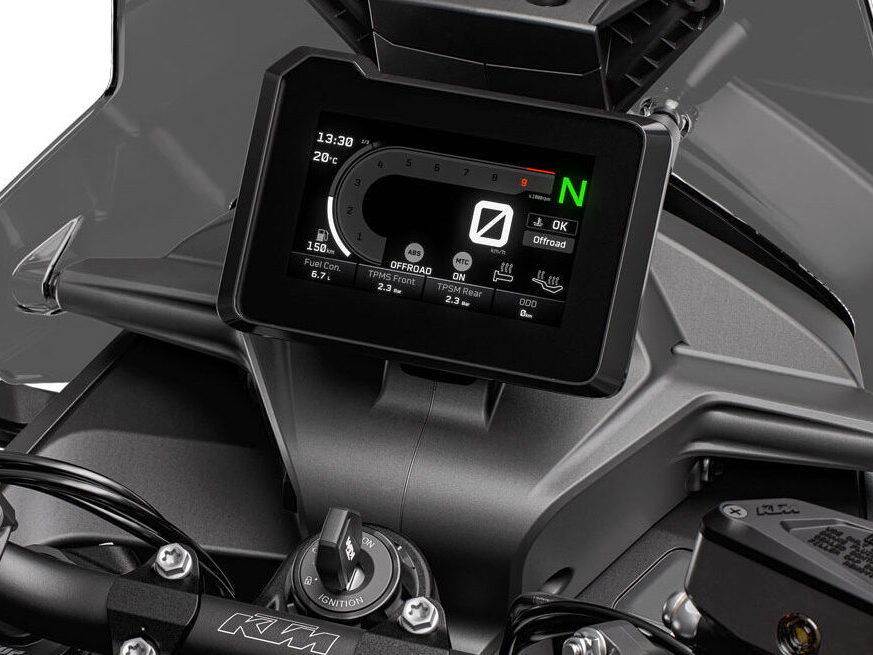

KTM 890 Adventure 2023 dashboard

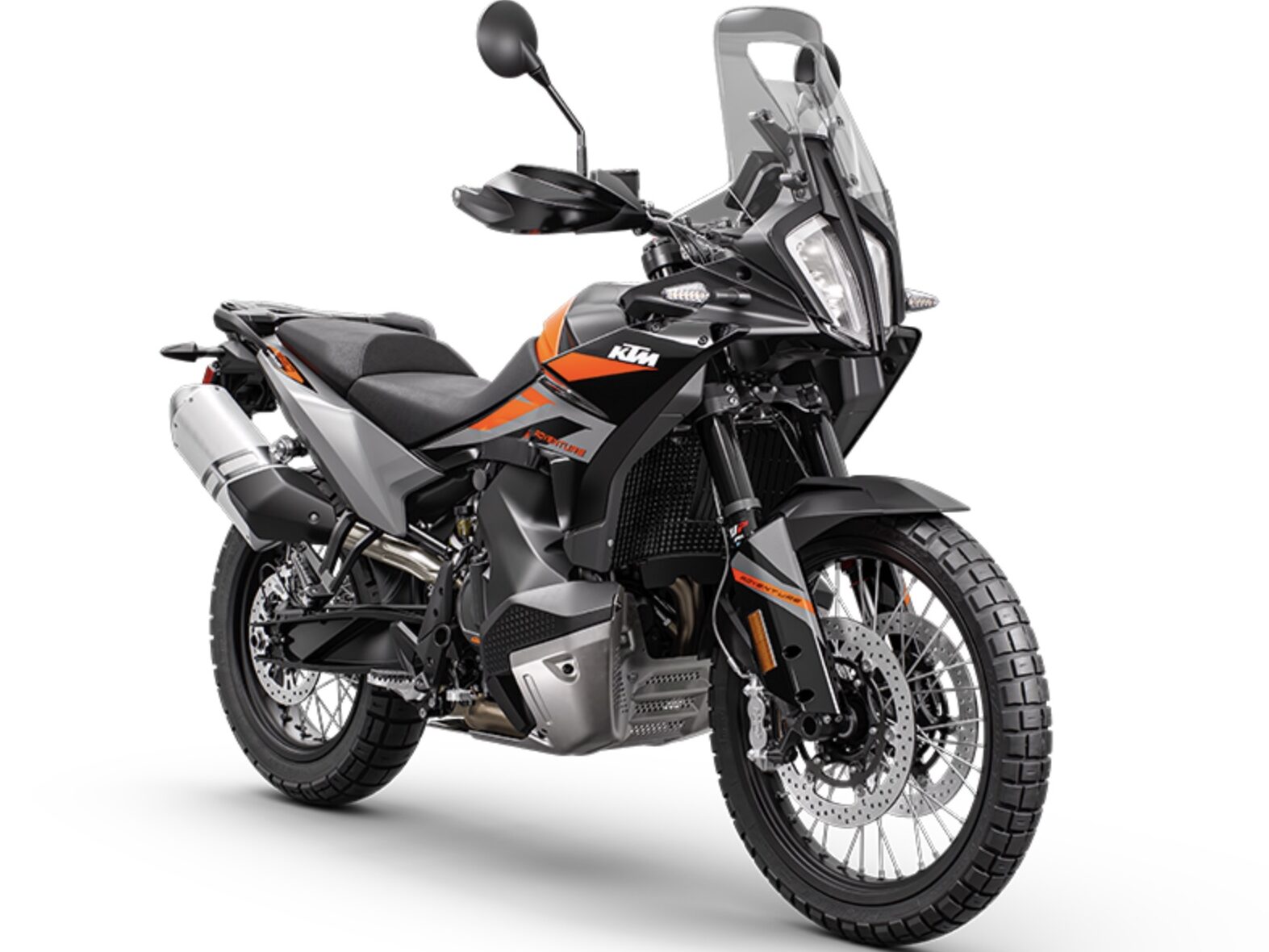

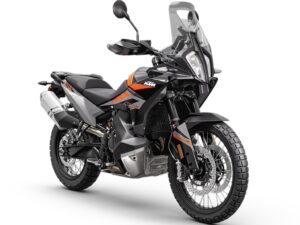

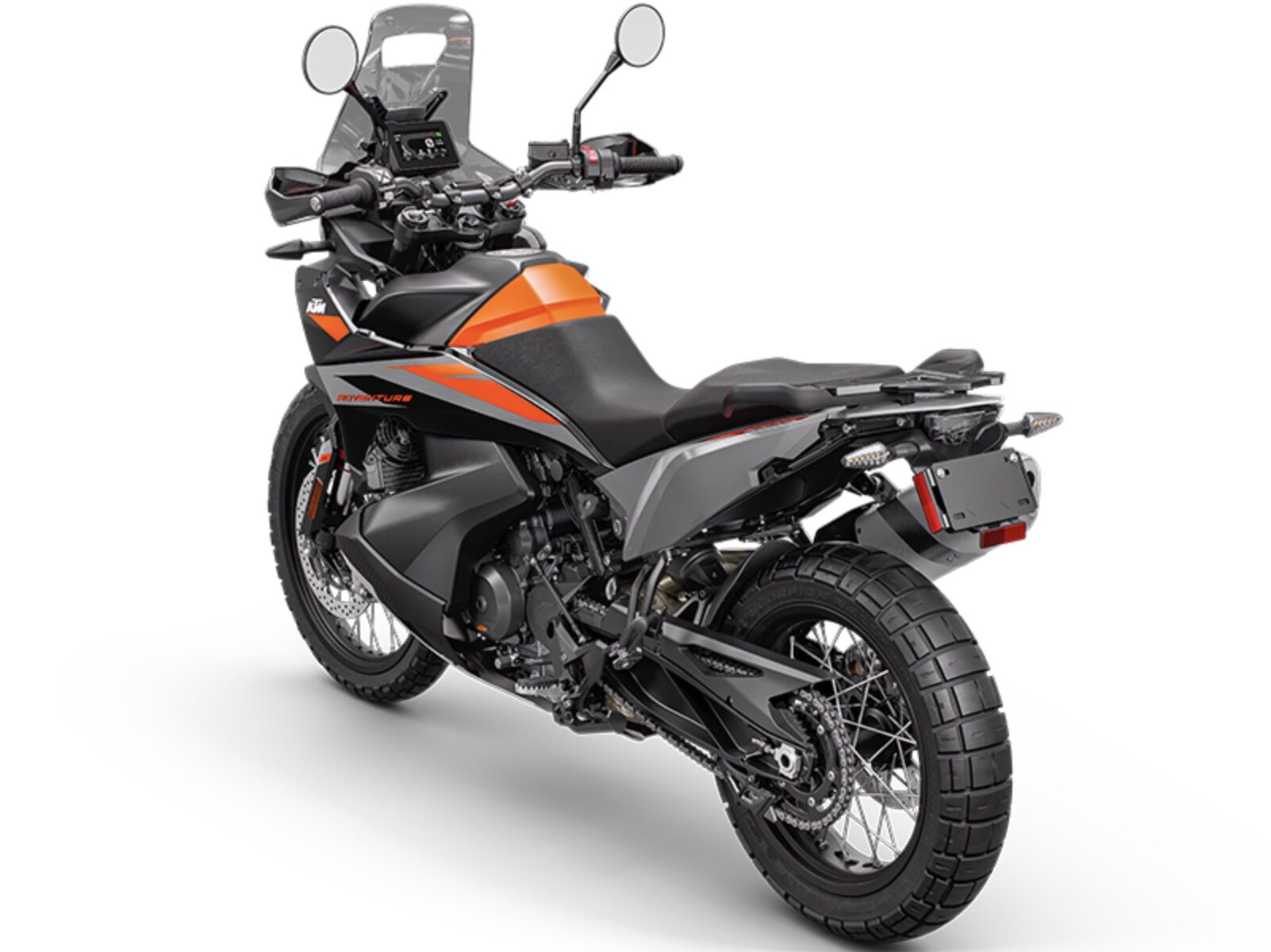

KTM 890 Adventure (2023+)

KTM 890 Adventure (2023+)

Dashboard for the 890 Duke R shown, but it’s the same as the non-R.

Category: Tag:

Specifications

Engine

889 cc Parallel-twin, liquid-cooled

Power

105 hp @ 8000 rpm

Torque

100 Nm @ 6500 rpm

Transmission

6-speed, assist/slip clutch, chain final drive

Fuel Capacity

20 liters

Length

2214 mm (estimated)

Width

Height

1459 mm (estimated)

Weight

210 kg wet

Seat Height

840/860 mm

Suspension

– Front: 48 mm inverted fork, adjustable rebound and compression damping, 200 mm travel
– Rear: single shock, adjustable rebound damping and preload, 200 mm travel

Tyres

– Front: 90/90-21
– Rear: 150/70-18

Brakes

– Front: 320 mm discs, 4-piston radial caliper
– Rear: 260 mm disc, 2-piston floating caliper
– switchable cornering ABS available

Instruments

TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock

Other

LED lights, cornering traction control, riding modes

Dashboard / Support us

KTM 890 Adventure 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsKTM 890 Adventure (2023+) removeHonda CRF300L Rally (2021+) removeYamaha Ténéré 700 (2020-2022) removeTriumph Tiger 900 Rally Pro (2020+) removeSuzuki V-Strom 800DE (2023+) removeDucati DesertX (2022+) remove
NameKTM 890 Adventure (2023+) removeHonda CRF300L Rally (2021+) removeYamaha Ténéré 700 (2020-2022) removeTriumph Tiger 900 Rally Pro (2020+) removeSuzuki V-Strom 800DE (2023+) removeDucati DesertX (2022+) remove

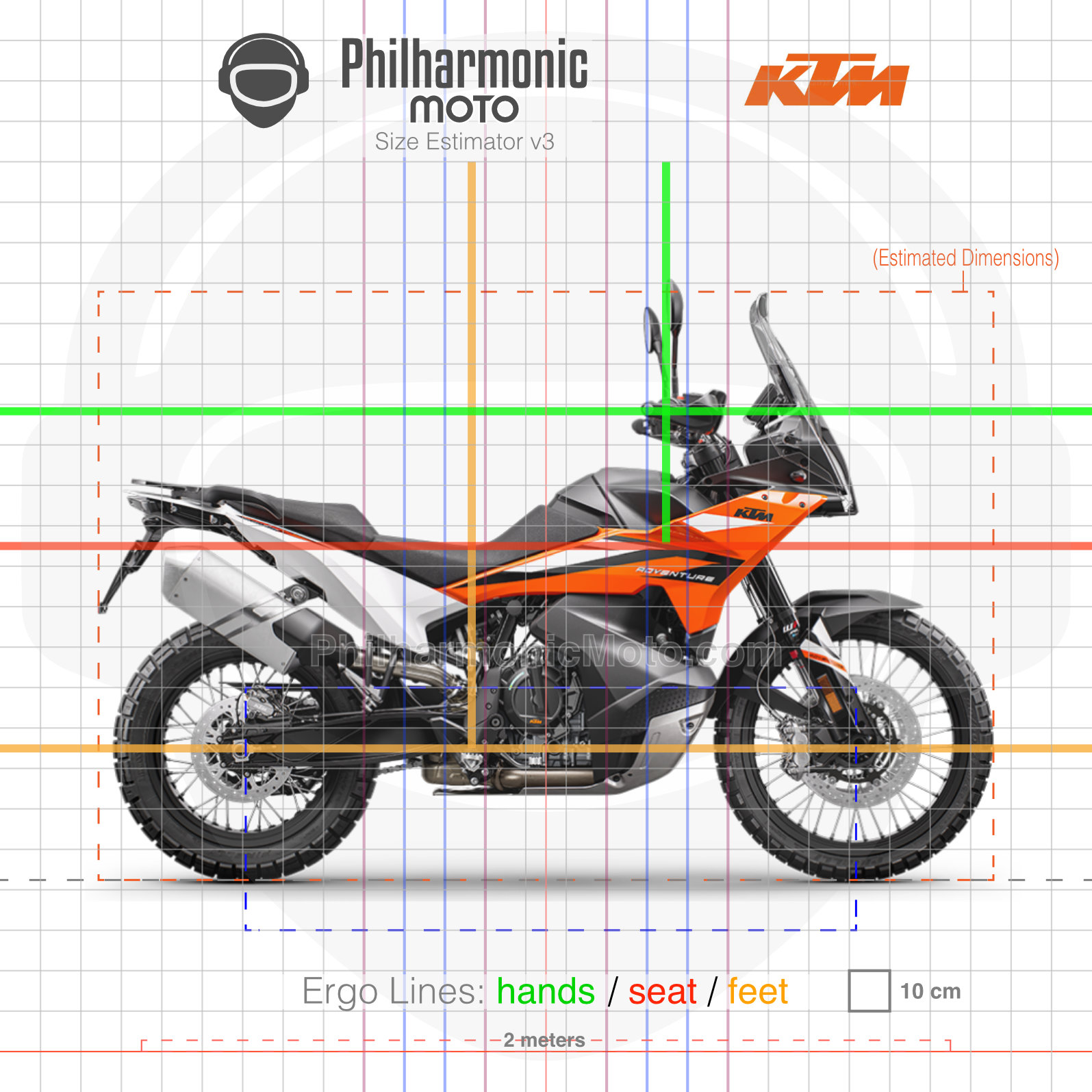

Size Estimator (see "About" page to learn more)KTM 890 Adventure 2023 orangeHonda CRF300L Rally 2021 redYamaha Tenere 700 2022 Icon BlueTriumph Tiger 900 Rally Pro 2020 Matt KhakiSuzuki V-Strom 800DE 2023 Glass Matt Mechanical GreyDucati DesertX 2022 Star White Silk
Length2214 mm (estimated)2330 mm2365 mm2254 mm (estimated)2345 mm2343 mm (estimated)
Width-920 mm915 mm935 mm975 mm-
Height1459 mm (estimated)1415 mm1455 mm1452 mm / 1502 mm (low/high screen position)1310 mm1432 mm (estimated)
Seat Height840/860 mm885 mm880 mm850-870 mm (adjustable)855 mm875 mm (890 mm high seat, 865 mm low seat and 845 mm low seat/low suspension options)
Weight210 kg wet150 kg wet204 kg wet201 kg dry230 kg wet223 kg wet
Engine889 cc Parallel-twin, liquid-cooled286cc Single-cylinder, liquid cooled689cc Parallel Twin, liquid-cooled888 cc Inline Triple, liquid-cooled776 cc Parallel Twin, liquid-cooled, 270º crank937 cc L-Twin, liquid-cooled
Power105 hp @ 8000 rpm27 hp @ 8500 rpm73,4 hp @ 9000 rpm93,9 hp @ 8750 rpm84,3 hp @ 8500 rpm110 hp @ 9250 rpm
Torque100 Nm @ 6500 rpm26,6 Nm @ 6500 rpm68 Nm @ 6500 rpm87 Nm @ 7250 rpm78 Nm @ 6800 rpm92 Nm @ 6500 rpm
Transmission6-speed, assist/slip clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate slip/assist hydraulic clutch, quick-shifter, chain final drive
Fuel Capacity20 liters12,8 liters16 liters20 liters20 liters21 liters
Suspension- Front: 48 mm inverted fork, adjustable rebound and compression damping, 200 mm travel - Rear: single shock, adjustable rebound damping and preload, 200 mm travel- Front: 43 mm telescopic forks, 259 mm travel - Rear: Pro-link mono shock, 259 mm travel- Front: 43 mm inverted forks, fully adjustable, 210 mm travel - Rear: mono-shock, adjustable preload and rebound damping, 200 mm travel– Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel – Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel- Front: Showa 43 mm inverted forks, fully adjustable, 220 mm travel - Rear: Showa mono-shock, fully adjustable, 220 mm travel- Front: KYB 46 mm inverted forks, fully adjustable, 230 mm travel - Rear: KYB mono-shock, fully adjustable, remote preload, 220 mm travel
Tyres- Front: 90/90-21 - Rear: 150/70-18- Front: 80/100-21 - Rear: 120/80-18- Front: 90/90-21 - Rear: 150/70-18– Front: 90/90-21 – Rear: 150/70-17 – Tubeless- Front: 90/90-21 - Rear: 150/70-17- Front: 90/90-21 - Rear: 150/70-18
Brakes- Front: 320 mm discs, 4-piston radial caliper - Rear: 260 mm disc, 2-piston floating caliper - switchable cornering ABS available- Front: 256 mm disc, two-piston caliper - Rear: 220 mm disc, single-piston caliper - Switchable ABS available- Front: 282 mm discs, 2-piston calipers - Rear: 245 mm disc, single-piston caliper - switchable ABS available- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available- Front: 310 mm discs, 2-piston Nissin calipers - Rear: 260 mm disc, 1-piston Nissin caliper - switchable ABS available- Front: Brembo monobloc 320 mm radial semi-floating discs, 4-piston calipers - Rear: Brembo 265 mm floating disc, 2-piston floating caliper - cornering ABS available
InstrumentsTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clockLCD display with speedometer, tachometer, clock, fuel gauge, gear indicator, fuel mileage and consumption, average speed, stopwatchLCD display with digital tachometer, odometer, speedometer, gear indicator, fuel gauge, fuel range, average and instant fuel consumption, dual trip meters, clock7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockTFT display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant temperature, fuel consumption, fuel gauge, and clockTFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock
OtherLED lights, cornering traction control, riding modes-LED headlightLED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, smartphone connectivity, illuminated switches, cruise control, heated grips, heated seat with separate pillion control, TPMS, LED fog lights, centre standLED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboardLED lights, USB socket, 12V socket, traction control, wheelie control, engine brake control, riding modes, cruise control, self-canceling indicators, steering damper
