Harley-Davidson Fat Bob 114 (2023+)

FXFBS, Milwaukee-Eight 114 engine


Brand: Style:
Share:

Specifications and Features

Engine

1868 cc V-twin, air/oil cooled

Power

94 hp @ 4750 rpm

Power to weight ratio

31 HP/100kg

Torque

160 Nm @ 3500 rpm

Torque to weight ratio

52 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Belt final drive

Fuel Capacity

13,2 litres

Length

2340 mm

Width

960 mm

Height

1110 mm

Weight

– 306 kg wet
– Max load: 220 kg

Seat Height

710 mm

Suspension

– Front: 43 mm inverted fork, 130 mm travel
– Rear: mono-shock, adjustable preload (remote), 112 mm travel

Tyres

– Front: 150/80-16
– Rear: 180/70-16

Brakes

– Front: 300 mm floating discs, 4-piston calipers
– Rear: 292 mm floating disc, 2-piston floating caliper
– ABS available

Instruments

Analogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, trip meter, range, clock

Other

– LED headlight
– Cruise control, USB-A socket, keyless ignition

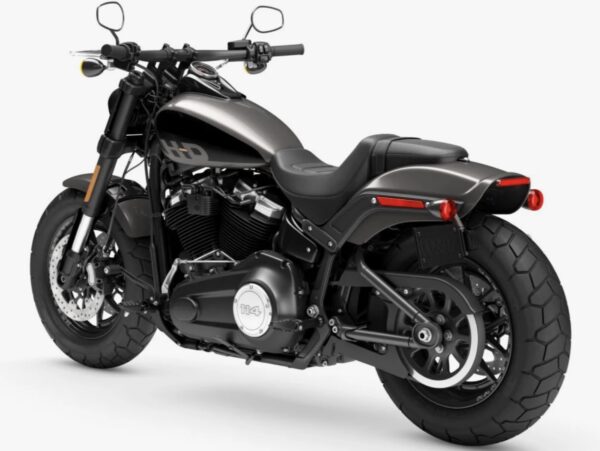

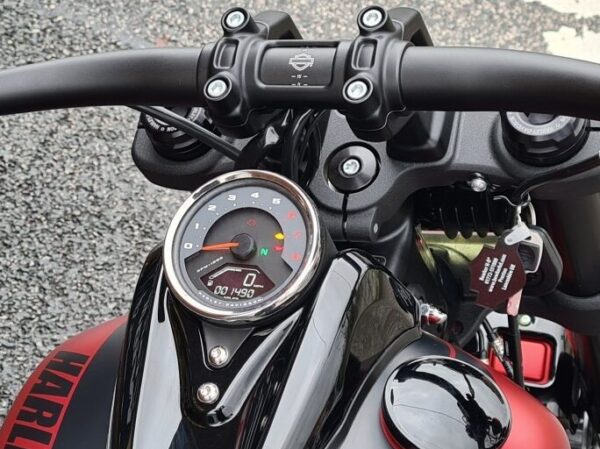

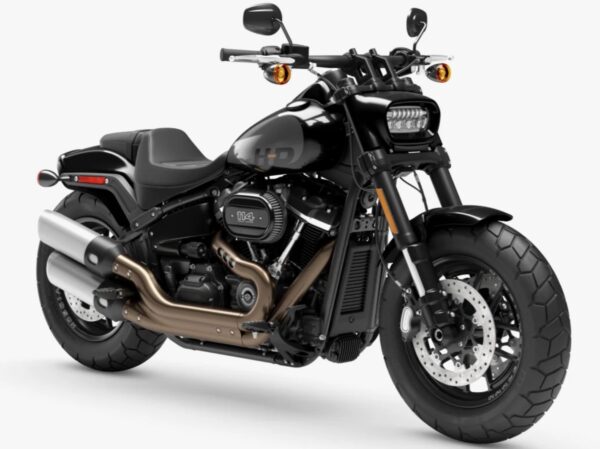

Harley-Davidson Fat Bob 114 2020 dashboard Harley-Davidson Fat Bob 2023 Vivid Black front Harley-Davidson Fat Bob 2023 Gray Haze back

T-shirts, mugs, stickers and more:

ride program blue t-shirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

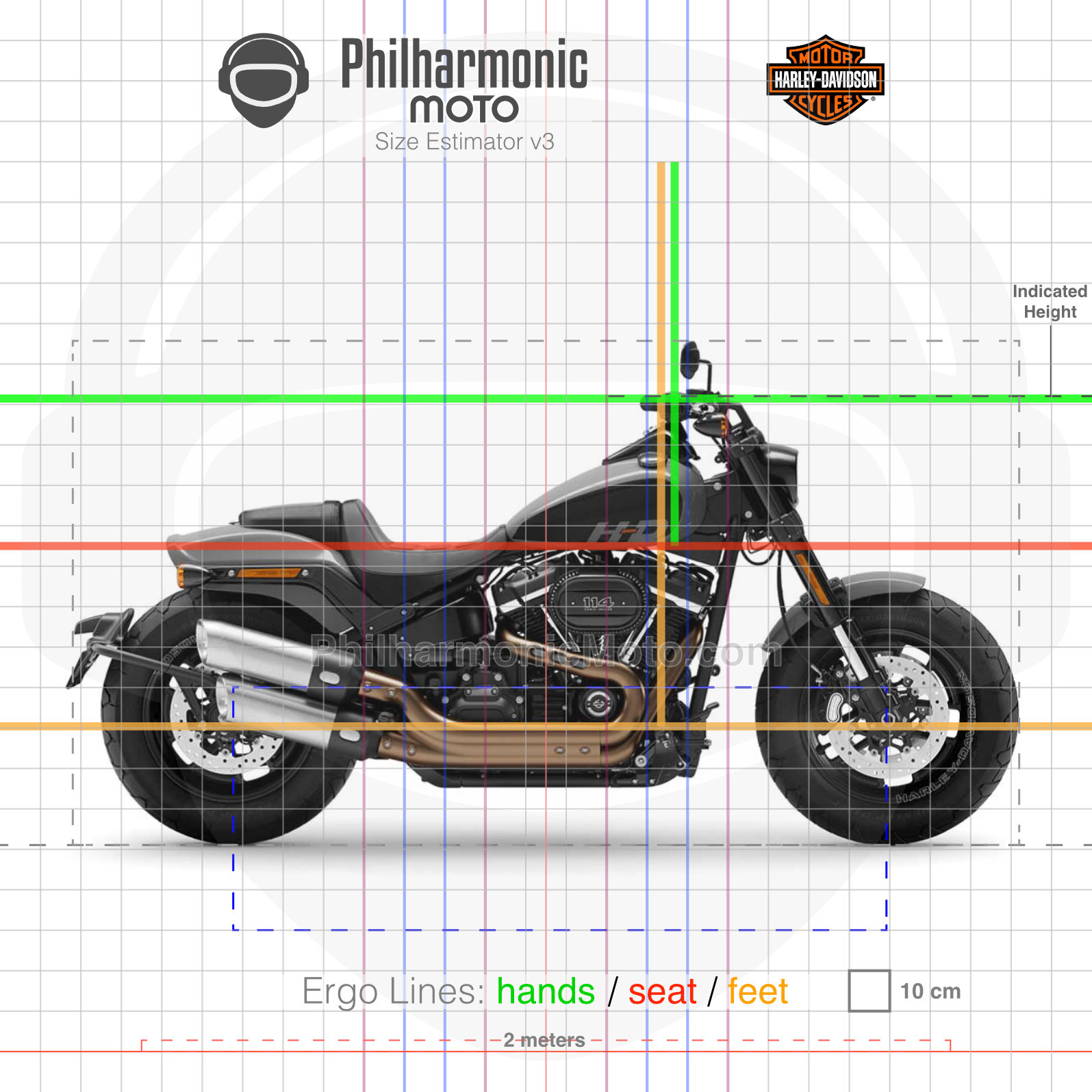

  • Size Estimator (see "About" page to learn more)
