Harley-Davidson Low Rider ST (2022+)

FXLRST Low Rider ST, Milwaukee-Eithg 117 engine


Brand: Style:
Share:

Specifications and Features

Engine

1923 cc V-twin, air/oil cooled

Power

103 hp @ 4750 rpm

Power to weight ratio

32 HP/100kg

Torque

169 Nm @ 3500 rpm

Torque to weight ratio

52 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Belt final drive

Fuel Capacity

18,9 litres

Length

2365 mm

Width

870 mm

Height

1300 mm

Weight

– 327 kg wet
– Max load: 199 kg

Seat Height

720 mm

Suspension

– Front: 43 mm inverted fork, 130 mm travel
– Rear: mono-shock, adjustable preload, 112 mm travel

Tyres

– Front: 110/90-19
– Rear: 180/70-16

Brakes

– Front: 300 mm floating discs, 4-piston calipers
– Rear: 292 mm floating disc, 2-piston floating caliper
– ABS available

Instruments

2.14" LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, range, clock

Other

– LED headlight and taillight
– Cruise control, USB-A socket, keyless ignition

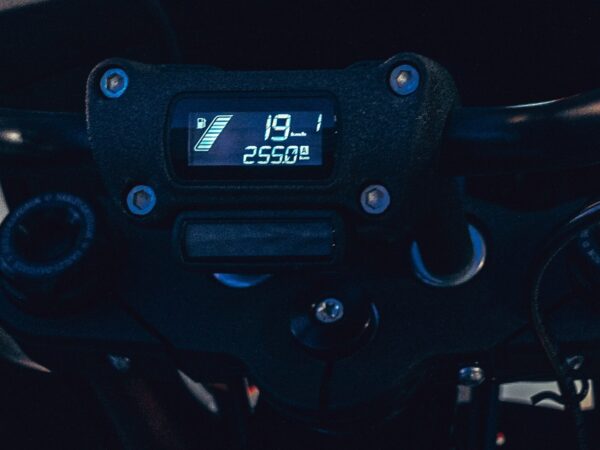

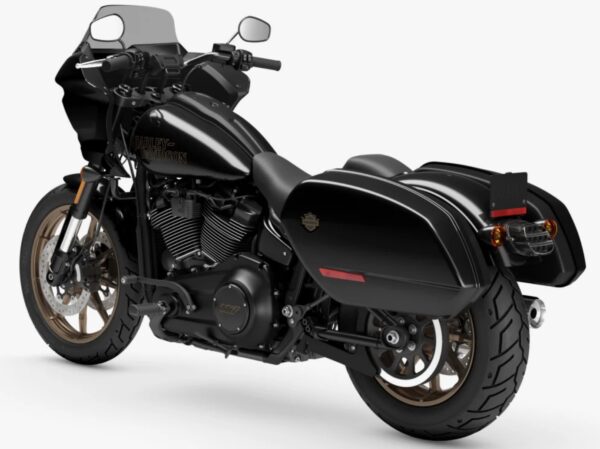

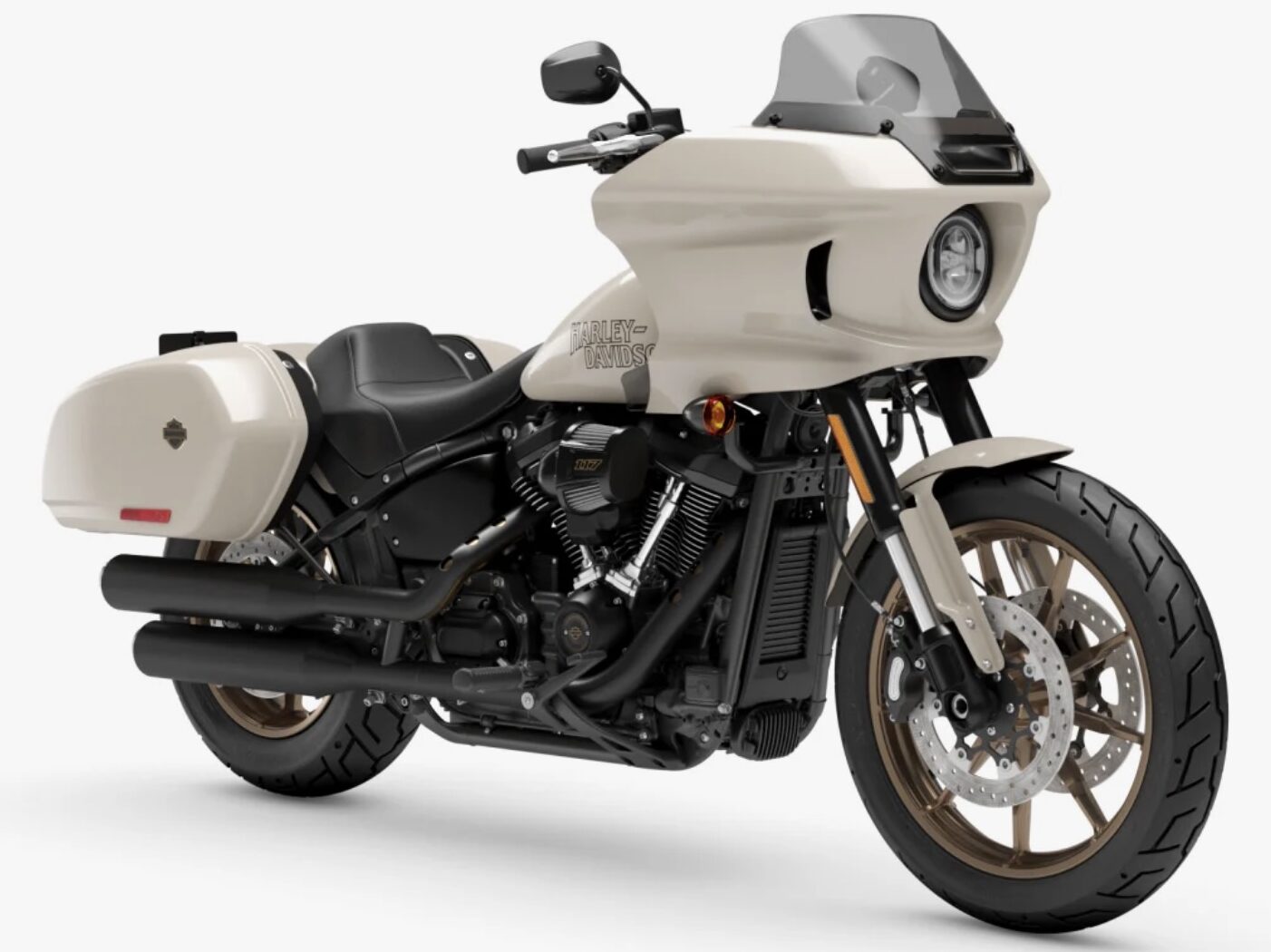

Harley-Davidson Low Rider ST 2023 dashboard Harley-Davidson Low Rider ST 2023 front Harley-Davidson Low Rider ST 2023 back
