Harley-Davidson Road Glide 2023 dashboard

Harley-Davidson Road Glide (2023+)

Harley-Davidson Road Glide (2023+)

FLTRX Road Glide 107


Category: Tag:

Specifications

Engine

1746 cc V-Twin, air/oil cooled

Power

86 hp @ 5020 rpm

Torque

148 Nm @ 3000 rpm

Transmission

6-speed, multi-plate wet slip/assist clutch, belt final drive

Fuel Capacity

22,7 liters

Length

2430 mm

Width

980 mm

Height

1310 mm

Weight

388 kg wet

Seat Height

695 mm

Suspension

– Front: 49 mm telescopic fork, 117 mm travel
– Rear: mono-shock, preload adjustable (remote), 54 mm travel

Tyres

– Front: 130/60-19
– Rear: 180/55-18

Brakes

– Front: 300 mm floating discs, 4-piston caliper
– Rear: 300 mm disc, 4-piston caliper
– ABS available

Instruments

Analogue tachometer, speedometer, fuel gauge, voltmeter, LCD display with odometer, trip meters, range to empty, gear indicator, color display for infotainment system

Other

LED headlight, "Electric power accessory port in fairing", audio system

Dashboard / Support us

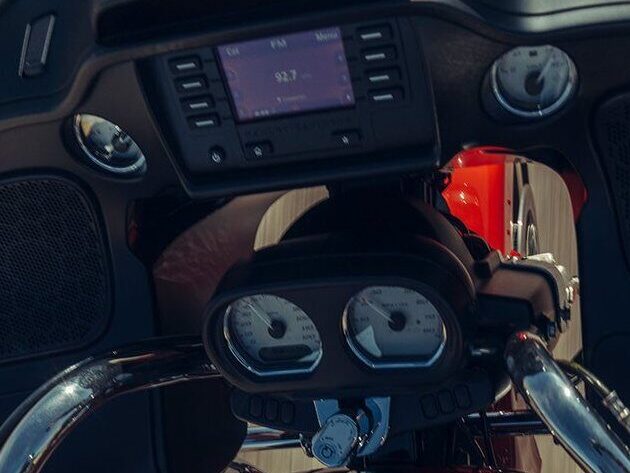

Harley-Davidson Road Glide 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHarley-Davidson Road Glide (2023+) removeHarley-Davidson Softail Standard (2020+) removeHarley-Davidson Street Bob 114 (2021+) removeHarley-Davidson Heritage Classic 107 (2018-2021) removeHarley-Davidson Iron 883 (2015-2021) removeHarley-Davidson Low Rider S (2023+) remove
NameHarley-Davidson Road Glide (2023+) removeHarley-Davidson Softail Standard (2020+) removeHarley-Davidson Street Bob 114 (2021+) removeHarley-Davidson Heritage Classic 107 (2018-2021) removeHarley-Davidson Iron 883 (2015-2021) removeHarley-Davidson Low Rider S (2023+) remove

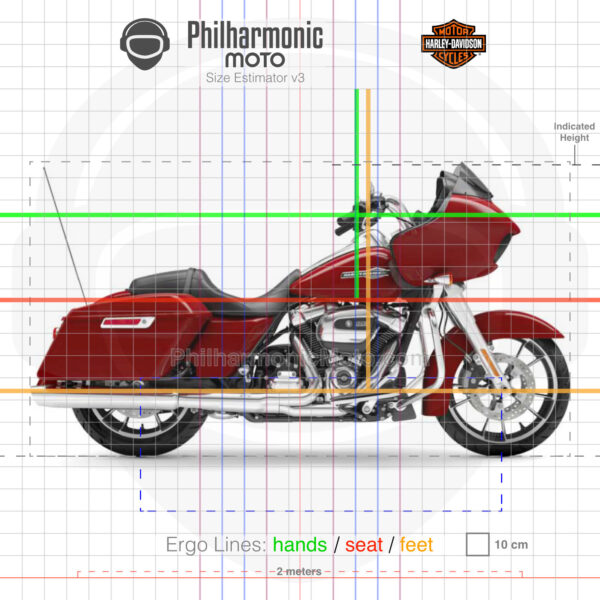

Size Estimator (see "About" page to learn more)Harley-Davidson Road Glide 2023 Redline RedHarley-Davidson Softail Standard 2022 blackHarley-Davidson Street Bob 114 2023 Industrial Yellowharley-davidson softail heritage classic 107 2018 industrial Gray Denim Black Denim-01Harley-Davidson-Sportster-Iron-883-2019-rugged-gold-denimHarley-Davidson Low Rider S 2023 White Sand Pearl
Length2430 mm2320 mm2320 mm2415 mm2185 mm2365 mm
Width980 mm865 mm865 mm930 mm850 mm870 mm
Height1310 mm1160 mm1160 mm1370 mm1140 mm1195 mm
Seat Height695 mm680 mm680 mm680 mm760 mm710 mm
Weight388 kg wet297 kg wet297 kg wet330 kg wet256 kg wet308 kg wet
Engine1746 cc V-Twin, air/oil cooled1746 cc V-Twin, air/oil cooled1868 cc V-Twin, air/oil cooled1746cc V-Twin, air/oil cooled, Pushrod-operated, overhead valves883cc V-Twin, air cooled1923 cc V-Twin, air/oil cooled
Power86 hp @ 5020 rpm87 hp @ 5020 rpm94 hp @ 4750 rpm81 hp51 hp @ 6000 rpm103 hp @ 4750 rpm
Torque148 Nm @ 3000 rpm149 Nm @ 3000 rpm161 Nm @ 3000 rpm148Nm @ 3000 rpm73 Nm @ 3750 rpm169 Nm @ 3500 rpm
Transmission6-speed, multi-plate wet slip/assist clutch, belt final drive6-speed, multi-plate wet slip/assist clutch, belt final drive6-speed, multi-plate wet slip/assist clutch, belt final drive6-speed, 10 plate wet, belt final drive5-speed, wet multi-plate clutch, belt final drive6-speed, multi-plate wet slip/assist clutch, belt final drive
Fuel Capacity22,7 liters13,2 liters13,2 liters18,9 liters12,5 liters18,9 liters
Suspension- Front: 49 mm telescopic fork, 117 mm travel - Rear: mono-shock, preload adjustable (remote), 54 mm travel- Front: 49 mm telescopic fork, 130 mm travel - Rear: mono-shock, preload adjustable, 86 mm travel- Front: 49 mm telescopic fork, 130 mm travel - Rear: mono-shock, preload adjustable, 86 mm travel- Front: Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers, 130 mm travel - Rear: Hidden, free piston, coil-over mono-shock; 56mm stroke; hydraulic preload adjustment, 112 mm travel- Front: 39 mm forks, 92 mm travel - Rear: dual shocks, adjustable preload, 41 mm travel- Front: 43 mm inverted fork, 130 mm travel - Rear: mono-shock, preload adjustable, 112 mm travel
Tyres- Front: 130/60-19 - Rear: 180/55-18- Front: 100/90-19 - Rear: 150/80-16- Front: 100/90-19 - Rear: 150/80-16- Front: 130/90-16 - Rear: 150/80-16- Front: 100/90-19 - Rear: 150/80-16- Front: 110/90-19 - Rear: 180/70-16
Brakes- Front: 300 mm floating discs, 4-piston caliper - Rear: 300 mm disc, 4-piston caliper - ABS available- Front: 300 mm disc, 4-piston caliper - Rear: 292 mm disc, 2-piston floating caliper - ABS available- Front: 300 mm disc, 4-piston caliper - Rear: 292 mm disc, 2-piston floating caliper - ABS available- Front: 300 mm disc, 4-piston fixed caliper - Rear: 292 mm disc, 2-piston floating caliper - ABS available- Front: 300 mm floating disc, 2 piston caliper - Rear: 260 mm disc, 2 piston caliber - ABS available- Front: 300 mm floating discs, 4-piston caliper - Rear: 292 mm floating disc, 2-piston floating caliper - ABS available
InstrumentsAnalogue tachometer, speedometer, fuel gauge, voltmeter, LCD display with odometer, trip meters, range to empty, gear indicator, color display for infotainment systemLCD display with speedometer, tachometer, odometer, trip meters, range to empty, gear indicatorLCD display with speedometer, tachometer, odometer, trip meters, range to empty, gear indicator5-inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indicationAnalogue speedometer with digital odometer, clock, dual tripmeter, low fuel warning light, low oil pressure light, engine diagnostics readoutAnalogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, trip meter, range to empty, clock
OtherLED headlight, "Electric power accessory port in fairing", audio systemLED headlightLED headlight, USB-A socketLED headlight and auxiliary lights, self-canceling indicators, cruise control, keyless ignition-LED headlight, cruise control, USB-A socket
