Harley-Davidson V-Rod Muscle (2009-2017)

VRSCF, Revolution engine designed in collaboration with Porsche.

Brand: Style:
Share:

Specifications and Features

Engine

1250 cc V-twin, liquid-cooled

Power

122 hp @ 8250 rpm

Power to weight ratio

40 HP/100kg

Torque

117 Nm @ 6500 rpm

Torque to weight ratio

38 Nm/100kg

Transmission

– 5-speed, wet multi-plate slip/assist hydraulic clutch
– Belt final drive

Fuel Capacity

18,9 litres

Length

2357 mm

Width

1021 mm

Height

1161 mm

Weight

– 305 kg wet
– Max load: 183 kg

Seat Height

678 mm

Suspension

– Front: 43 mm inverted fork, 102 mm travel
– Rear: twin-shocks, adjustable preload, 74 mm travel

Tyres

– Front: 120/70-19
– Rear: 240/40-18

Brakes

– Front: 300 mm floating discs, Brembo 4-piston calipers
– Rear: 300 mm disc, Brembo 4-piston caliper
– ABS available

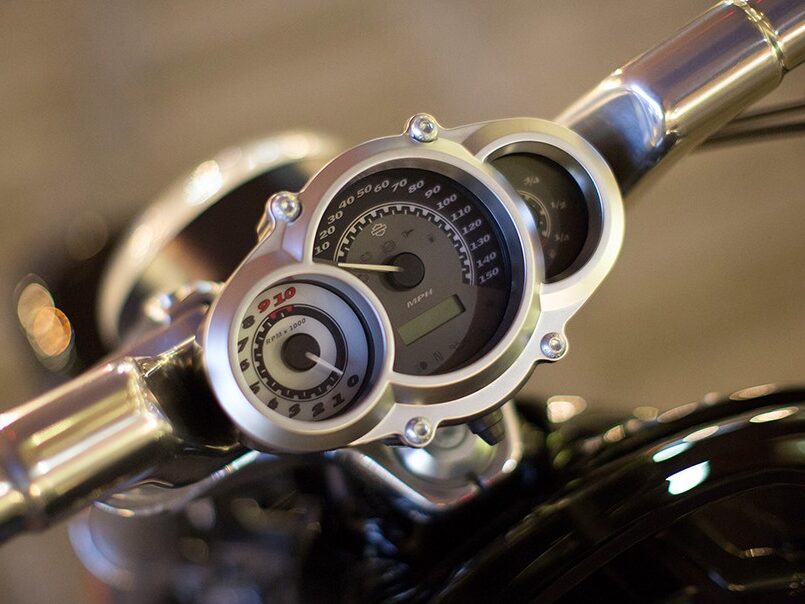

Instruments

– Analogue speedometer, tachometer and fuel gauge, LCD display with odometer, dual trip meters, range, clock

Other

– LED indicators and taillight
– "Electric power accessory connector under seat", keyless ignition

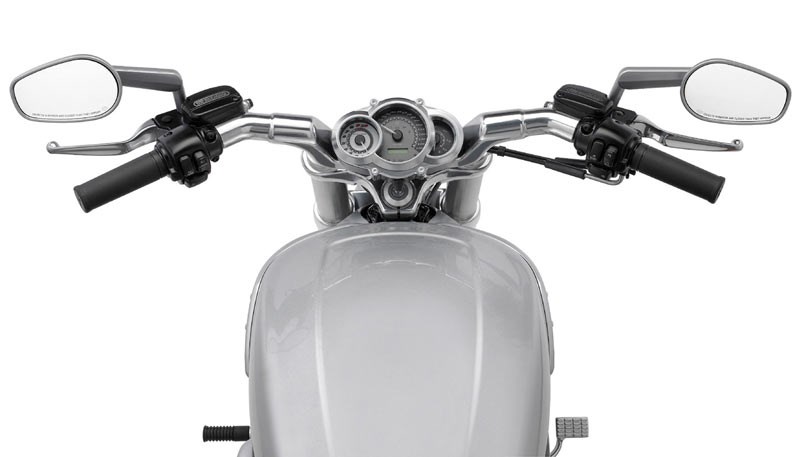

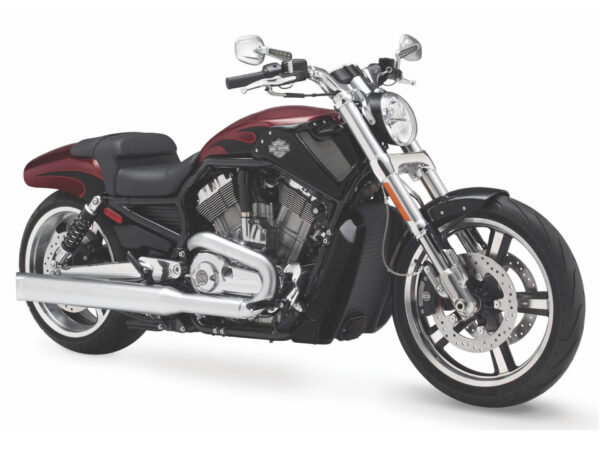

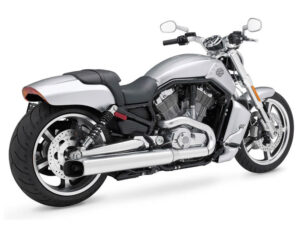

Harley-Davidson V-Rod Muscle 2017 dashboard Harley-Davidson V-Rod Muscle 2015 front Harley-Davidson V-Rod Muscle 2009 silver back

T-shirts, mugs, stickers and more:

phone cases

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

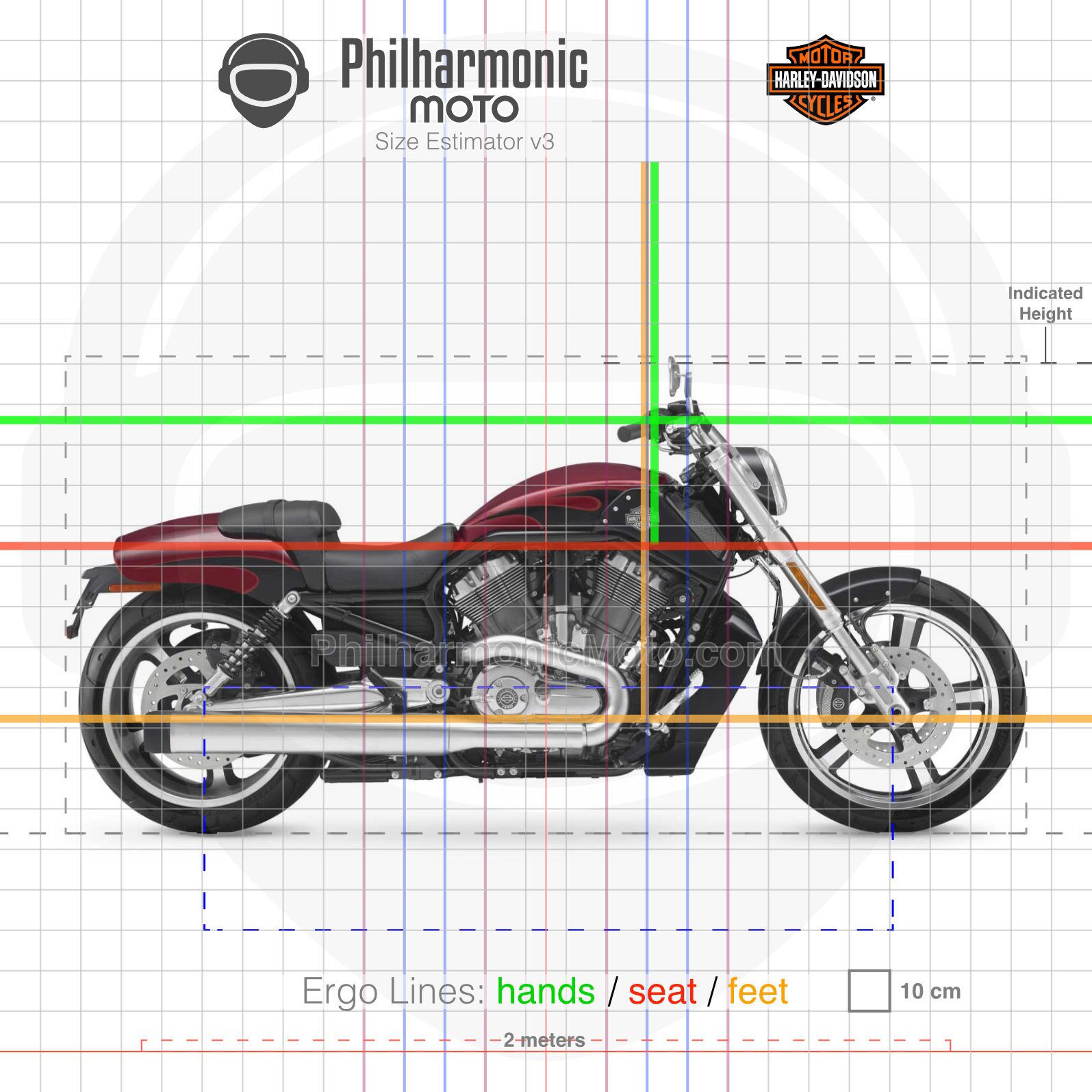

  • Size Estimator (see "About" page to learn more)
