Honda CB1100 EX / Deluxe (2014-2016)

CB1100EX: spoke wheels

CB1100DLX, CB1100 Deluxe: mag wheels

Updated: 14 October 2024


Brand: ,
Share:

Specifications and Features

Engine

1140 cc Inline-4, air/oil cooled

Power

89 hp @ 7500 rpm

Power to weight ratio

34 HP/100kg

Torque

91 Nm @ 5000 rpm

Torque to weight ratio

35 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

17,5 litres

Length

2195 mm

Width

835 mm

Height

1130 mm

Weight

– 260 kg wet (DLX, Deluxe: 259)
– Max load: 168 kg (US: 154)

Seat Height

795 mm

Suspension

– Front: 41 mm telescopic fork, adjustable preload, 106 mm travel,
– Rear: Showa twin-shocks, adjustable preload, 114 mm travel

Tyres

– Front: 110/80-18
– Rear: 140/70-18

Brakes

– Front: 296 mm floating discs, Nissin 4-piston calipers
– Rear: 256 mm disc, Nissin 1-piston caliper
– ABS available

Instruments

– Analogue speedometer and tachometer, LCD display with odometer, gear indicator, fuel gauge, range, average and instant consumption, engine temperature, trip meters, clock

Other

– Centre stand, adjustable hand levers. Optional: heated grips

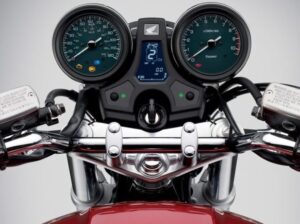

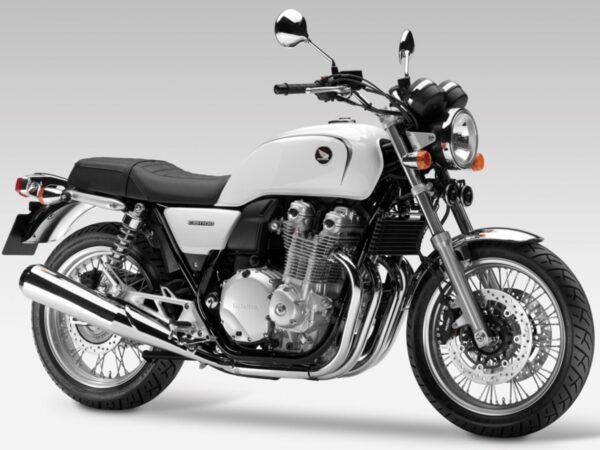

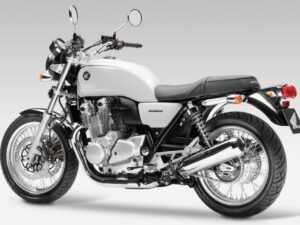

Honda CB1100EX 2020 dashboard Honda CB1100 EX 2014 front Honda CB1100 EX 2014 back
