Honda CB500X (2019-2021)

Name: Honda CB500X (2019-2021)
SKU: 612
Price: 47 MOP
Availability: InStock

—

Category: Honda Tag: Adventure

Specifications

Engine	471cc Parallel Twin, liquid cooled
Power	47 hp @ 8500 rpm
Torque	43 Nm @ 7000 rpm
Transmission	6-speed, Wet multi-plate assist/slipper clutch, chain final drive
Fuel Capacity	17,5 liters
Length	2155 mm
Width	825 mm
Height	1410 mm / 1445 mm (Low/High screen position)
Weight	197 kg wet
Seat Height	830 mm
Suspension	– Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel – Rear: mono-shock with 9 stage preload adjuster, 135 mm travel
Tyres	– Front: 110/80-19 – Rear: 160/60-17
Brakes	– Front: 310 mm wavy disc, 2-piston caliper – Rear: 240 mm wavy disc, single-piston caliper

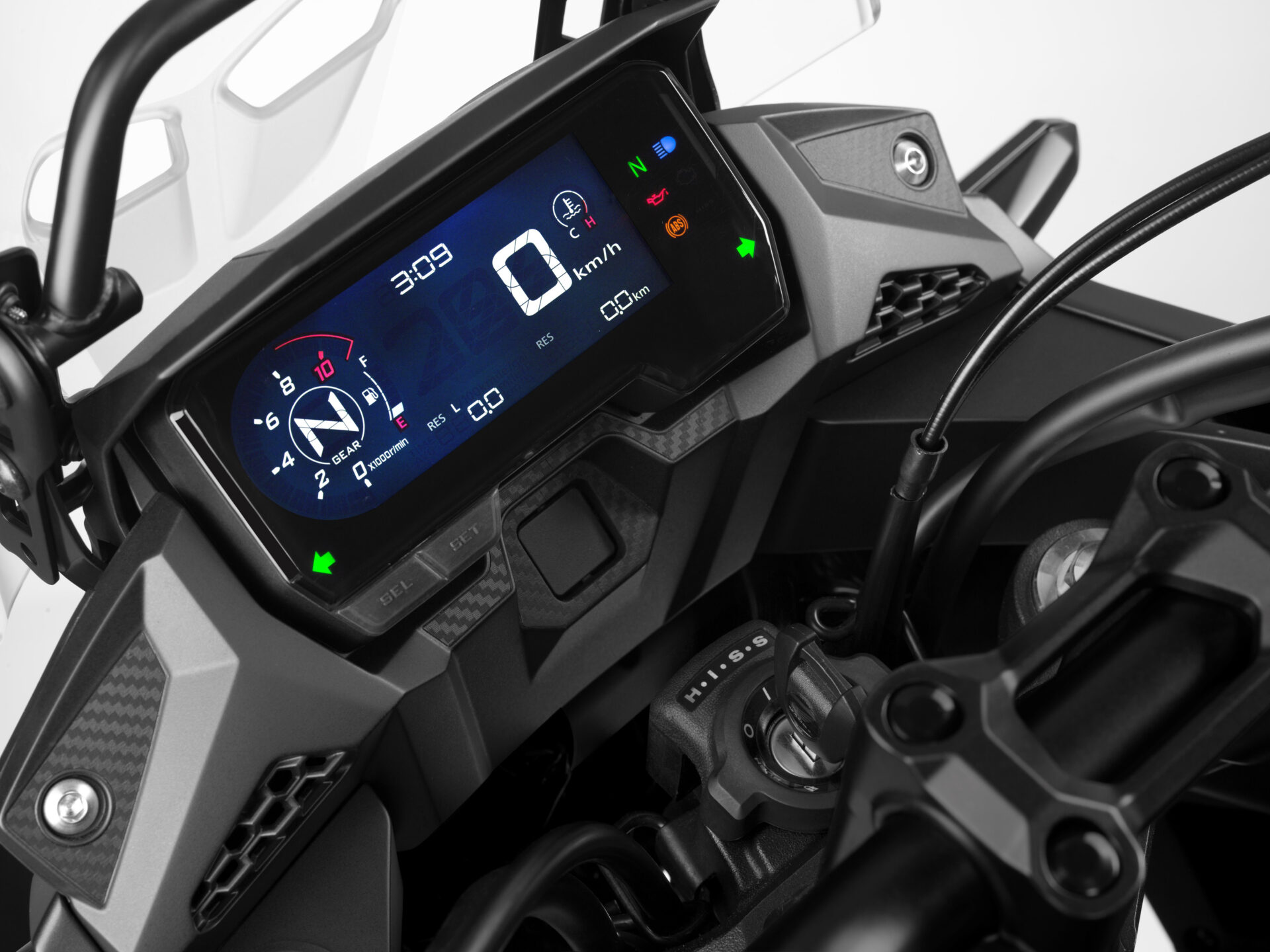

Instruments	LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicator
Other	LED lights, emergency braking blinking lights

Dashboard / Support us

T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Honda CB500X (2019-2021) remove	Suzuki V-Strom 800DE (2023+) remove	Harley-Davidson Pan America 1250 (2021+) remove	Triumph Tiger 900 (2020) remove	Honda XL750 Transalp (2023+) remove	Triumph Tiger 900 GT (2020+) remove
Name	Honda CB500X (2019-2021) remove	Suzuki V-Strom 800DE (2023+) remove	Harley-Davidson Pan America 1250 (2021+) remove	Triumph Tiger 900 (2020) remove	Honda XL750 Transalp (2023+) remove	Triumph Tiger 900 GT (2020+) remove

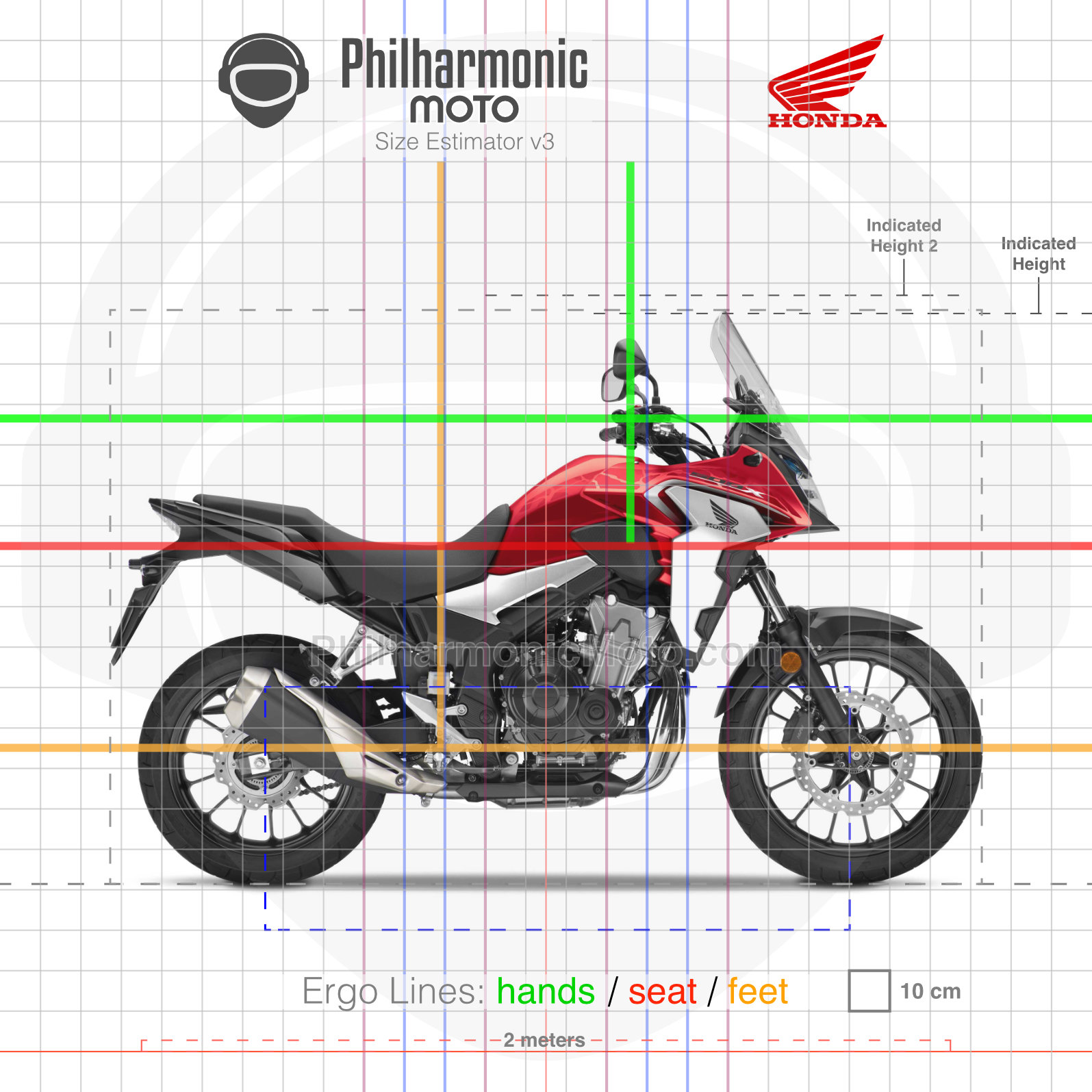

Size Estimator (see "About" page to learn more)
Length	2155 mm	2345 mm	2270 mm	2229 mm (estimated)	2325 mm	2229 mm (estimated)
Width	825 mm	975 mm	900 mm	830 mm	838 mm	930 mm
Height	1410 mm / 1445 mm (Low/High screen position)	1310 mm	1510 mm	1410 mm / 1460 mm (low/high screen position)	1450 mm	1410 mm / 1460 mm (low/high screen position)
Seat Height	830 mm	855 mm	850/875 mm (adjustable)	810-830 mm (adjustable)	850 mm	810-830 mm (adjustable)
Weight	197 kg wet	230 kg wet	245 kg wet	192 kg dry	208 kg wet	194 kg dry
Engine	471cc Parallel Twin, liquid cooled	776 cc Parallel Twin, liquid-cooled, 270º crank	1252 cc V-Twin, liquid cooled	888 cc Inline Triple, liquid-cooled	755cc Parallel Twin, liquid cooled, 270º crank	888 cc Inline Triple, liquid-cooled
Power	47 hp @ 8500 rpm	84,3 hp @ 8500 rpm	150 hp @ 9000 rpm	93,9 hp @ 8750 rpm	90,5 hp @ 9500 rpm	93,9 hp @ 8750 rpm
Torque	43 Nm @ 7000 rpm	78 Nm @ 6800 rpm	127 Nm @ 6750 rpm	87 Nm @ 7250 rpm	75 Nm @ 7250 rpm	87 Nm @ 7250 rpm
Transmission	6-speed, Wet multi-plate assist/slipper clutch, chain final drive	6-speed, Wet multi-plate slip/assist clutch, quick-shifter, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	6-speed, wet multi-plate slip/assist clutch, chain final drive	6-speed manual, Wet multi-plate assist/slip clutch, chain final drive	6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity	17,5 liters	20 liters	21,2 liters	20 liters	16,9 liters	20 liters
Suspension	- Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel - Rear: mono-shock with 9 stage preload adjuster, 135 mm travel	- Front: Showa 43 mm inverted forks, fully adjustable, 220 mm travel - Rear: Showa mono-shock, fully adjustable, 220 mm travel	- Front: 47 mm inverted fork, rebound and spring preload adjustability, 191 mm travel - Rear: piggyback mono-shock, fully adjustable, 191 mm travel	- Front: 45 mm inverted fork, 180 mm travel - Rear: mono-shock, preload adjustment, 170 mm travel	- Front: 43 mm inverted forks, pre-load adjustable, 200 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 190 mm travel	- Front: 45 mm inverted fork, manual rebound and compression damping adjustment, 180mm travel - Rear: mono-shock, manual preload and rebound damping adjustment, 170 mm travel
Tyres	- Front: 110/80-19 - Rear: 160/60-17	- Front: 90/90-21 - Rear: 150/70-17	- Front: 120/70-19 - Rear: 170/60-17	- Front: 100/90-19 - Rear: 150/70-17	- Front: 90/90-21 - Rear: 150/70-18	- Front: 100/90-19 - Rear: 150/70-17
Brakes	- Front: 310 mm wavy disc, 2-piston caliper - Rear: 240 mm wavy disc, single-piston caliper	- Front: 310 mm discs, 2-piston Nissin calipers - Rear: 260 mm disc, 1-piston Nissin caliper - switchable ABS available	- Front: 320 mm floating discs, monoblock 4-piston radial calipers - Rear: 280 mm disc, 1-piston floating caliper - cornering ABS available	- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - ABS available	- Front: 310 mm discs, two-piston caliper - Rear: 256 mm disc, single-piston caliper - ABS available	- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available
Instruments	LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicator	TFT display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant temperature, fuel consumption, fuel gauge, and clock	TFT touchscreen with speedometer, tachometer, odometer, fuel gauge, gear indicator, trip meter, mobile phone connectivity, clock	5 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock	TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes	7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
Other	LED lights, emergency braking blinking lights	LED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboard	LED lights, cornering traction control, wheelie control, riding modes, Tire Pressure Monitoring System (TPMS), hill hold, USB-C port	Riding modes, traction control	LED lights, traction control, cruise control, wheelie control, engine braking, riding modes, USB socket, self-canceling indicators, switchable rear ABS, smartphone voice control	LED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, illuminated switches, cruise control, heated grips
