KTM 990 Duke (2024+)

Dimensions are based on the wheelbase (updated).

Updated: 13 June 2024

Brand: Style:
Share:

Specifications and Features

Engine

947 cc Parallel-twin, liquid-cooled

Power

123 hp

Power to weight ratio

64 HP/100kg

Torque

103 Nm

Torque to weight ratio

54 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Optional: quick-shifter

Fuel Capacity

14,8 litres

Length

2092 mm (estimated)

Width

Height

1272 mm (estimated)

Weight

– 191 kg (estimated wet)
– Max load: 199 kg

Seat Height

823 mm

Suspension

– Front: WP Apex 43 mm inverted fork, adjustable compression and rebound, 140 mm travel
– Rear: WP Apex mono-shock, adjustable preload (remote) and rebound, 150 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 300 mm floating discs, 4-piston radial calipers
– Rear: 240 mm disc, 2-piston floating caliper
– ABS available (switchable rear)

Instruments

– 5" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, clock
– Smartphone connectivity. Optional: navigation

Other

– LED lights
– Riding modes, traction control, anti-wheelie. Optional: launch control
– Adjustable brake and clutch levers and brake pedal, steering damper. Optional: cruise control, heated grips

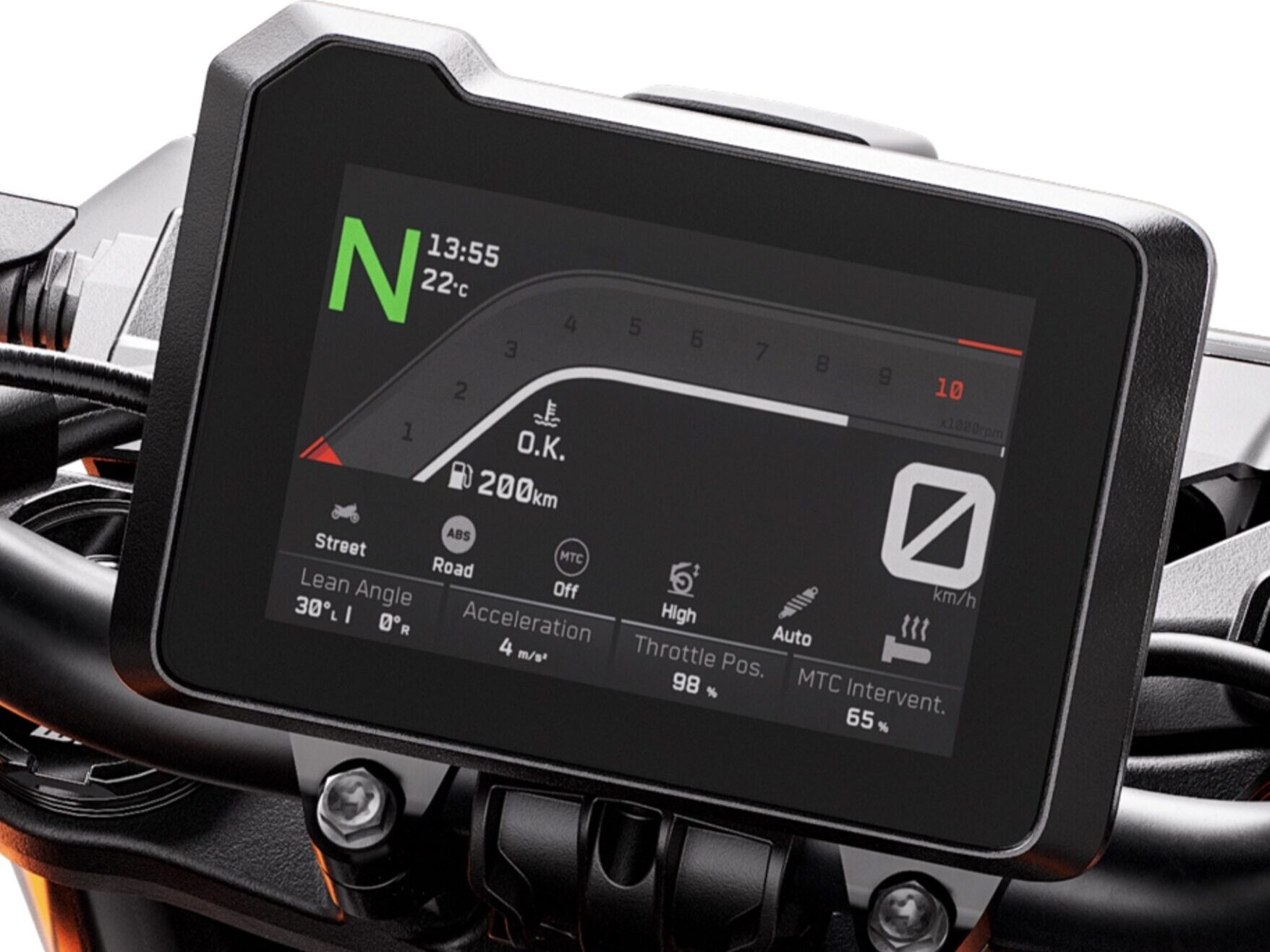

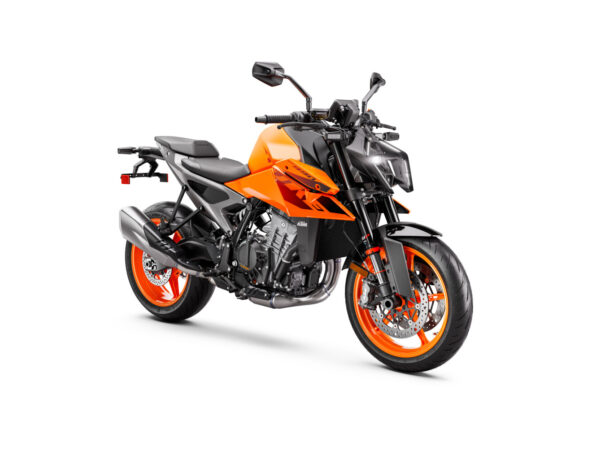

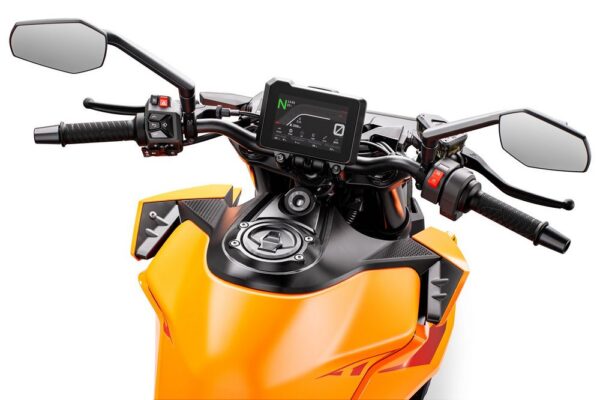

KTM 990 Duke 2024 dashboard KTM 990 Duke 2024 front KTM 990 Duke 2024 back
