Moto Guzzi Stelvio (2024+)




Brand: Style:
Share:

Specifications and Features

Engine

1042 cc V-twin, liquid-cooled

Power

115 hp @ 8700 rpm

Power to weight ratio

47 HP/100kg

Torque

105 Nm @ 6750 rpm

Torque to weight ratio

43 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist hydraulic clutch
– Shaft final drive
– Optional: quick-shifter

Fuel Capacity

21 litres

Length

2195 mm

Width

945 mm

Height

1402 mm (estimated)

Weight

246 kg wet

Seat Height

830 mm

Suspension

– Front: Sachs 46 mm inverted fork, adjustable preload and rebound, 170 mm travel
– Rear: KYB mono-shock, adjustable preload (remote) and rebound, 170 mm travel

Tyres

– Front: 120/70-19
– Rear: 170/60-17
– Tubeless

Brakes

– Front: 320 mm floating discs, Brembo monobloc 4-piston radial calipers
– Rear: 280 mm disc, Brembo 2-piston floating caliper
– cornering ABS available (switchable)

Instruments

– 5" TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, range, instant consumption, engine and ambient temperature, trip meter, clock

Other

– LED lights, cornering lights
– Riding modes, traction control, engine brake control
– Cruise control, USB port on dashboard, adjustable brake and clutch levers. Optional: adaptive cruise control, forward collision warning, blind spot detection, lane change assist, heated seats and grips, centre stand, TPMS

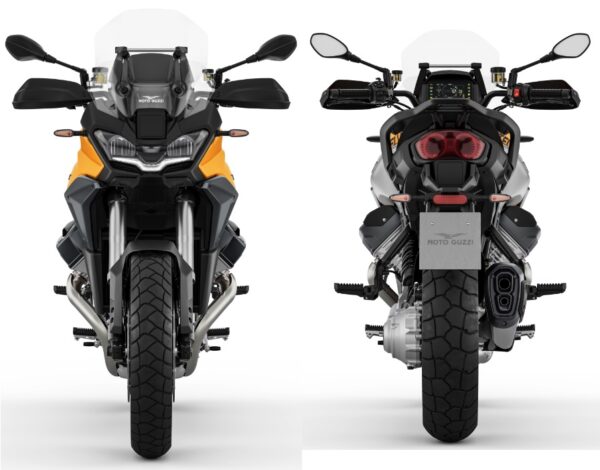

Moto Guzzi Stelvio 2024 dashboard Moto Guzzi Stelvio 2024 Nero Vulcano front Moto Guzzi Stelvio 2024 back
