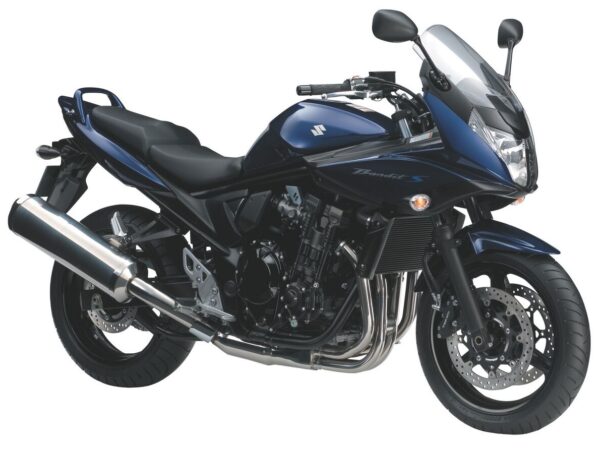

Suzuki Bandit 650S (2009-2015)

GSF650S

Updated: 9 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

656 cc Inline-4, liquid-cooled

Power

86 hp @ 10500 rpm

Power to weight ratio

36 HP/100kg

Torque

62 Nm @ 8900 rpm

Torque to weight ratio

26 Nm/100kg

Transmission

– 6-speed, wet multi-plate hydraulic clutch
– Chain final drive

Fuel Capacity

19 litres

Length

2130 mm

Width

780 mm

Height

1225 mm

Weight

– 237 kg (estimated wet)
– Max load: 203 kg (estimated)

Seat Height

770-790 mm

Suspension

– Front: 41 mm telescopic fork, adjustable preload, 130 mm travel
– Rear: mono-shock, adjustable preload and rebound, 128 mm travel

Tyres

– Front: 120/70-17
– Rear: 160/60-17

Brakes

– Front: 310 mm discs, 4-piston calipers
– Rear: 240 mm disc, 2-piston caliper
– ABS available

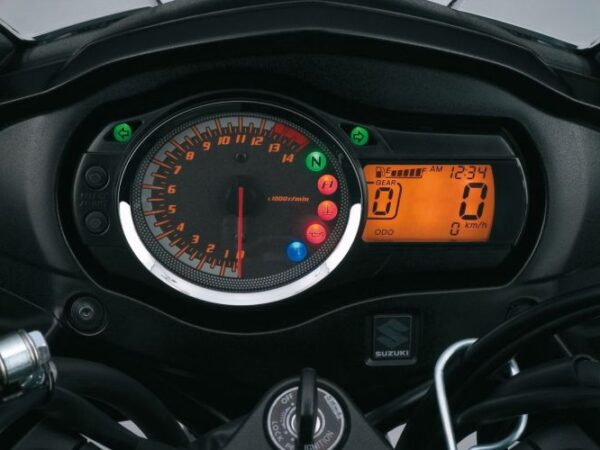

Instruments

– Analogue tachometer, LCD display with speedometer, odometer, gear indicator, fuel gauge, trip meter, clock

Other

– Centre stand

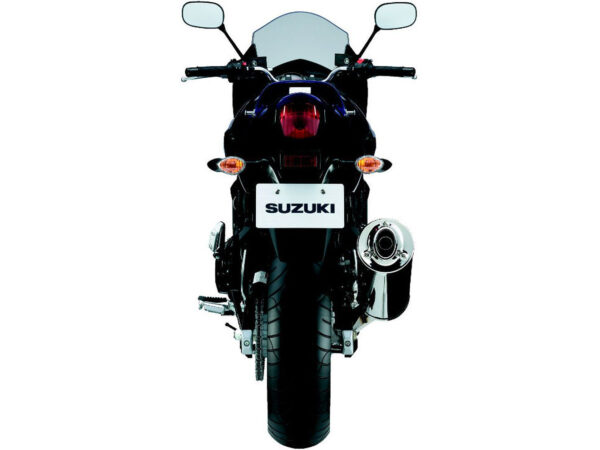

Suzuki GSF650S Bandit S 2009 dashboard Suzuki GSF650S Bandit S 2009 frontSuzuki GSF650S Bandit S 2009 back

T-shirts, mugs, stickers and more:

Helmets sunset red black

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

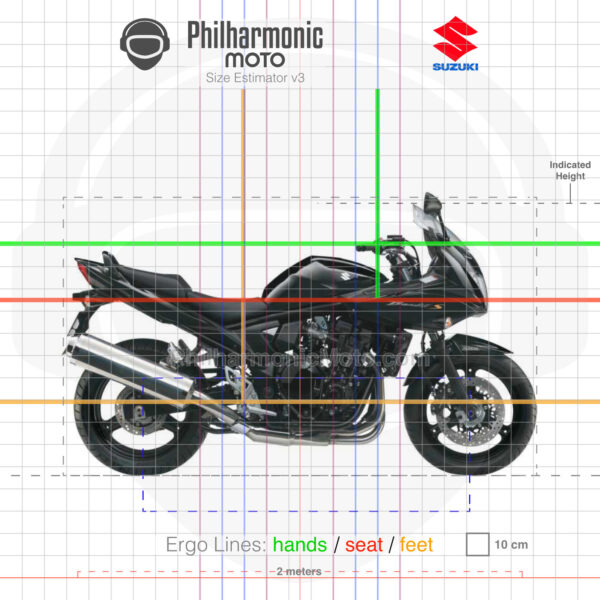

  • Size Estimator (see "About" page to learn more)
