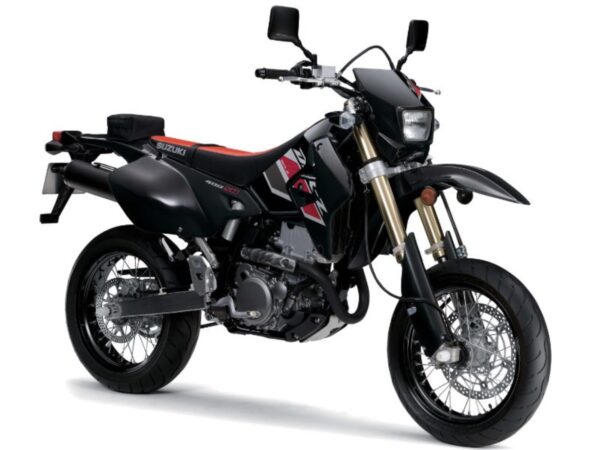

Suzuki DR-Z400SM (2005+)

DRZ400SM

Brand: Style:
Share:

Specifications

Engine

398 cc Single-cylinder, liquid-cooled, carbureted

Power

40 hp @ 7600 rpm

Power to weight ratio

27 HP/100kg

Torque

39 Nm @ 6600 rpm

Torque to weight ratio

27 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

10 liters

Length

2225 mm

Width

855 mm

Height

1200 mm

Weight

146 kg wet

Seat Height

890 mm

Suspension

– Front: Showa 47 mm telescopic fork, adjustable compression and rebound, 260 mm travel
– Rear: mono-shock, fully adjustable, 276 mm travel

Tyres

– Front: 120/70-17
– Rear: 140/70-17

Brakes

– Front: 310 mm floating disc, 2-piston caliper
– Rear: 240 mm disc, 1-piston caliper

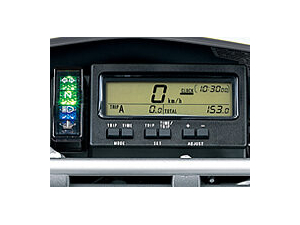

Instruments

LCD display with speedometer, odometer, dual trip meter with addition/subtraction capability, timer, stopwatch, clock

Other

"Renthal tapered aluminum handlebar", "Front and rear axle sliders, and specially designed mirrors that rotate"

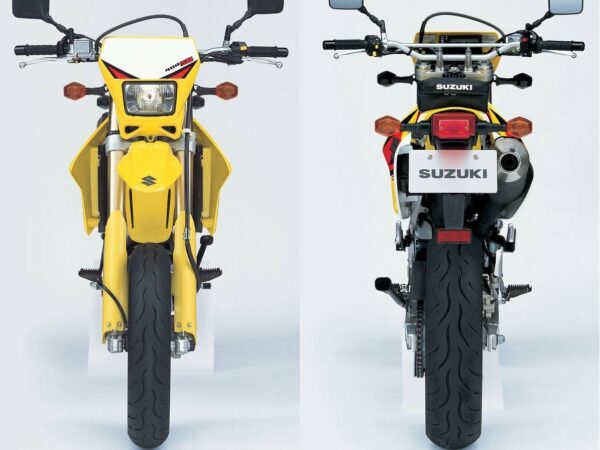

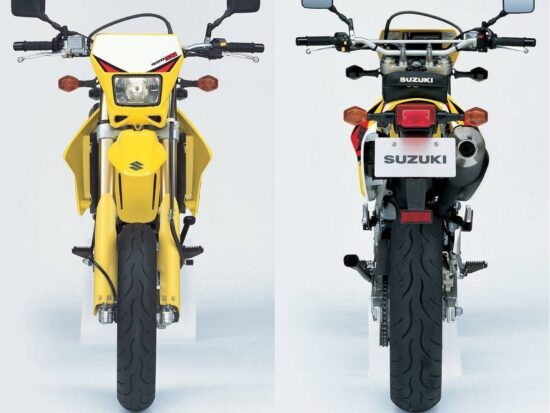

Suzuki DR-Z400SM 2021 dashboard Suzuki DR-Z400SM 2022 front placeholder back

T-shirts, mugs, stickers and more:

fuel mug

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

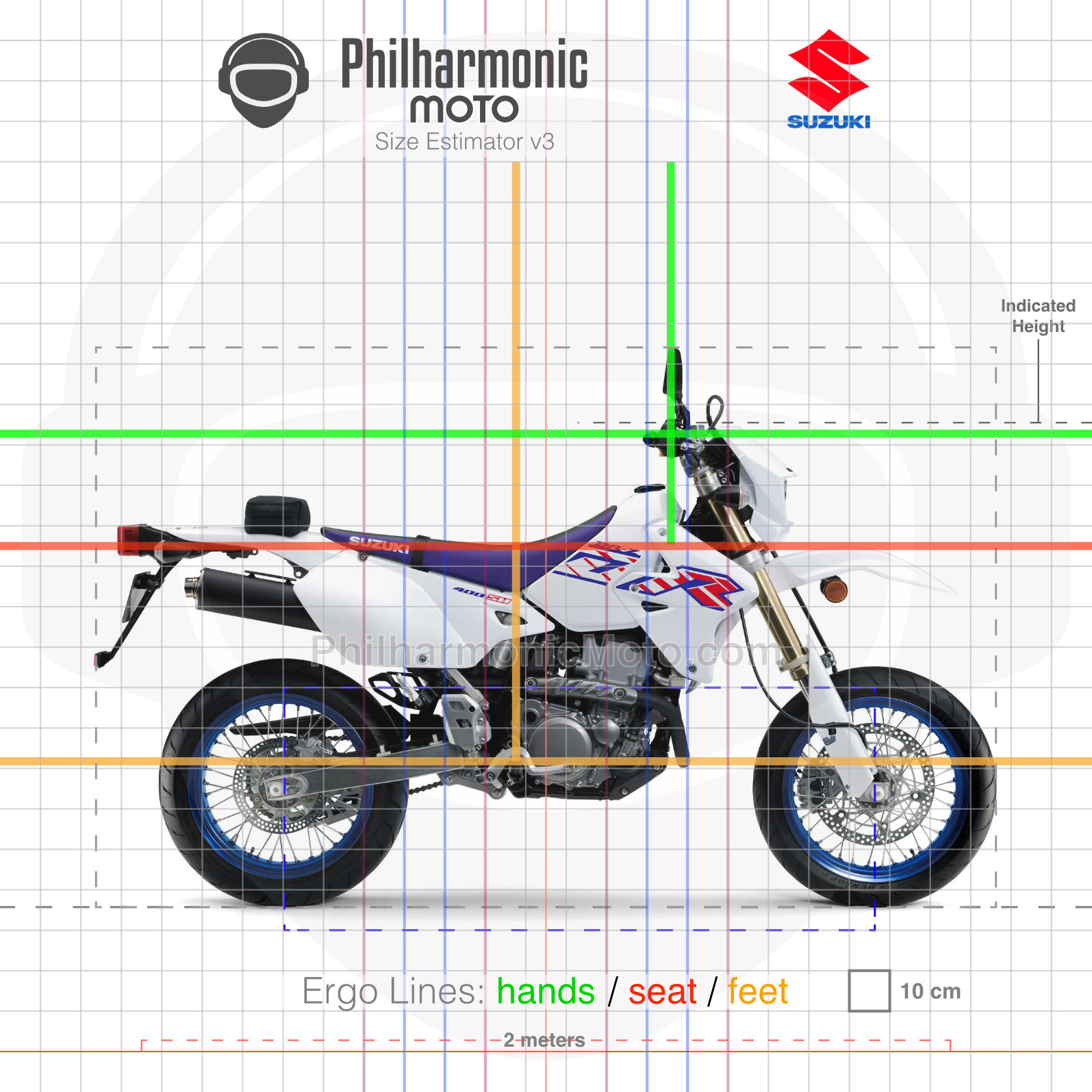

  • Size Estimator (see "About" page to learn more)
