Suzuki GSX-RR MotoGP (2020)

This is to have an idea of the differences between a race bike and a street bike. This Suzuki was used because it was what had useful specs available for the basics, mainly dimensions for the Size Estimator. Some specs are speculated from other bikes. MotoGP teams don’t reveal much and the horsepower is probably closer to 300, specially in newer machines.

Updated: 9 July 2024


Brand: Style:
Share:

Specifications and Features

Engine

999 cc Inline-4, liquid-cooled

Power

Over 240 hp, 18000 rpm max

Power to weight ratio

132 HP/100kg

Torque

?

Torque to weight ratio

?

Transmission

– 6-speed seamless manual, dry slip/assist clutch
– Quick-shifter
– Chain final drive

Fuel Capacity

22 litres

Length

2096 mm

Width

720 mm

Height

1140 mm

Weight

– 182 kg (estimated wet)
– Max load: ?

Seat Height

?

Suspension

– Front: Öhlins inverted fork, fully adjustable
– Rear: Öhlins mono-shock, fully adjustable

Tyres

– Front: 17 inch
– Rear: 17 inch

Brakes

– Front: carbon 320/340 mm floating discs, 4-piston radial calipers
– Rear: disc, 2-piston caliper

Instruments

– LCD display with tachometer, gear indicator, lap indicator, lap time, shift light

Other

– LED taillight
– Traction control, launch control, wheelie control, engine braking control, pit limiter, height devices

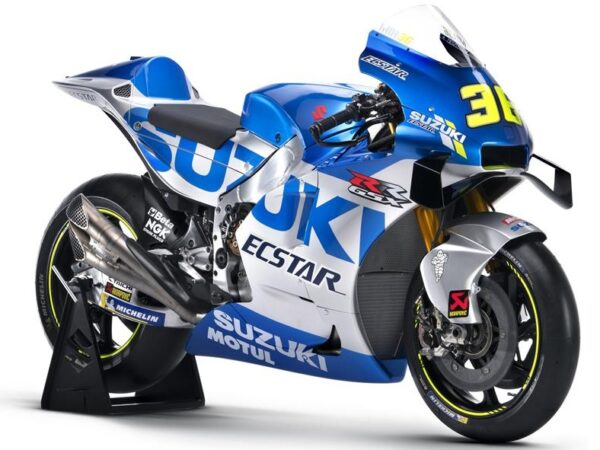

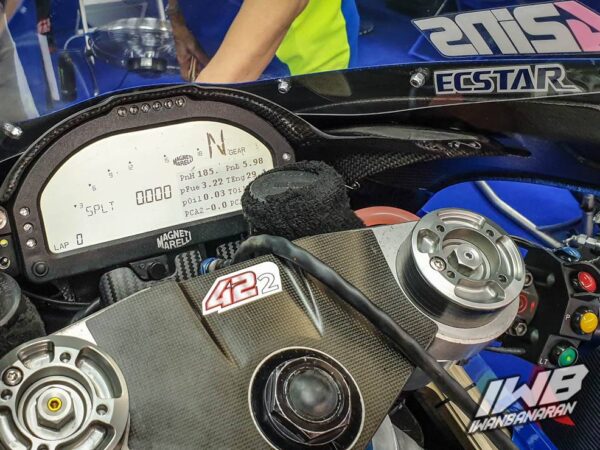

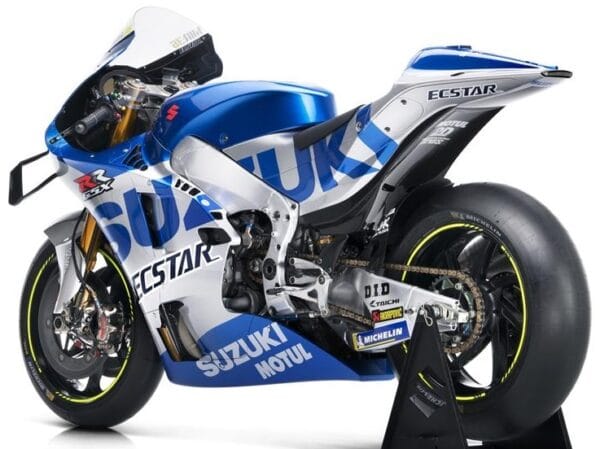

Suzuki GSX-RR MotoGP 2019 dashboard Suzuki GSX-RR MotoGP 2020 front Suzuki GSX-RR MotoGP 2020 back

T-shirts, mugs, stickers and more:

Honda Trail 125 ct125 retro tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

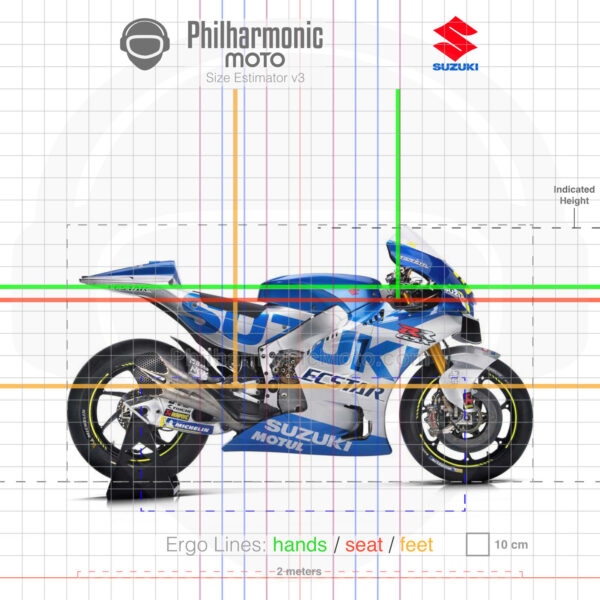

  • Size Estimator (see "About" page to learn more)
