Suzuki Katana (2022+)

GSX-S1000S

Updated: 22 July 2024


Launch decade: Style: Brand:

Specifications and Features

Length

2125 mm

Width

830 mm

Height

1110 mm

Seat Height

825 mm

Weight

– 215 kg wet
– Max load: 185 kg

Engine

999 cc Inline-4, liquid-cooled

Power

152 hp @ 11000 rpm

Power to weight ratio

71 HP/100kg

Torque

106 Nm @ 9250 rpm

Torque to weight ratio

49 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive
– Quick-shifter

Fuel Capacity

12 litres

Suspension

– Front: 43 mm inverted fork, fully adjustable, 120 mm travel
– Rear: mono-shock, adjustable preload and rebound, 130 mm travel

Tyres

– Front: 120/70-17 (-43 cm)
– Rear: 190/50-17 (-43 cm)

Brakes

– Front: 310 mm floating discs, 4-piston radial calipers
– Rear: 250 mm disc, 1-piston caliper
– ABS available

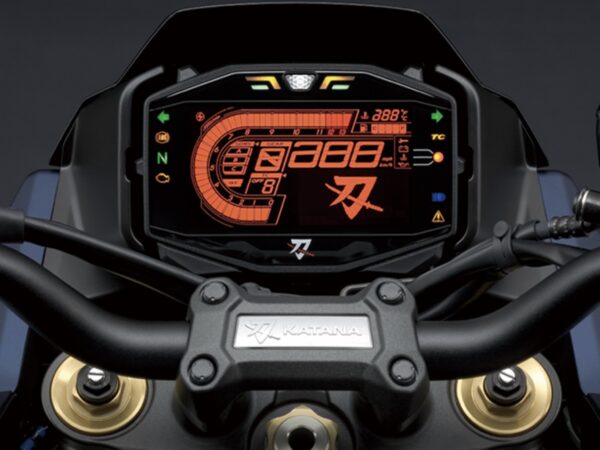

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, engine and ambient temperature, clock
– "…custom display with amber back-lighting exclusive to the MY22 KATANA creating a unique contrast that clearly displays the lettering against the black background when riding at night, but that looks white when riding in daylight…" Suzuki

Other

– LED lights
– Riding modes, traction control (switchable)

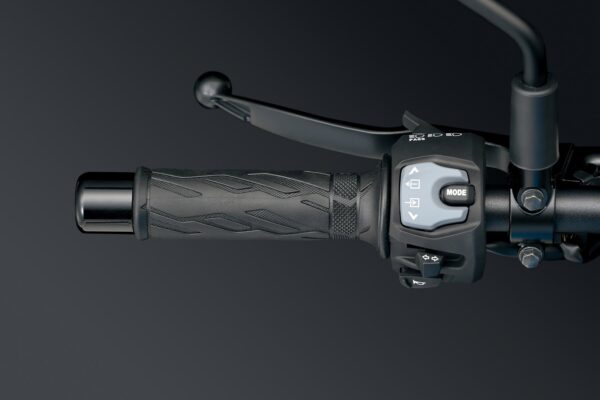

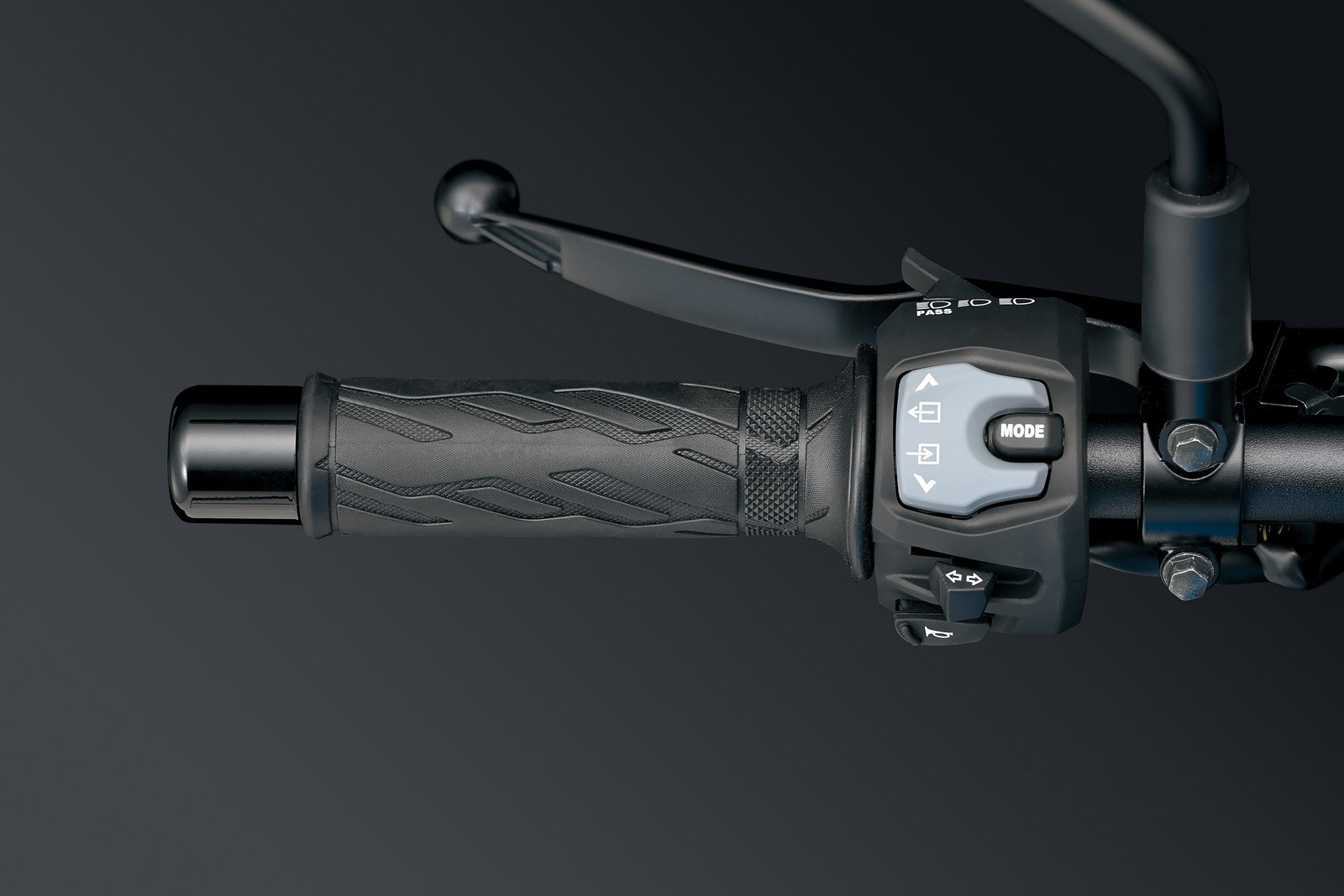

– Adjustable brake lever, easy-start, low rpm assist. Optional: heated grips

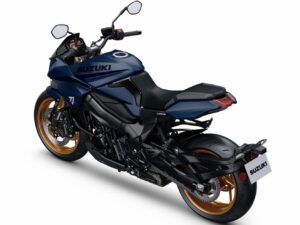

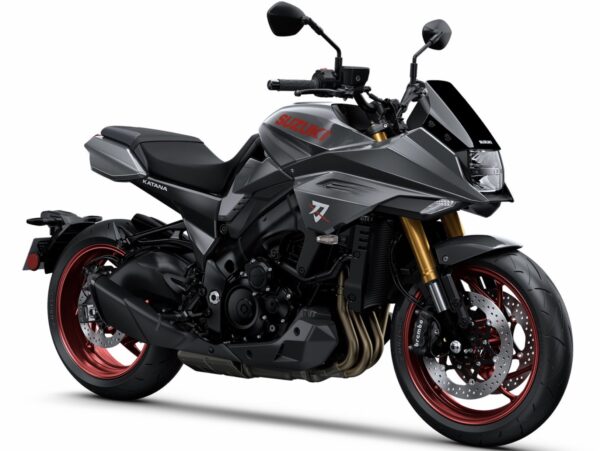

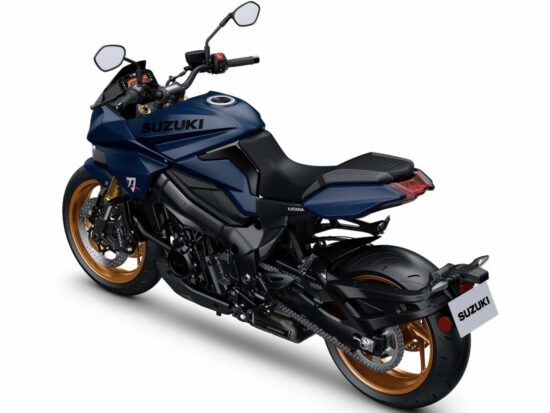

Suzuki Katana 2022 dashboard2 Suzuki Katana 2022 front Suzuki Katana 2022 back2


10 15
Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

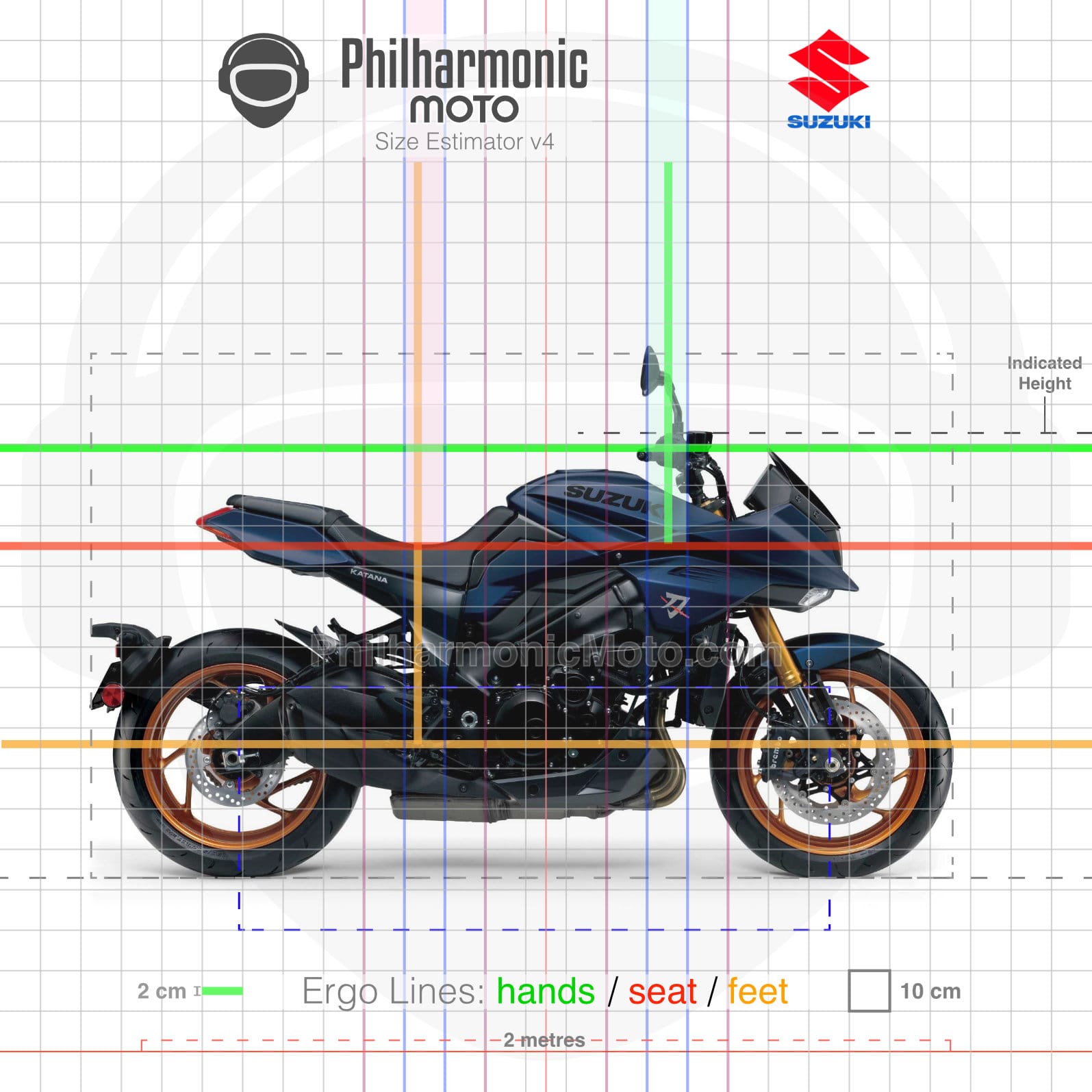

  • Size Estimator (see "About" page to learn more)
