Yamaha XSR700 (2016-2021)

CP2 engine.

Updated: 26 June 2024


Brand: Style:
Share:

Specifications and Features

Engine

689 cc Parallel-twin, liquid-cooled, 270º crank

Power

73 hp @ 9000 rpm

Power to weight ratio

39 HP/100kg

Torque

68 Nm @ 6500 rpm

Torque to weight ratio

37 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

14 litres

Length

2085 mm

Width

820 mm

Height

1130 mm

Weight

– 186 kg wet
– Max load: 172 kg

Seat Height

805 mm

Suspension

– Front: 41 mm telescopic fork, 130 mm travel
– Rear: mono-shock, adjustable preload, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 282 mm discs, 4-piston calipers
– Rear: 245 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, reserve trip, average and instant consumption, ambient and engine temperature, clock

Other

– LED taillight
– Adjustable brake lever

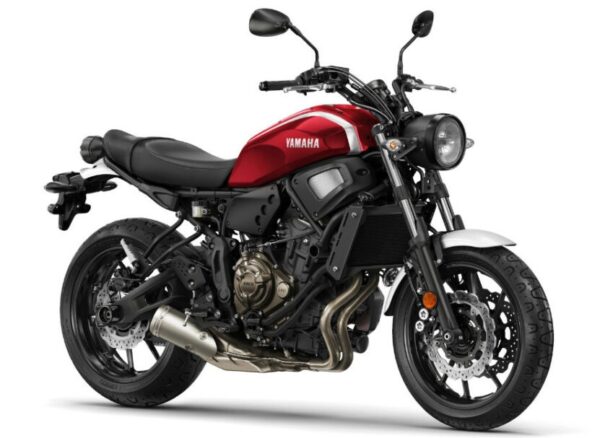

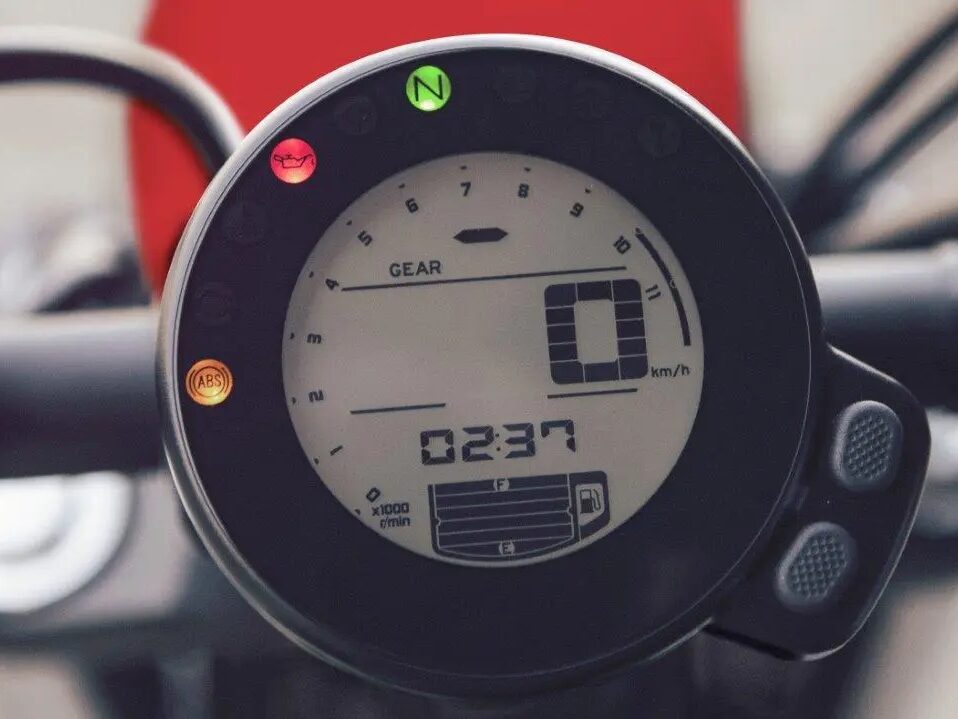

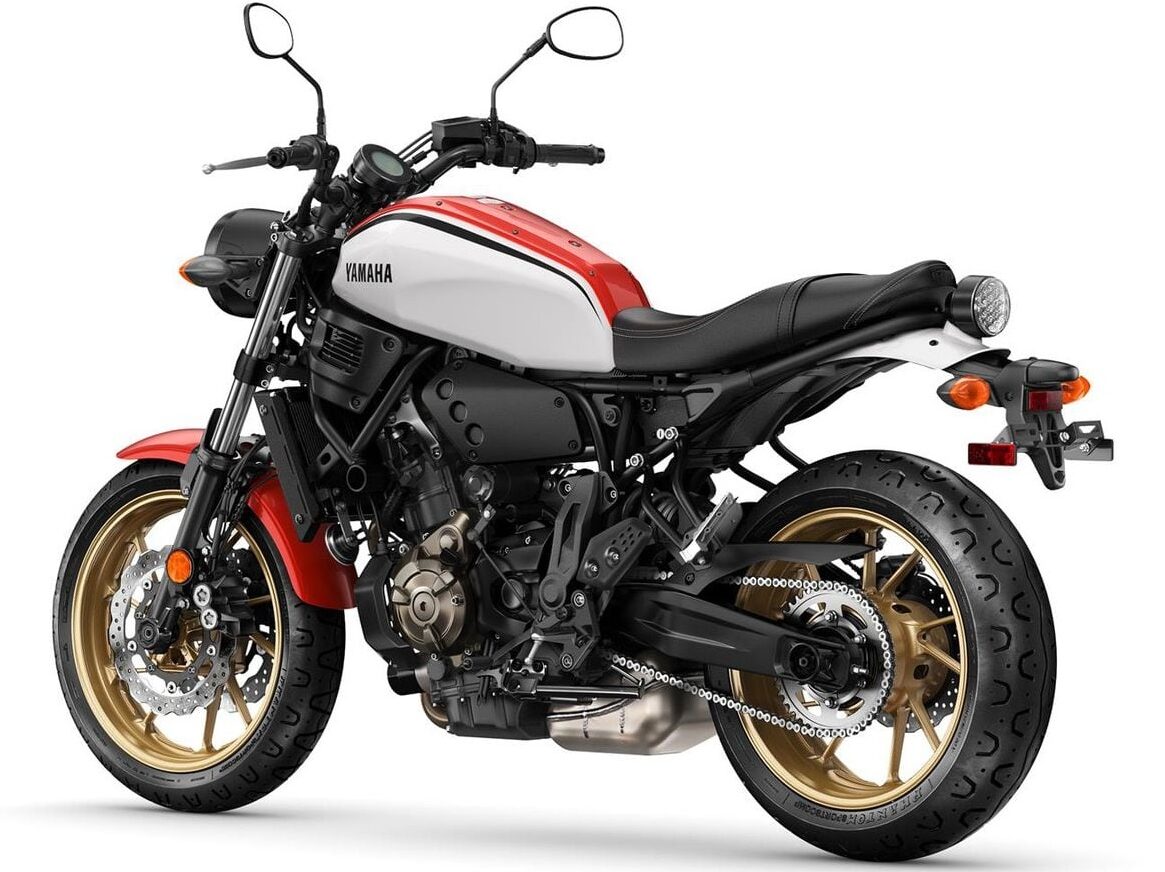

Yamaha XSR700 2020 dashboard Yamaha XSR700 2018 silver front Yamaha XSR700 2020 back
