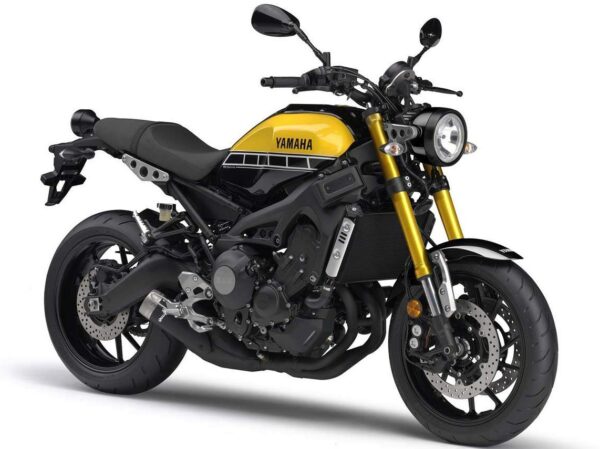

Yamaha XSR900 (2016-2021)

MTM850, CP3 engine

Successor

Updated: 4 July 2024


Style: Brand:

Specifications and Features

Engine

847 cc Inline-3, liquid-cooled

Power

113 hp @ 10000 rpm

Power to weight ratio

58 HP/100kg

Torque

87 Nm @ 8500 rpm

Torque to weight ratio

45 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch
– Chain final drive

Fuel Capacity

14 litres

Length

2075 mm

Width

815 mm

Height

1140 mm

Weight

– 195 kg wet
– Max load: 170 kg

Seat Height

830 mm

Suspension

– Front: 41 mm inverted fork, adjustable preload and rebound, 137 mm travel
– Rear: mono-shock, adjustable preload and rebound, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 298 mm discs, 4-piston radial calipers
– Rear: 245 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock-

Other

– LED taillight
– Riding modes, traction control (switchable)

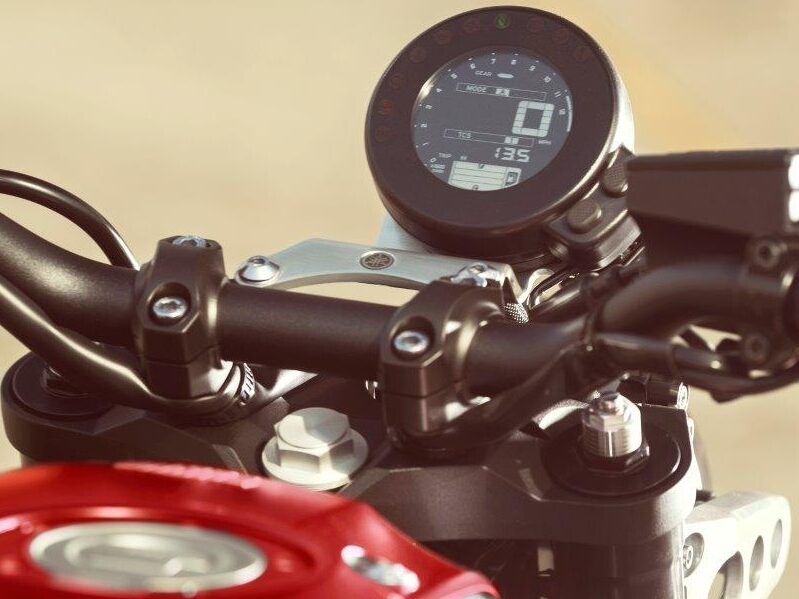

Yamaha XSR900 2020 dashboard Yamaha XSR900 2016 front Yamaha XSR900 2019 back

Motorcycle gifts to celebrate it and support the website:
superbike phone case
Click here to learn more.


925 41

Brand (multi-selection) ( - )

  • 30 Aprilia
  • 22 Benelli
  • 100 BMW
  • 1 BSA
  • 36 CFMoto
  • 60 Ducati
  • 8 Fantic
  • 65 Harley-Davidson
  • 168 Honda
  • 19 Husqvarna
  • 56 Indian
  • 117 Kawasaki
  • 2 Keeway
  • 1 Kove
  • 41 KTM
  • 2 Kymco
  • 16 Moto Guzzi
  • 8 Moto Morini
  • 19 MV Agusta
  • 3 Other
  • 16 Piaggio
  • 3 QJMotor
  • 18 Royal Enfield
  • 68 Suzuki
  • 7 SYM
  • 68 Triumph
  • 14 Vespa
  • 12 Voge
  • 118 Yamaha
  • 15 Zontes

Horsepower

Style (multi-selection) ( - )

  • 159 Adv
  • 72 Adv Sports
  • 58 Classic
  • 126 Cruiser
  • 39 Dual-Sport
  • 263 Naked
  • 109 Scooter
  • 52 Scrambler
  • 161 Sport
  • 48 Sport Touring
  • 23 Supermoto
  • 66 Touring

Features (standard or optional) info Features (standard or optional) multi-selection ( - )

Power to weight ratio (HP/100kg) ( - )

Torque (Nm) ( - )

Torque to weight ratio (Nm/100kg) ( - )

Seat height (mm) ( - )

Weight (Kg) ( - )

Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

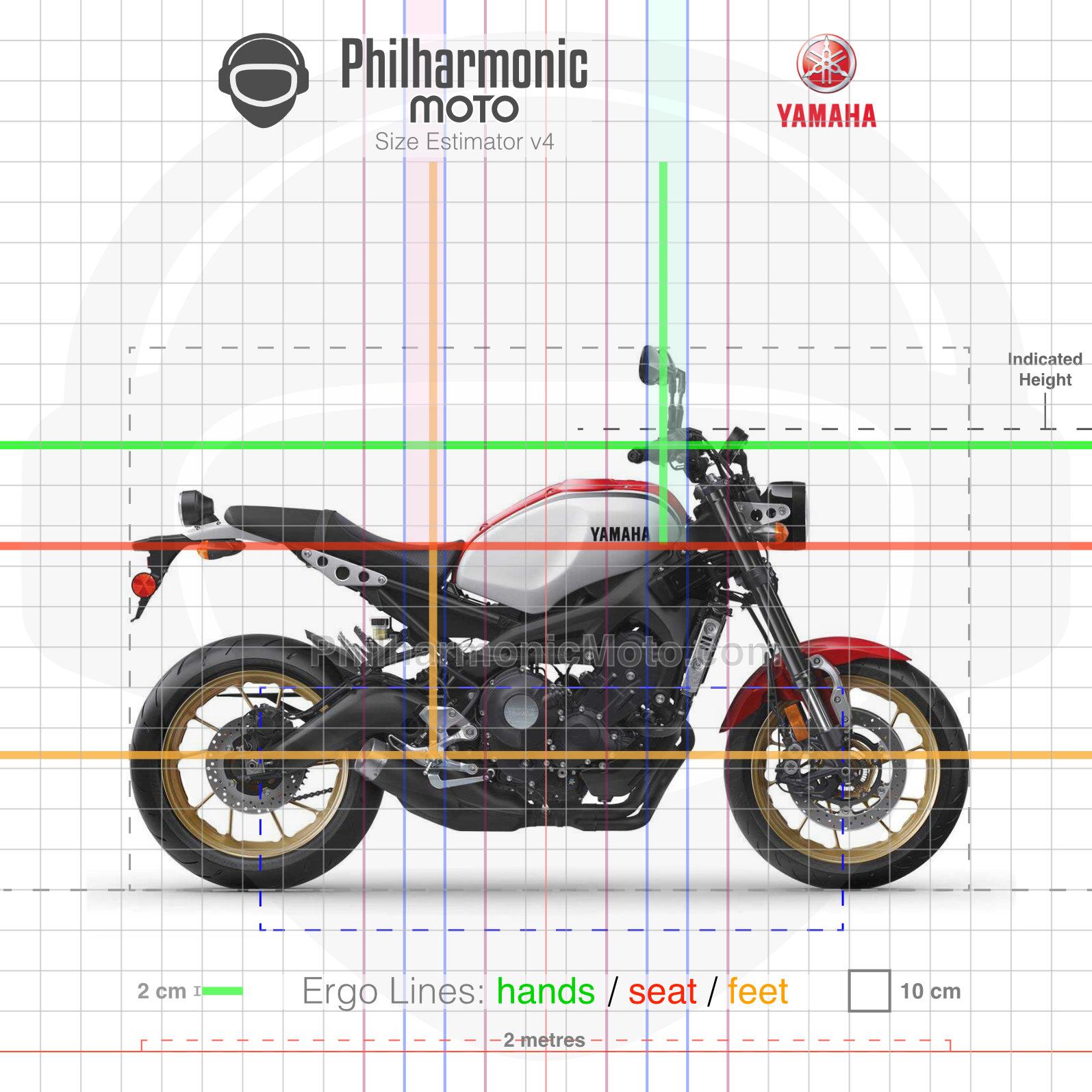

  • Size Estimator (see "About" page to learn more)
