Honda Fury 2023 dashboard

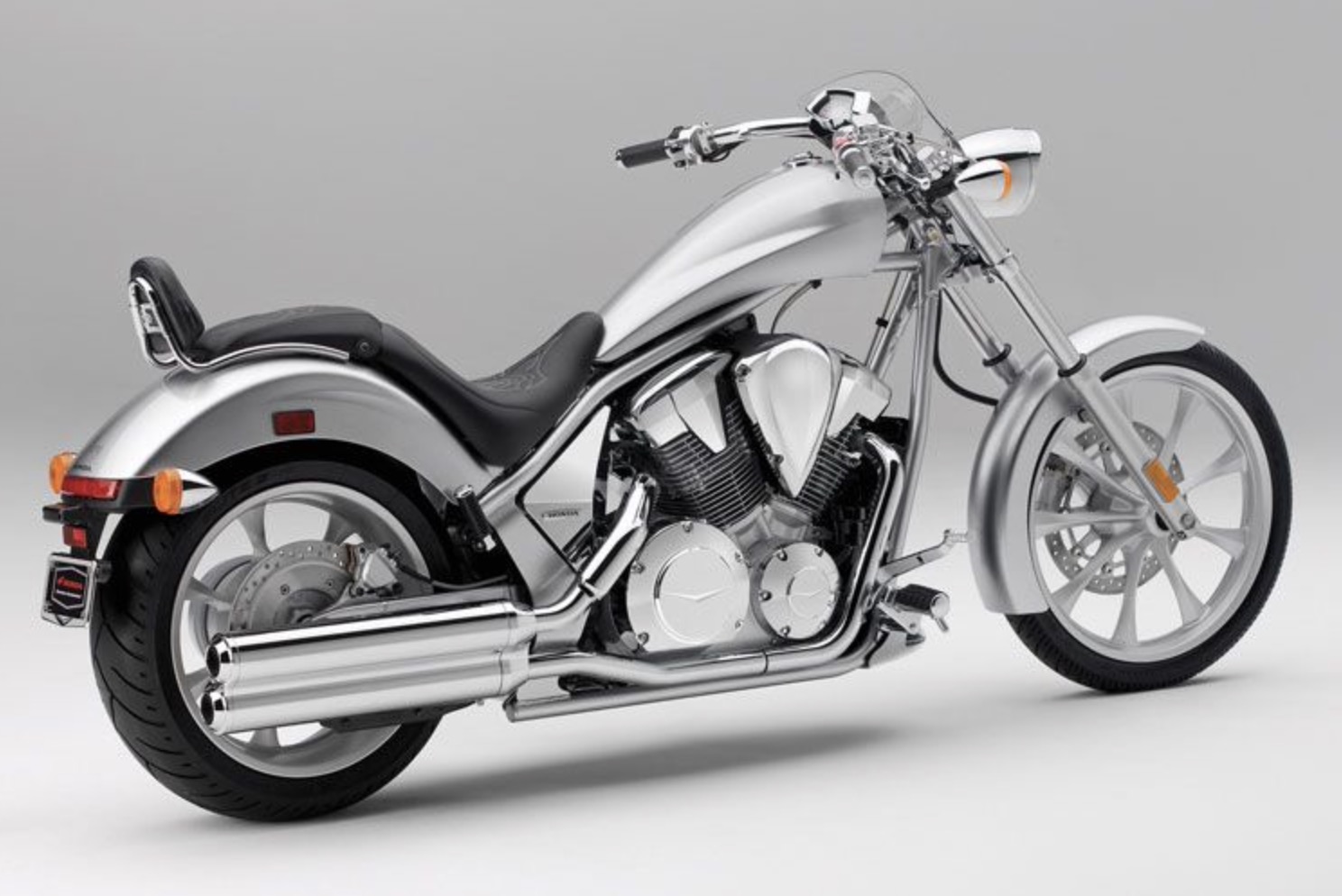

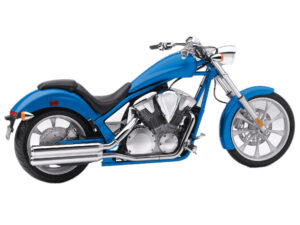

Honda Fury (2009+)

Honda Fury (2009+)

VT1300CX


Category: Tag:

Specifications

Engine

1312 cc V-Twin, liquid cooled

Power

57,8 hp @ 4250 rpm

Torque

107 Nm @ 2250 rpm

Transmission

5-speed, Wet multi-plate, shaft final drive

Fuel Capacity

12,8 liters

Length

2552 mm

Width

897 mm

Height

1151 mm

Weight

300 kg wet

Seat Height

683 mm

Suspension

– Front: 41 mm telescopic fork, 102 mm travel
– Rear: mono-shock, adjustable preload and rebound damping, 94 mm travel

Tyres

– Front: 90/90-21
– Rear: 200/50-18

Brakes

– Front: 336 mm disc, 2-piston caliper
– Rear: 296 mm disc, 1-piston caliper
– ABS available

Instruments

Analogue speedometer, digital odometer, dual trip meters, clock

Other

Features

Dashboard / Support us

Honda Fury 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda Fury (2009+) removeHonda Rebel 300/CMX300 (2020+) removeHonda CB300R (2018-2022) removeHonda CBR650R (2021+) removeHonda CB750 Hornet (2023+) removeHonda CRF300L Rally (2021+) remove
NameHonda Fury (2009+) removeHonda Rebel 300/CMX300 (2020+) removeHonda CB300R (2018-2022) removeHonda CBR650R (2021+) removeHonda CB750 Hornet (2023+) removeHonda CRF300L Rally (2021+) remove
Size Estimator (see "About" page to learn more)Honda Fury 2023 Pearl YellowHonda Rebel 300 CMX300 2022 Pearl BlueHonda CB300R 2022 Matte Pearl BlueHonda CBR650R 2021 Grand Prix Red-01Honda CB750 Hornet 2023 Matte Iridium Gray MetallicHonda CRF300L Rally 2021 red
Length2552 mm2188 mm2020 mm2130 mm2090 mm2330 mm
Width897 mm820 mm805 mm750 mm780 mm920 mm
Height1151 mm1090 mm1050 mm1150 mm1085 mm1415 mm
Seat Height683 mm690 mm799 mm810 mm795 mm885 mm
Weight300 kg wet165 kg wet145 kg wet207 kg wet190 kg wet150 kg wet
Engine1312 cc V-Twin, liquid cooled286cc Single-cylinder, liquid cooled286cc Single-cylinder, liquid cooled649cc Inline 4, liquid cooled, 16 valve DOHC755cc Parallel Twin, liquid cooled, 270º crank286cc Single-cylinder, liquid cooled
Power57,8 hp @ 4250 rpm27,4 hp31 hp @ 8500 rpm94 hp @ 12000 rpm90,5 hp @ 9500 rpm27 hp @ 8500 rpm
Torque107 Nm @ 2250 rpm27 Nm27,5 Nm @ 7250 rpm64 Nm @ 8500 rpm75 Nm @ 7250 rpm26,6 Nm @ 6500 rpm
Transmission5-speed, Wet multi-plate, shaft final drive6-speed, assist/slip clutch, chain final drive6-speed, wet multi-plate clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive
Fuel Capacity12,8 liters11,2 liters10,1 liters15,4 liters15,2 liters12,8 liters
Suspension- Front: 41 mm telescopic fork, 102 mm travel - Rear: mono-shock, adjustable preload and rebound damping, 94 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 95 mm travel- Front: 41 mm inverted forks, 130 mm travel - Rear: mono-shock, adjustable preload, 107 mm travel- Front: 41mm inverted telescopic fork, 108 mm travel - Rear: single shock, adjustable preload, 128 mm travel- Front: 43 mm inverted forks, pre-load adjustable, 130 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 150 mm travel- Front: 43 mm telescopic forks, 259 mm travel - Rear: Pro-link mono shock, 259 mm travel
Tyres- Front: 90/90-21 - Rear: 200/50-18- Front: 130/90-16 - Rear: 150/80-16- Front: 110/70-17 - Rear: 150/60-17- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 160/60-17- Front: 80/100-21 - Rear: 120/80-18
Brakes- Front: 336 mm disc, 2-piston caliper - Rear: 296 mm disc, 1-piston caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 296mm disc, 4-piston caliper - Rear: 220mm disc, single-piston caliper - ABS available- Front: 2x 310mm discs - Rear: 240mm disc - ABS available- Front: 296 mm discs, 4-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available- Front: 256 mm disc, two-piston caliper - Rear: 220 mm disc, single-piston caliper - Switchable ABS available
InstrumentsAnalogue speedometer, digital odometer, dual trip meters, clockLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD display with digital speedometer, odometer, gear indicator, shift-up indicator, dual trip meters, fuel gauge, clockTFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modesLCD display with speedometer, tachometer, clock, fuel gauge, gear indicator, fuel mileage and consumption, average speed, stopwatch
Other-Full LED lightingFull LED lightingLED lights, Traction control, USB-C under seatLED lights, traction control, cruise control, wheelie control, engine braking, riding modes, USB-C socket, self-canceling indicators, smartphone voice control-
