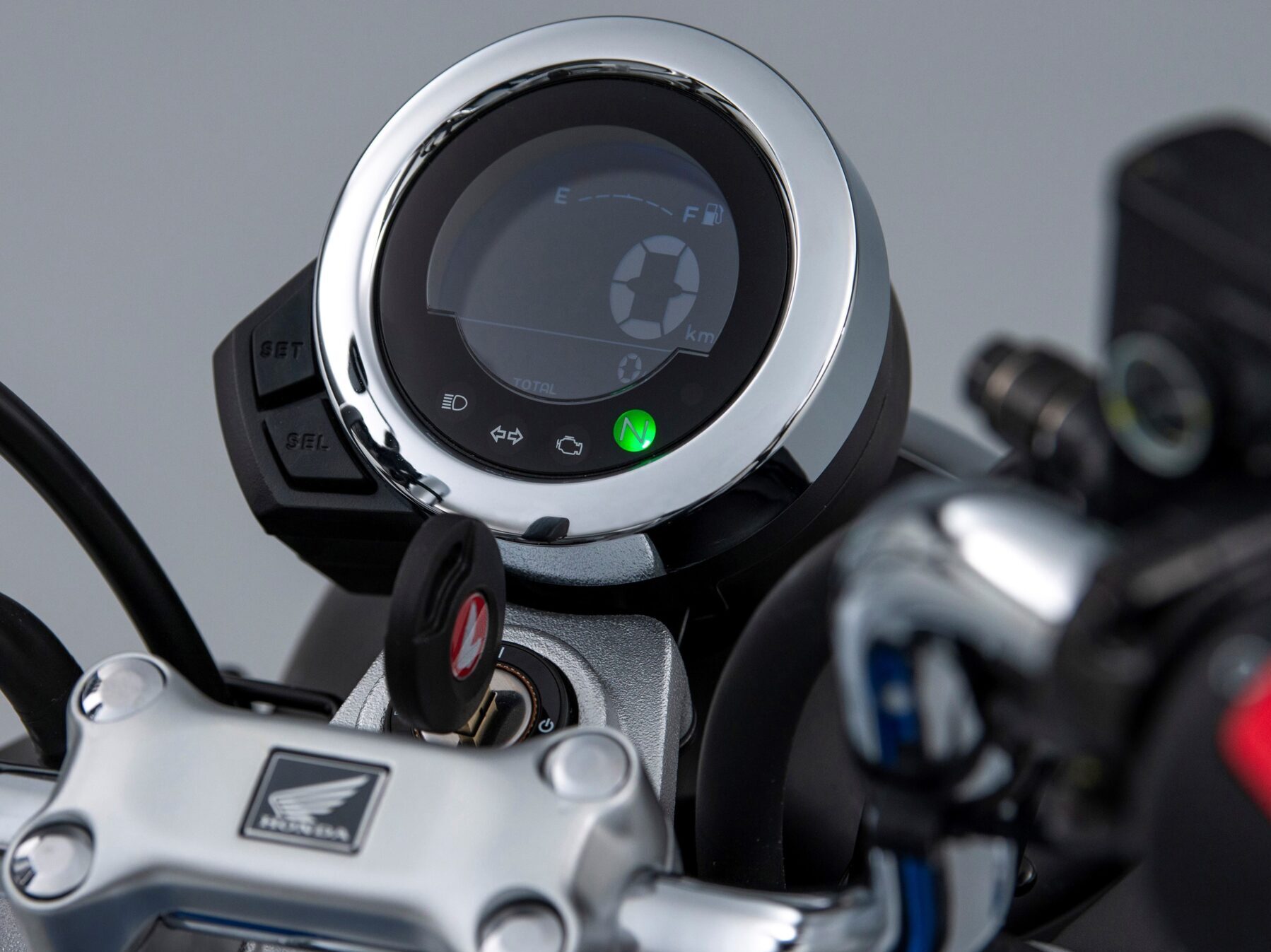

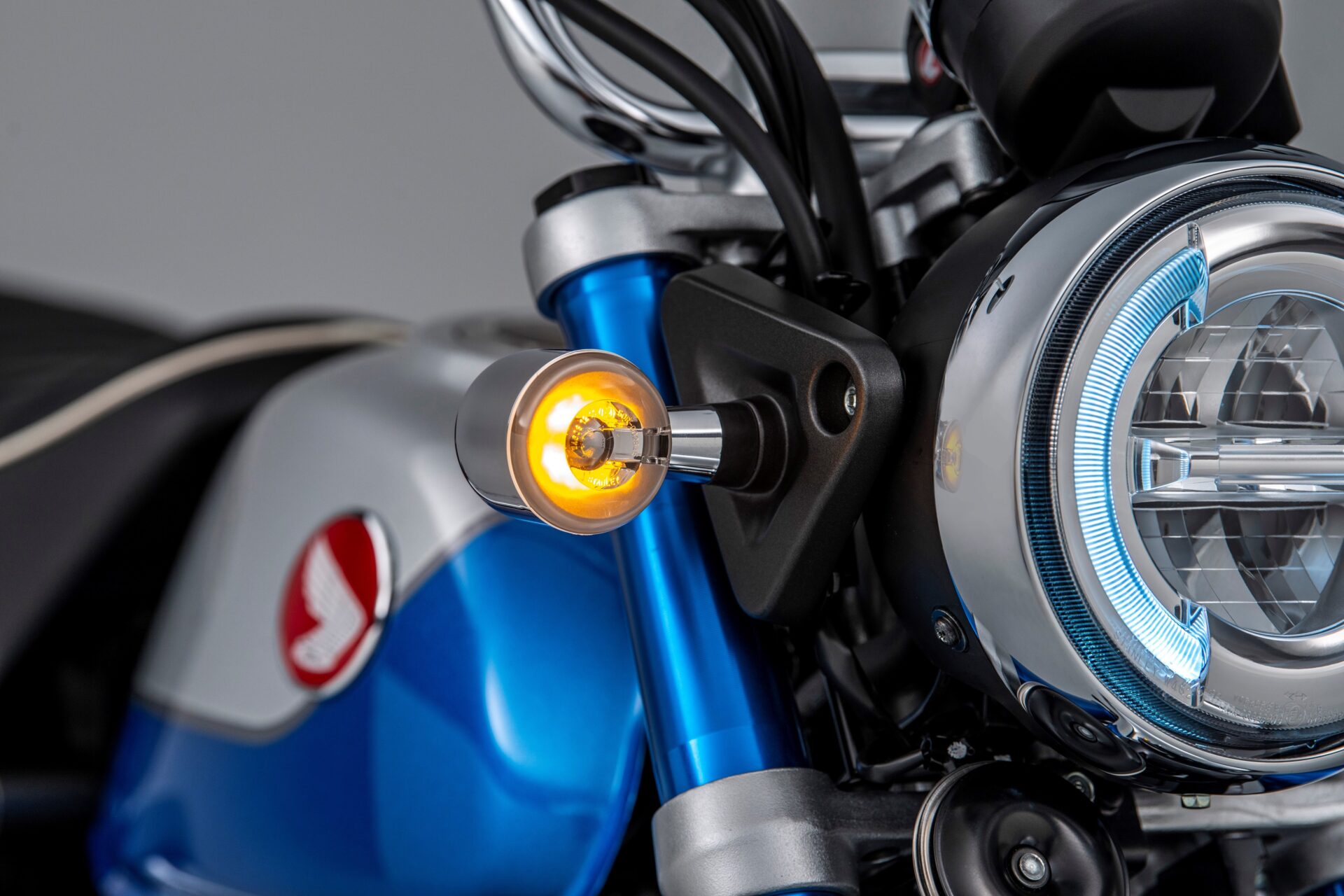

Honda Monkey 2022 dashboard

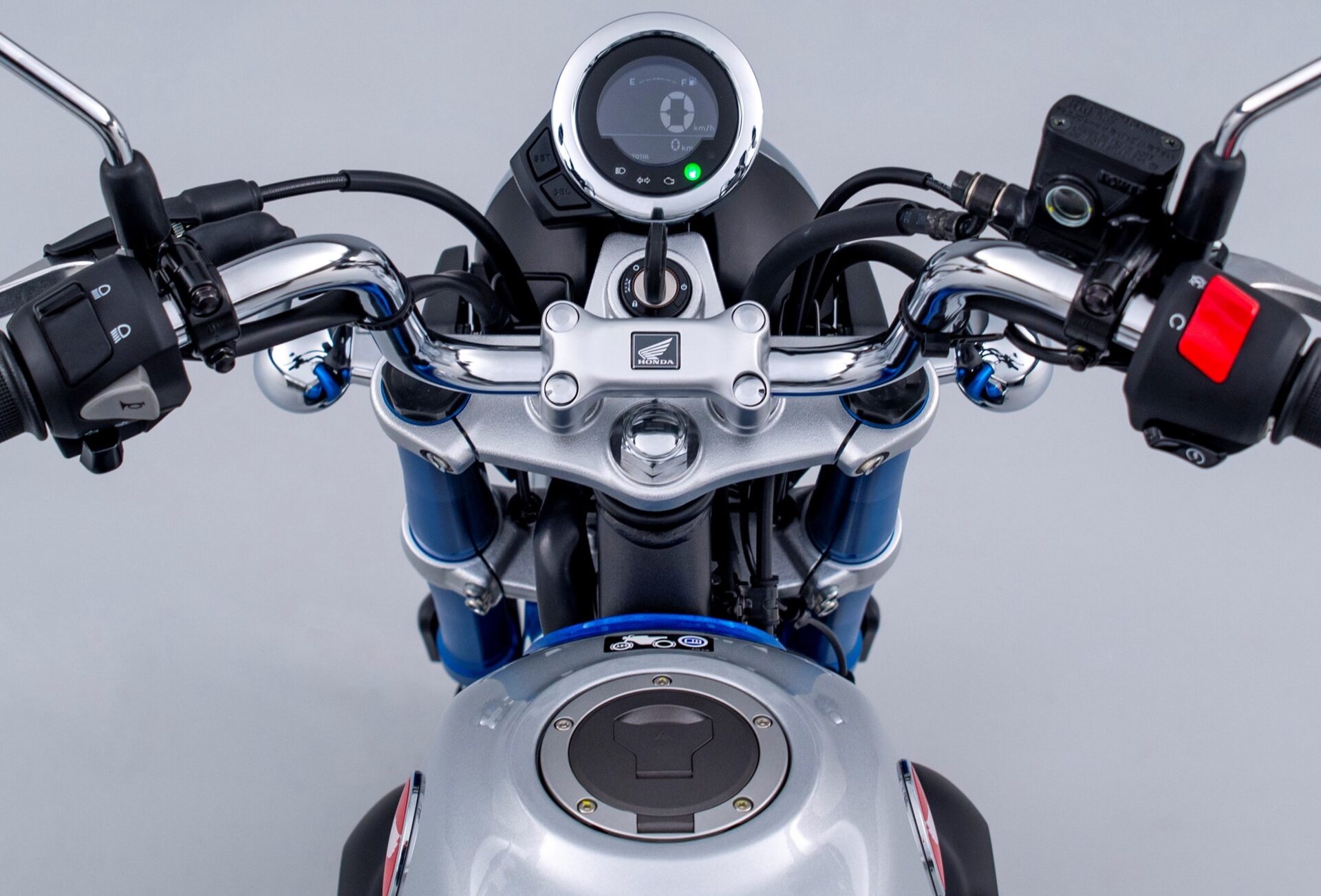

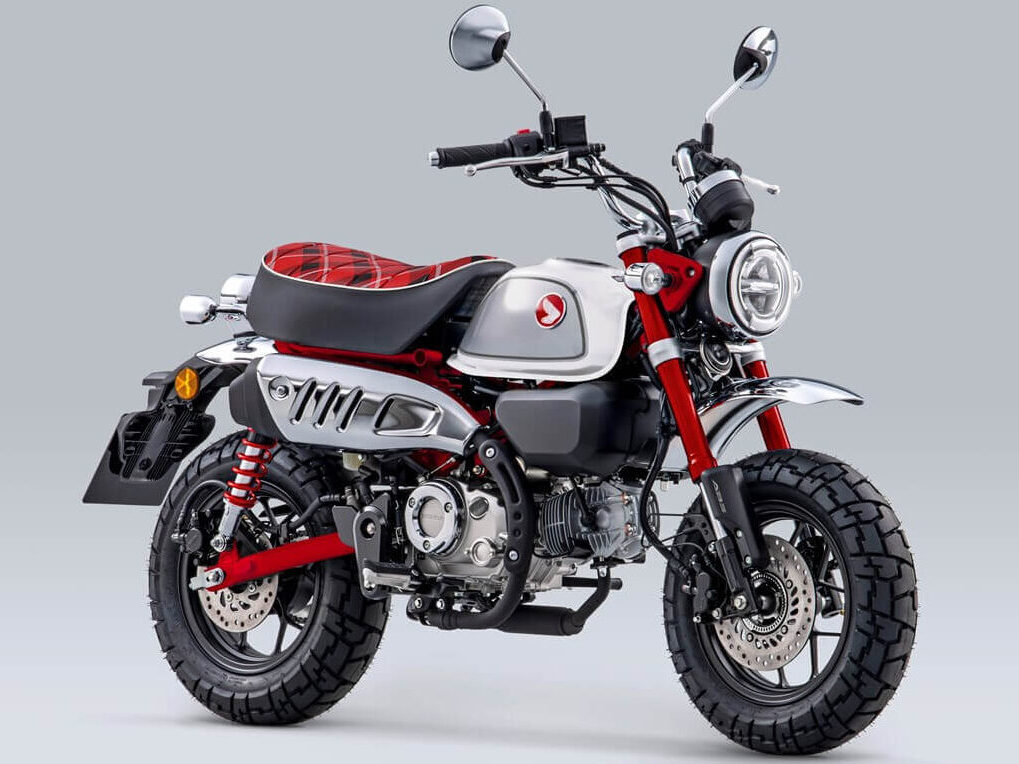

Honda Monkey 2023 front

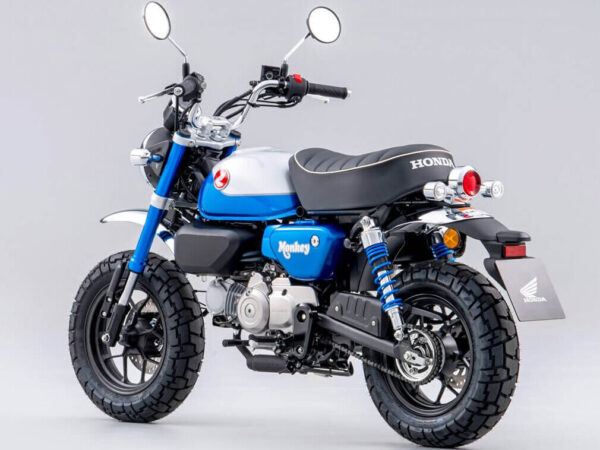

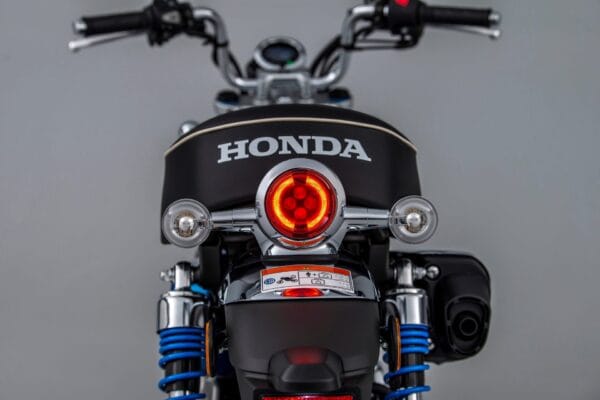

Honda Monkey 2022 back

Honda Monkey (2022+)

Honda Monkey (2022+)

The Monkey should have all LED lighting, but I’m not sure about the USA. They have weird legislation for turn signals, which makes them different over there sometimes. You can see that in the main image they are orange and big (I believe their legislation is something to do with size), while on the other images you see small, white indicators.


Category: Tag:
Share:

Specifications

Engine

124 cc Single-cylinder, air-cooled

Power

9,3 hp @ 6750 rpm

Power to weight

9 HP/Kg x 100

Torque

11 Nm @ 5500 rpm

Torque to weight

11 Nm/Kg x 100

Transmission

5-speed, wet multi-plate clutch, chain final drive

Fuel Capacity

5,6 liters

Length

1710 mm

Width

755 mm

Height

1030 mm

Weight

104 kg wet

Seat Height

775 mm

Suspension

– Front: 31 mm USD fork, 100 mm travel
– Rear: twin-shocks, 102 mm travel

Tyres

– Front: 120/80-12
– Rear: 130/80-12

Brakes

– Front: 220 mm disc, 2-piston caliper
– Rear: 190 mm disc, 1-piston caliper
– ABS on the front wheel with rear wheel lift mitigation

Instruments

LCD display with speedometer, odometer, fuel gauge, twin trip meters

Other

LED headlight and tail light
