Honda Shadow Phantom 2022 dashboard

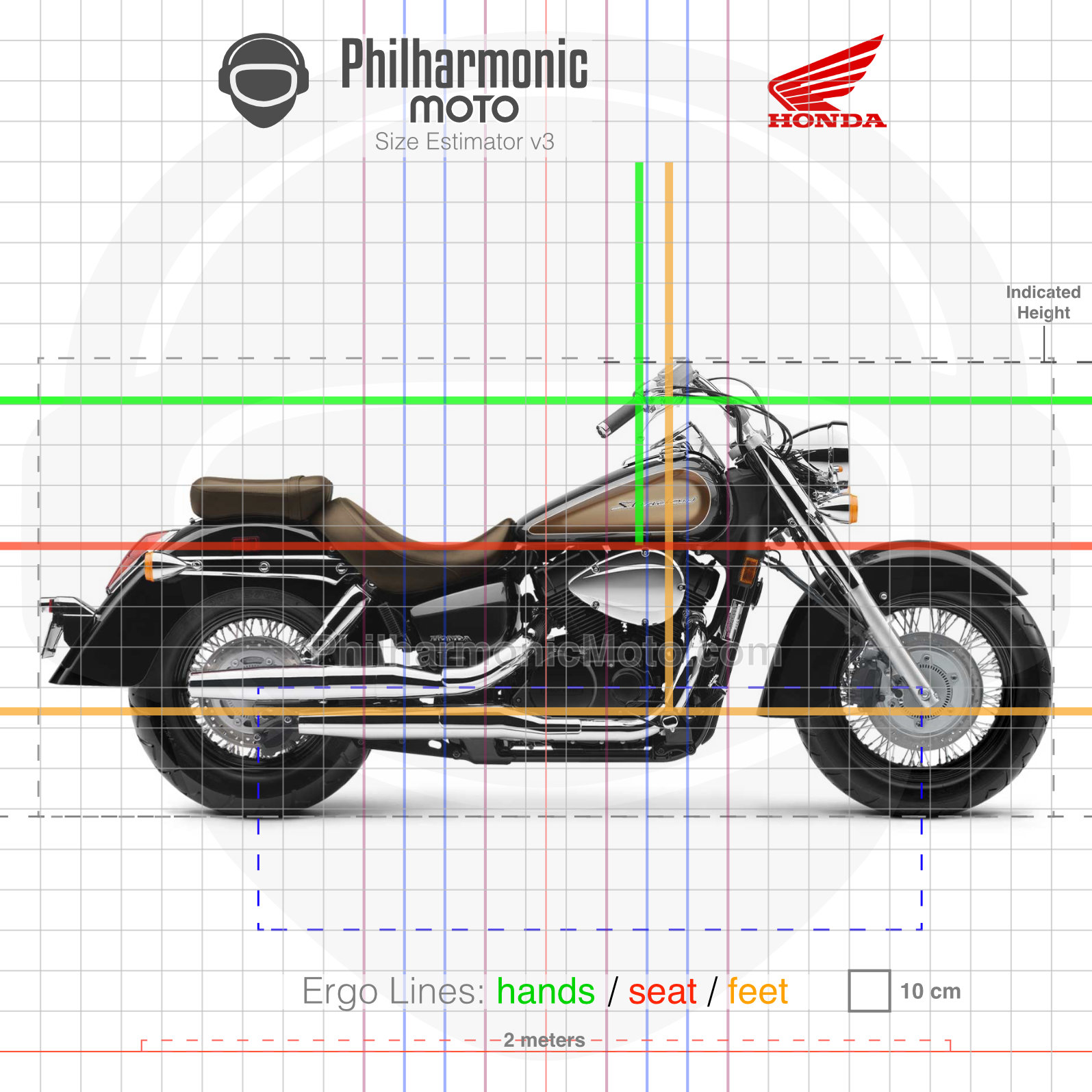

Honda Shadow Aero (2024+)

Honda Shadow Aero (2024+)

Previous model dashboard shown



VT750C, VT750CS


Category: Tag:
Share:

Specifications

Engine

745 cc V-twin, liquid-cooled

Power

44 hp @ 5500 rpm

Power to weight

17 HP/Kg x 100

Torque

62 Nm @ 3500 rpm

Torque to weight

24 Nm/Kg x 100

Transmission

5-speed, wet multi-plate clutch, shaft final drive

Fuel Capacity

14 liters

Length

2458 mm

Width

919 mm

Height

1125 mm

Weight

254/259 kg wet (non-ABS/ABS)

Seat Height

660 mm

Suspension

– Front: 41 mm telescopic fork, 139 mm travel
– Rear: twin-shocks, adjustable preload, 91 mm travel

Tyres

– Front: 120/90-17
– Rear: 160/80-15

Brakes

– Front: 296 mm disc, 2-piston caliper
– Rear: 276 mm disc, 1-piston caliper
– ABS available

Instruments

Analogue speedometer, digital odometer (updated instrument cluster but no details or pictures, previous model dashboard shown)

Other
