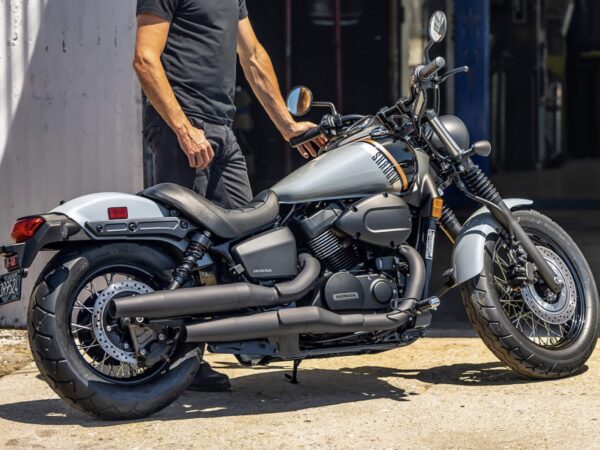

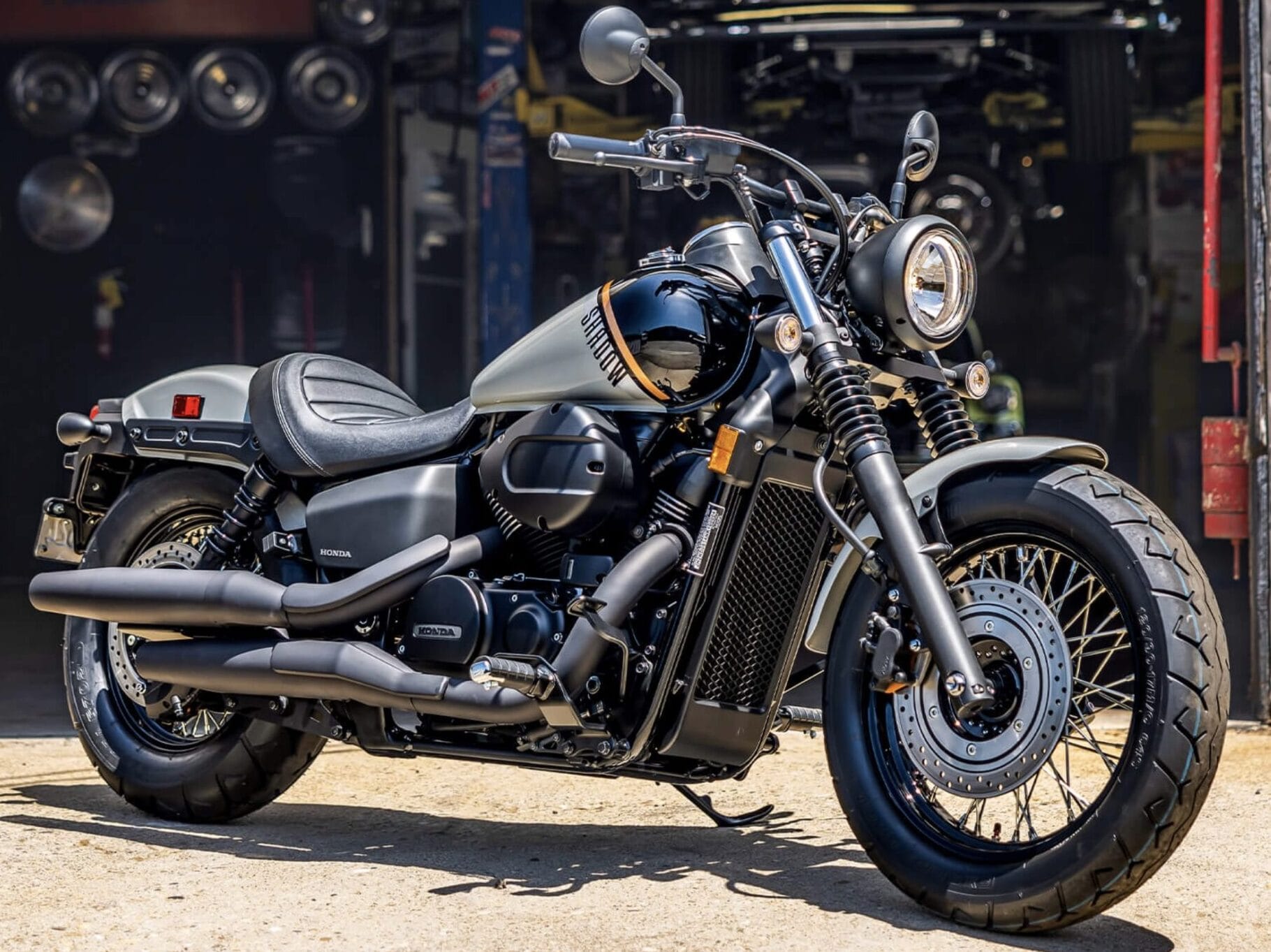

Honda Shadow Phantom (2024+)

Previous model dashboard shown

VT750C2B, VT750C2BS


Brand: Style:
Share:

Specifications and Features

Engine

745 cc V-twin, liquid-cooled

Power

44 hp @ 5500 rpm

Power to weight ratio

18 HP/100kg

Torque

62 Nm @ 3500 rpm

Torque to weight ratio

25 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Shaft final drive

Fuel Capacity

14 litres

Length

2362 mm

Width

828 mm

Height

1069 mm

Weight

– 246/250 kg wet (non-ABS/ABS)
– Max load: 182 kg

Seat Height

650 mm

Suspension

– Front: 41 mm telescopic fork, 139 mm travel
– Rear: twin-shocks, adjustable preload, 91 mm travel

Tyres

– Front: 120/90-17
– Rear: 160/80-15

Brakes

– Front: 296 mm disc, 2-piston caliper
– Rear: 276 mm disc, 2-piston caliper
– ABS available

Instruments

– Analogue speedometer, digital odometer (updated instrument cluster but no details or pictures, previous model dashboard shown)

Other

– LED turn signals

Honda Shadow Phantom 2022 dashboard Honda Shadow Phantom 2024 frontHonda Shadow Phantom 2024 back

T-shirts, mugs, stickers and more:

honda shadow phantom cyber tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

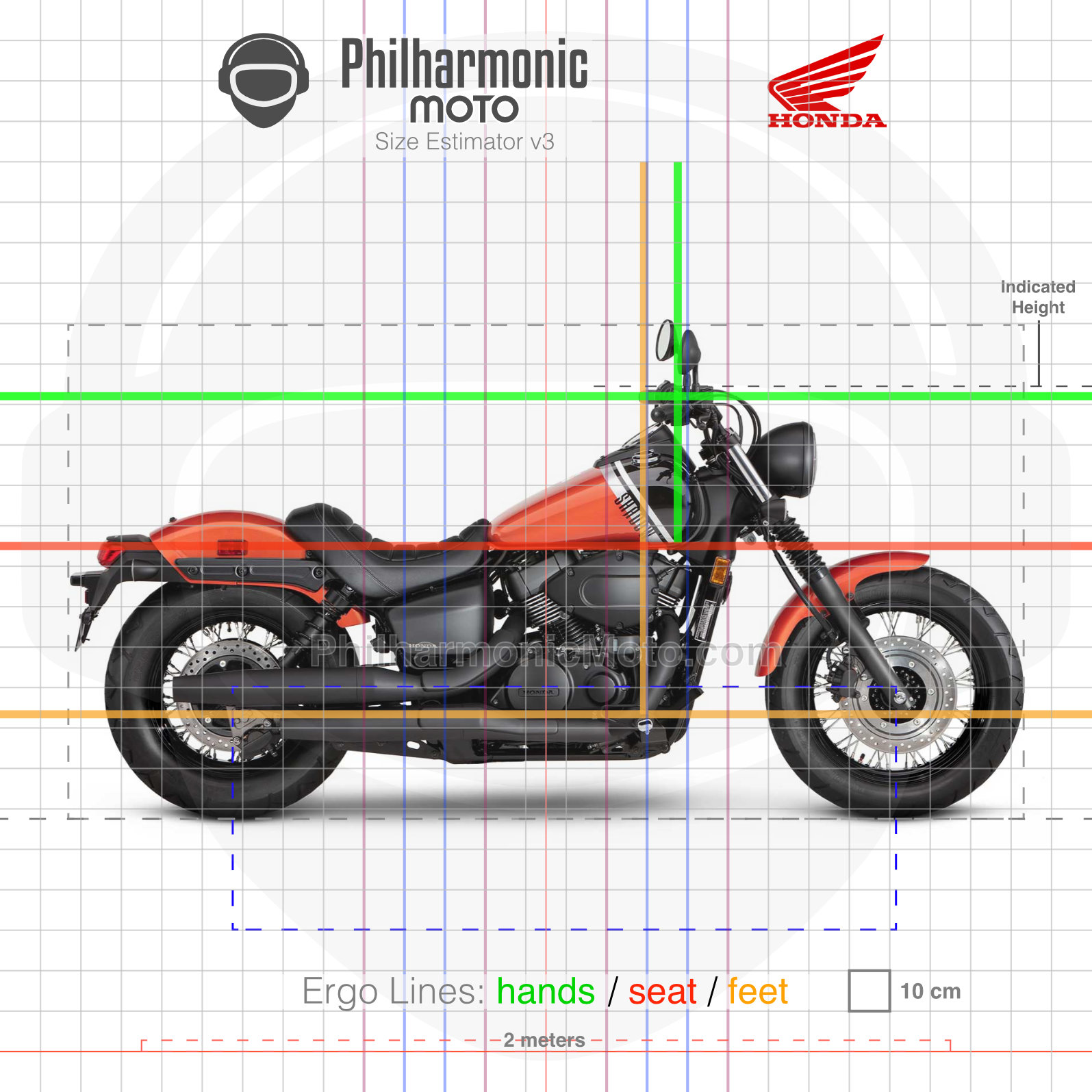

  • Size Estimator (see "About" page to learn more)
