Honda VFR1200X Crosstourer (2012-2021)

Brand: Style:
Share:

Specifications and Features

Engine

1237 cc V4, liquid-cooled

Power

127 hp @ 7750 rpm

Power to weight ratio

46 HP/100kg

Torque

126 Nm @ 6500 rpm

Torque to weight ratio

46 Nm/100kg

Transmission

– 6-speed manual or automatic DCT, wet multi-plate clutch
– Shaft final drive

Fuel Capacity

21,5 litres

Length

2285 mm

Width

915 mm

Height

1460 mm

Weight

– 277 kg wet (287 kg DCT)
– Max load: 194 kg (US: 180)

Seat Height

850 mm

Suspension

– Front: KYB 43 mm inverted fork, adjustable preload and rebound, 145 mm travel
– Rear: KYB mono-shock, adjustable preload (remote) and rebound, 146 mm travel

Tyres

– Front: 110/80-19
– Rear: 150/70-17
– Tubeless

Brakes

– Front: 310 mm discs, 3-piston calipers
– Rear: 276 mm disc, 2-piston caliper
– ABS available, combined braking

Instruments

– LCD display with speedometer, tachometer, gear indicator, fuel gauge, range, instant and average fuel consumption, two trip meters, coolant temperature, clock

Other

– LED indicators, from 2014: self-canceling indicators
– Traction control (switchable)
– Adjustable windscreen, from 2016: bigger windscreen, 12v socket, improved DCT

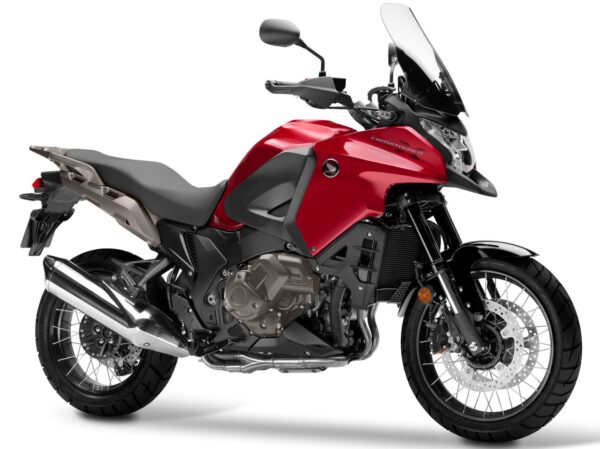

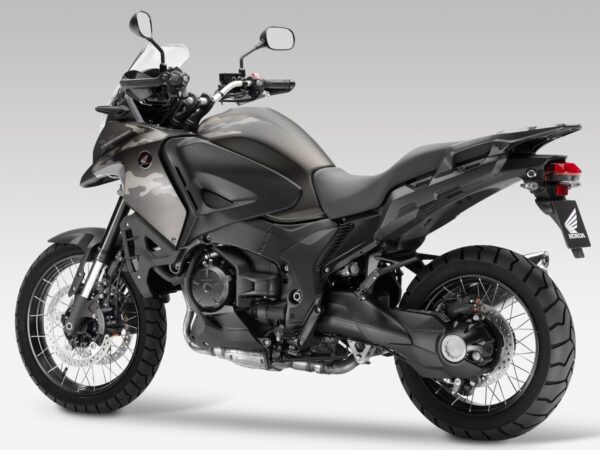

Honda VFR1200X Crosstourer 2016 dashboard Honda VFR1200X Crosstourer 2017 front Honda VFR1200X Crosstourer 2014 back

T-shirts, mugs, stickers and more:

Kawasaki Vulcan s cafe 650 orange cruise tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

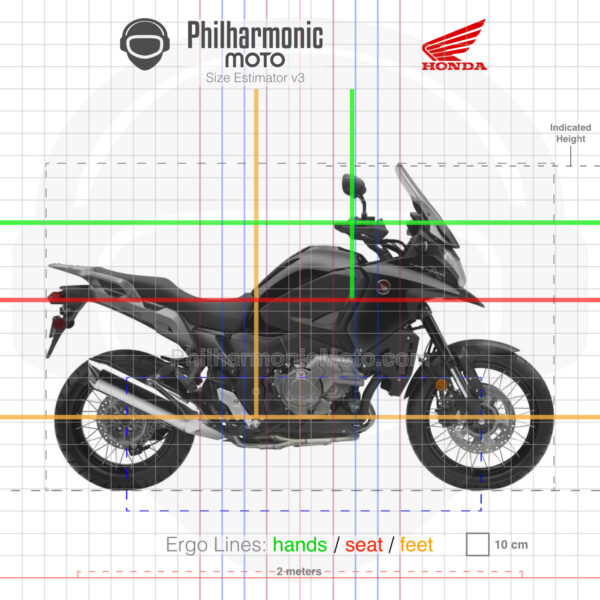

  • Size Estimator (see "About" page to learn more)
