KTM 390 Adventure (2022+)

390 Adventure SW (spoked wheels). Updated: dimensions estimated based on wheelbase.

Brand: Style:
Share:

Specifications

Engine

373 cc Single-cylinder, liquid-cooled

Power

43 hp @ 9500 rpm

Power to weight ratio

24 HP/100kg

Torque

37 Nm @ 7000 rpm

Torque to weight ratio

21 Nm/100kg

Transmission

– 6-speed, slip/assist clutch
– Chain final drive
– Optional: quick-shifter

Fuel Capacity

14,5 litres

Length

2081 mm (estimated)

Width

900 mm

Height

1270 mm (estimated)

Weight

177 kg wet

Seat Height

855 mm

Suspension

– Front: 43 mm inverted fork, 170 mm travel
– Rear: mono-shock, adjustable preload, 177 mm travel

Tyres

– Front: 100/90-19
– Rear: 130/80-17

Brakes

– Front: 320 mm disc, 4-piston caliper
– Rear: 230 mm disc, 1-piston floating caliper
– Cornering ABS available (switchable rear)

Instruments

– TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, trip meter, clock
– smartphone connectivity

Other

– LED lights
– Cornering traction control
– Optional: spoked wheels (from 2023)

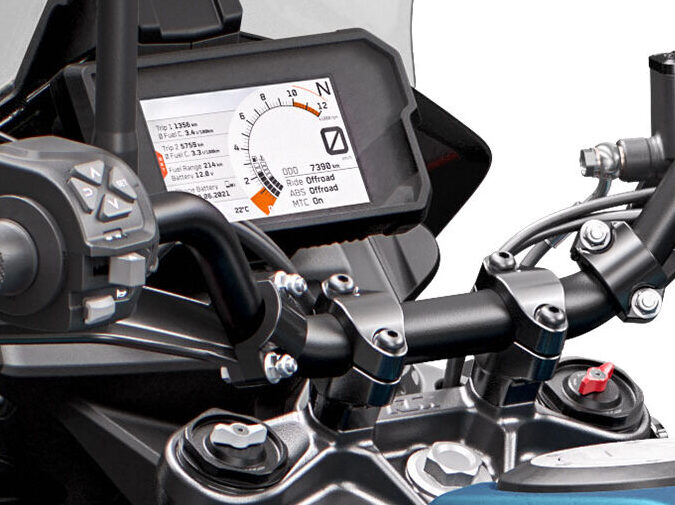

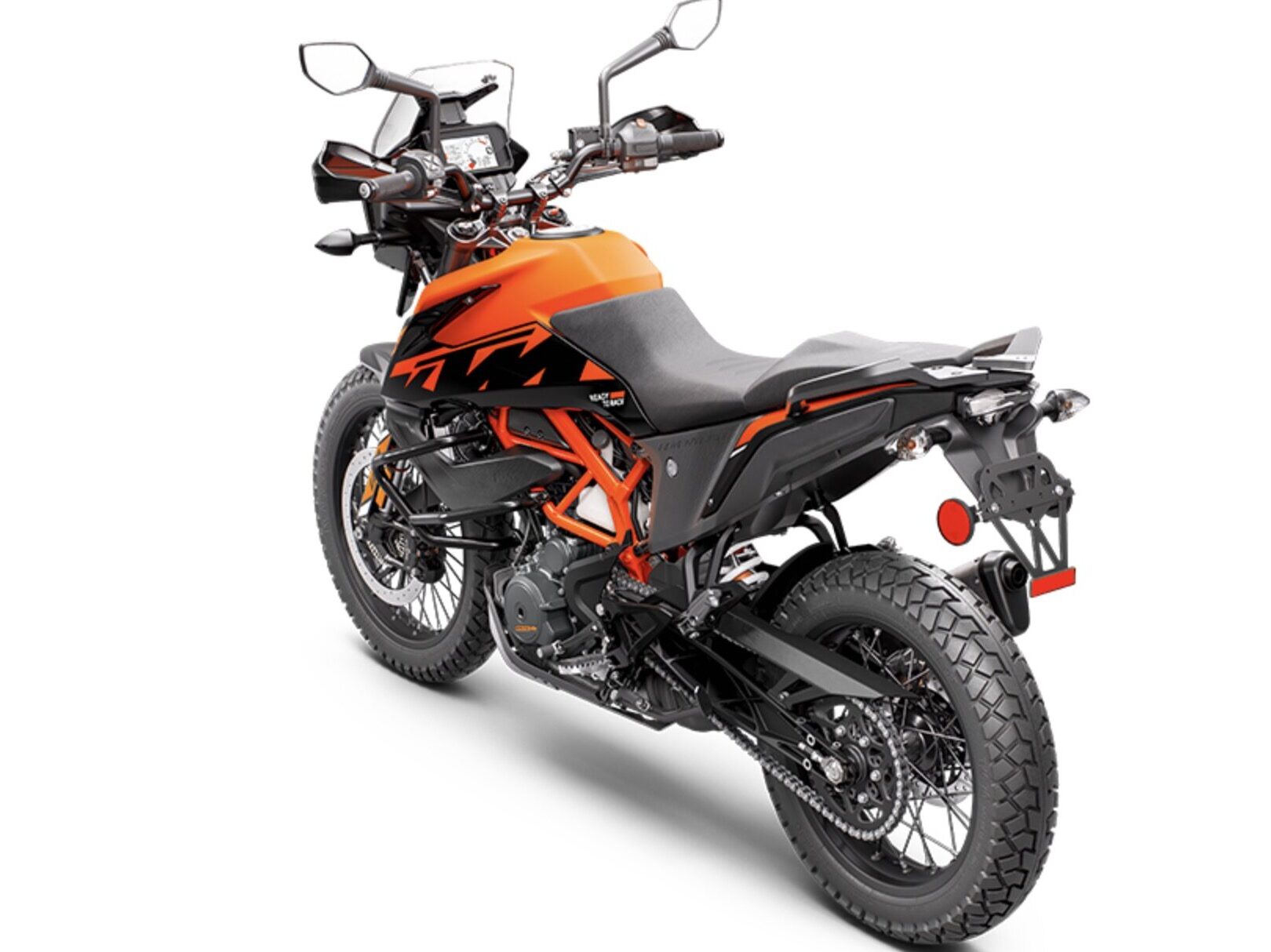

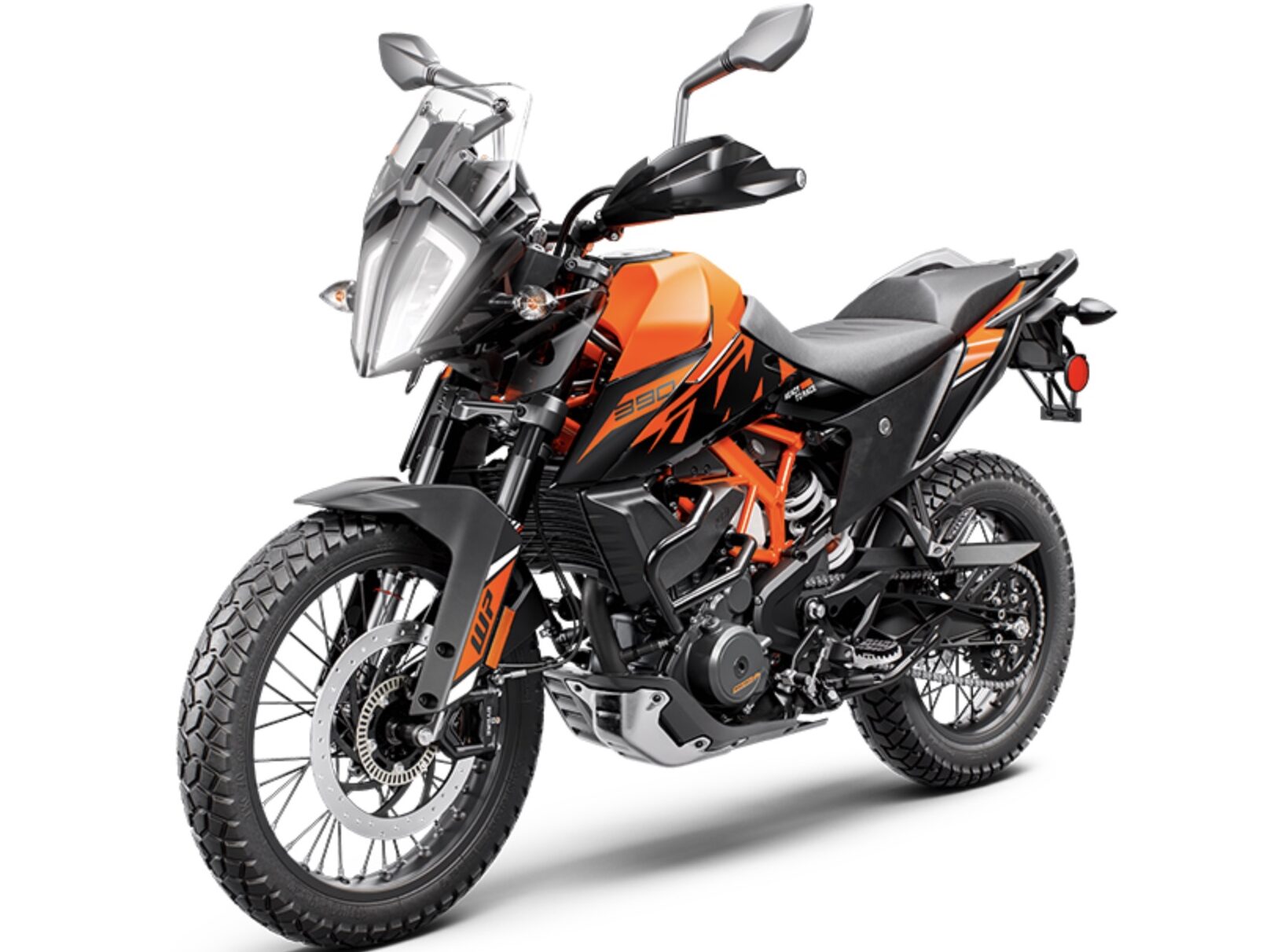

KTM 390 Adventure dashboard KTM 390 Adventure 2023 front KTM 390 Adventure 2023 back

T-shirts, mugs, stickers and more:

ktm 390 adventure orange ride tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

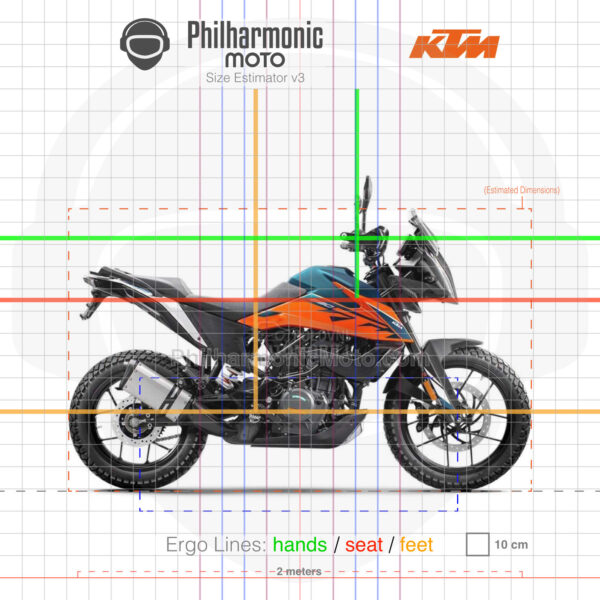

  • Size Estimator (see "About" page to learn more)
