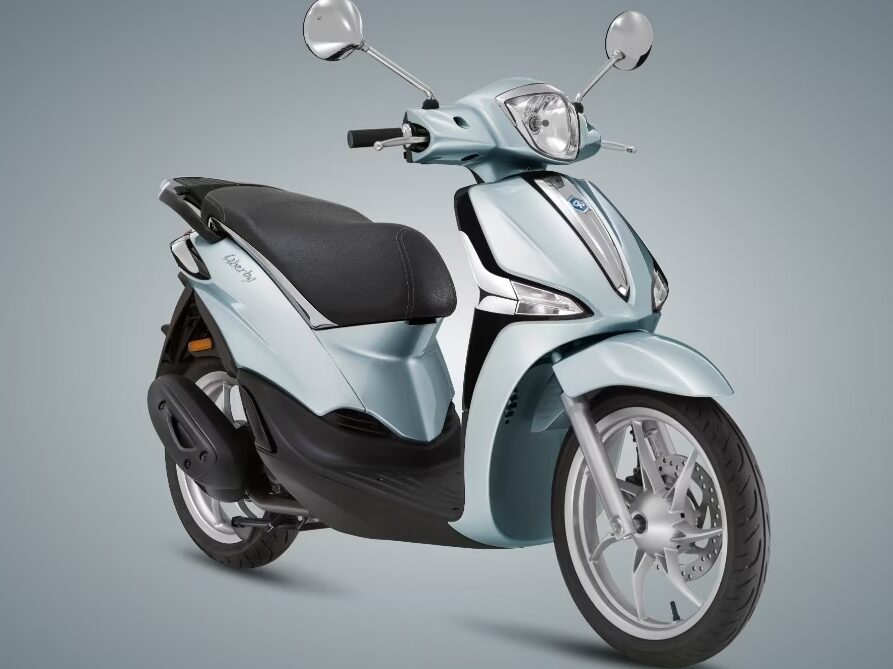

Piaggio Liberty 125 / S 125 (2016+)

Liberty S 125 has dedicated graphics and details.


Brand: Style:
Share:

Specifications and Features

Engine

125 cc single-cylinder, air-cooled

Power

11 hp @ 8250 rpm

Power to weight ratio

9 HP/100kg

Torque

11 Nm @ 6500 rpm

Torque to weight ratio

9 Nm/100kg

Transmission

– Automatic CVT, centrifugal dry clucth
– Belt final drive

Fuel Capacity

6 litres

Length

1945 mm

Width

690 mm

Height

1240 mm (estimated)

Weight

124 kg wet

Seat Height

790 mm

Suspension

– Front: telescopic fork, 76 mm travel
– Rear: mono-shock, adjustable preload, 75 mm travel

Tyres

– Front: 90/80-16
– Rear: 100/80-14

Brakes

– Front: 240 mm disc, 2-piston floating caliper
– Rear: 140 mm drum
– ABS available

Instruments

– Analogue speedometer, LCD display with odometer, fuel gauge, clock

Other

– Centre stand, 17 litres underseat storage, 4 litres front storage. Optional: USB port in front storage, kickstand

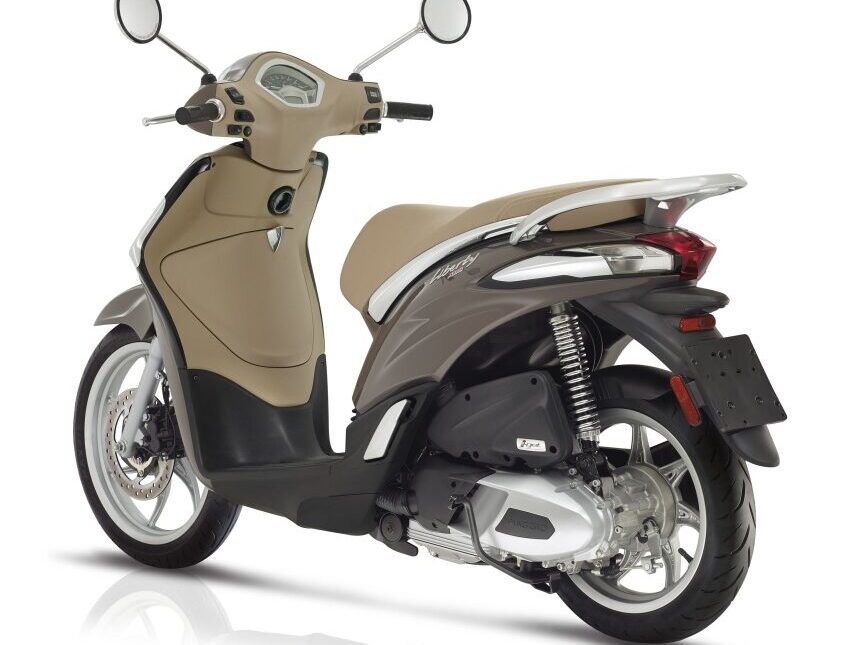

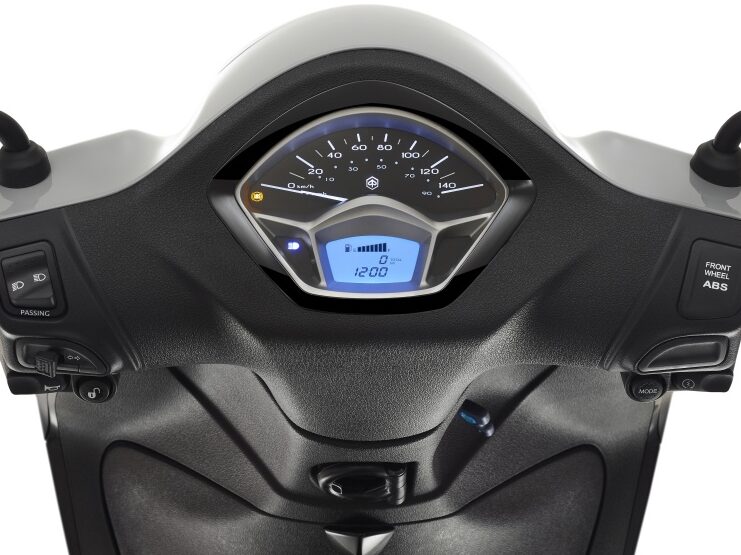

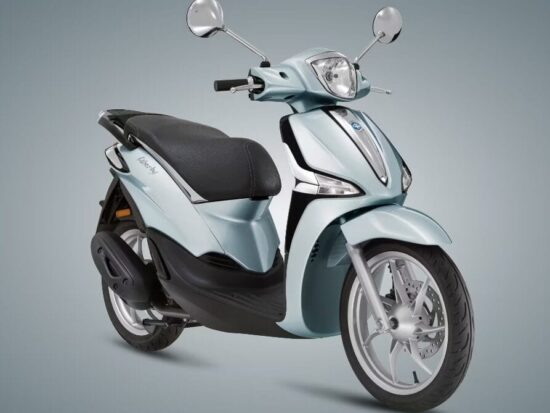

Piaggio Liberty 125 2016 dashboard Piaggio Liberty 125 2024 Grigio Astrale front Piaggio Liberty 125 2016 brown back

T-shirts, mugs, stickers and more:

Honda Trail 125 ct125 retro tshirt

Click here if you don’t see an image above and/or want to learn more.


Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

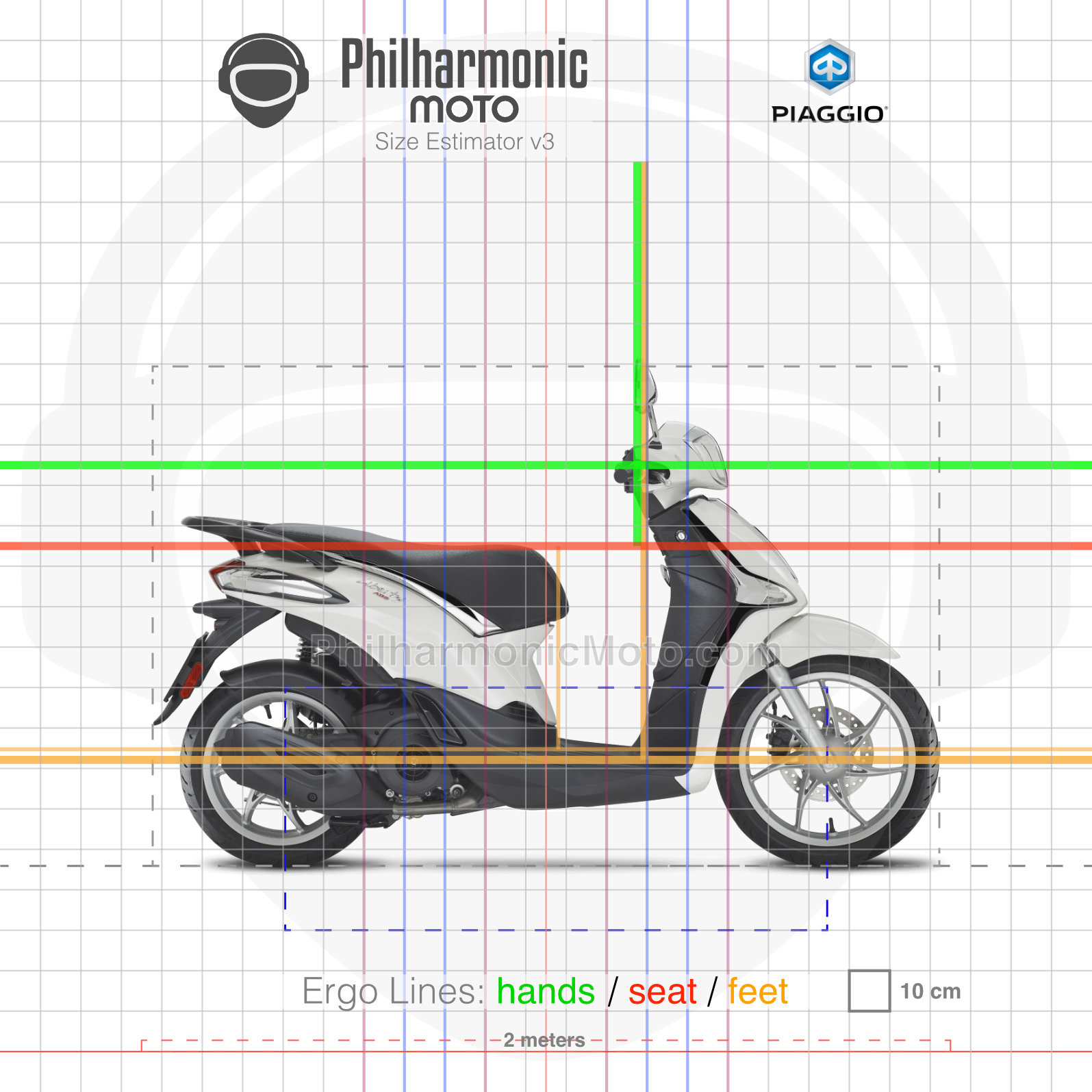

  • Size Estimator (see "About" page to learn more)
