Triumph Tiger 1200 GT 2022 Snowdonia White

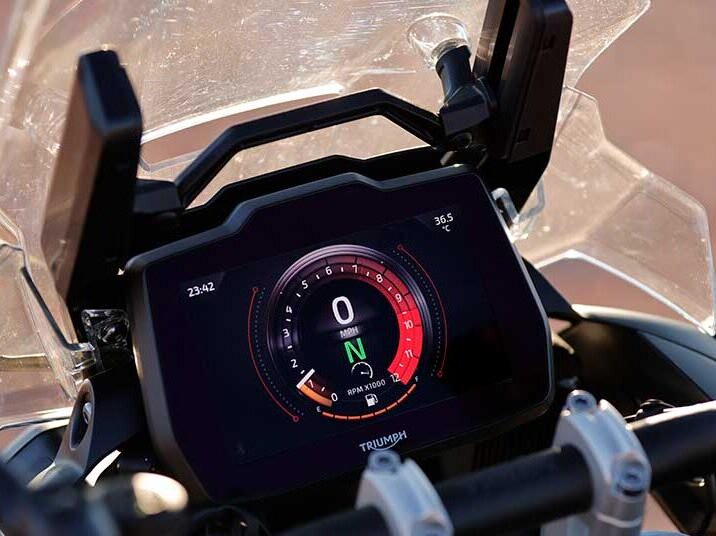

Triumph Tiger 1200 GT Explorer 2022 dashboard

Triumph Tiger 1200 GT (2022+)

Category: Triumph Tag: Adventure

Specifications

Engine	1160 cc Inline Triple, liquid-cooled
Power	148 hp @ 9000 rpm
Torque	130 Nm @ 7000 rpm
Transmission	6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity	20 liters
Length	2245 mm
Width	982 mm
Height	1436 mm / 1497 mm (low/high screen position)
Weight	240 kg wet
Seat Height	850-870 mm (adjustable)
Suspension	– Front: Showa 49 mm USD inverted fork, semi-active damping, 200 mm travel – Rear: Showa mono-shock, semi-active damping, automatic electronic preload adjustment, 200 mm travel
Tyres	– Front: 120/70-19 – Rear: 150/70-18
Brakes	– Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc radial calipers – Rear: 282 mm disc, Brembo 1-piston caliper – cornering ABS available
Instruments	7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock
Other	LED lights, Riding modes, cornering traction control, smartphone connectivity, illuminated switches, under seat storage with USB charger, fully keyless

Dashboard / Support us

T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Triumph Tiger 1200 GT (2022+) remove	Triumph Tiger Sport 660 (2022+) remove	Triumph Bonneville Speedmaster (2021+) remove	Triumph Trident 660 (2020+) remove	Triumph Bonneville T100 (2021+) remove	Triumph Scrambler 1200 XE (2019+) remove
Name	Triumph Tiger 1200 GT (2022+) remove	Triumph Tiger Sport 660 (2022+) remove	Triumph Bonneville Speedmaster (2021+) remove	Triumph Trident 660 (2020+) remove	Triumph Bonneville T100 (2021+) remove	Triumph Scrambler 1200 XE (2019+) remove

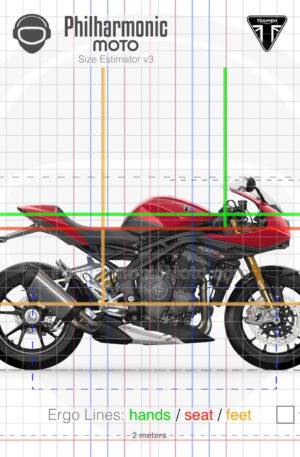

Size Estimator (see "About" page to learn more)
Length	2245 mm	2071 mm	2225 mm	2020 mm	2170 mm	2325 mm
Width	982 mm	834 mm	910 mm	795 mm	780 mm	905 mm
Height	1436 mm / 1497 mm (low/high screen position)	1315 mm / 1398 mm (low/high screen position)	1055 mm	1089 mm	1100 mm	1250 mm
Seat Height	850-870 mm (adjustable)	835 mm	705 mm	805 mm	790 mm	870 mm
Weight	240 kg wet	206 kg wet	263 kg wet	189 kg wet	228 kg wet	230 kg wet
Engine	1160 cc Inline Triple, liquid-cooled	660cc Inline Triple, liquid cooled, 12 valve DOHC, 240º crank angle	1200 cc Parallel-Twin, liquid cooled, 270º crank	660 cc Inline Triple, liquid-cooled	900cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank	1200cc Parallel Twin, liquid cooled, 8 valve SOHC, 270º crank
Power	148 hp @ 9000 rpm	80 hp @ 10250 rpm	76 hp @ 6100 rpm	80 hp @ 10250 rpm	64 hp @ 7400 rpm	89 hp @ 7400 rpm
Torque	130 Nm @ 7000 rpm	64 Nm @ 6250 rpm	106 Nm @ 4000 rpm	64 Nm @ 6250 rpm	80 Nm @ 3750 rpm	110 Nm @ 3950 rpm
Transmission	6-speed, wet multi-plate slip/assist clutch, chain final drive	6-speed, wet multi-plate slip/assist clutch, X-ring chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	6-speed, wet multi-plate slip/assist clutch, chain final drive	5-speed, Wet multi-plate assist clutch, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity	20 liters	17,2 liters	12 liters	14 liters	14,5 liters	16 liters
Suspension	– Front: Showa 49 mm USD inverted fork, semi-active damping, 200 mm travel – Rear: Showa mono-shock, semi-active damping, automatic electronic preload adjustment, 200 mm travel	- Front: Showa 41mm upside down separate function cartridge forks, 150mm travel - Rear: Showa mono-shock RSU, with remote hydraulic preload adjustment, 150mm travel	- Front: Showa 47 mm cartridge forks - Rear: mono-shock RSU with linkage, adjustable preload	- Front: Showa 41 mm separate function inverted fork, 120 mm travel - Rear: Showa mono-shock RSU, adjustable preload, 133,5 mm travel	- Front: 41 mm cartridge forks - Rear: Twin RSUs, with pre-load adjustment	- Front: Showa 47 mm fully adjustable USD forks, 250 mm travel - Rear: Öhlins fully adjustable piggy-back RSUs with twin springs, 250 mm travel.
Tyres	– Front: 120/70-19 – Rear: 150/70-18	- Front: 120/70-17 - Rear: 180/55-17	- Front: MT90B16 - Rear: 150/80-16	- Front: 120/70-17 - Rear: 180/55-17	- Front: 100/90-18 - Rear: 150/70-17	- Front: 90/90-21 - Rear: 150/70-17 - Tubeless
Brakes	- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc radial calipers - Rear: 282 mm disc, Brembo 1-piston caliper - cornering ABS available	- Front: twin 310mm discs, Nissin two-piston sliding calipers - Rear: 255mm disc, Nissin single-piston sliding caliper - ABS available	- Front: 310 mm discs, Brembo 2-piston calipers - Rear: 255 mm disc, Nissin 1-piston caliper - ABS available	- Front: 310 mm discs, Nissin 2-piston sliding calipers - Rear: 255 mm disc, Nissin 1-piston sliding caliper - ABS available	- Front: 310 mm floating disc, Brembo 2-piston axial caliper - Rear: 255 mm disc, Nissin 2-piston floating caliper - ABS available	- Front: 320 mm discs, Brembo monoblock calipers - Rear: 255 mm disc, Brembo 2-piston floating caliper - switchable cornering ABS available
Instruments	7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock	TFT display with Digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock	Analogue speedometer, LCD display with odometer, gear indicator, fuel gauge, clock	TFT display with digital speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clock	Analogue speedometer and tachometer, Dual LCD display with odometer, gear indicator, fuel gauge, range to empty, clock, 2x trip, average & current fuel consumption	TFT display with speedometer, tachometer, odometer, gear indicator, fuel gauge, clock
Other	LED lights, Riding modes, cornering traction control, smartphone connectivity, illuminated switches, under seat storage with USB charger, fully keyless	LED lights, Riding modes, traction control	Led lights, switchable traction control, riding modes, USB under seat, cruise control	LED lights, Riding modes, switchable traction control	Led taillight, adjustable brake and clutch levers, switchable traction control	Led lights, riding modes, switchable traction control, cruise control, keyless, backlit switches, folding foot controls, Brembo MCS lever, heated grips, USB under seat
