Yamaha MT-07 Tracer / Tracer 700 (2016-2020)

CP2 engine.

MT07 Tracer


Brand: Style:
Share:

Specifications and Features

Engine

689 cc Parallel-twin, liquid-cooled, 270º crank

Power

74 hp @ 9000 rpm

Power to weight ratio

38 HP/100kg

Torque

68 Nm @ 6500 rpm

Torque to weight ratio

35 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

17 litres

Length

2138 mm

Width

806 mm

Height

1270 mm

Weight

– 196 kg wet
– Max load: 180 kg

Seat Height

835 mm

Suspension

– Front: 41 mm telescopic fork, 130 mm travel
– Rear: mono-shock, adjustable preload, 142 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 282 mm discs, 4-piston calipers
– Rear: 245 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, reserve trip, average and instant consumption, ambient and engine temperature, clock

Other

– LED taillight
– Adjustable brake lever, adjustable windshield

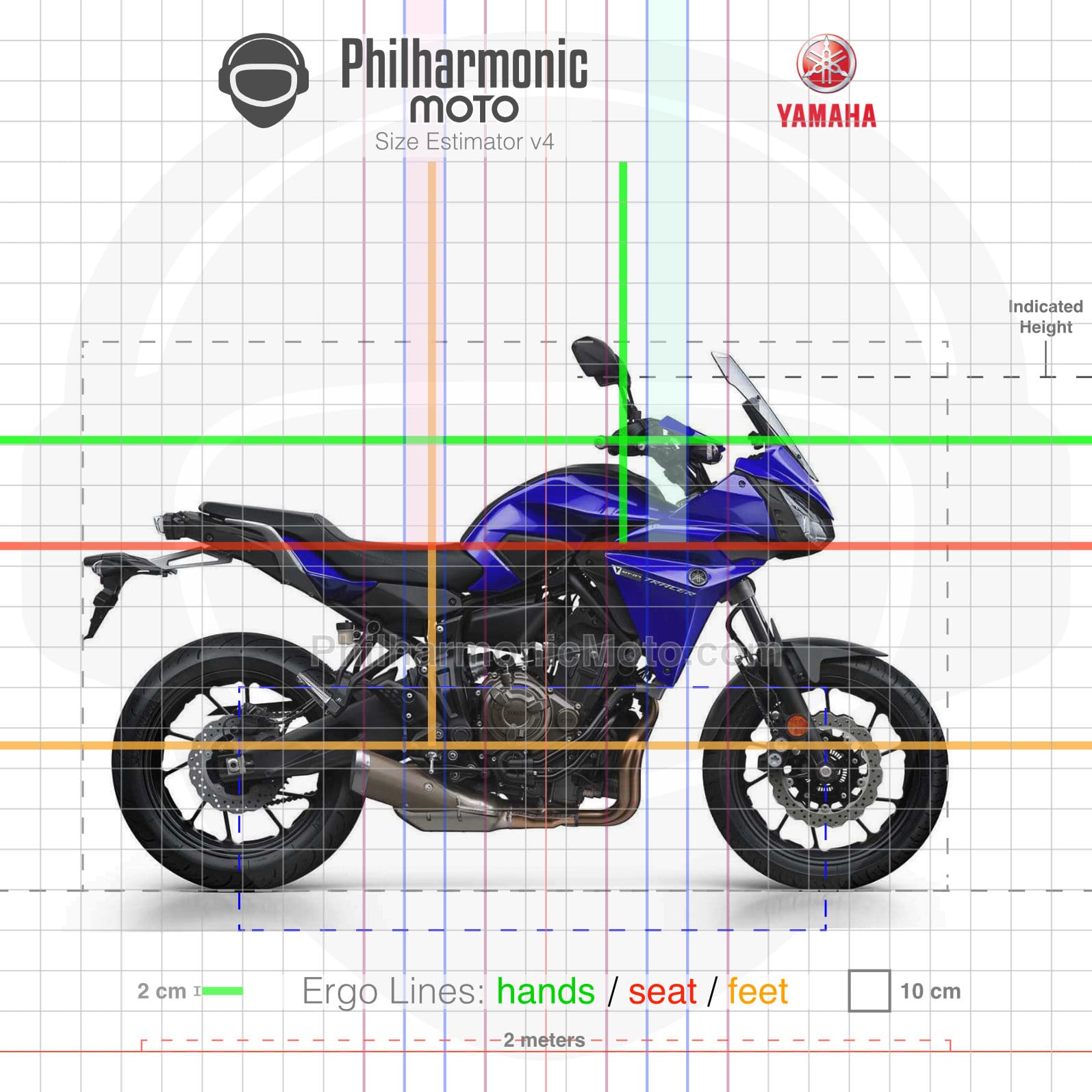

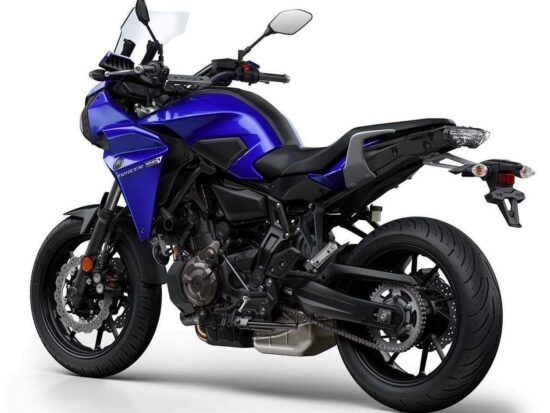

Yamaha MT-07 Tracer 2016 red dashboardYamaha MT-07 Tracer 2016 blue frontYamaha MT-07 Tracer 2016 blue back
