BMW F 900 XR 2020 dashboard

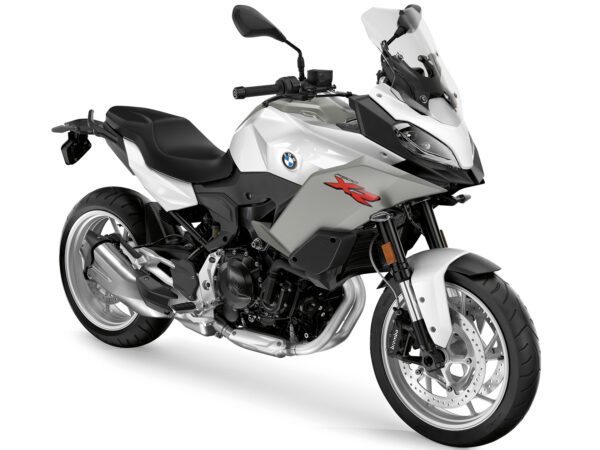

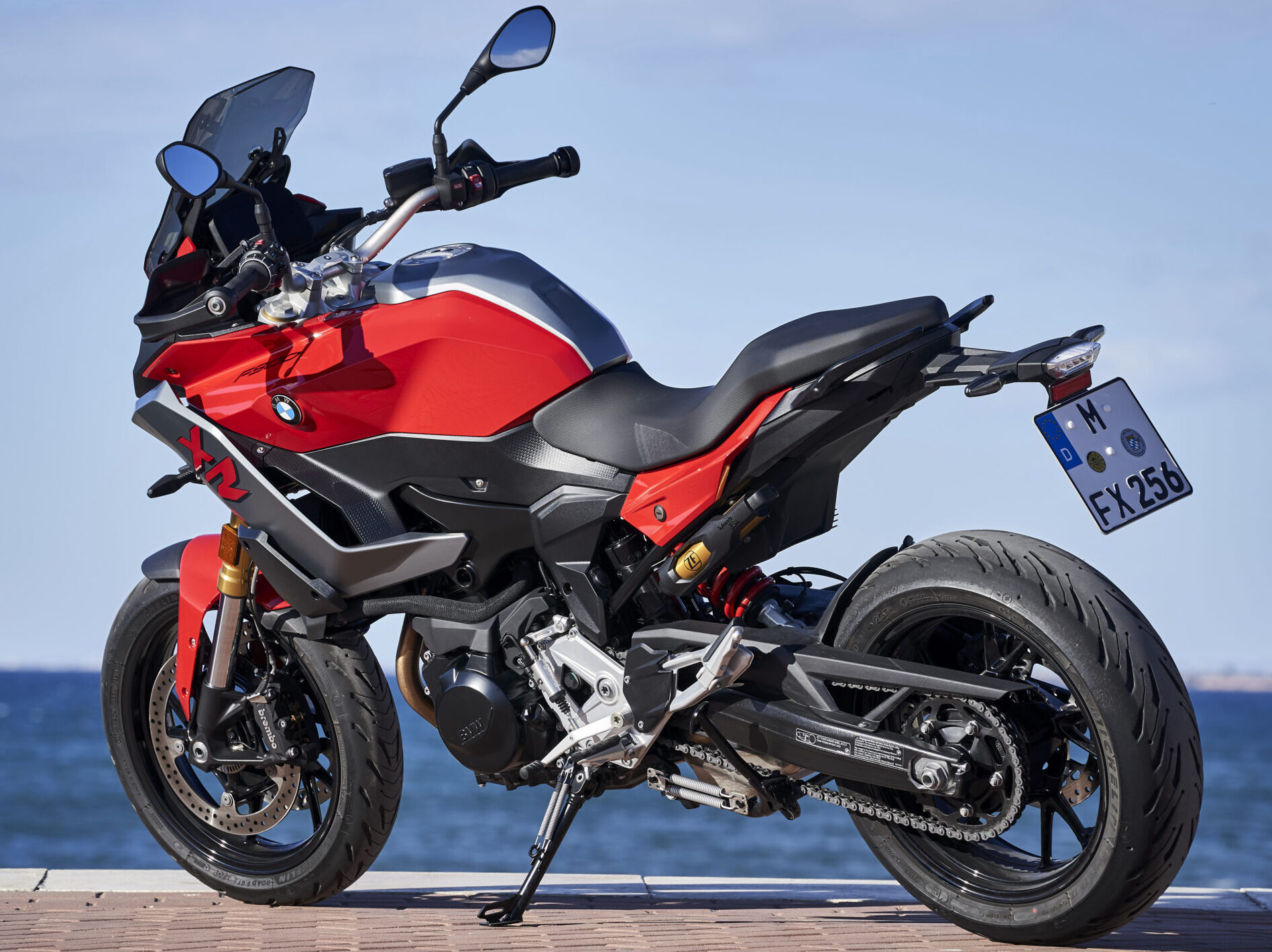

BMW F 900 XR (2020+)

BMW F 900 XR (2020+)

F900XR


Category: Tag:

Specifications

Engine

895 cc Parallel-Twin, liquid-cooled, 270º crank

Power

99 hp @ 8500 rpm

Torque

88 Nm @ 6750 rpm

Transmission

6-speed, wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

15,5 liters

Length

2160 mm

Width

860 mm (excl. mirror)

Height

1320/1420 mm (excl. mirror)

Weight

219 kg wet

Seat Height

825 mm

Suspension

– Front: 43 mm inverted fork, 170 mm travel
– Rear: mono-shock, adjustable hydraulic preload and rebound damping, 172 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 320 mm floating discs, 4-piston radial caliper
– Rear: 265 mm disc, 1-piston floating caliper
– ABS available

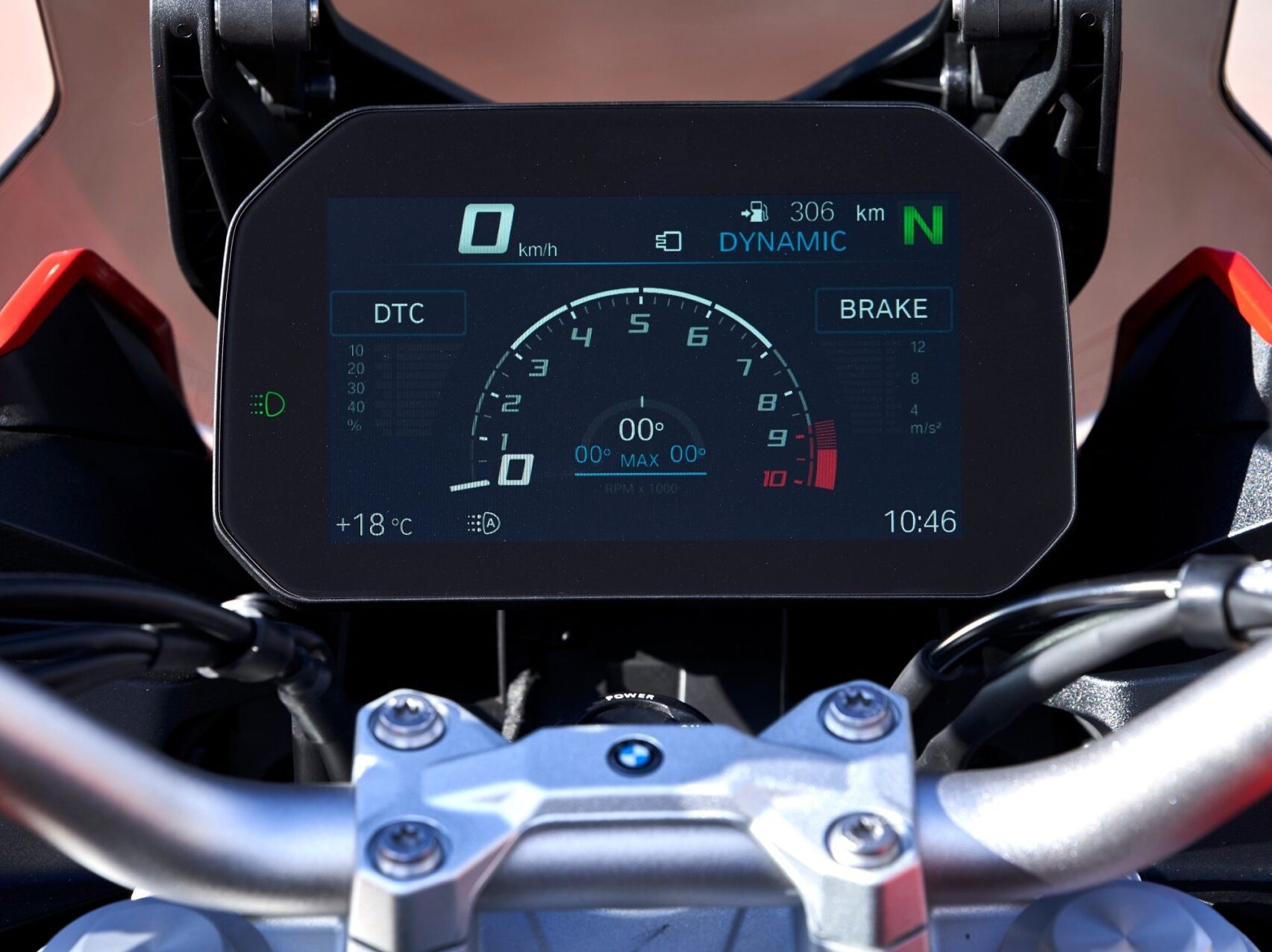

Instruments

TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock

Other

LED lights, riding modes, traction control, heated grips, smartphone connectivity, cruise control

Dashboard / Support us

BMW F 900 XR 2020 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsBMW F 900 XR (2020+) removeBMW S 1000 XR (2020+) removeBMW F 750 GS (2021+) removeBMW R 1250 RT (2021+) removeBMW F 900 R (2020+) removeBMW K 1600 B (2022+) remove
NameBMW F 900 XR (2020+) removeBMW S 1000 XR (2020+) removeBMW F 750 GS (2021+) removeBMW R 1250 RT (2021+) removeBMW F 900 R (2020+) removeBMW K 1600 B (2022+) remove

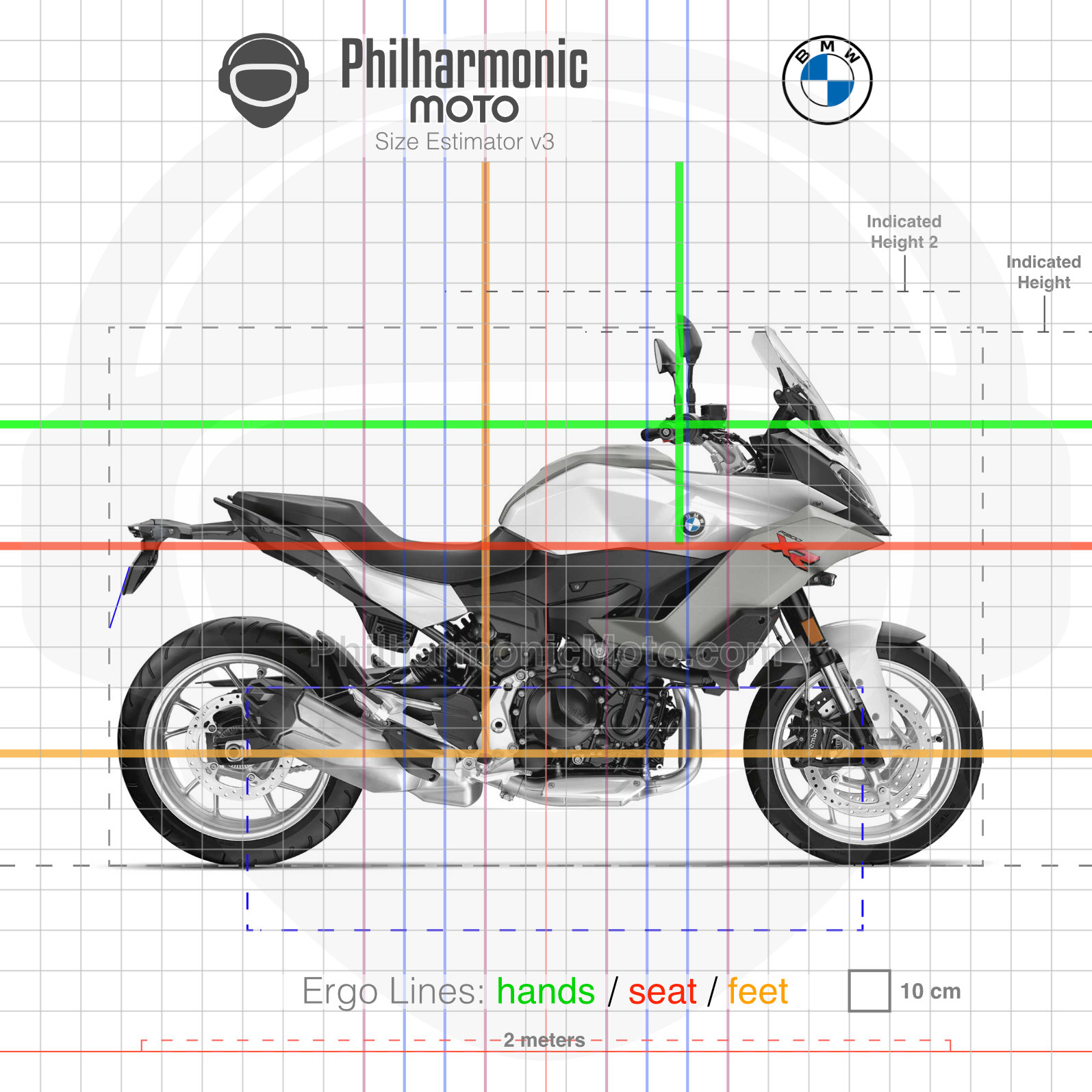

Size Estimator (see "About" page to learn more)BMW F 900 XR 2020 Light WhiteBMW S 1000 XR 2020 Racing RedBMW F 750 GS 2023 Light WhiteBMW R 1250 RT 2021 Alpine WhiteBMW F 900 R 2020 Black Storm MetallicBMW K 1600 B 2023 Black Storm Metallic
Length2160 mm2162 mm (estimated)2255 mm2222 mm (over license plate holder)2140 mm2470 mm (over side case)
Width860 mm (excl. mirror)917 mm922 mm985 mm (including mirrors), 990 mm (including boot)1130 mm (excl. mirror)1000 mm (including side cases)
Height1320/1420 mm (excl. mirror)1411 mm (excl. mirrors)1225 mm1460 mm815 mm (excl. mirror)1340/1440 mm (adjustable windshield)
Seat Height825 mm840 mm (seat lowered optional suspension: 790 mm)815 mm805/825 mm815 mm750 mm
Weight219 kg wet226 kg wet227 kg wet279 kg wet211 kg wet344 kg wet
Engine895 cc Parallel-Twin, liquid-cooled, 270º crank999 cc, Inline-4, oil/liquid cooled853 cc Parallel-twin, liquid-cooled1254 cc Boxer twin, air-liquid-cooled895 cc Parallel-Twin, liquid-cooled, 270º crank1649 cc, Inline-6, oil/liquid cooled
Power99 hp @ 8500 rpm165 hp @ 11000 rpm77 hp @ 7500 rpm136 hp @ 7750 rpm99 hp @ 8500 rpm160 hp @ 6750 rpm
Torque88 Nm @ 6750 rpm114 Nm @ 9250 rpm83 Nm @ 6000 rpm143 Nm @ 6250 rpm88 Nm @ 6750 rpm180 Nm @ 5250 rpm
Transmission6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive
Fuel Capacity15,5 liters20 liters15 liters25 liters13 liters26,5 liters
Suspension- Front: 43 mm inverted fork, 170 mm travel - Rear: mono-shock, adjustable hydraulic preload and rebound damping, 172 mm travel- Front: 45 mm inverted fork, electronic self-adjusting rebound/compression damping, 150 mm travel - Rear: mono-shock, electronic preload adjuster, electronic self-adjusting rebound/compression damping, 150 mm travel- Front: 41 mm telescopic fork, 170 mm travel - Rear: single shock, adjustable preload and rebound damping, 170 mm travel- Front: 37 mm Telelever, central spring strut, 120 mm travel - Rear: Paralever, WAD spring strut, adjustable hydraulic preload and rebound damping, 136 mm travel- Front: 43 mm inverted fork, 135 mm travel - Rear: mono-shock, adjustable hydraulic preload and rebound damping, 142 mm travel- Front: BMW Motorrad Duolever, central spring strut, 115 mm travel - Rear: BMW Motorrad Paralever, central spring strut, 125 mm travel - Dynamic ESA “Next Generation” electronic suspension with fully automatic load compensation
Tyres- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 190/55-17- Front: 110/80-19 - Rear: 150/70-17- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 180/55-17- Front: 120/70-17 - Rear: 190/55-17
Brakes- Front: 320 mm floating discs, 4-piston radial caliper - Rear: 265 mm disc, 1-piston floating caliper - ABS available- Front: 320 mm discs, 4-piston radial caliper - Rear: 265 mm disc, 2-piston floating caliper - cornering ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front: 320 mm floating discs, 4-piston radial caliper - Rear: 276 mm disc, 2-piston floating caliper - cornering ABS available- Front: 320 mm floating discs, 4-piston radial caliper - Rear: 265 mm disc, 1-piston floating caliper - ABS available- Front: 320 mm discs, 4-piston caliper - Rear: 320 mm disc, 2-piston caliper - cornering ABS available
InstrumentsTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock
OtherLED lights, riding modes, traction control, heated grips, smartphone connectivity, cruise controlLED lights, riding modes, traction control, engine brake control, USB port, smartphone connectivity, hill start control, self-canceling indicatorsLED lights, riding modes, traction control, USB port, mobile phone connectivity, self-canceling indicatorsLED lights, adaptive headlight, riding modes, traction control, Luggage Rack, Integral Panniers in Body Colour, cruise control, heated gripsLED lights, riding modes, traction control, engine brake control, heated grips, smartphone connectivityLED lights, adaptive headlight, riding modes, traction control, Integral Panniers, smartphone connectivity, USB-C, floor lighting, cruise control, hill-start control, heated grips, reversing aid, centre stand
