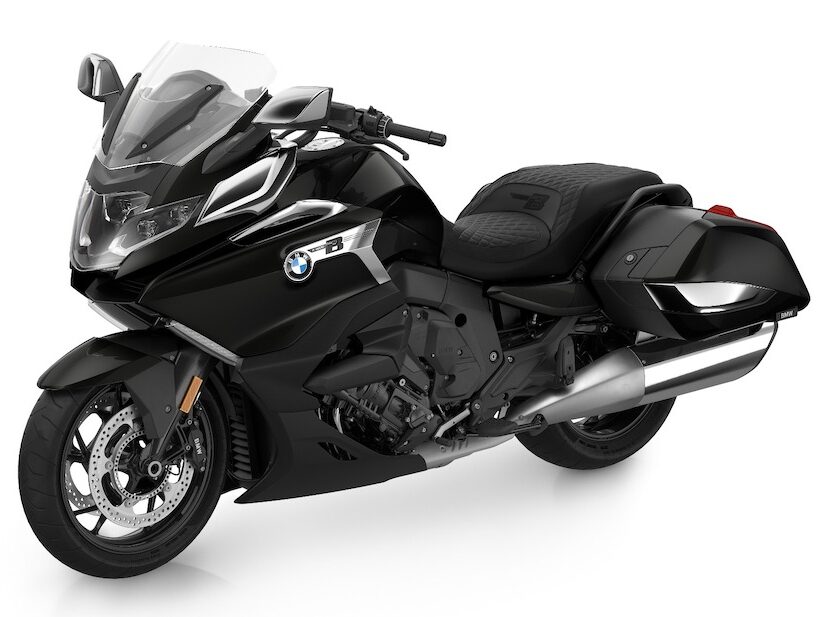

BMW K 1600 B (2022+)

BMW K 1600 B (2022+)

K1600B


Category: Tag:

Specifications

Engine

1649 cc, Inline-6, oil/liquid cooled

Power

160 hp @ 6750 rpm

Torque

180 Nm @ 5250 rpm

Transmission

6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive

Fuel Capacity

26,5 liters

Length

2470 mm (over side case)

Width

1000 mm (including side cases)

Height

1340/1440 mm (adjustable windshield)

Weight

344 kg wet

Seat Height

750 mm

Suspension

– Front: BMW Motorrad Duolever, central spring strut, 115 mm travel
– Rear: BMW Motorrad Paralever, central spring strut, 125 mm travel
– Dynamic ESA “Next Generation” electronic suspension with fully automatic load compensation

Tyres

– Front: 120/70-17
– Rear: 190/55-17

Brakes

– Front: 320 mm discs, 4-piston caliper
– Rear: 320 mm disc, 2-piston caliper
– cornering ABS available

Instruments

TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock

Other

LED lights, adaptive headlight, riding modes, traction control, Integral Panniers, smartphone connectivity, USB-C, floor lighting, cruise control, hill-start control, heated grips, reversing aid, centre stand

Dashboard / Support us

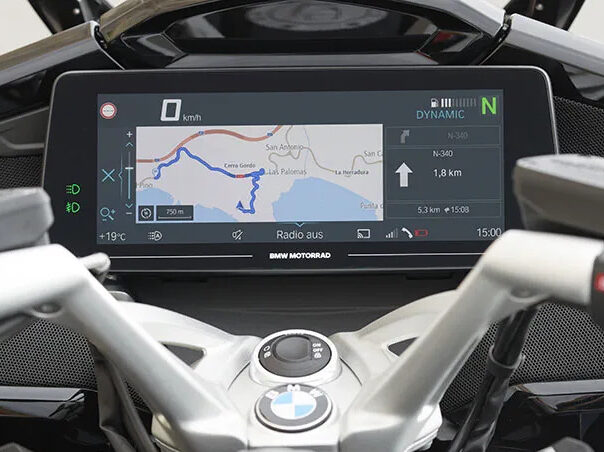

BMW K 1600 B 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsBMW K 1600 B (2022+) removeBMW F 750 GS Sport (2021+) removeHonda Goldwing (2019+) removeBMW R 12 nineT (2024+) Preview removeBMW R NineT (2021+) removeBMW F 850 GS (2021+) remove
NameBMW K 1600 B (2022+) removeBMW F 750 GS Sport (2021+) removeHonda Goldwing (2019+) removeBMW R 12 nineT (2024+) Preview removeBMW R NineT (2021+) removeBMW F 850 GS (2021+) remove

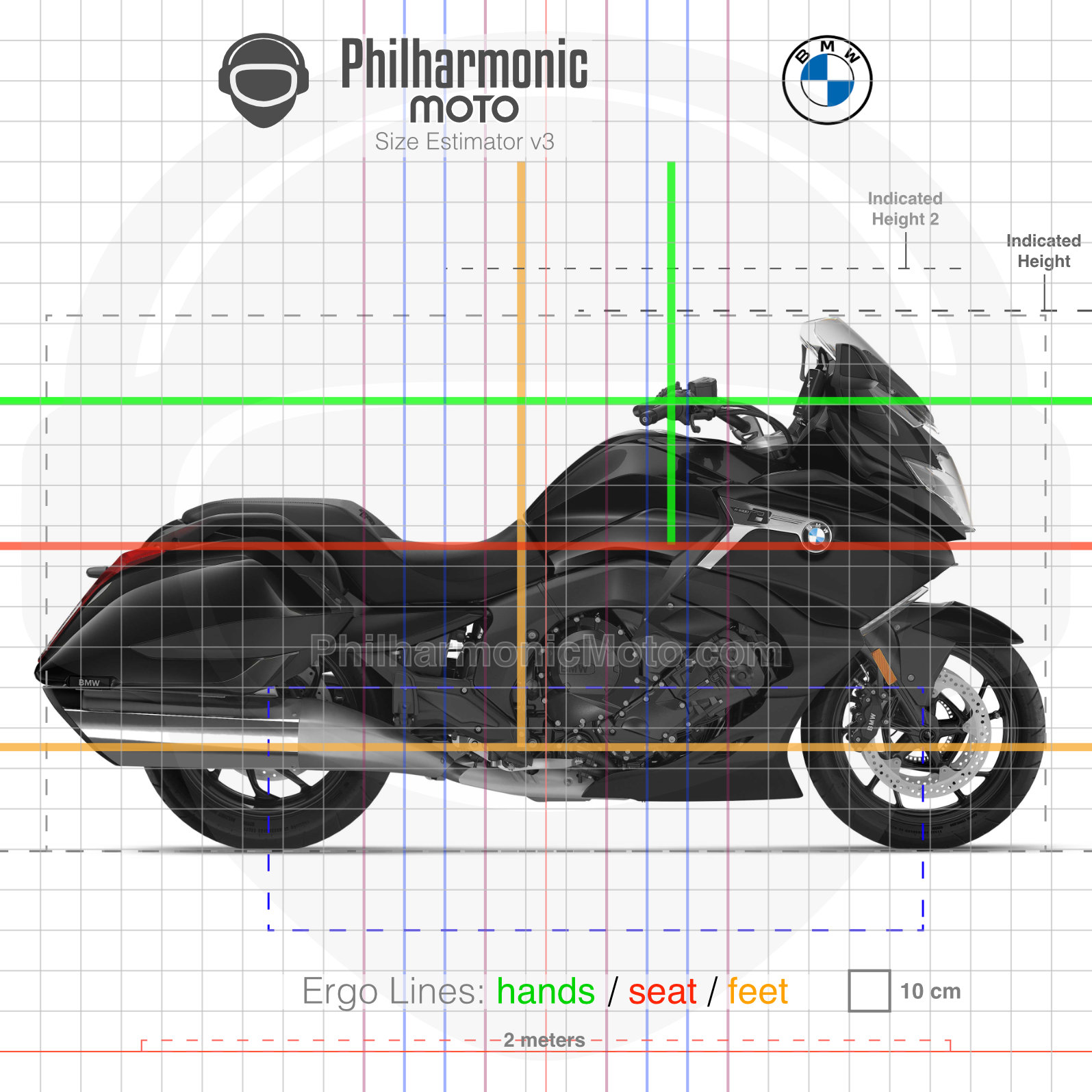

Size Estimator (see "About" page to learn more)BMW K 1600 B 2023 Black Storm MetallicBMW F 750 GS Sport 2023 Light White Racing Blue Metallic Racing RedHonda Goldwing 2020 Matte Black MetallicBMW R 12 nineT 2024 previewBMW RNineT 2021 Blackstorm metallic brushed aluminiumBMW F 850 GS 2023. Racing Red
Length2470 mm (over side case)2255 mm2475 mm-2105 mm2305 mm
Width1000 mm (including side cases)922 mm925 mm-865 mm922 mm
Height1340/1440 mm (adjustable windshield)1225 mm1340/1445 mm (low/high screen position)-1240 mm1356 mm
Seat Height750 mm815 mm745 mm-805 mm860 mm
Weight344 kg wet227 kg wet364 kg wet-221 kg wet233 kg wet
Engine1649 cc, Inline-6, oil/liquid cooled853 cc Parallel-twin, liquid-cooled1833 cc horizontally opposed 6-cylinder, liquid cooled1170 cc, 2-cylinder boxer, air/oil cooled1170 cc, 2-cylinder boxer, air/oil cooled853 cc Parallel-twin, liquid-cooled
Power160 hp @ 6750 rpm77 hp @ 7500 rpm125 hp @ 5500 rpm-109 hp @ 7250 rpm90 hp @ 8000 rpm
Torque180 Nm @ 5250 rpm83 Nm @ 6000 rpm169 Nm @ 4500 rpm-116 Nm @ 6000 rpm86 Nm @ 6250 rpm
Transmission6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed manual + reverse, wet multi-plate clutch, or 7-speed DCT + reverse, shaft final driveShaft final drive6-speed, single dry plate hydraulic clutch, shaft final drive6-speed, wet multi-plate slip/assist clutch, chain final drive
Fuel Capacity26,5 liters15 liters21 liters-18 liters15 liters
Suspension- Front: BMW Motorrad Duolever, central spring strut, 115 mm travel - Rear: BMW Motorrad Paralever, central spring strut, 125 mm travel - Dynamic ESA “Next Generation” electronic suspension with fully automatic load compensation- Front: 41 mm telescopic fork, 170 mm travel - Rear: single shock, adjustable preload and rebound damping, 170 mm travel- Front: double wishbone, 110 mm travel - Rear: single shock, electronically adjustable preload, 105 mm travel- Front: inverted fork - Rear: Paralever- Front: 46 mm inverted fork, 120 mm travel - Rear: BMW Motorrad paralever, central spring strut, adjustable preload (remote), adjustable rebound damping, 120 mm travel- Front: 43 mm telescopic fork, 230 mm travel - Rear: single shock, adjustable preload and rebound damping, 215 mm travel
Tyres- Front: 120/70-17 - Rear: 190/55-17- Front: 110/80-19 - Rear: 150/70-17- Front: 130/70-18 - Rear: 180/60-16- Front: 17 - Rear: 17- Front: 120/70-17 - Rear: 180/55-17- Front: 90/90-21 - Rear: 150/70-17
Brakes- Front: 320 mm discs, 4-piston caliper - Rear: 320 mm disc, 2-piston caliper - cornering ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front brake: 320 mm discs, six-piston Nissin calipers - Rear brake: 320 mm rear disc, six-piston Nissin caliper- Front: discs, monobloc radial 4-piston calipers - Rear: disc- Front: 320 mm discs, 4-piston calipers - Rear: 265 mm disc, 2-piston floating caliper - cornering ABS- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available
InstrumentsTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockAnalogue speedometer and tachometer, touchscreen with mobile connectivity, LCD displays with fuel gauge, temperature gauge, gear indicator, riding modesAnalogue speedometer and tachometer, LCD displayAnalogue speedometer and tachometer, digital odometer, gear position indicator, fuel gauge, range to empty indication, service indicator, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock
OtherLED lights, adaptive headlight, riding modes, traction control, Integral Panniers, smartphone connectivity, USB-C, floor lighting, cruise control, hill-start control, heated grips, reversing aid, centre standLED lights, riding modes, traction control, engine brake control, USB port, mobile phone connectivity, self-canceling indicators, navigation preparation, tire pressure monitor, cruise control, heated grips, luggage rackAirbag, LED lights, Riding modes, Apple CarPlay, traction control, cruise control, hill start assist, TPMS, seat heaterLED lightsLED lights, Riding modes, engine braking control, dynamic traction control, USB, self-cancelling indicators, adaptive headlightLED lights, riding modes, traction control, USB port, mobile phone connectivity, self-canceling indicators
Dashboard / Support usBMW K 1600 B 2022 dashboard   T-shirts, mugs, stickers and more: BMW F 750 GS 2023 dashboard   T-shirts, mugs, stickers and more: honda goldwing dahsboard   T-shirts, mugs, stickers and more: BMW R 12 nineT 2024 dashboard preview   T-shirts, mugs, stickers and more: BMW R NineT 2021 dashboard   T-shirts, mugs, stickers and more: BMW F 750 GS 2023 dashboard   T-shirts, mugs, stickers and more:
