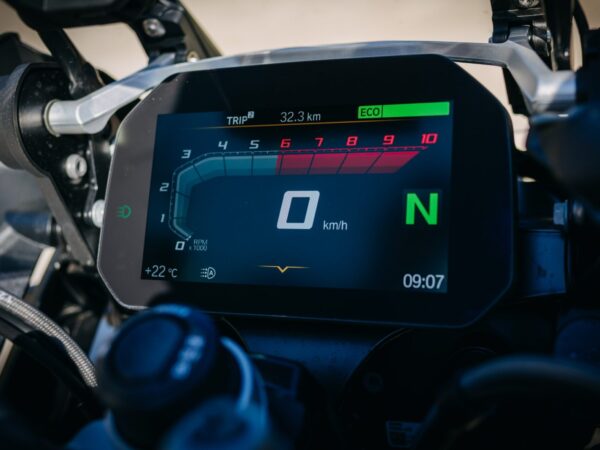

BMW R 1250 GS 2023 dashboard

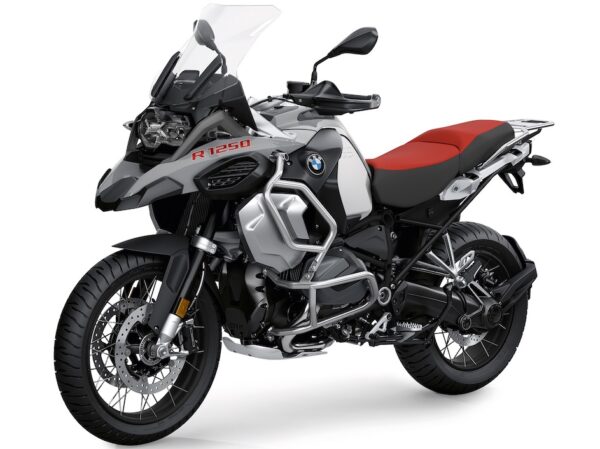

BMW R 1250 GS Adventure (2021+)

BMW R 1250 GS Adventure (2021+)

R1250GS


Category: Tag:

Specifications

Engine

1254 cc Boxer twin, air-liquid-cooled

Power

136 hp @ 7750 rpm

Torque

143 Nm @ 6250 rpm

Transmission

6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive

Fuel Capacity

30 liters

Length

2270 mm

Width

980 mm

Height

1460 mm (over adjustable windshield)

Weight

268 kg wet

Seat Height

890-910 mm

Suspension

– Front: 37 mm telelever central spring strut, 210 mm travel
– Rear: BMW Motorrad Paralever, adjustable hydraulic preload and rebound damping, 220 mm travel

Tyres

– Front: 120/70-19
– Rear: 170/60-17
– Tubeless

Brakes

– Front: 305 mm floating discs, 4-piston radial calipers
– Rear: 276 mm disc, 2-piston floating caliper
– cornering ABS available

Instruments

TFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clock

Other

LED lights, riding modes, traction control, USB port, mobile phone connectivity, centre stand, hill start control, self-canceling indicators, luggage rack, enduro footpegs, skid plate, hand guards, adjustable levers

Dashboard / Support us

BMW R 1250 GS 2023 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsBMW R 1250 GS Adventure (2021+) removeHarley-Davidson Pan America 1250 (2021+) removeHonda CB500X (2022+) removeTriumph Tiger 900 Rally Pro (2020+) removeHonda CB500X (2019-2021) removeYamaha Ténéré 700 (2020-2022) remove
NameBMW R 1250 GS Adventure (2021+) removeHarley-Davidson Pan America 1250 (2021+) removeHonda CB500X (2022+) removeTriumph Tiger 900 Rally Pro (2020+) removeHonda CB500X (2019-2021) removeYamaha Ténéré 700 (2020-2022) remove

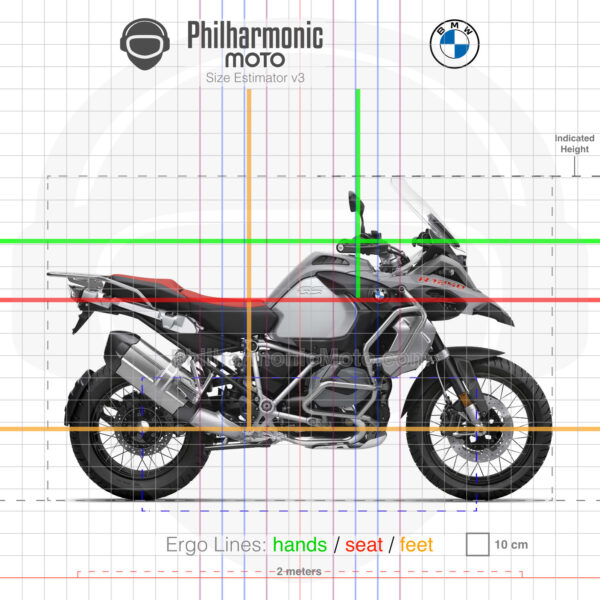

Size Estimator (see "About" page to learn more)BMW R 1250 GS Adventure 2023 Ice GreyHarley-Davidson Pan America 1250 2022 greyHonda CB500X 2022 Pearl Organic GreenTriumph Tiger 900 Rally Pro 2020 Matt KhakiHonda CB500X 2019 Grand Prix RedYamaha Tenere 700 2022 Icon Blue
Length2270 mm2270 mm2155 mm2254 mm (estimated)2155 mm2365 mm
Width980 mm900 mm830 mm935 mm825 mm915 mm
Height1460 mm (over adjustable windshield)1510 mm1410 mm / 1445 mm (Low/High screen position)1452 mm / 1502 mm (low/high screen position)1410 mm / 1445 mm (Low/High screen position)1455 mm
Seat Height890-910 mm850/875 mm (adjustable)830 mm850-870 mm (adjustable)830 mm880 mm
Weight268 kg wet245 kg wet199 kg wet201 kg dry197 kg wet204 kg wet
Engine1254 cc Boxer twin, air-liquid-cooled1252 cc V-Twin, liquid cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank888 cc Inline Triple, liquid-cooled471cc Parallel Twin, liquid cooled689cc Parallel Twin, liquid-cooled
Power136 hp @ 7750 rpm150 hp @ 9000 rpm47 hp @ 8600 rpm93,9 hp @ 8750 rpm47 hp @ 8500 rpm73,4 hp @ 9000 rpm
Torque143 Nm @ 6250 rpm127 Nm @ 6750 rpm43 Nm @ 6500 rpm87 Nm @ 7250 rpm43 Nm @ 7000 rpm68 Nm @ 6500 rpm
Transmission6-speed, wet multi-plate slip/assist hydraulic clutch, shaft final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed, wet multi-plate slip/assist clutch, quick-shifter, chain final drive6-speed, Wet multi-plate assist/slipper clutch, chain final drive6-speed, Wet multi-plate clutch, chain final drive
Fuel Capacity30 liters21,2 liters17,5 liters20 liters17,5 liters16 liters
Suspension- Front: 37 mm telelever central spring strut, 210 mm travel - Rear: BMW Motorrad Paralever, adjustable hydraulic preload and rebound damping, 220 mm travel- Front: 47 mm inverted fork, rebound and spring preload adjustability, 191 mm travel - Rear: piggyback mono-shock, fully adjustable, 191 mm travel- Front: Showa 41 mm SFF-BP USD forks, pre-load adjustable, 135 mm travel - Rear: Prolink mono with 5 stage preload adjuster, 135 mm travel– Front: Showa 45 mm inverted fork, manual preload, rebound damping and compression damping adjustment, 240 mm travel – Rear: Showa mono-shock, manual preload and rebound damping adjustment, 230 mm wheel travel- Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel - Rear: mono-shock with 9 stage preload adjuster, 135 mm travel- Front: 43 mm inverted forks, fully adjustable, 210 mm travel - Rear: mono-shock, adjustable preload and rebound damping, 200 mm travel
Tyres- Front: 120/70-19 - Rear: 170/60-17 - Tubeless- Front: 120/70-19 - Rear: 170/60-17- Front: 110/80-19 - Rear: 160/60-17– Front: 90/90-21 – Rear: 150/70-17 – Tubeless- Front: 110/80-19 - Rear: 160/60-17- Front: 90/90-21 - Rear: 150/70-18
Brakes- Front: 305 mm floating discs, 4-piston radial calipers - Rear: 276 mm disc, 2-piston floating caliper - cornering ABS available- Front: 320 mm floating discs, monoblock 4-piston radial calipers - Rear: 280 mm disc, 1-piston floating caliper - cornering ABS available- Front: Dual 296 mm disc, Nissin radial-mount 2-piston calipers - Rear: 240 mm disc, single-piston caliper- Front: 320 mm floating discs, Brembo Stylema 4-piston monobloc calipers - Rear: 255 mm disc, Brembo 1-piston sliding caliper - cornering ABS available- Front: 310 mm wavy disc, 2-piston caliper - Rear: 240 mm wavy disc, single-piston caliper- Front: 282 mm discs, 2-piston calipers - Rear: 245 mm disc, single-piston caliper - switchable ABS available
InstrumentsTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockTFT touchscreen with speedometer, tachometer, odometer, fuel gauge, gear indicator, trip meter, mobile phone connectivity, clockLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP Indicator7 inch TFT display with speedometer, tachometer, gear indicator, fuel gauge, dual trip meters, clockLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicatorLCD display with digital tachometer, odometer, speedometer, gear indicator, fuel gauge, fuel range, average and instant fuel consumption, dual trip meters, clock
OtherLED lights, riding modes, traction control, USB port, mobile phone connectivity, centre stand, hill start control, self-canceling indicators, luggage rack, enduro footpegs, skid plate, hand guards, adjustable leversLED lights, cornering traction control, wheelie control, riding modes, Tire Pressure Monitoring System (TPMS), hill hold, USB-C portLED lights, emergency braking blinking lights, "cam chain has the surface of its pins treated with Vanadium"LED lights, Riding modes, cornering traction control, under seat phone storage and USB charging, smartphone connectivity, illuminated switches, cruise control, heated grips, heated seat with separate pillion control, TPMS, LED fog lights, centre standLED lights, emergency braking blinking lightsLED headlight
