Harley-Davidson Roadster (2016-2020)

XL1200CX Sportster Roadster

Brand: Style:
Share:

Specifications and Features

Engine

1202 cc V-twin, air-cooled

Power

66 hp @ 5500 rpm

Power to weight ratio

26 HP/100kg

Torque

103 Nm @ 3750 rpm

Torque to weight ratio

40 Nm/100kg

Transmission

– 5-speed, wet multi-plate clutch
– Belt final drive

Fuel Capacity

12,5 litres

Length

2185 mm

Width

860 mm

Height

1080 mm

Weight

– 259 kg wet
– Max load: 195 kg

Seat Height

785 mm

Suspension

– Front: 43 mm inverted fork, 114 mm travel
– Rear: twin-shocks, adjustable preload, 81 mm travel

Tyres

– Front: 120/70-19
– Rear: 150/70-18

Brakes

– Front: 300 mm floating discs, 2-piston calipers
– Rear: 260 mm disc, 2-piston caliper
– ABS available

Instruments

Analogue tachometer, LCD display with speedometer, odometer, gear indicator, low fuel warning light, dual tripmeter, range, clock

Other

– Self-cancelling indicators
– Optional: keyless ignition

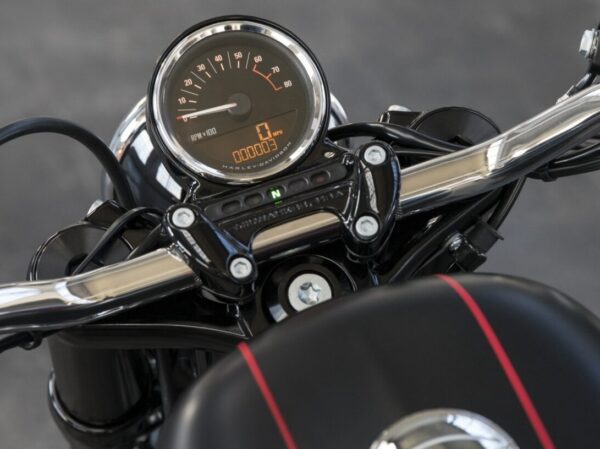

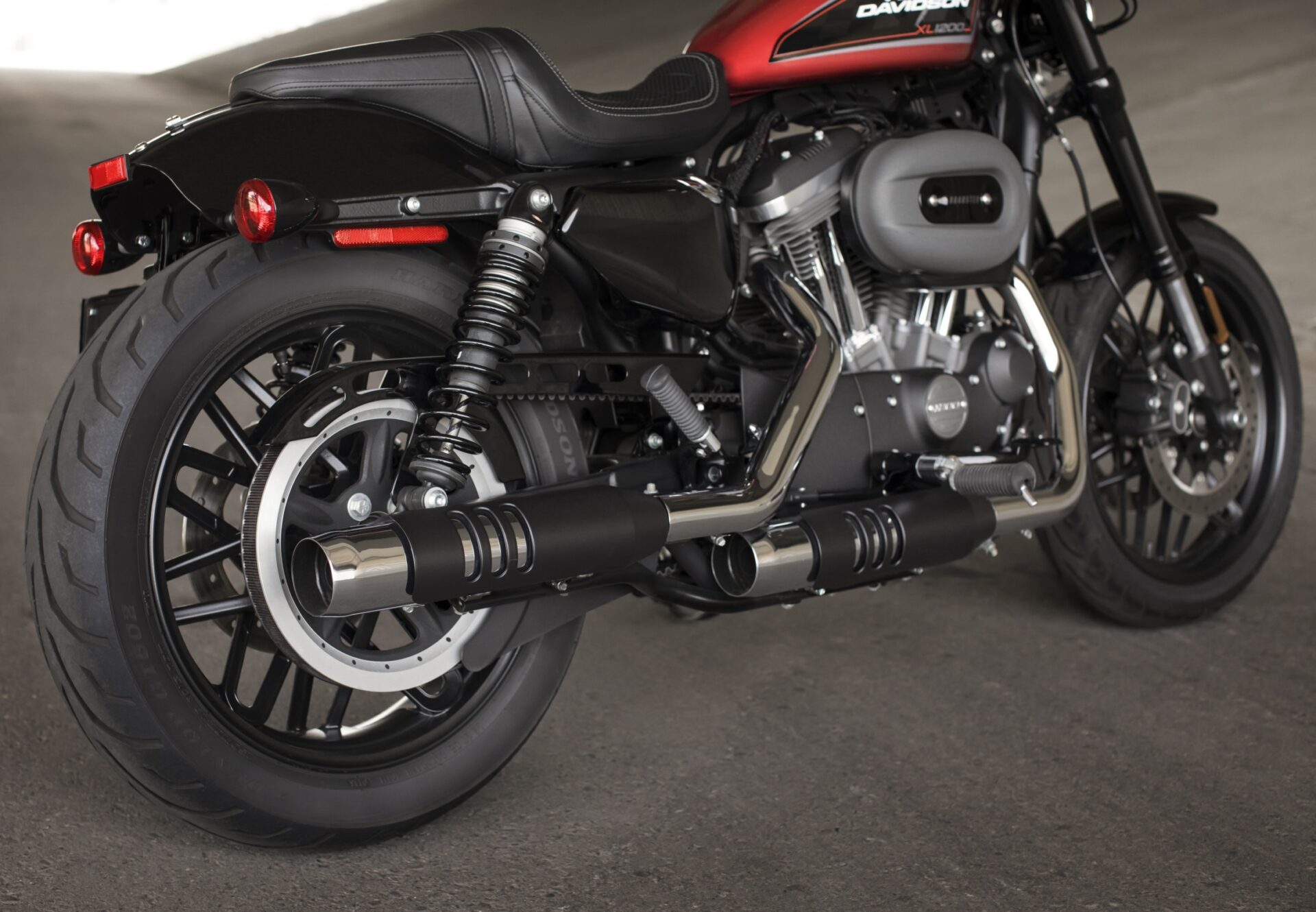

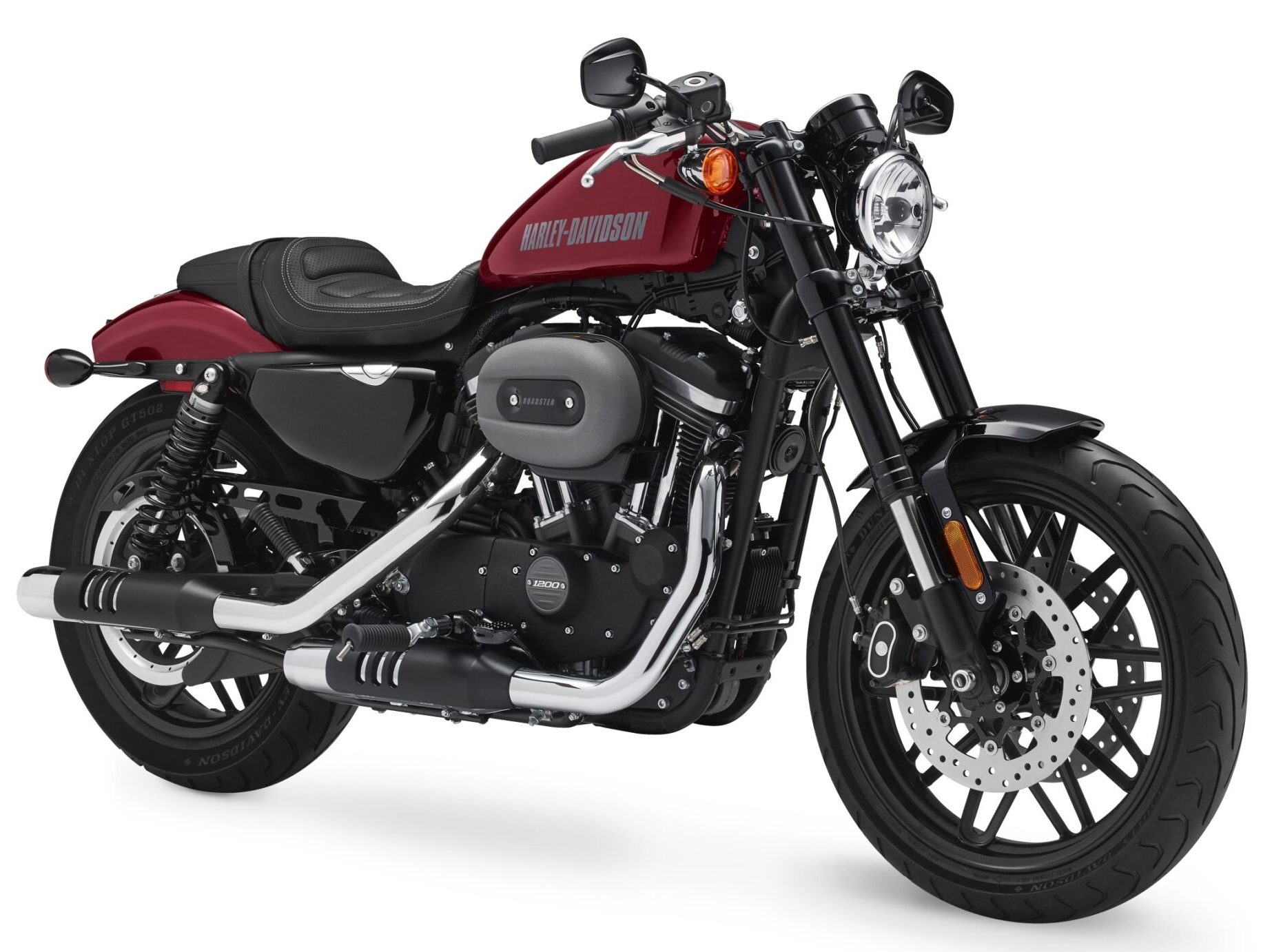

Harley-Davidson Roadster 2017 dashboard Harley-Davidson Roadster 2017 front Harley-Davidson Roadster 2019 back
