Honda Shadow Phantom 2022 dashboard

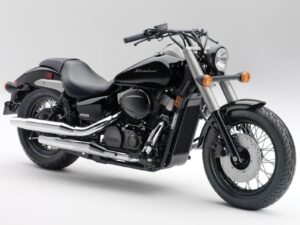

Honda Shadow Phantom (2009+)

Honda Shadow Phantom (2009+)

VT750C2B, Black Spirit


Category: Tag:

Specifications

Engine

745 cc V-Twin, liquid cooled

Power

44 hp @ 5500 rpm

Torque

62 Nm @ 3500 rpm

Transmission

5-speed, Wet multi-plate, shaft final drive

Fuel Capacity

14 liters

Length

2405 mm

Width

825 mm

Height

1090 mm

Weight

250 kg wet

Seat Height

650 mm

Suspension

– Front: 41 mm telescopic fork, 117 mm travel
– Rear: Dual shocks with adjustable preload, 90 mm travel

Tyres

– Front: 120/90-17
– Rear: 160/80-15

Brakes

– Front: 296 mm disc, 2-piston caliper
– Rear: 180 mm drum

Instruments

Analogue speedometer, digital odometer

Other

Dashboard / Support us

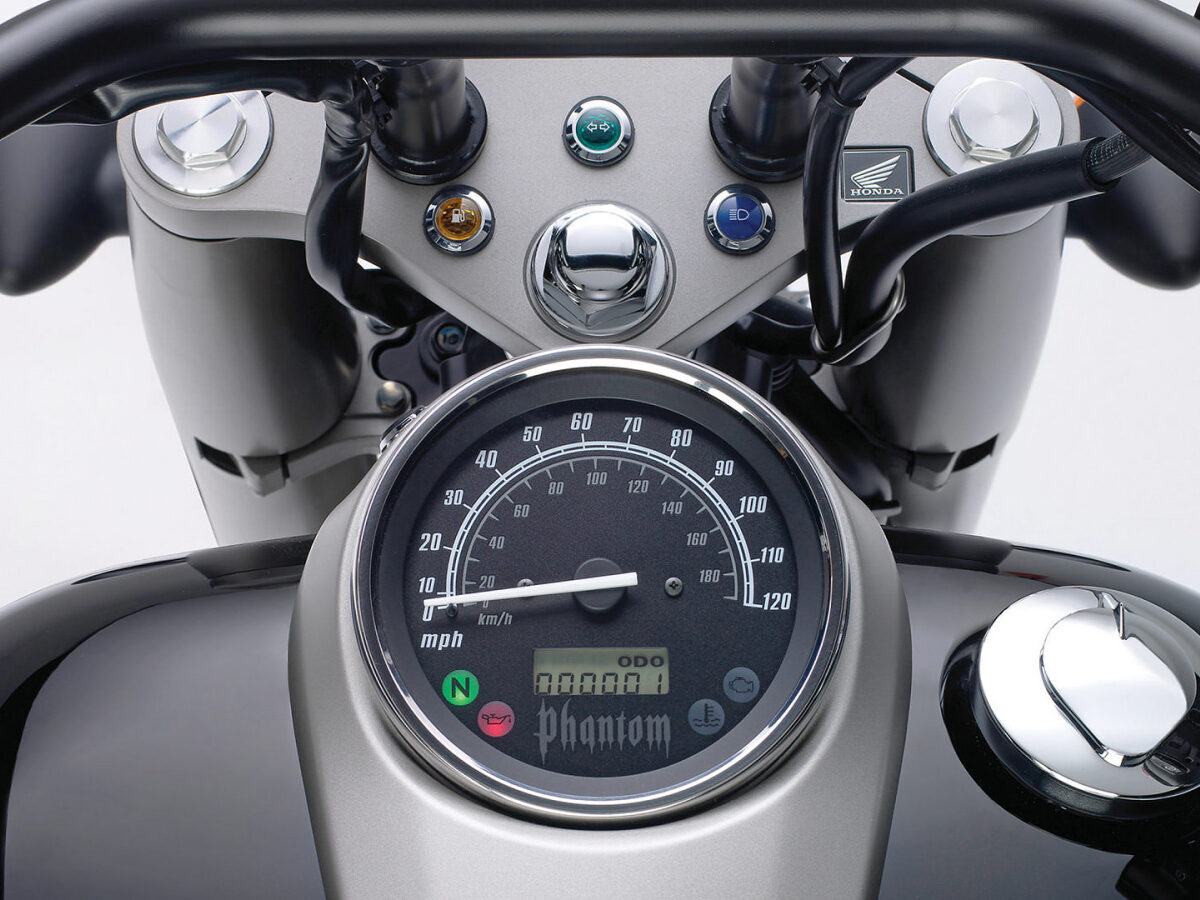

Honda Shadow Phantom 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda Shadow Phantom (2009+) removeHonda CB250F Twister (2019+) removeHonda CB400 Super Four (2014-2017) removeHonda CB750 Hornet (2023+) removeHonda CB300R (2018-2022) removeHonda Rebel 500/CMX500 (2020+) remove
NameHonda Shadow Phantom (2009+) removeHonda CB250F Twister (2019+) removeHonda CB400 Super Four (2014-2017) removeHonda CB750 Hornet (2023+) removeHonda CB300R (2018-2022) removeHonda Rebel 500/CMX500 (2020+) remove

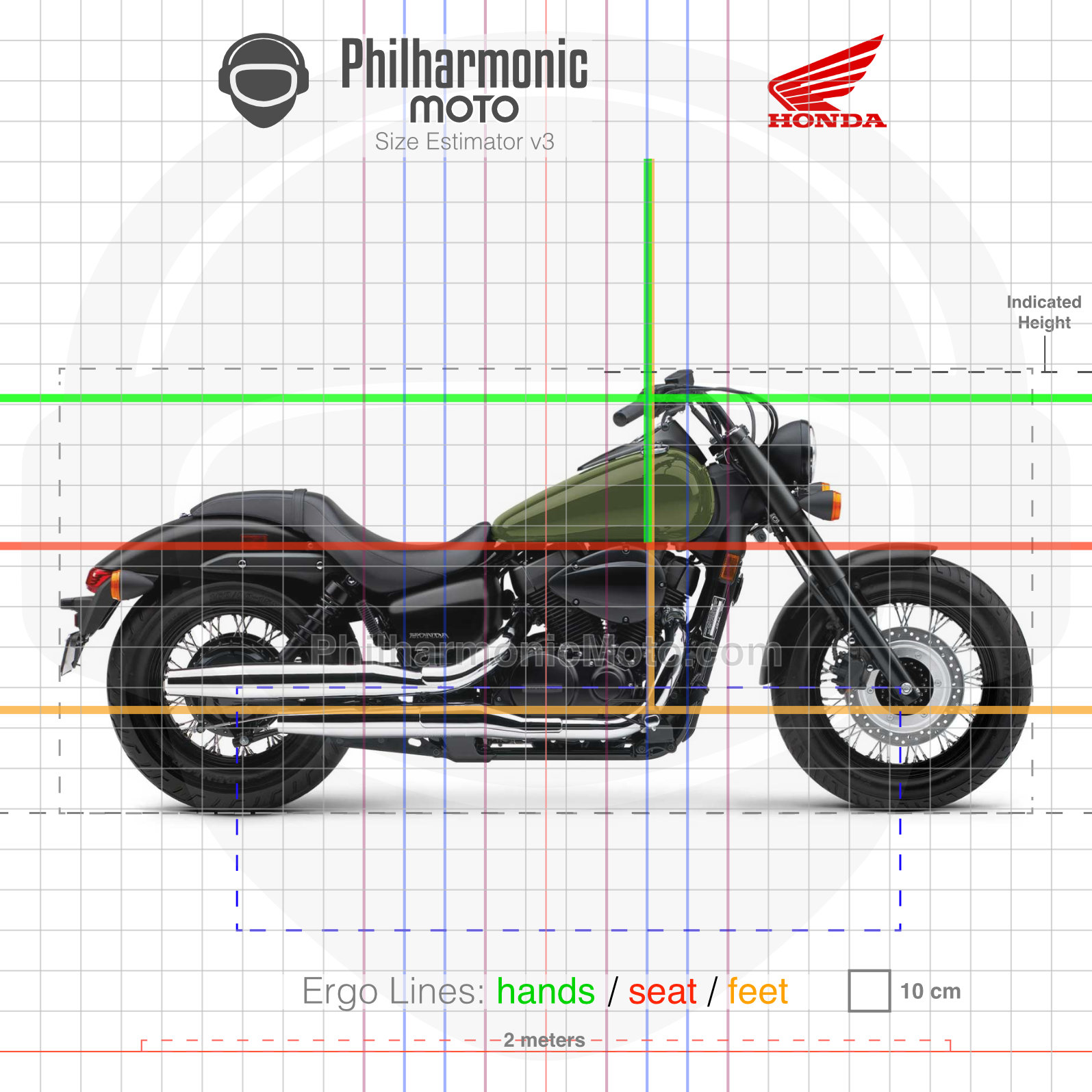

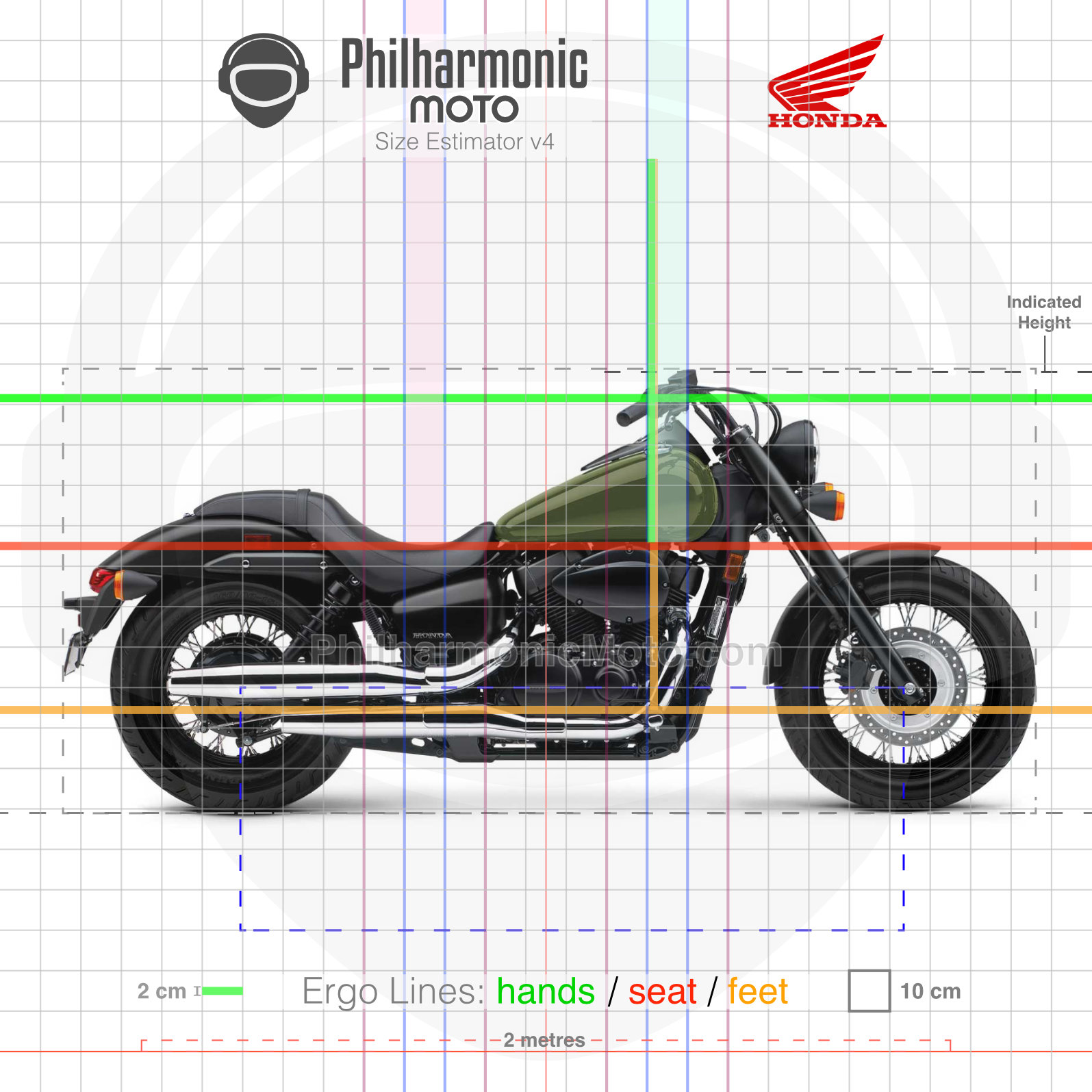

Size Estimator (see "About" page to learn more)Honda Shadow Phantom 2022 adventure greenHonda CB250F Twister ABS 2020 YellowHonda CB400SF Super Four 2014 white redHonda CB750 Hornet 2023 Matte Iridium Gray MetallicHonda CB300R 2022 Matte Pearl BlueHonda Rebel 500 cmx500 2020 Matte Axis Grey Metallic
Length2405 mm2065 mm2040 mm2090 mm2020 mm2205 mm
Width825 mm753 mm725 mm780 mm805 mm820 mm
Height1090 mm1072 mm1070 mm1085 mm1050 mm1090 mm
Seat Height650 mm784 mm755 mm795 mm799 mm690 mm
Weight250 kg wet137 kg wet197 kg wet190 kg wet145 kg wet191 kg wet
Engine745 cc V-Twin, liquid cooled249,5 cc Single-cylinder, air cooled399cc Inline-4, liquid-cooled, 16 valve DOHC755cc Parallel Twin, liquid cooled, 270º crank286cc Single-cylinder, liquid cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank
Power44 hp @ 5500 rpm22,4 hp @ 7500 rpm53 hp @ 10500 rpm90,5 hp @ 9500 rpm31 hp @ 8500 rpm47 hp @ 8500 rpm
Torque62 Nm @ 3500 rpm21 Nm @ 6000 rpm38 Nm @ 9500 rpm75 Nm @ 7250 rpm27,5 Nm @ 7250 rpm45 Nm @ 6000 rpm
Transmission5-speed, Wet multi-plate, shaft final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive6-speed, wet multi-plate clutch, chain final drive6-speed, slip/assist clutch, chain final drive
Fuel Capacity14 liters16,5 liters18 liters15,2 liters10,1 liters11,2 liters
Suspension- Front: 41 mm telescopic fork, 117 mm travel - Rear: Dual shocks with adjustable preload, 90 mm travel- Front: telescopic fork, 130 mm travel - Rear: mono-shock, 108 mm travel- Front: 43mm telescopic forks, 120 mm travel - Rear: twin shock, adjustable preload, 110 mm travel- Front: 43 mm inverted forks, pre-load adjustable, 130 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 150 mm travel- Front: 41 mm inverted forks, 130 mm travel - Rear: mono-shock, adjustable preload, 107 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel
Tyres- Front: 120/90-17 - Rear: 160/80-15- Front: 110/70-17 - Rear: 140/70-17- Front: 120/60-17 - Rear: 160/60-17- Front: 120/70-17 - Rear: 160/60-17- Front: 110/70-17 - Rear: 150/60-17- Front: 130/90-16 - Rear: 150/80-16
Brakes- Front: 296 mm disc, 2-piston caliper - Rear: 180 mm drum- Front: 276 mm disc - Rear: 220 mm disc - ABS available- Front: Dual 296 mm floating discs, 4-piston calipers - Rear: Single 256 mm disc, single piston caliper - ABS available- Front: 296 mm discs, 4-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available- Front: 296mm disc, 4-piston caliper - Rear: 220mm disc, single-piston caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available
InstrumentsAnalogue speedometer, digital odometerLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clockAnalogue tachometer and speedometer, central LCD screen with gear position, fuel consumption, thermometer, odometer, fuel gaugeTFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modesLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gauge
Other-LED indicatorsLED tail lightLED lights, traction control, cruise control, wheelie control, engine braking, riding modes, USB-C socket, self-canceling indicators, smartphone voice controlFull LED lightingFull LED lighting
